Ceramic machines

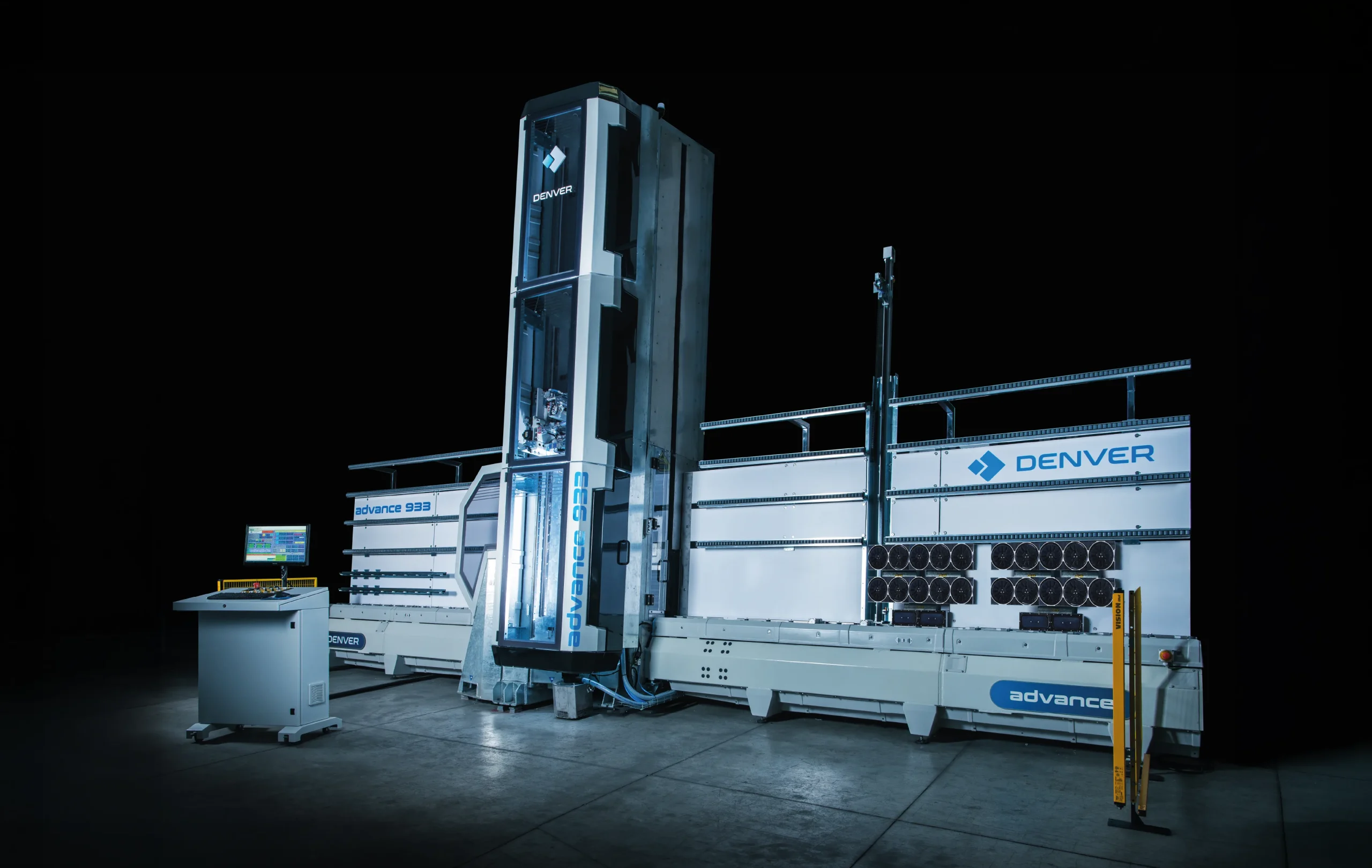

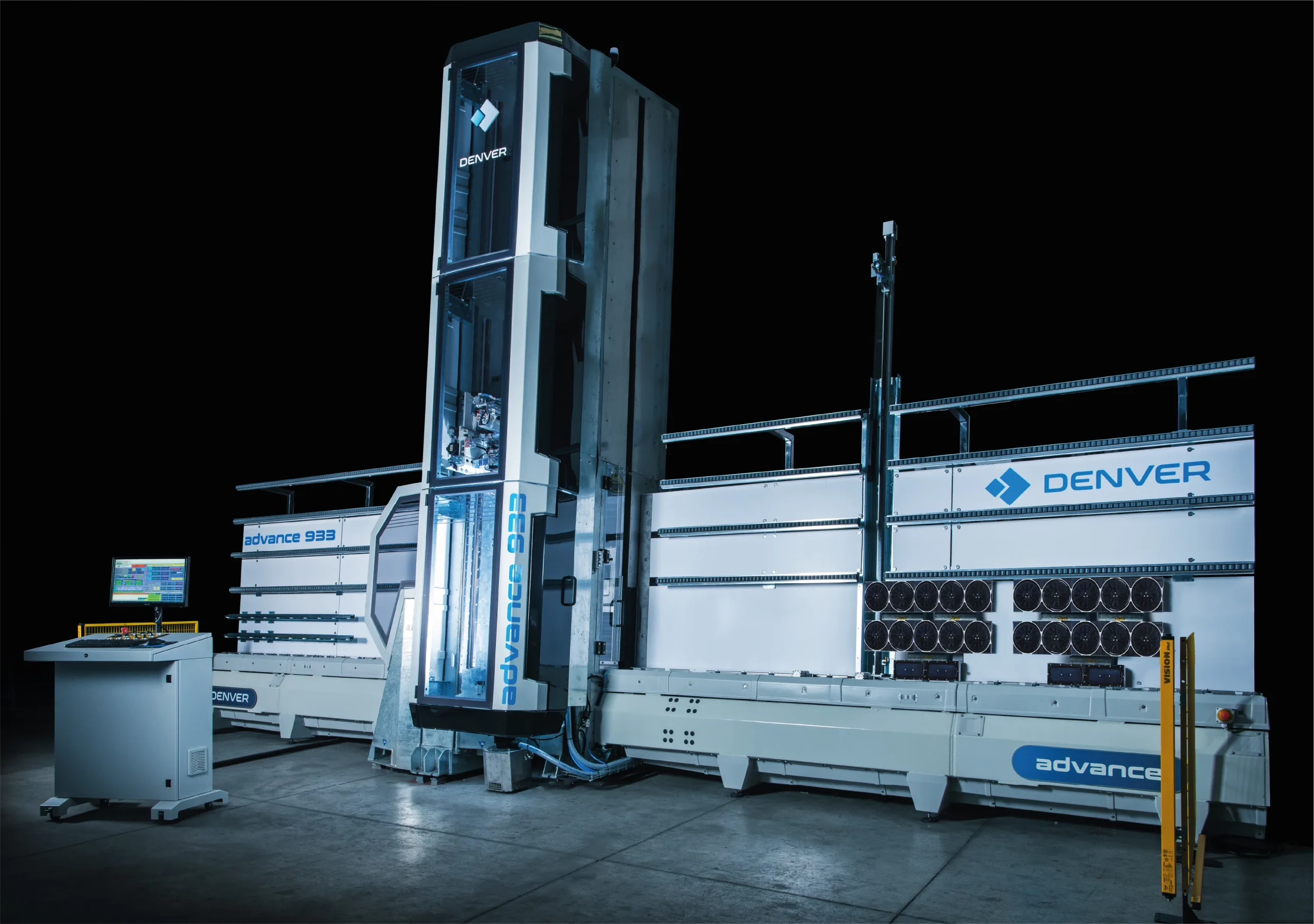

Advance 933

CNC VERTICAL WORKING CENTER

Interested? Let’s talk

THE STATS

Advance 933main data of the machine

Weight / Size LxDxH

19000 lbs / 534 x 156.7 x 197”
8600 kg / 13560 x 3980 x 5010mm

Max. workable size

X 9000 mm – 354 “
Y 3300 mm – 130 “

Max. handling size

354 x 130”
9000 x 3300mm

Max. sheet load

1874lbs
850 Kg

Workable thickness subject to max load

Min. 4 mm – Max. 21 mm

Min. workable size

X 530 mm – 20,9 “
Y 170 mm – 6,7 “

Working height

29.1”
740 +- 10mm

Electrospindles specs

Front and rear: 7,8 kW/10,6 Hp (S6) air cooled, with ISO40 Mas-ARC fitting. max. 10.000 RPM

Internal cooling clean water

4 gal/min
15 lt/min

External tool cooling water

30 gal/min
120 lt/min

Independent shuttles system

Standard

Software

PILOT EVO or PRO TECH powered by DDX

Rotary ATC

Position n. 12 + 10

Installed power

kW 20

SKEMA

Features

Projects, technologies, events and insights from the world of stone and glass processing.

GLASS HOLDING SYSTEM

SYSTEM FOR WORKPIECE HOLDING Automatic positioning vacuum cups with exclusive air-operated on-off workpiece holding system; Maximun uptime; Patented air-operated cups…

Glass driving system with water cushion

Twin pads and contrast rollers to ensure perfect piece holding in the very processing area.

Cooling water automatic

recirculation circuit Collection through lower stainless steel tank. Recovery and decantation through 2 rear tanks, with recirculation pump.

Advance Series has it all…

• All functions integrated in one work station • Zeroed glass handling between tasks • 1 operator • Limited footprint…

CUSTOMIZABLE CUPS LAY-OUT

VACUUM CUPS CONFIGURATION 2 independent shuttles with variable cup lay-out. Shadow areas (where cups interfere with tool path) are minimized…

Rotating tools magazines

Automatic rotating tool magazines with 12 positions for the front electrospindle, suitable with stacked wheels and with tools with max.…

Operating Groups

Double fan-cooled spindles, front and rear, with internal water tool cooling system for drilling, routing and edging. They feature ISO40…

Edge polishing

”SHINE package” with automatic dynamically contelled tool wear compensation for unmatched edge brightness. The vertical alternative to the traditional horizontal…

Hot zinc-coated vertical structure

Specifically engineered frame to deliver long lasting sturdiness and reliability in most challenging working conditions. Special corrosion-proof treatment on guideways…

Cups modular system

For small pieces such as backslashes, stripes and other elements for shop fitting, electroappliances and technical glass applications.

Automatic lubrication pump

Automatic centralized lubrication at programmable intervals.

SKEMA

Processing

What you can do with this machine

Ask for more

Squaring and Arrising

Drilling with Twin Counter-Heads

Edge Polishing

Milling

SKEMA

Optionals

Available configurations and optional equipment connected to this product.

Ask for more

Low-E

Low-E Friendly configuration with touchless glass driving system operated with water cushion and air knives.

Tools redressers and gauge

Polishing wheels and drill bits redressers are available on demand to make a perfect package in combination with mechanical on-board…

D-Shaping_PATENTED

Advance d-Shaping is the one and only vertical center processing primitive shaped glasses as well as workpieces with awkward shape,…

Den-Cut

THE SOLUTION FOR MAKING MEDIUM AND LARGE-SIZED MILLING OPERATIONS EASY, SAVING TIME AND INCREASING PRODUCTIVITY Dedicated software automatically manages the…

In line washing set-up

On demand Advance can be offered with Pre-wiring for in-line vertical washing machine connection.

Parametric operator interface

Operator interface for parametric programming and import of DXF files, EASY, FAST, AND CUSTOMIZABLE. Highly recommended for the ease of…

Cad-Cam operator interface

A powerful, worldwide renowned user-friendly software provides productivity improvement and less material waste. Simple interface and new functions enable programming…

“Flow” configuration

For non-stop multiple workpieces processing (even with glasses that are different between each other). It allows to off-load the finished…

Frequently asked questions

Find quick answers about configuration, installation and production use.


Where can I find the complete product technical datasheets?

Technical datasheets for all models are available in the Products section of the website. For detailed documentation or technical drawings, you can also contact our sales department.


Are CAD-CAM software packages included with the machine?

Yes, Denver machines are supplied with dedicated CAD-CAM software already configured. The license, training and updates are included in the standard supply package.
