Stone line

Skema

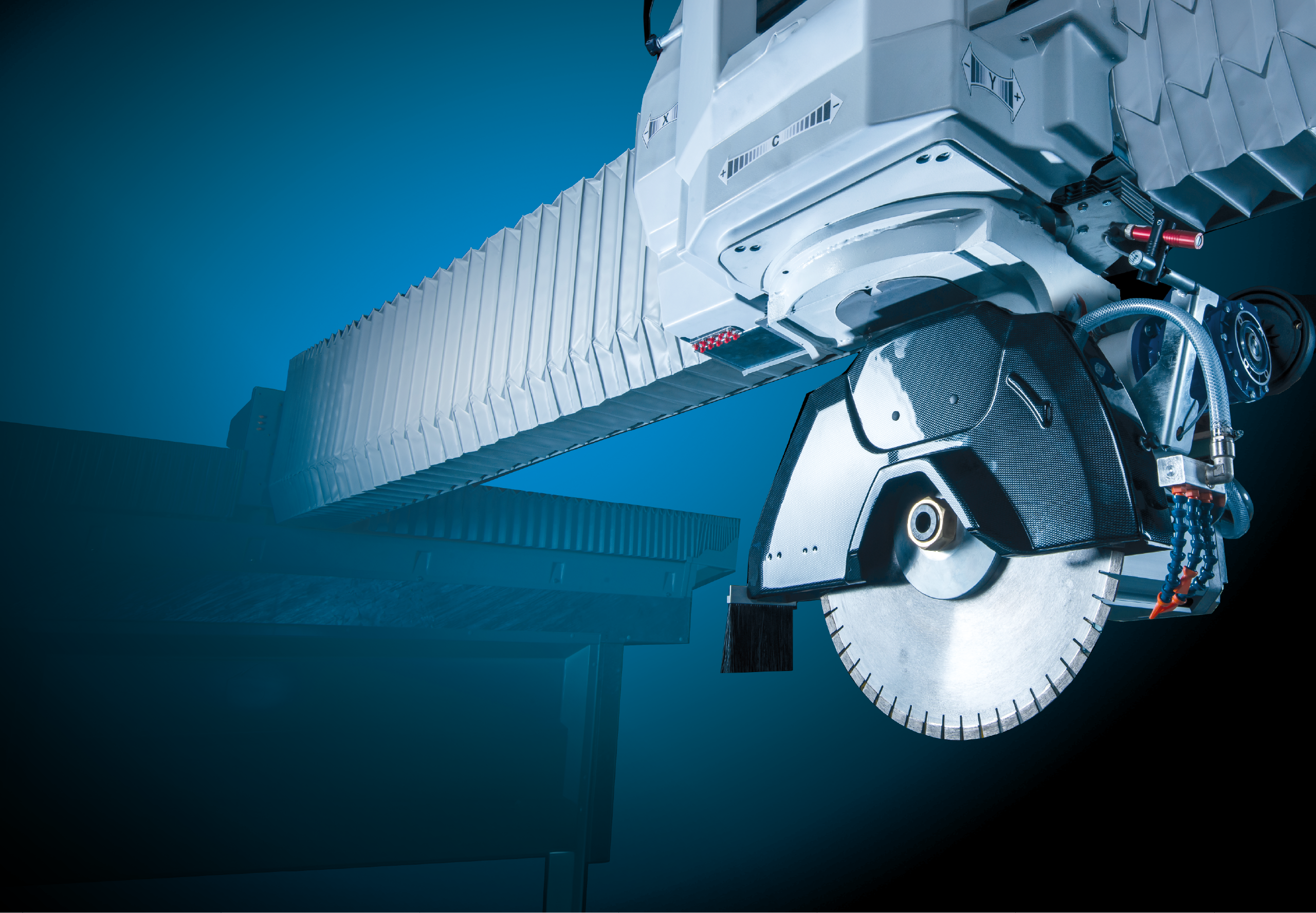

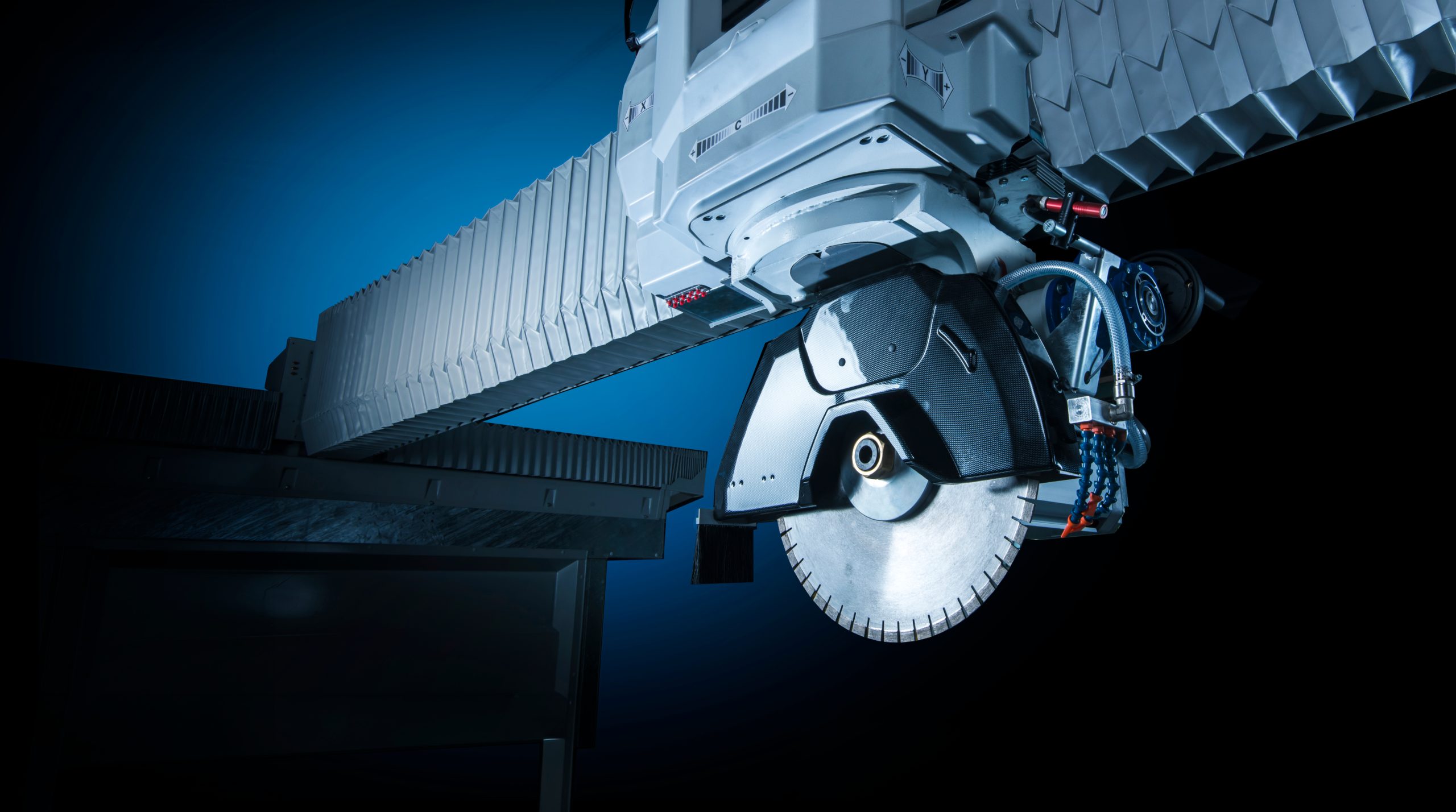

3/4 axes monobloc bridge sawing machine with rotating head

Interested? Let’s talk

THE STATS

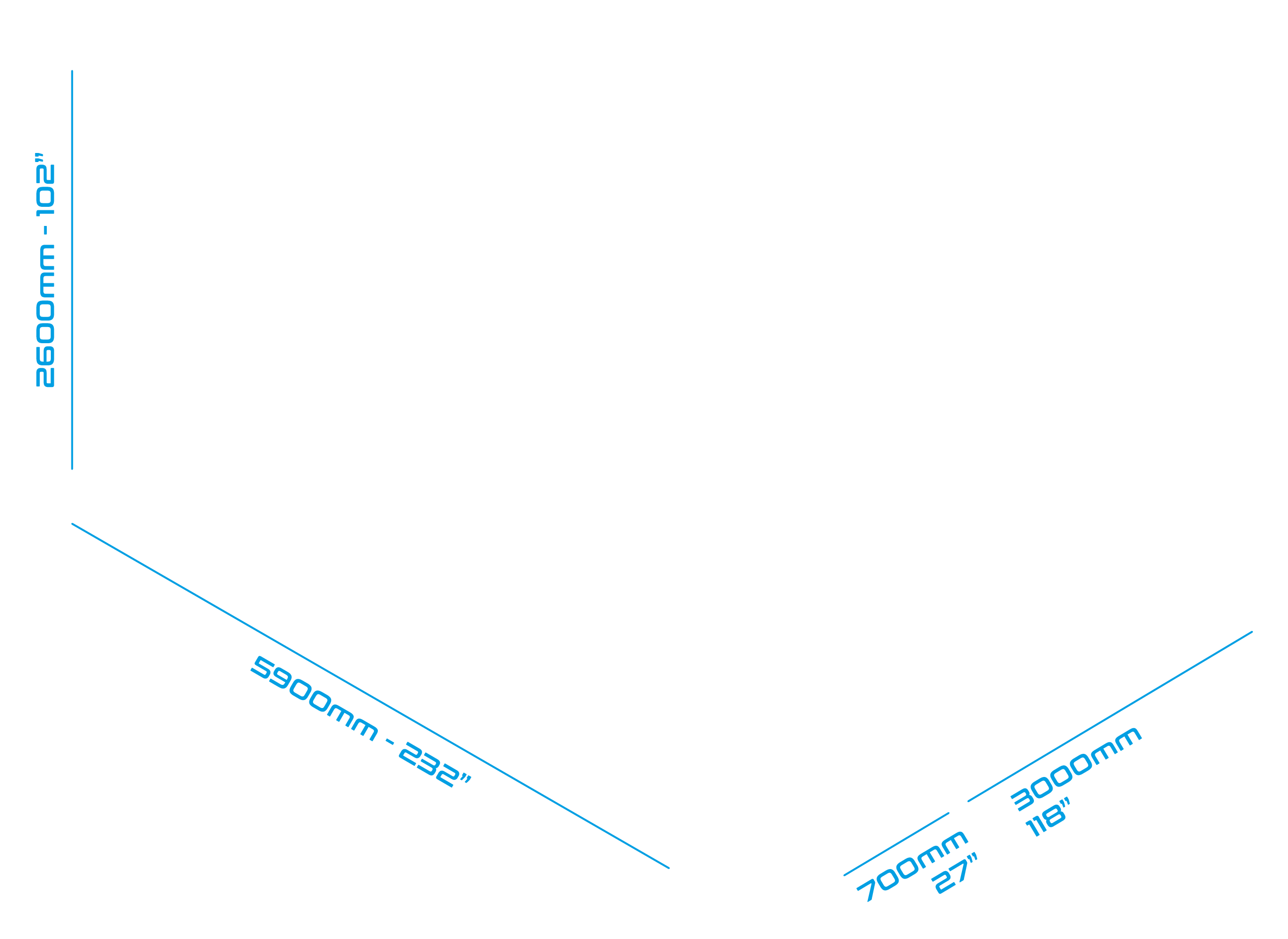

Skemamain data of the machine

Work Area

X 3500 mm – 137,8“
Y 1900 mm – 74,8“
Z 370 mm – 14,5“

A axis

0° – 90°

C axis

0°- 90°
opt. 0°- 180°

Motor power

Kw 11 – Hp 15 (S6)
800 ÷ 3000 rpm

Disc diameter

350÷500 mm
13 ÷ 20”
opt. 625 mm / 24”

Weight

3200 kg
7000 lbs

SKEMA

Features

Projects, technologies, events and insights from the world of stone and glass processing.

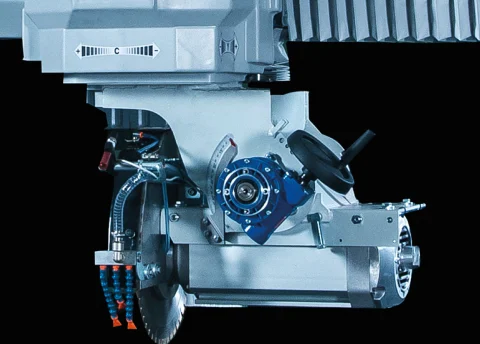

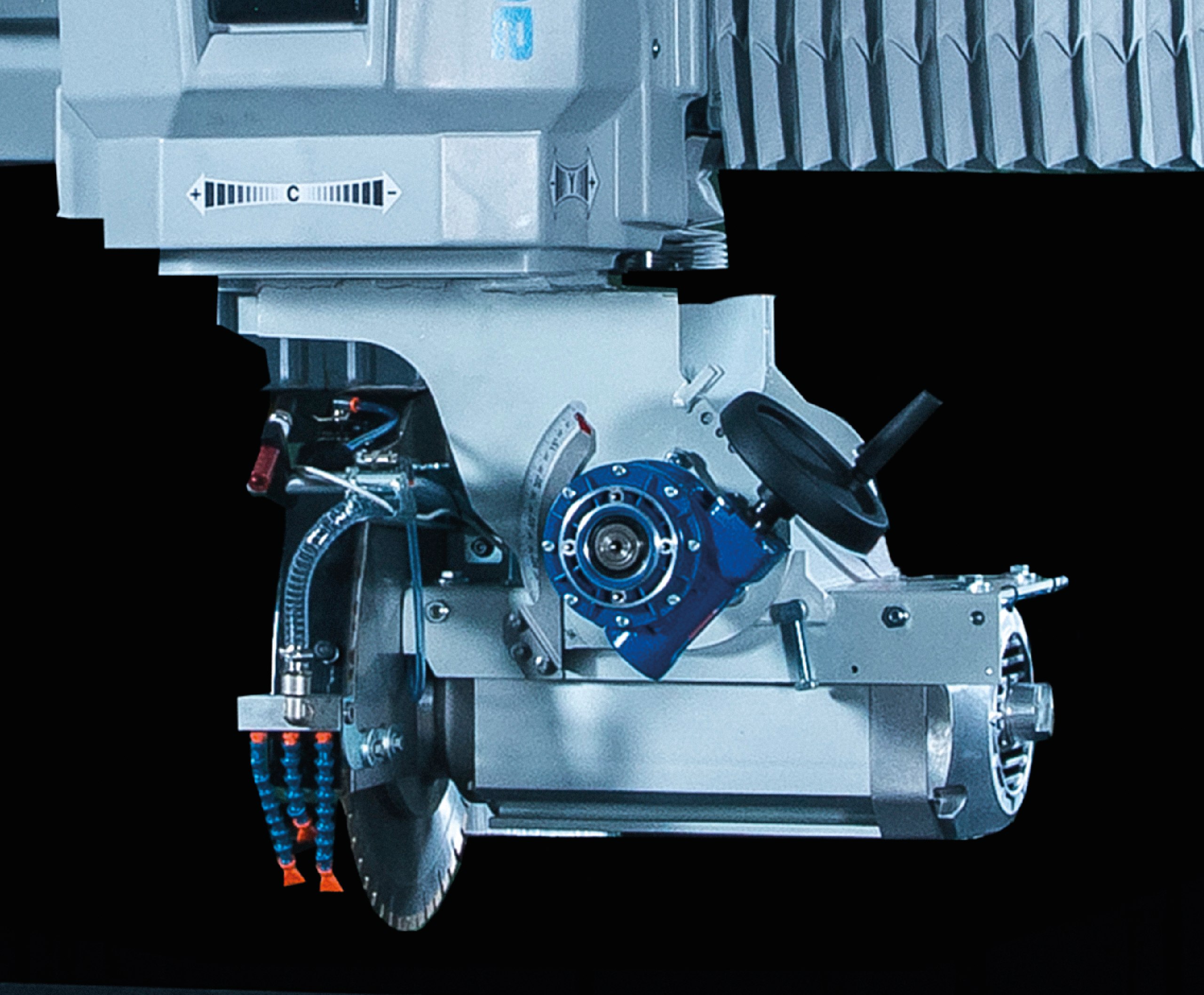

Rotating Head 0° – 90° (C axis)

For width-wise and length-wise cuts without need to move the slab

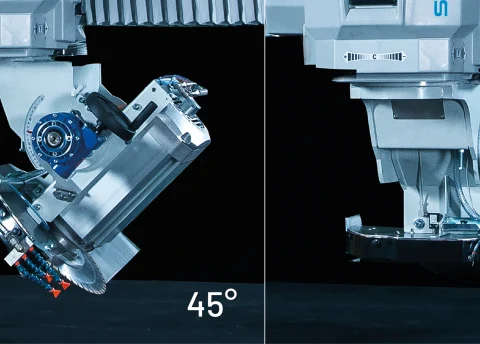

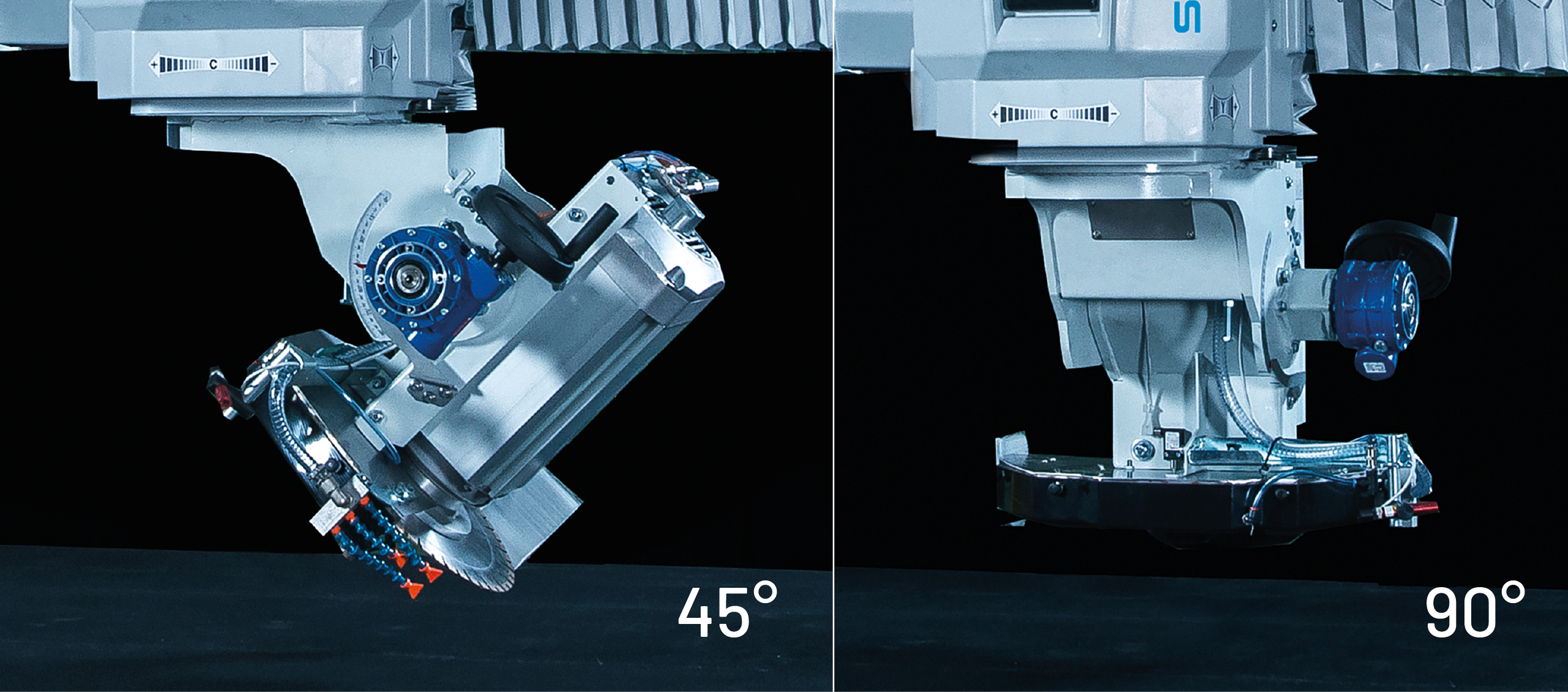

Manual A-axis Head Inclination

• 45° for precise miter cuts; • 90° for cornice profi ling

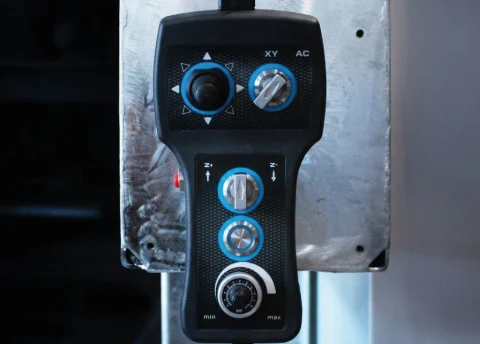

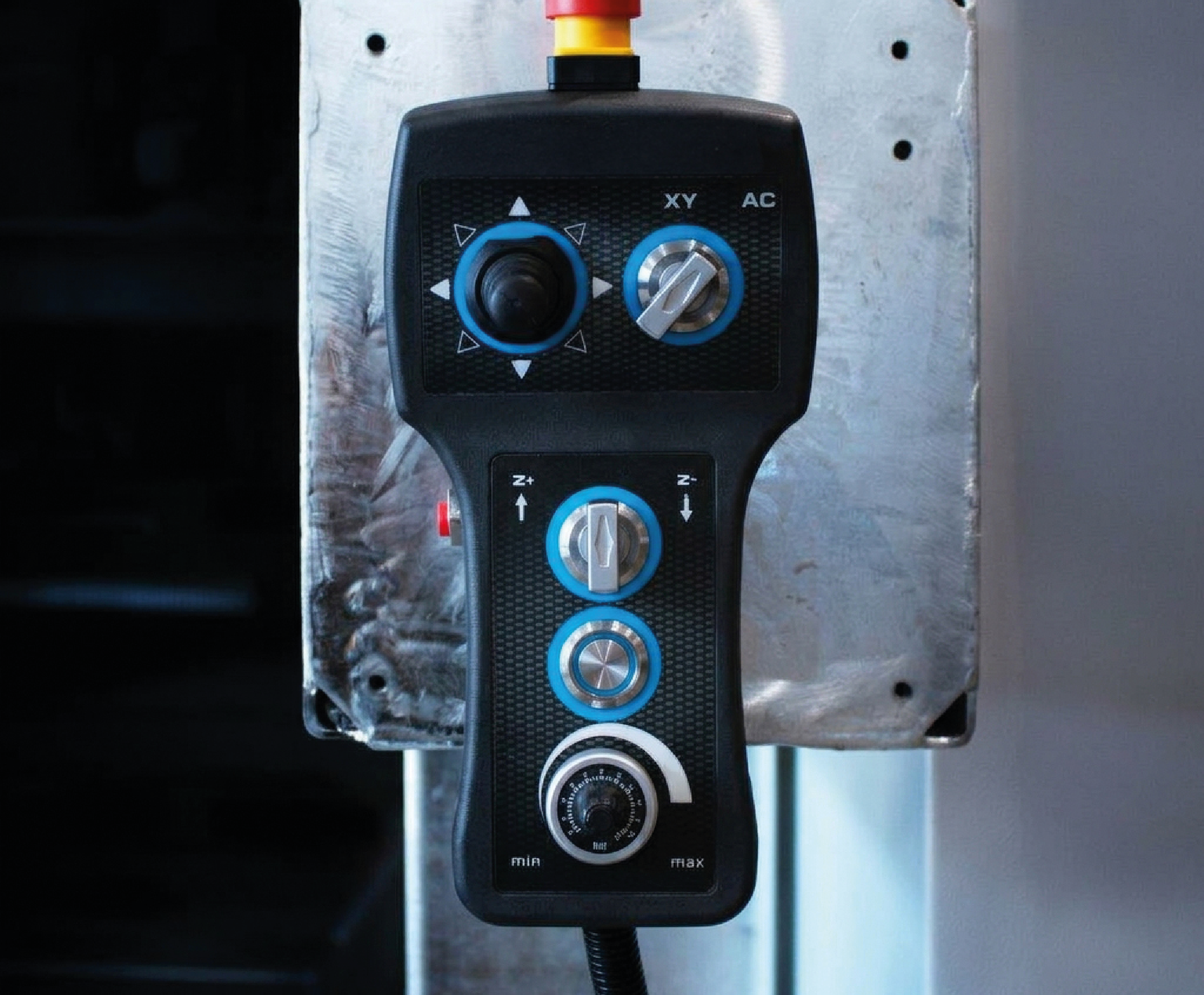

Remote Control

Equipped with joy-stick

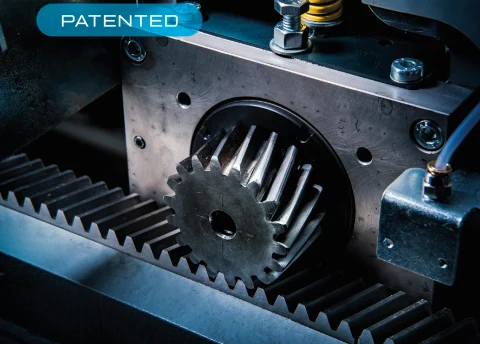

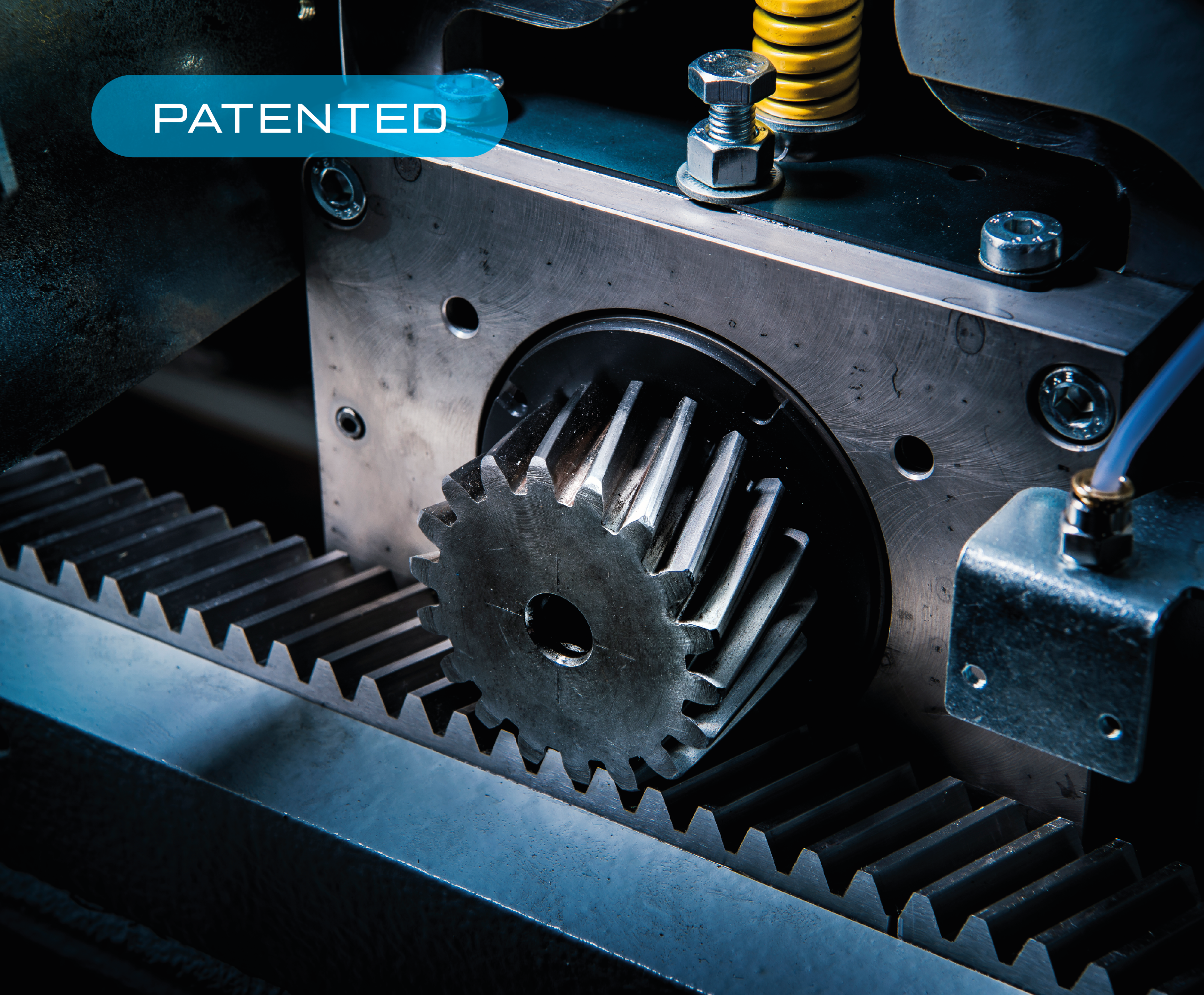

Linear Guides and Helicoidal Rack

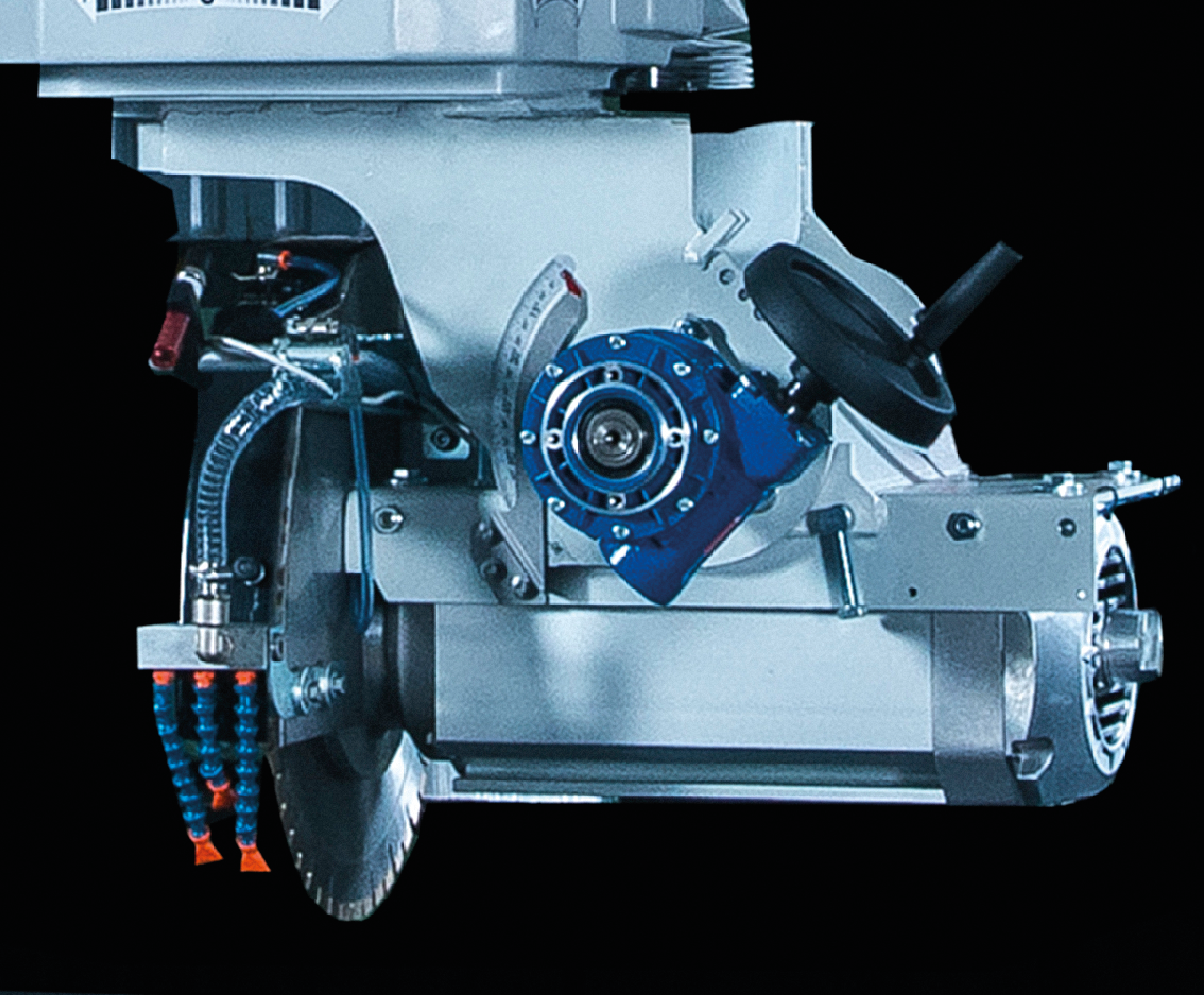

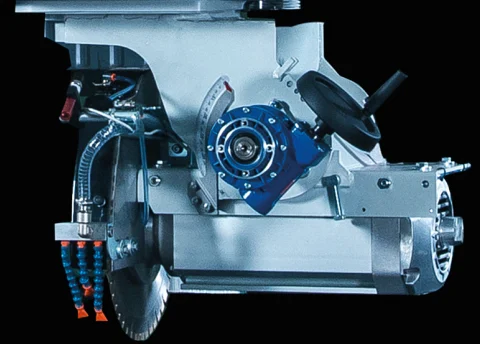

Hp 15 Main Spindle Motor

For disc with adjustable spindle speed from 800 till 3000 rpm’s

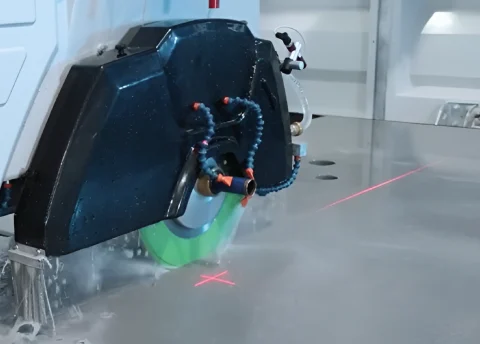

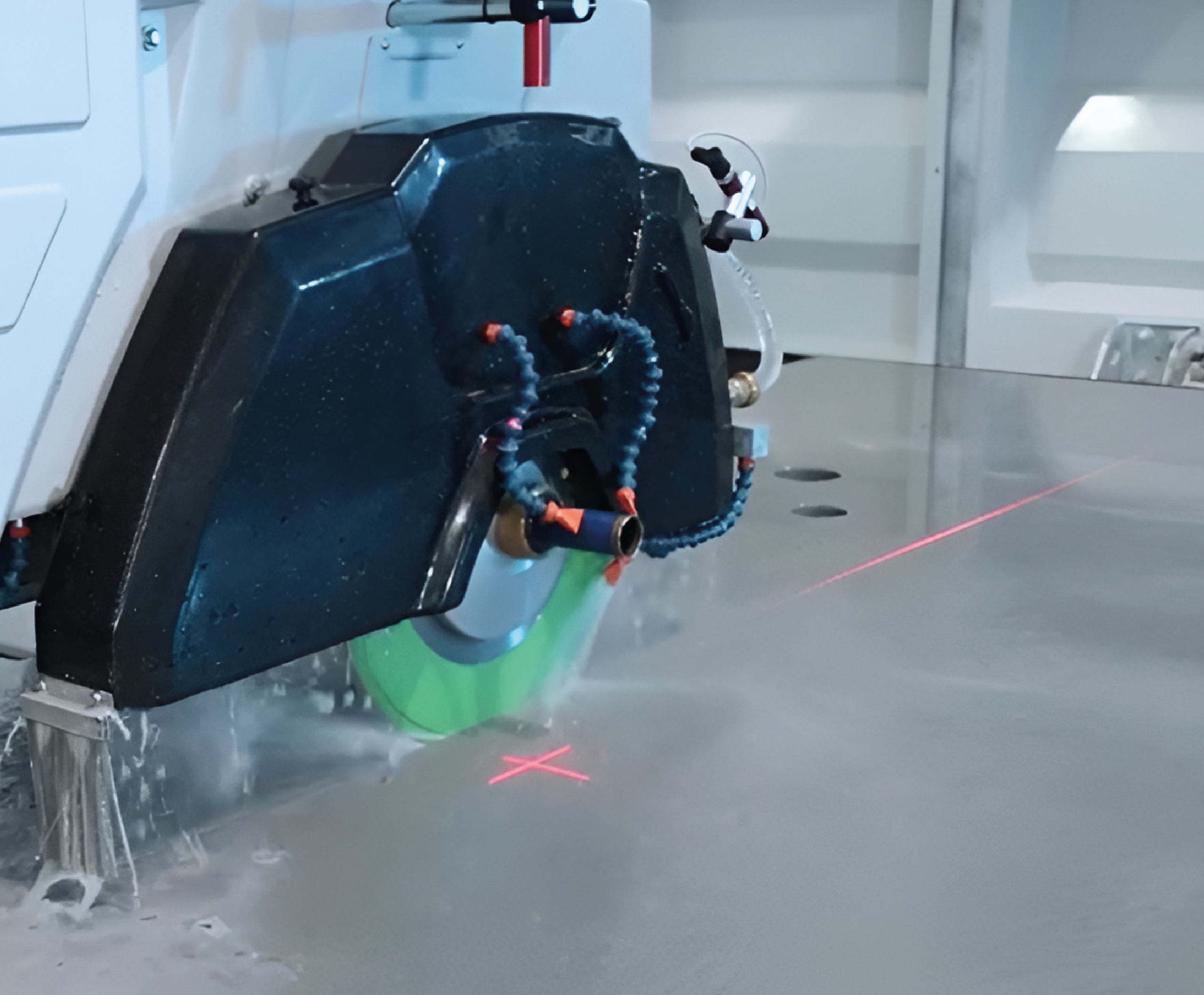

Laser Cut Marker

To indicate the cutting path

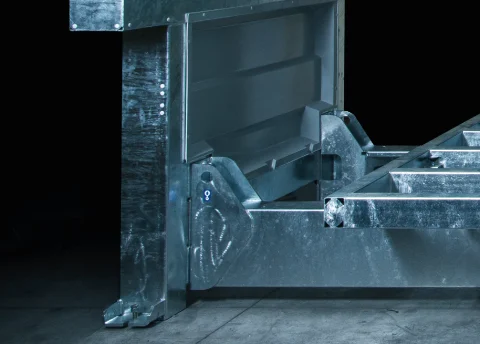

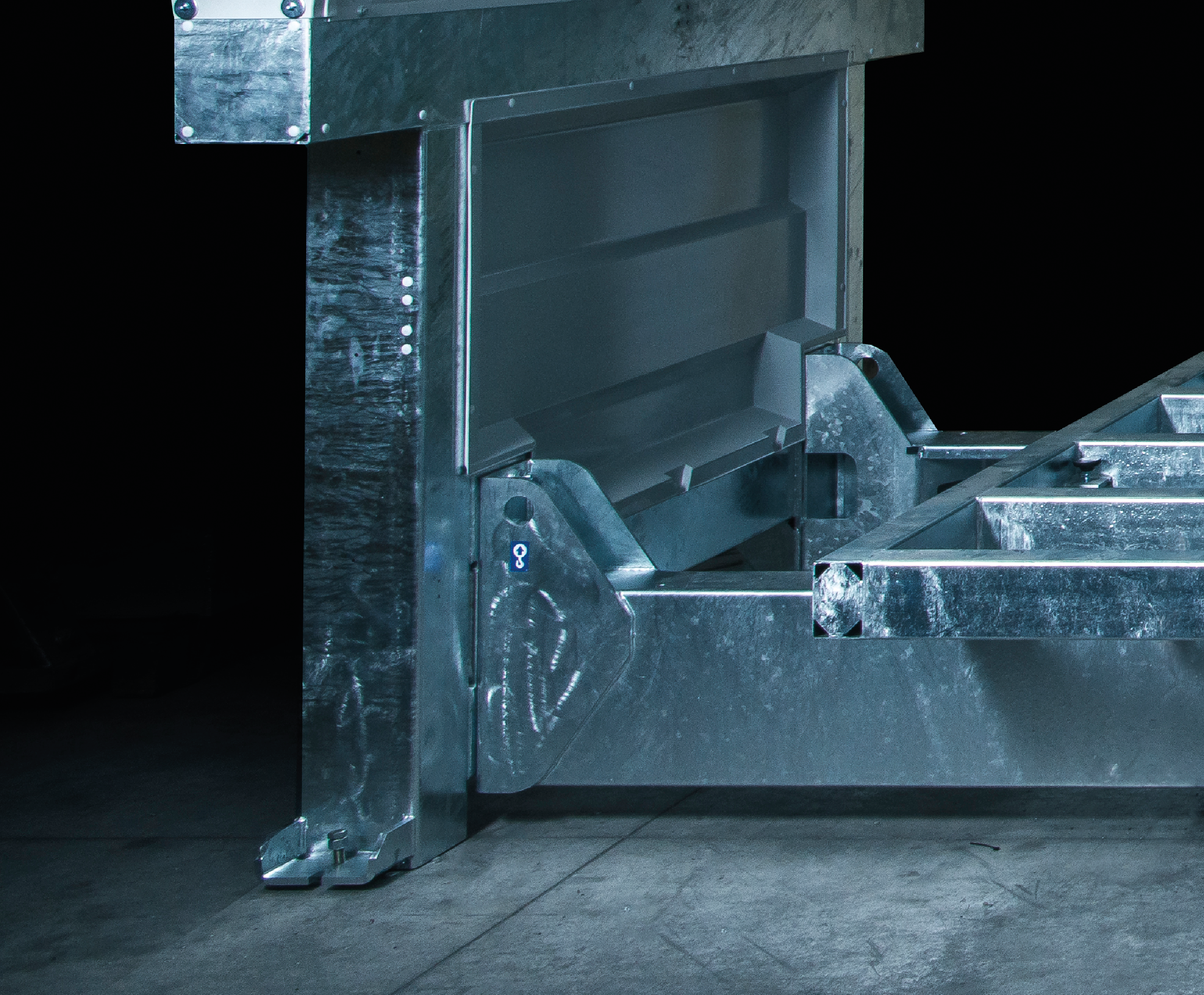

Hot-Dip Galvanized Heavy Carpentry Structure

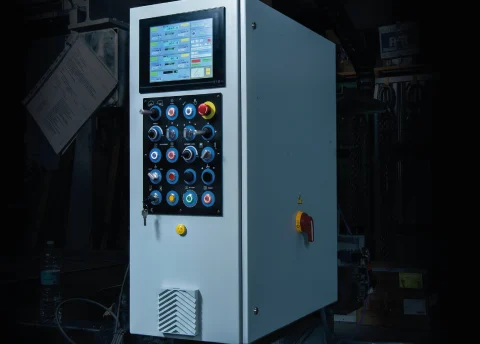

Control Panel

User friendly operator interface with coloured icons, 10” colour touch screen.

SKEMA

Processing

What you can do with this machine

Ask for more

Tilted cuts

Shaping with disc

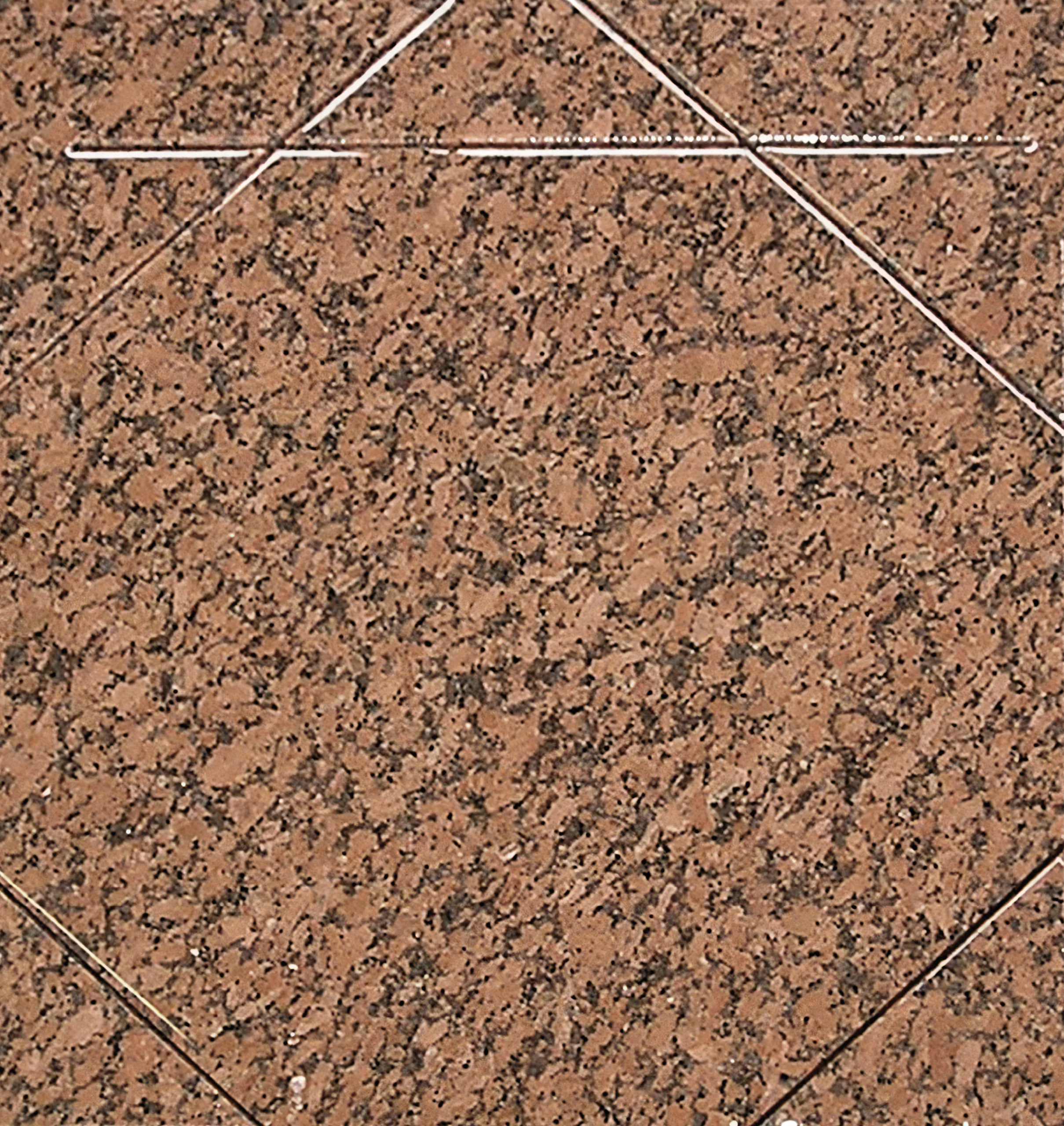

Diagonal cuts

Orthogonal cuts

SKEMA

Optionals

Available configurations and optional equipment connected to this product.

Ask for more

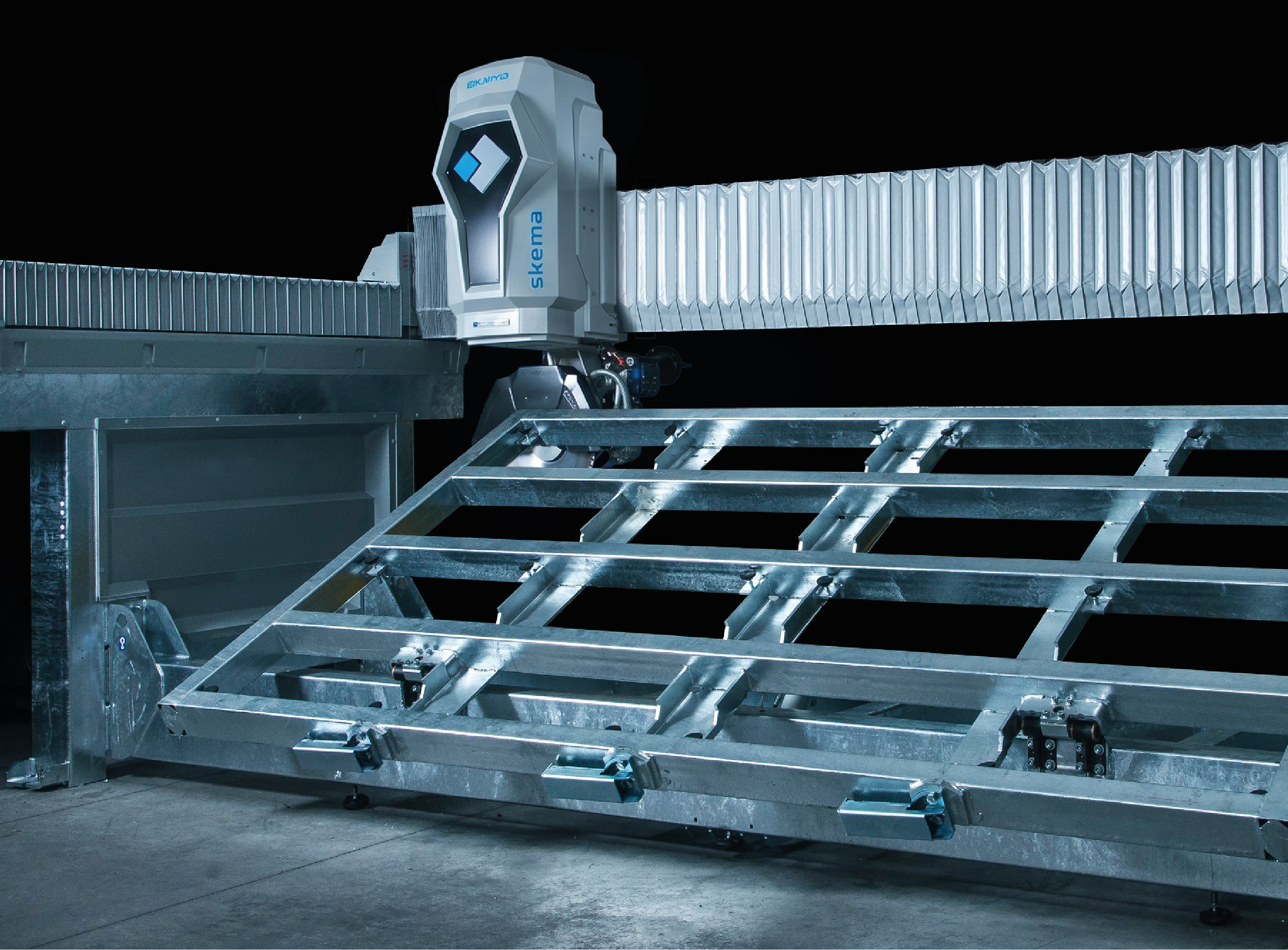

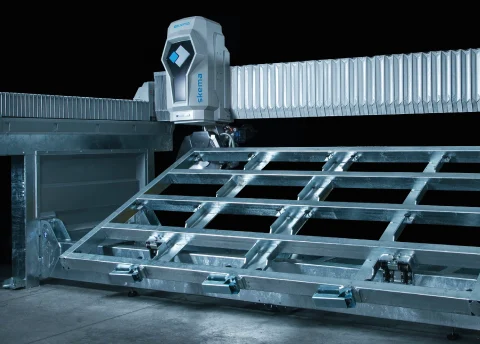

Tilting Table

Hydraulically driven.

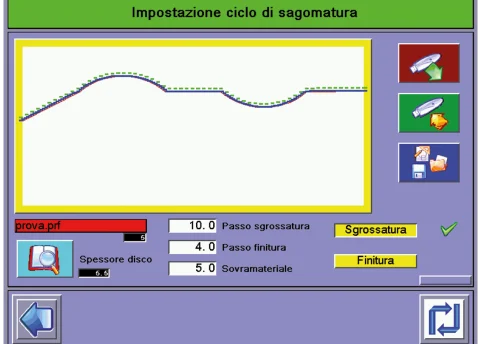

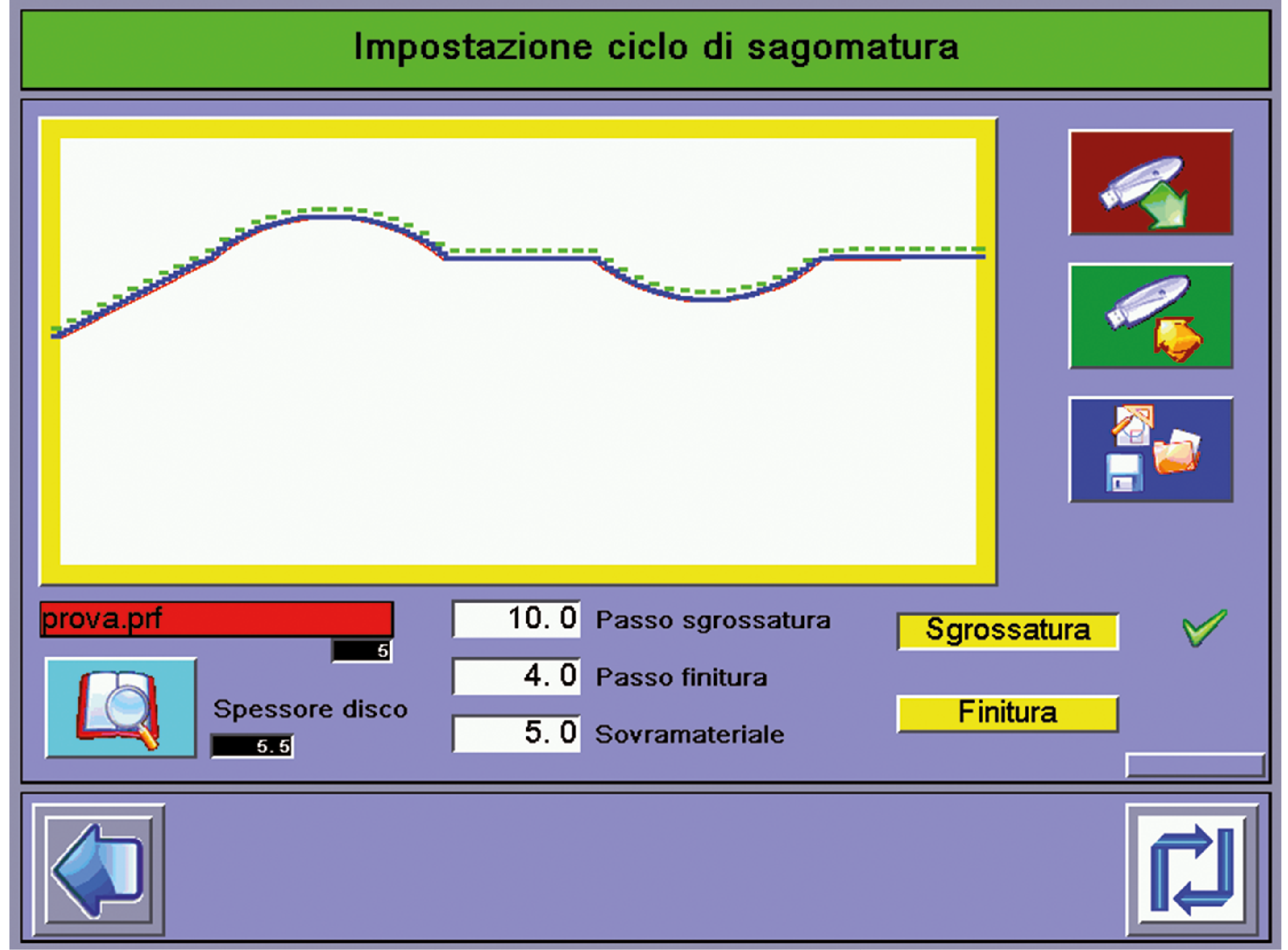

PA Profiling Program

Program to perform and store shaped profiles without any CAD software.

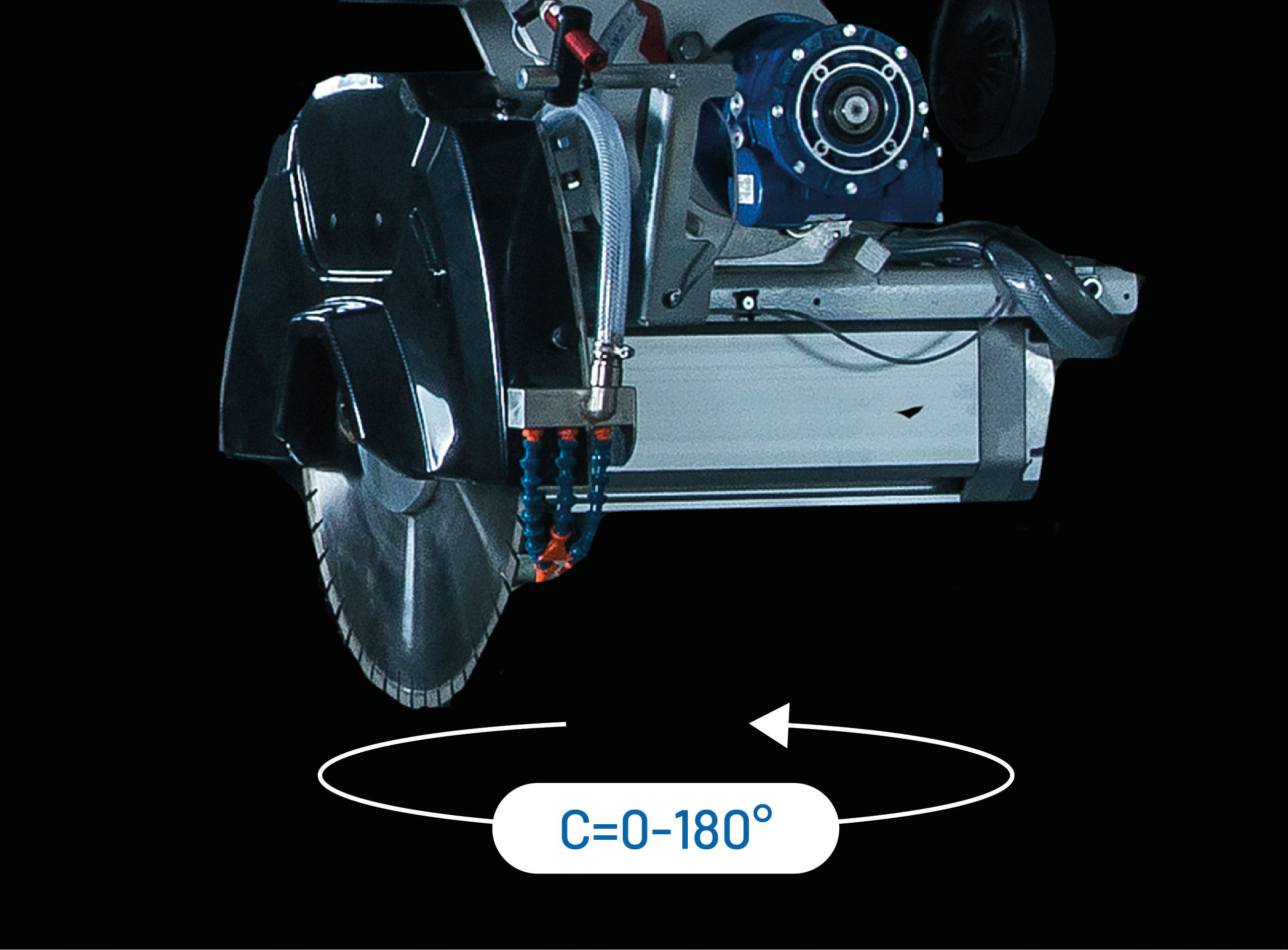

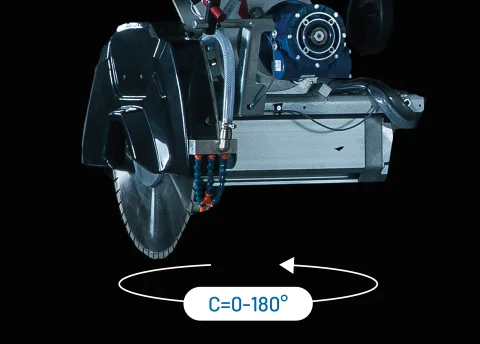

Rotating Head on 4th axis C 180°

Interpolated movement with the X & Y axes, to perform manual and semi-automatic work cycles for diagonal cuts.

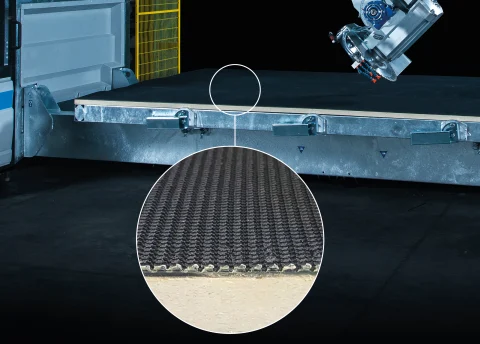

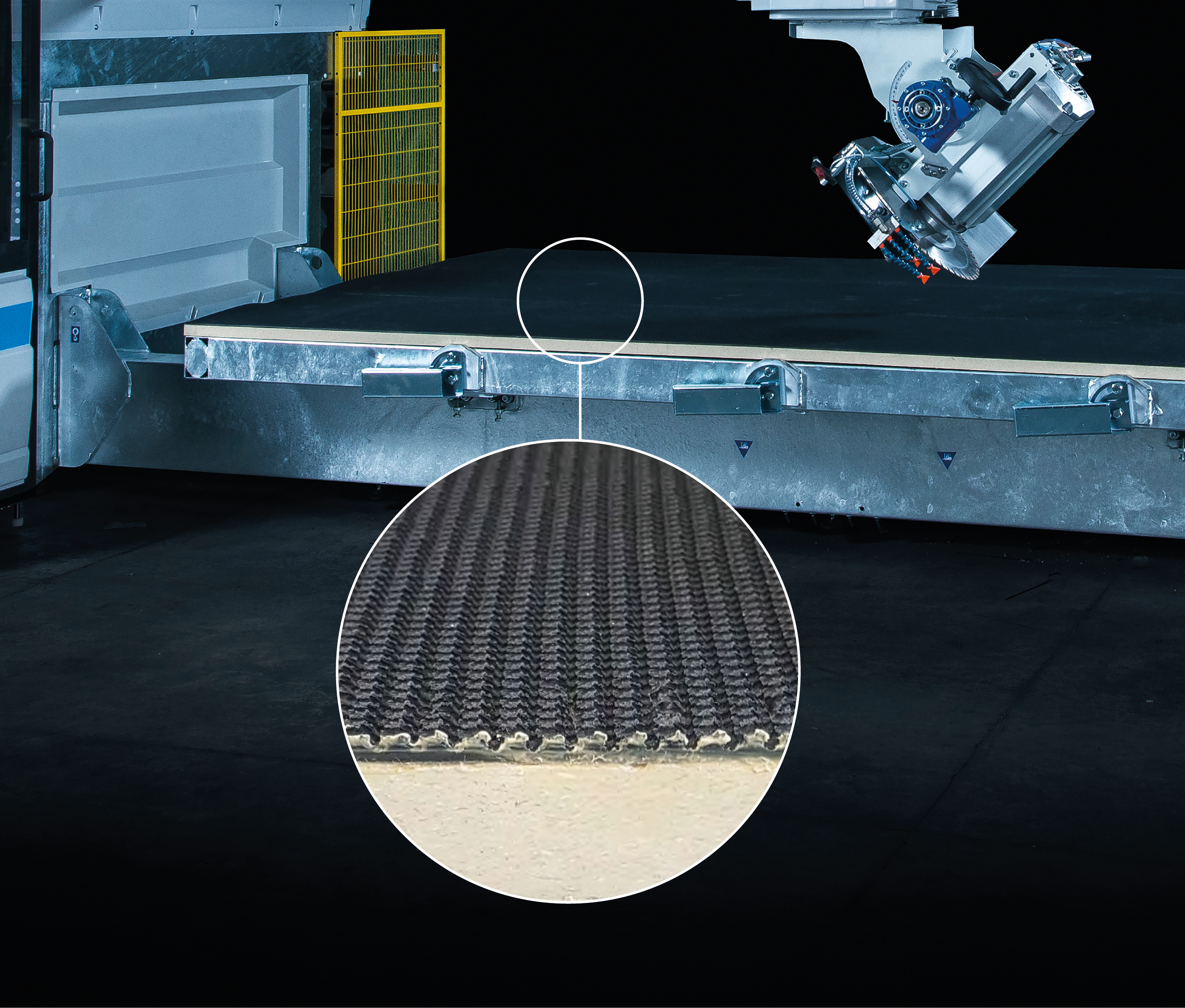

D-Grip Table Cover

Polyurethane table covered by rubber mat.

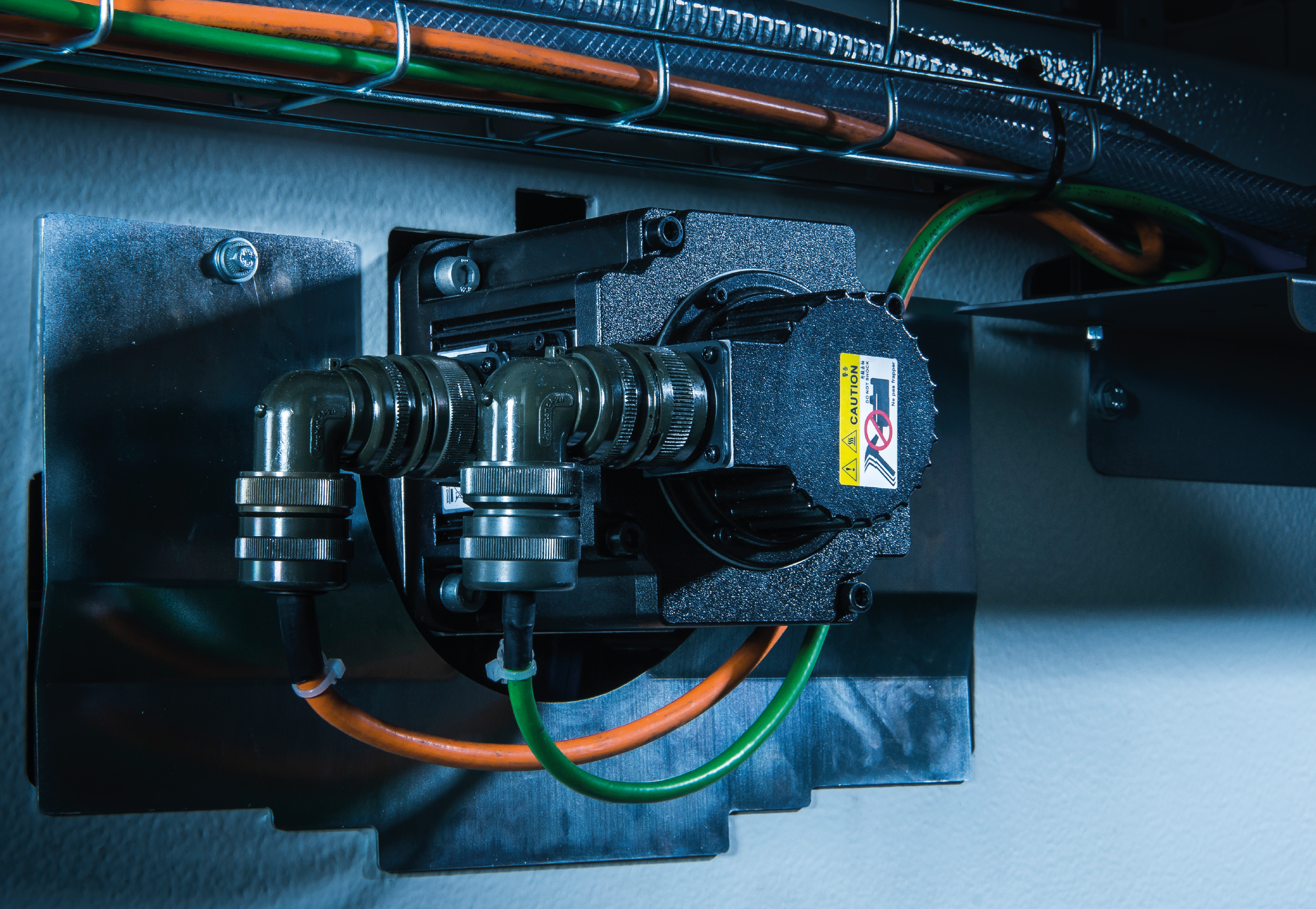

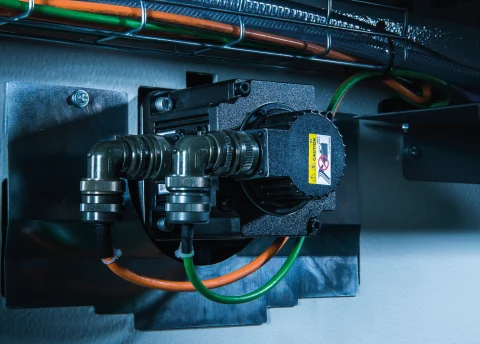

Brushless Motor

that guarantee optimal precision to obtain a piece of the highest quality and highest speed.
