Glass line

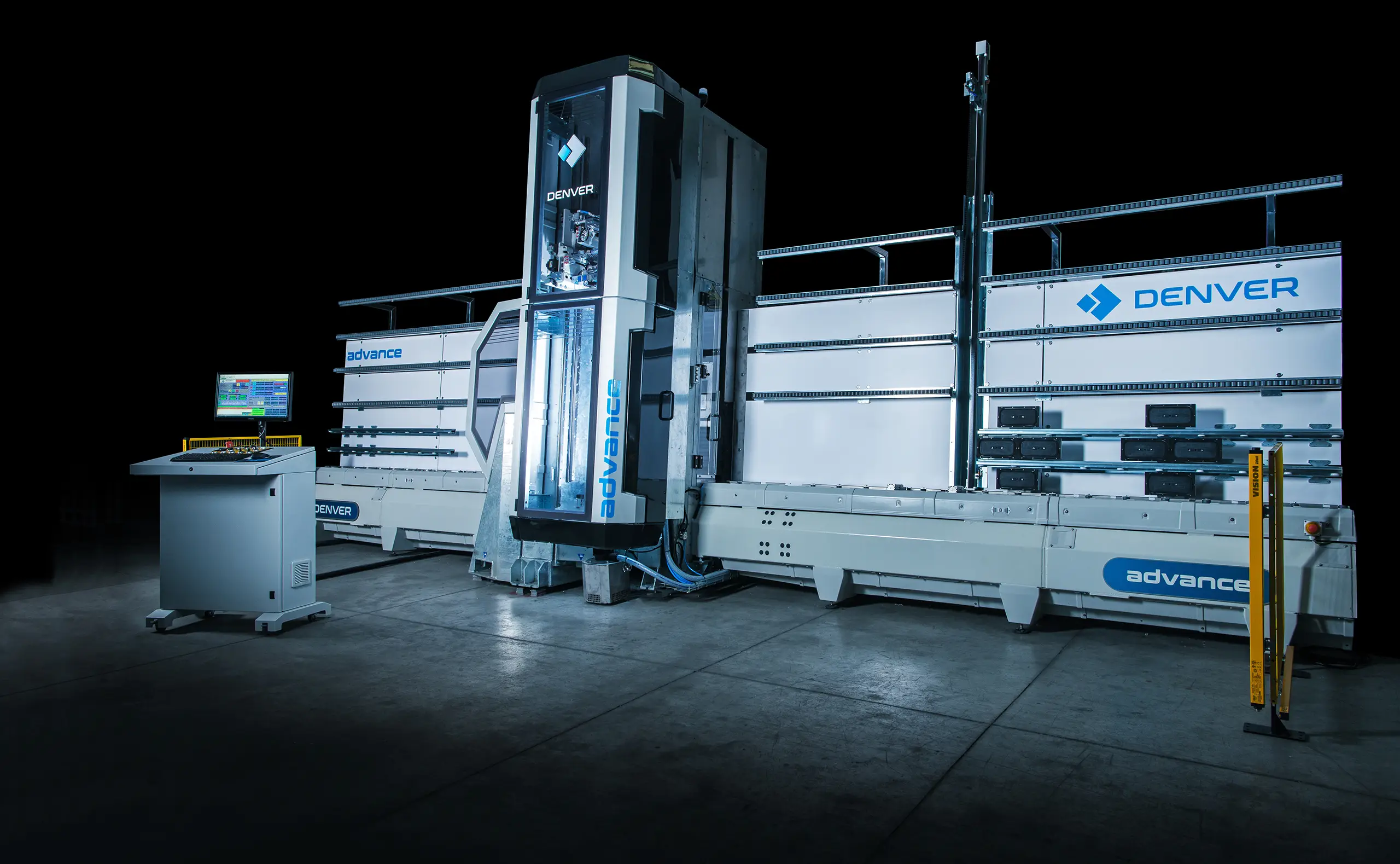

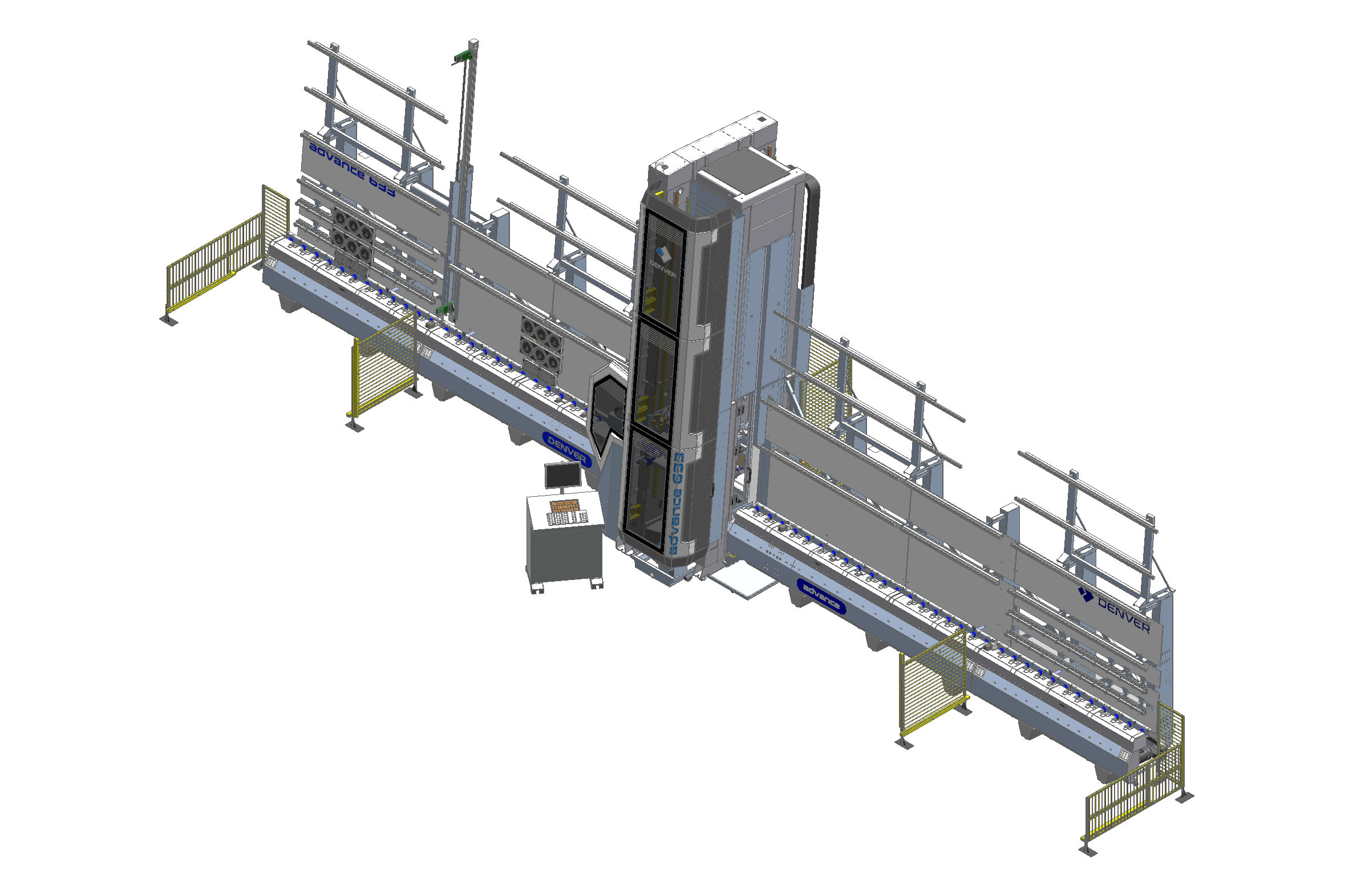

Advance 633

X:550/6000 Y:170/3300 Z:4/21

Interested? Let’s talk

THE STATS

Advance 633main data of the machine

Weight / Size LxDxH

8600 kg / 13560 x 3980 x 5010 mm
19000 lbs / 534 x 156,7 x 197"

Max. workable size

6000 x 3300 mm
236 x 130"

Max. handling size

6000 x 3300 mm
236 x 130"

Max. sheet load

580 kg
1278 lbs

Workable thickness subject to max load

Min. 4 mm – Max. 21 mm

Min. workable size

550 x 170 mm per edging
21,6 x 6.7" for edging

Working height

740 mm +/- 10 mm
29" +/- 0,4"

Electrospindles specs

Front & Rear kW 7.8
10.6 Hp (S6) fan cooled
Cone connection ISO 40 MAS-ARC
Adjustable spindle speed till Max. 10000 RPM

Internal cooling clean water

15 lt/min
4 gal/min

External tool cooling water

120 lt/min
30 gal/min

Independent shuttles system

Standard

Software

PROTECH powered by DDX / PILOT EVO

Rotary ATC

12 + 10 positions

Installed power

kW 15

FLOW / Auto reading / Redressers / Low-E deletion / Water booster

Option

SKEMA

Features

Projects, technologies, events and insights from the world of stone and glass processing.

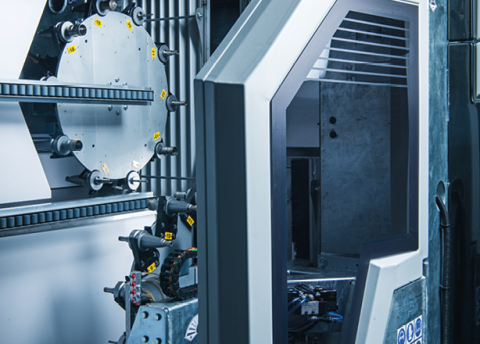

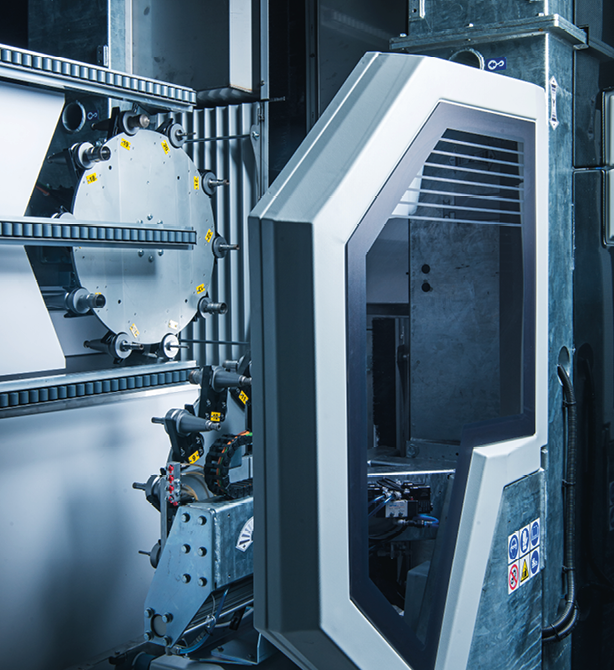

Rotating Tools Magazines

Automatic rotating tool magazines with 12 positions for the front electrospindle, suitable with stacked wheels and with tools with max.…

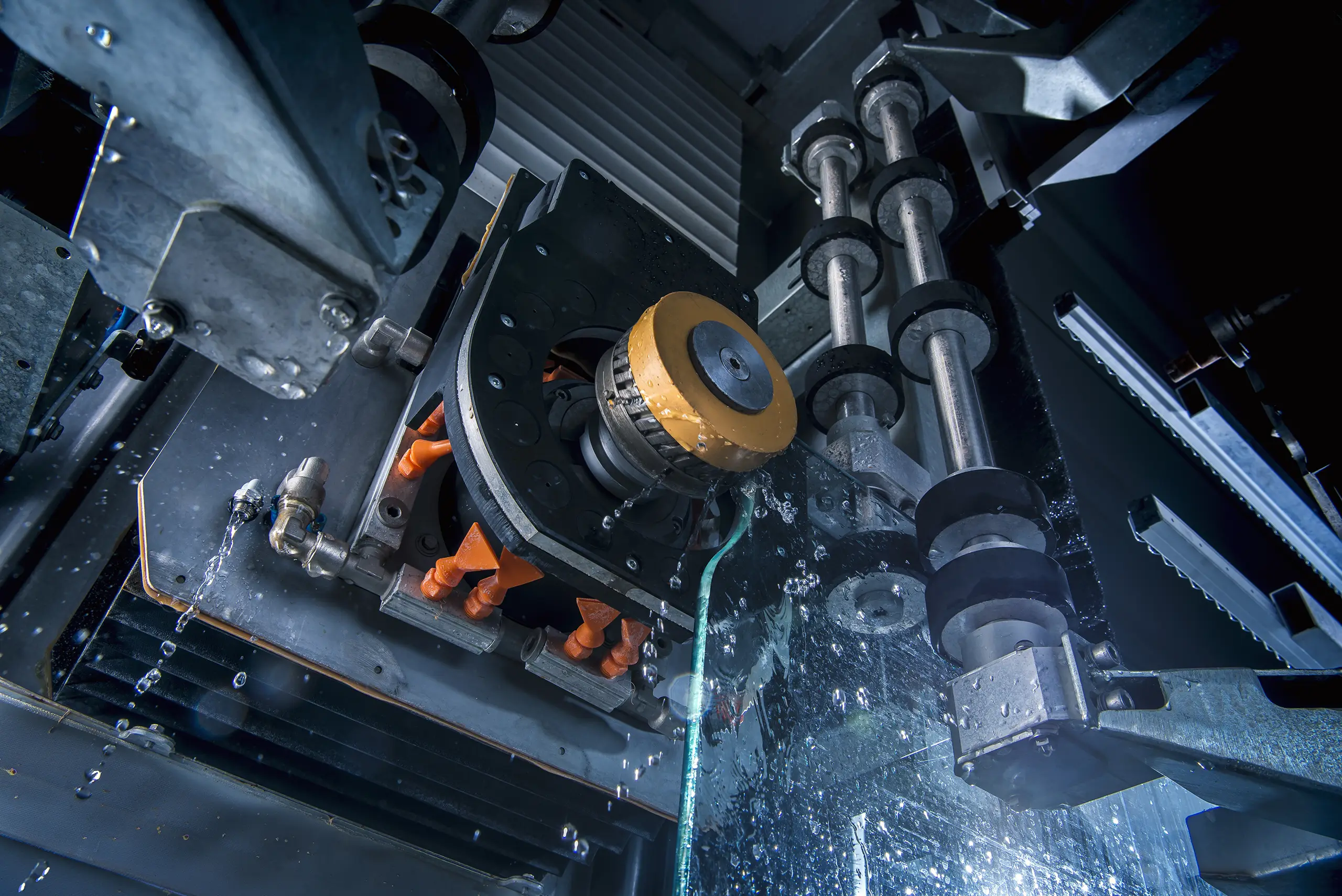

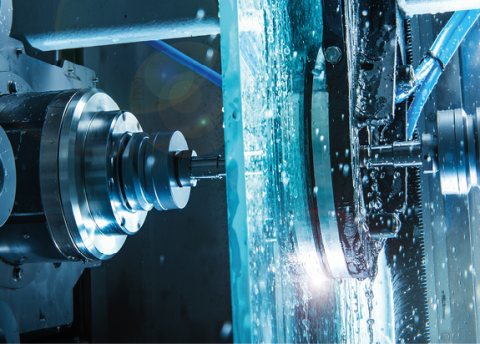

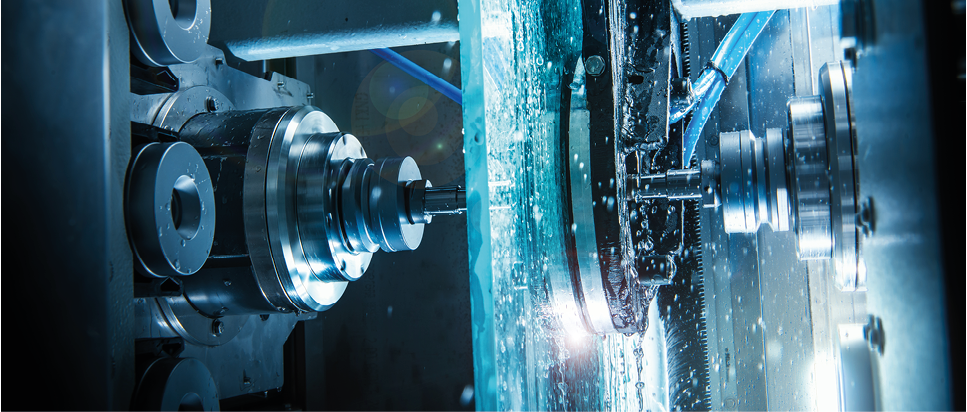

Operating Groups

Double fan-cooled spindles, front and rear, with internal water tool cooling system for drilling, routing and edging. They feature ISO40…

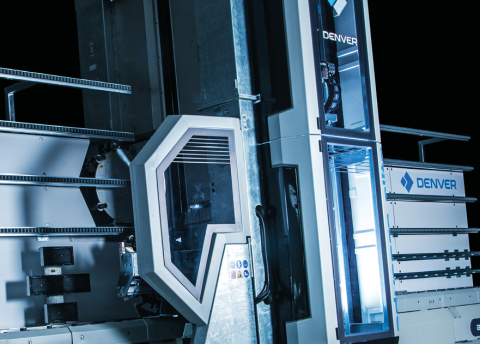

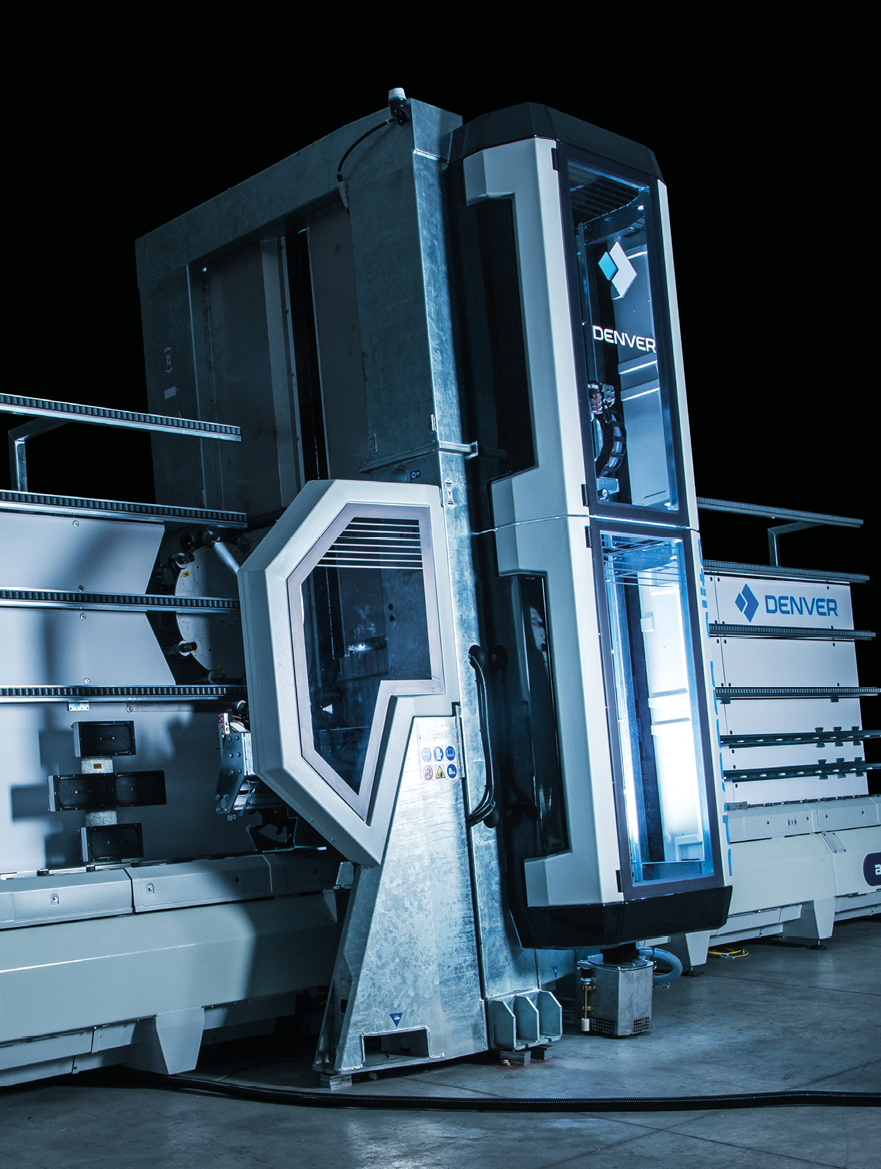

Hot Zinc-Coated Vertical Structure

Specifically engineered frame to deliver long lasting sturdiness and reliability in most challenging working conditions. Special corrosion-proof treatment on guideways…

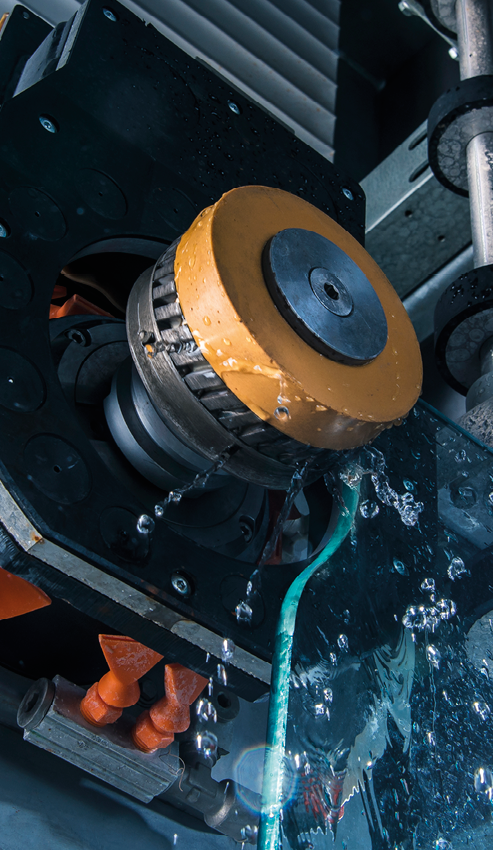

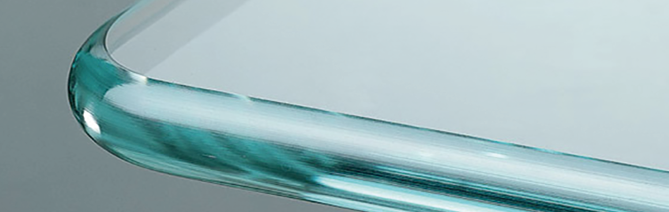

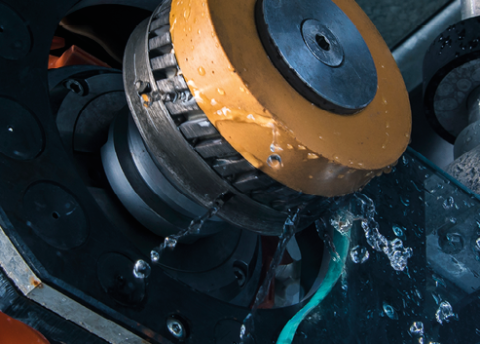

Edge polishing

“SHINE package” allowing edge polishing for fully integrated universal processing: polishing tools wear compensation throughout working cycles is dynamically and…

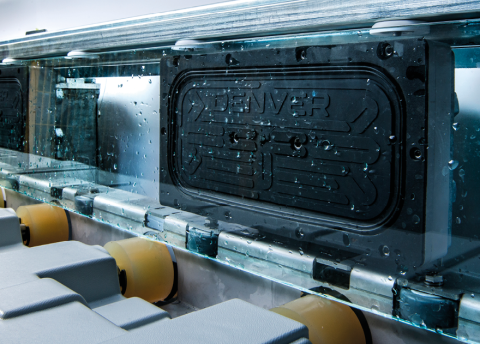

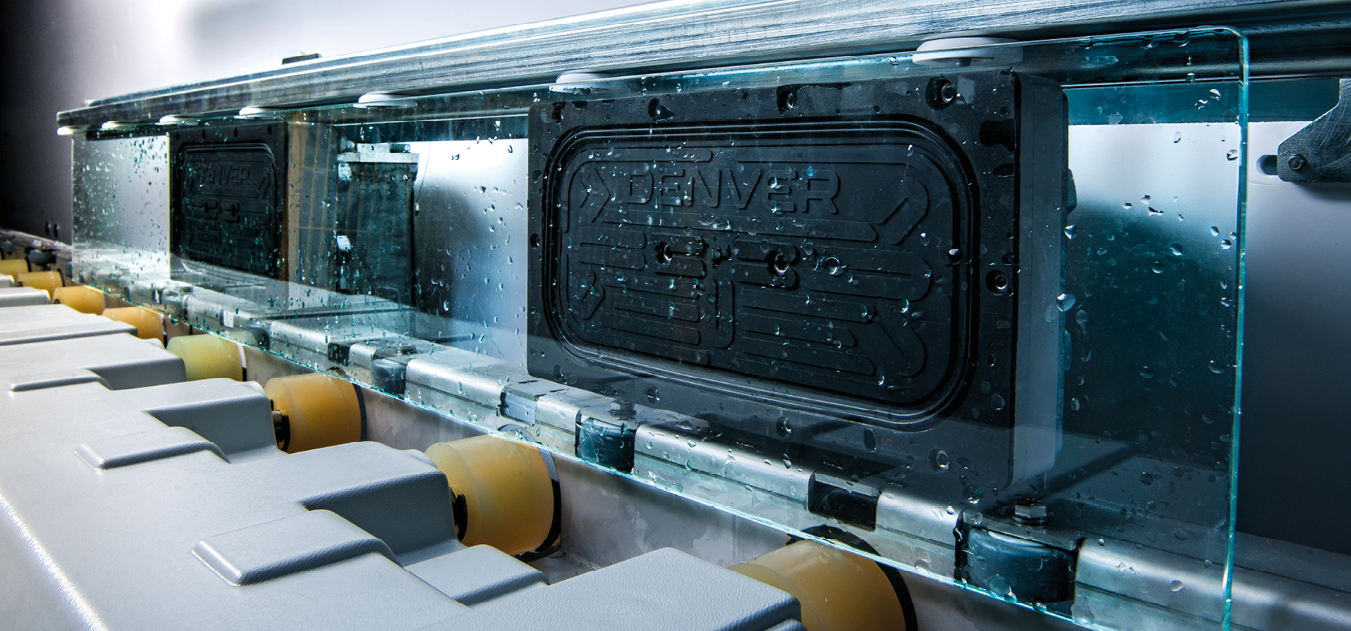

Cups modular system

For small pieces such as backslashes, stripes and other elements for shop fitting, electroappliances and technical glass applications.

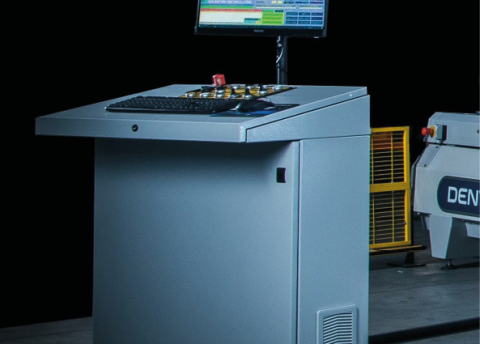

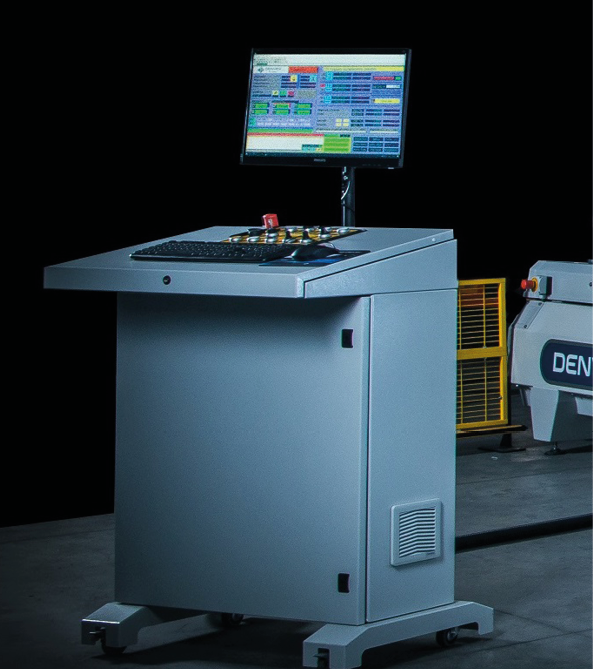

Console

CNC OSAI control unit with 21” TFT flat screen equipped with optical mouse and keyboard. The machine may be connected…

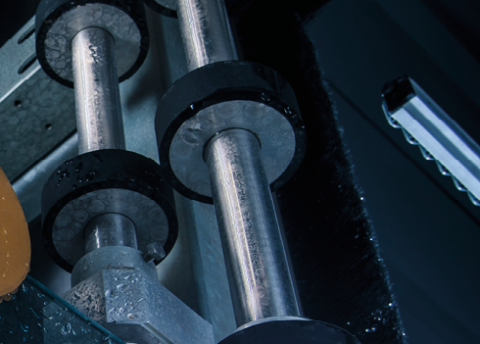

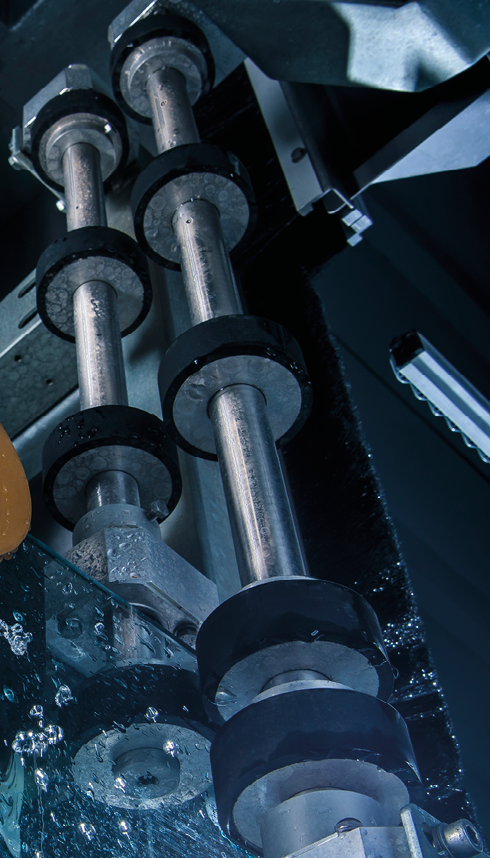

Contrast Rollers

Vertical contrast rollers with pneumatic pressure to ensure perfect piece holding in the processing area.

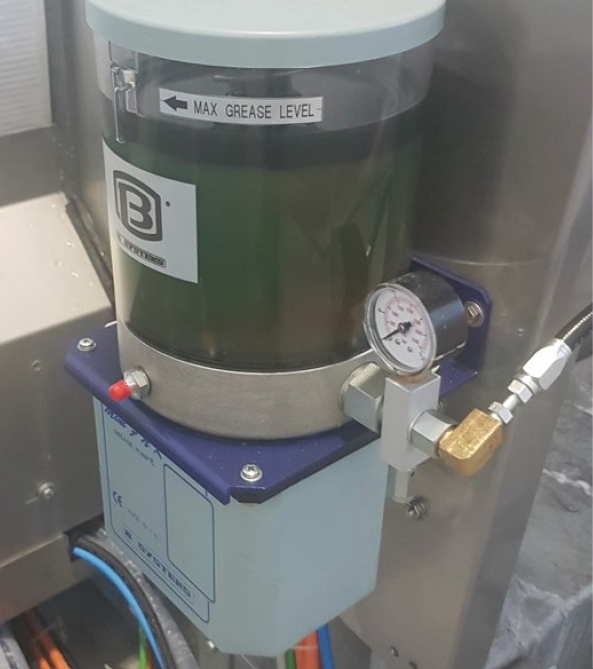

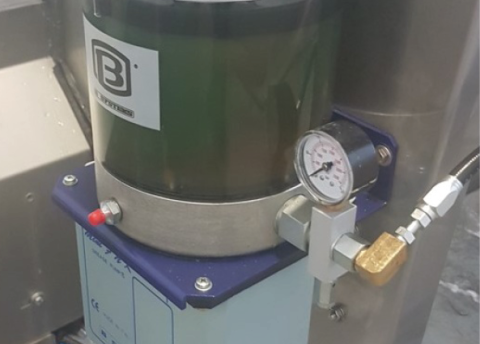

Automatic Lubrication Pump

Automatic centralized lubrication at programmable intervals.

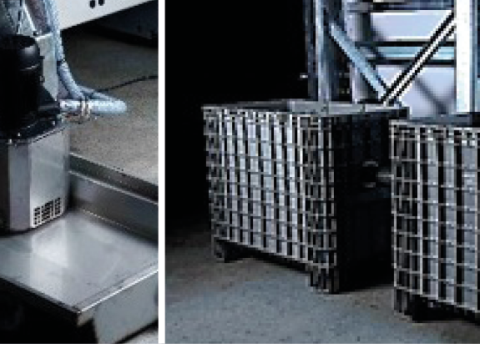

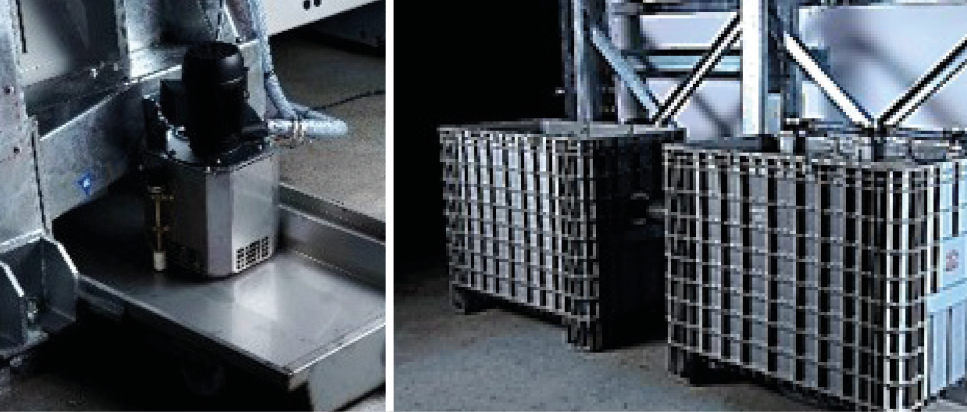

Circuit Tools Lubrification Water

Collection through lower stainless steel tank. Recovery and decantation through 2 rear tanks, with recirculation pump.

SKEMA

Processing

What you can do with this machine

Ask for more

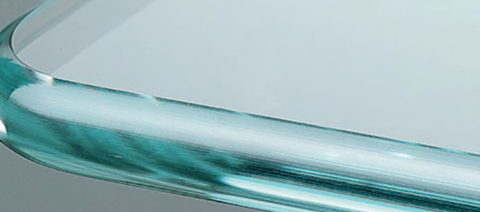

Edge Polishing

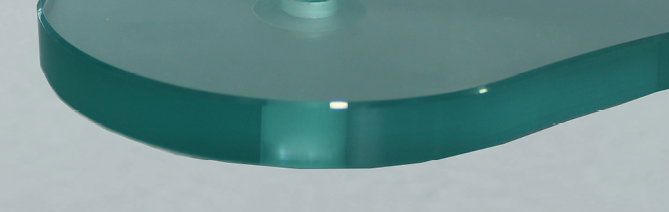

Grinding with Peripheral Wheels

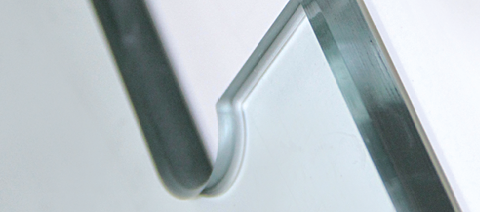

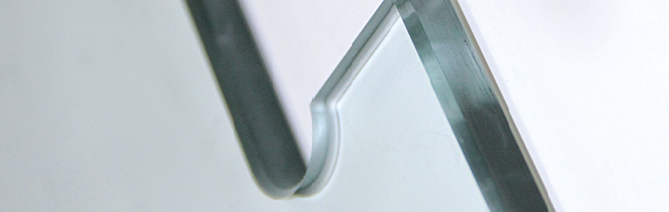

Milling

Squaring and Arrising

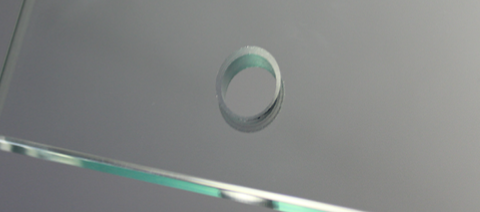

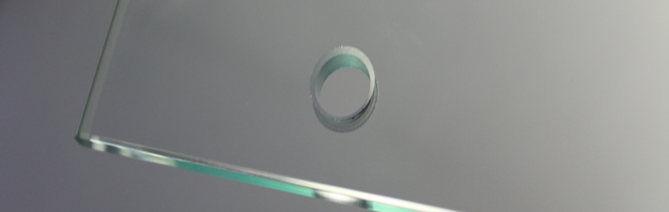

Drilling with Twin Counter-Heads

SKEMA

Optionals

Available configurations and optional equipment connected to this product.

Ask for more

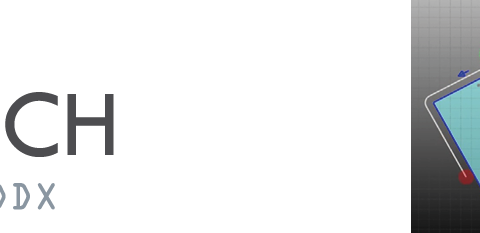

Software CAD-CAM PROTECH powered by DDX

A powerful, worldwide renowned user-friendly software provides productivity improvement and less material waste. Simple interface and new functions enable programming…

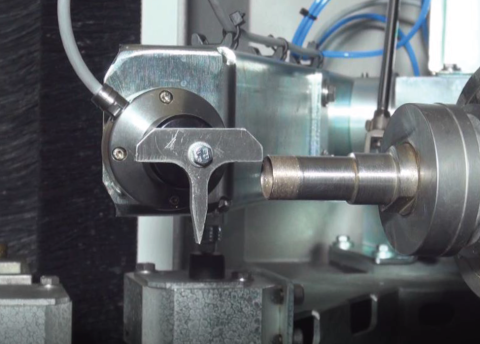

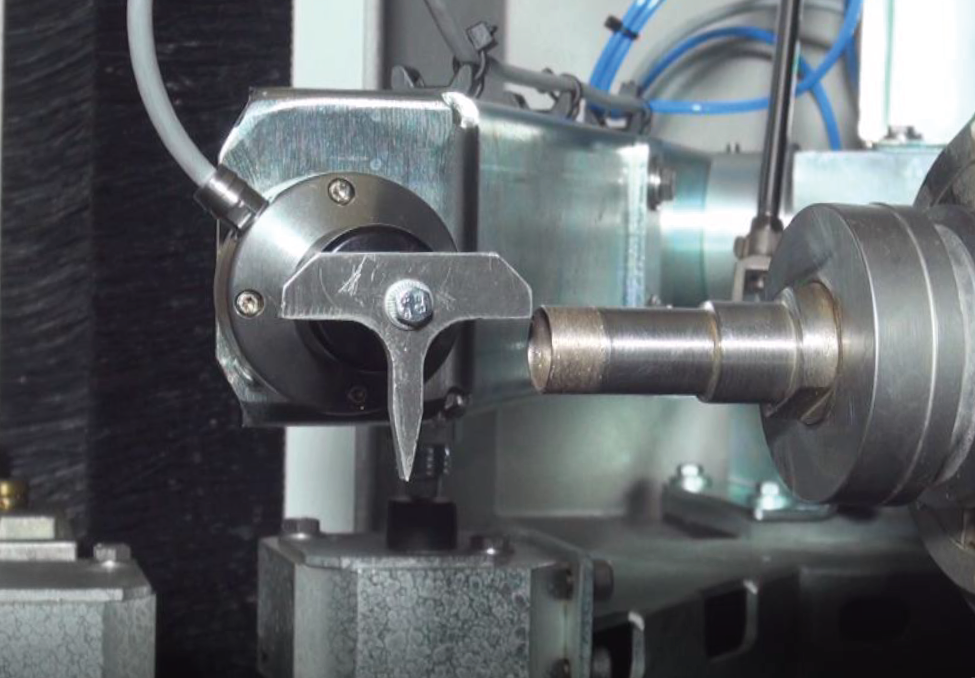

Tools Redressers and Presetter

Polishing wheels and drill bits redressers are available on demand to make a perfect package in combination with mechanical on-board…

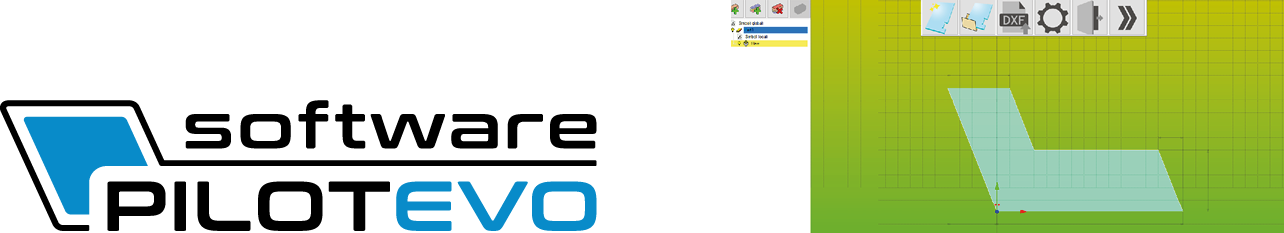

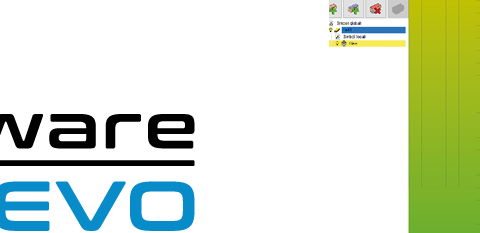

Guided Programming

Operator interface for parametric programming and manual import of DXF files, easy, fast, and customizable. Highly recommended for the ease…

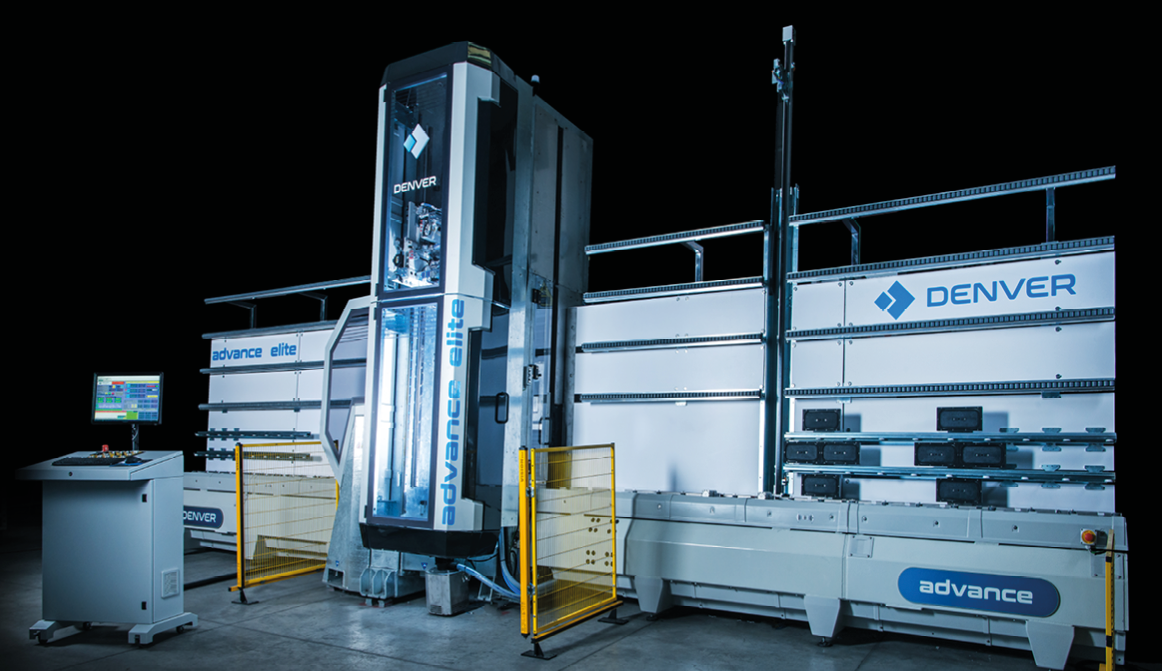

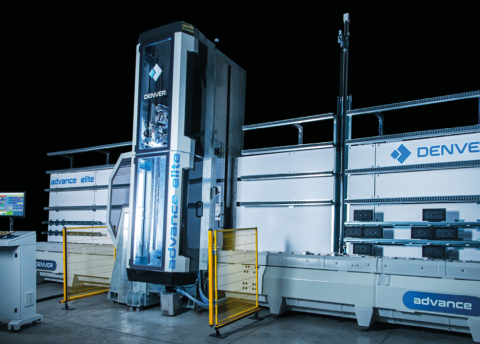

“Flow” configuration

For non-stop multiple workpieces processing, even with glasses that are different between each other. It allows to off-load the finished…

SKEMA

Technologies

What you can do with this machine

Ask for more

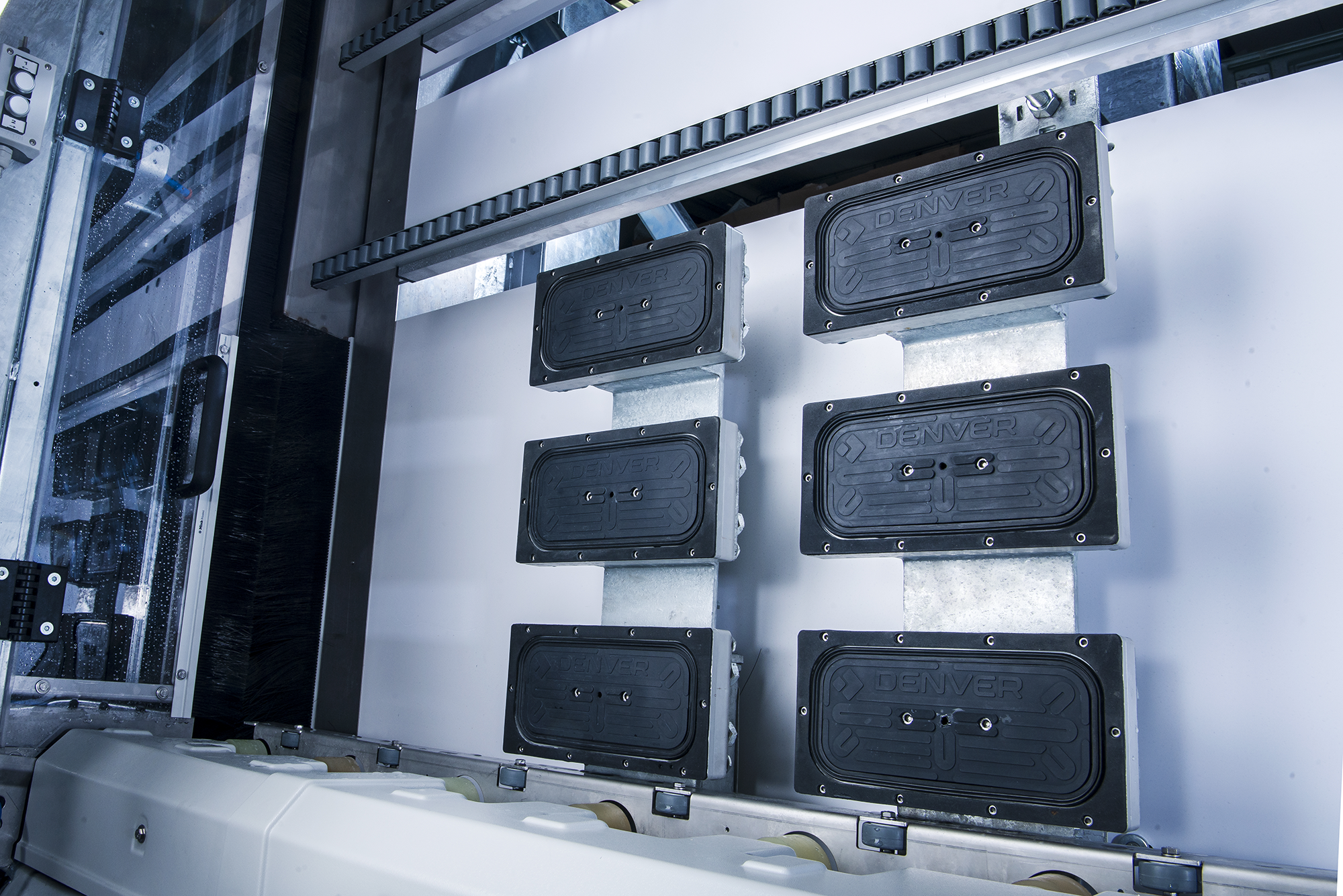

VACUUM CUPS carriage configuration

Each machine is equipped with 2 independent motorized carriages. Shadow areas, where cups interfere with tool path, are minimized thanks…

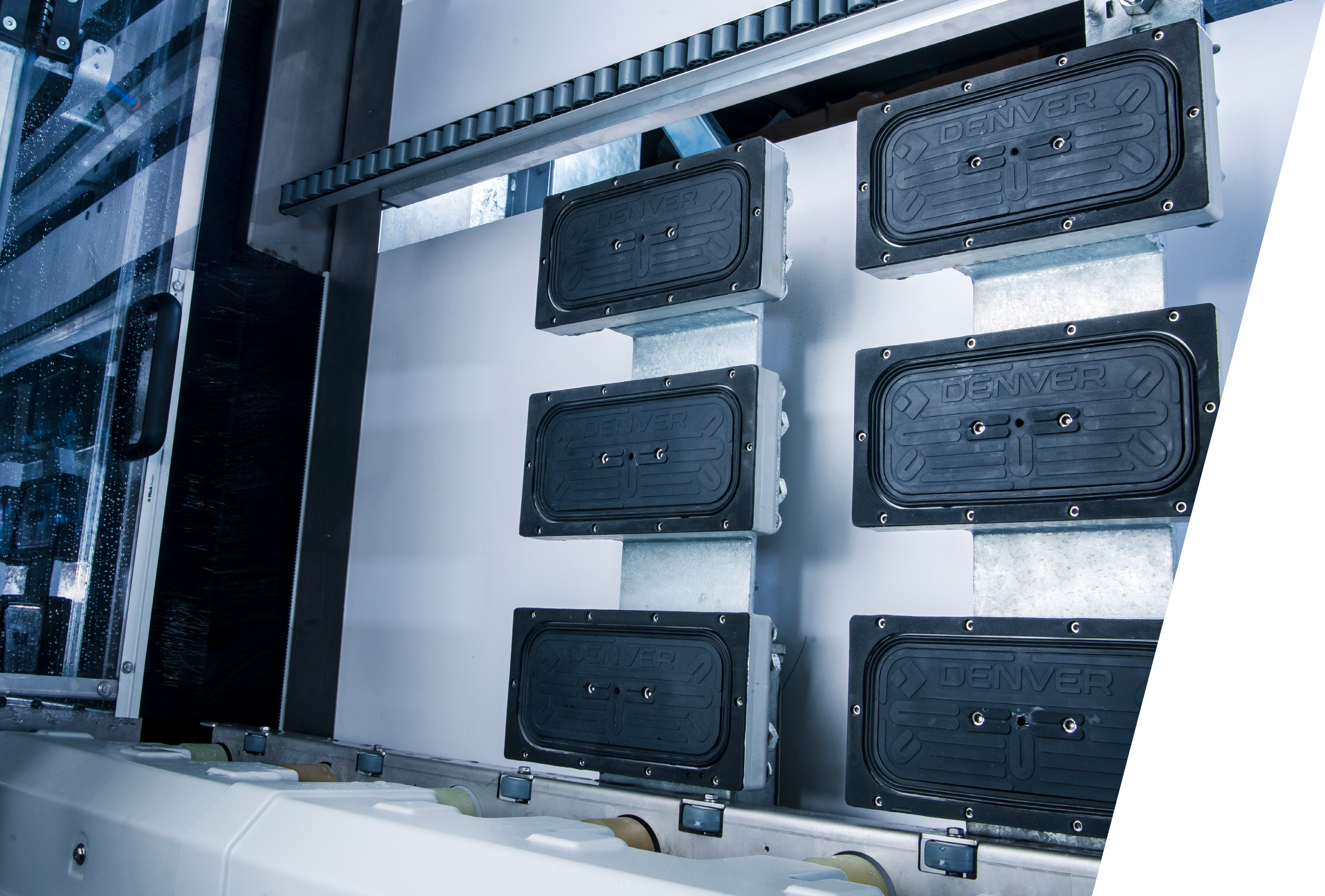

System for workpiece holding

Automatic positioning vacuum cups with exclusive air-operated on-off workpiece holding system • Maximum uptime • Patented air-operated cups on-off system…

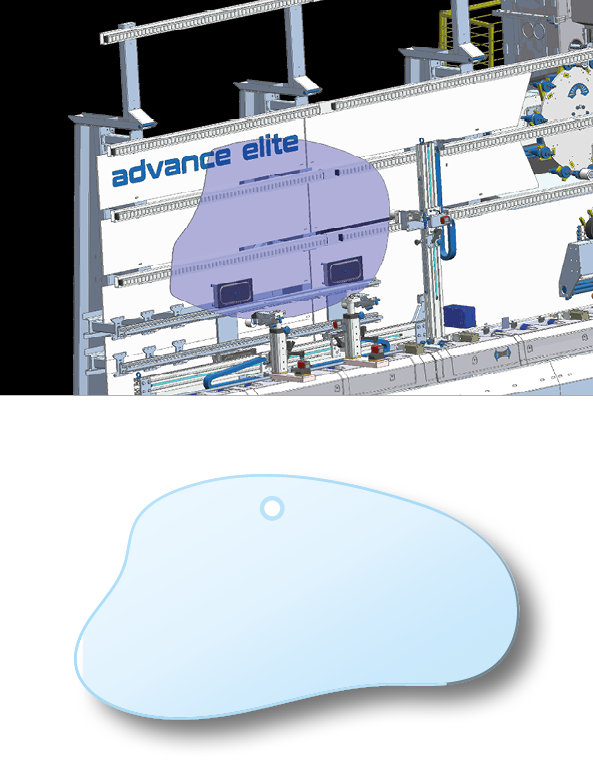

D-Shaping

The first device that allows you to work shaped glass sheets on the vertical CNC, coming directly from the cutting…

Den-Cut

The solution for making medium and large-sized milling operations easily, saving time and increasing productivity. Dedicated software automatically manages the…

Other videos

Frequently asked questions

Find quick answers about configuration, installation and production use.


Where can I find the complete product technical datasheets?

Technical datasheets for all models are available in the Products section of the website. For detailed documentation or technical drawings, you can also contact our sales department.


Are CAD-CAM software packages included with the machine?

Yes, Denver machines are supplied with dedicated CAD-CAM software already configured. The license, training and updates are included in the standard supply package.
