Stone line

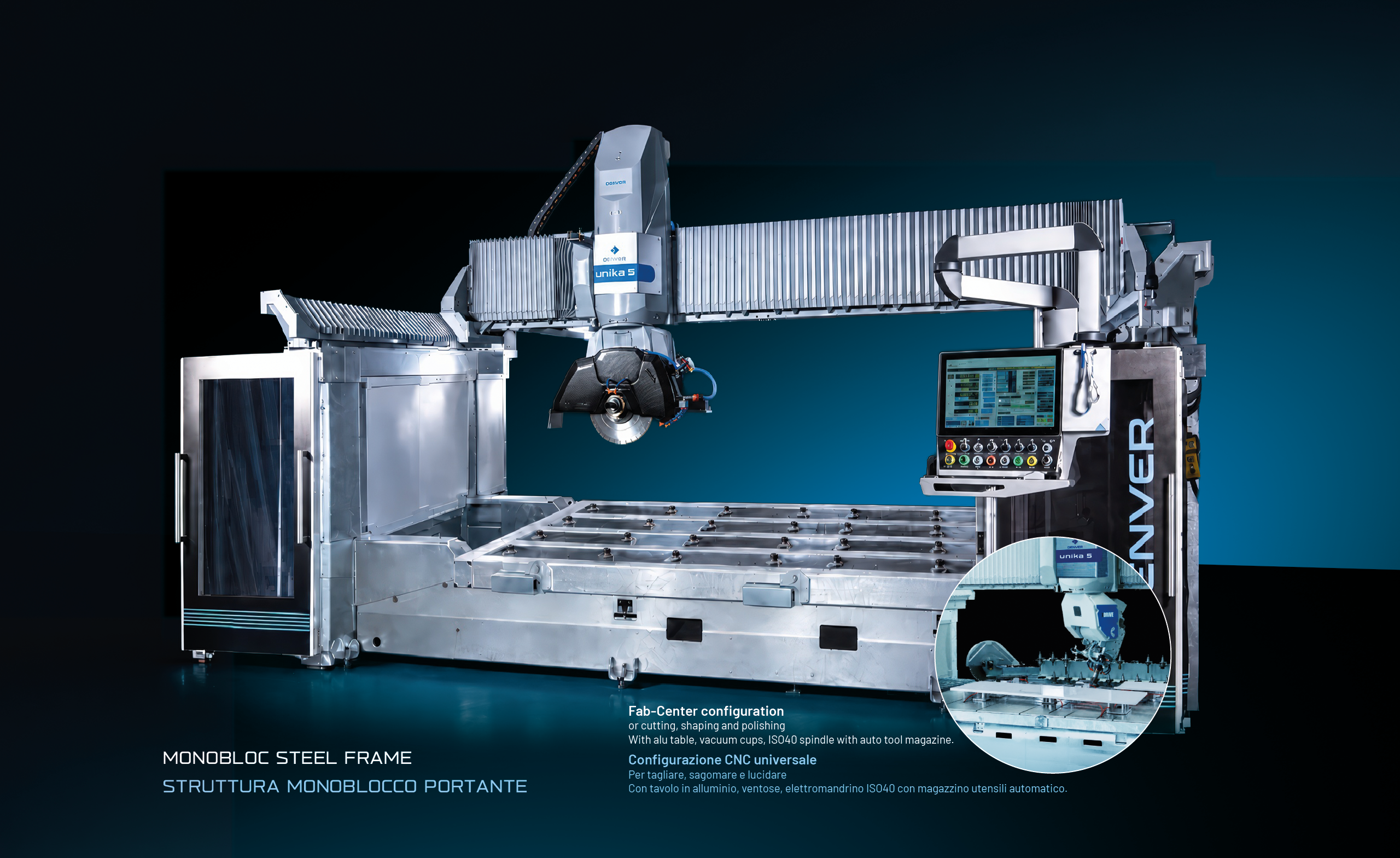

Unika5 HT

5 AXES X:3700 Y:2900 Z:700

Interested? Let’s talk

THE STATS

Unika5 HTmain data of the machine

Work Area

X 3700mm – 145 “
Y 2900 – 114 “
Z 700 mm – 27 “

A axis

0° – 90°

C axis

0° – 180°
opt. 360°

Motor power

Kw 13÷23 – Hp 17,5÷31

Disc diameter

625÷825 mm
24 ÷ 32 ”

SKEMA

Features

Projects, technologies, events and insights from the world of stone and glass processing.

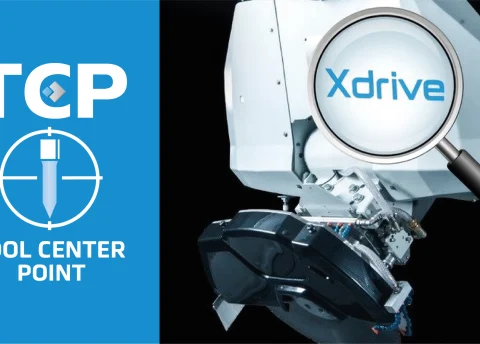

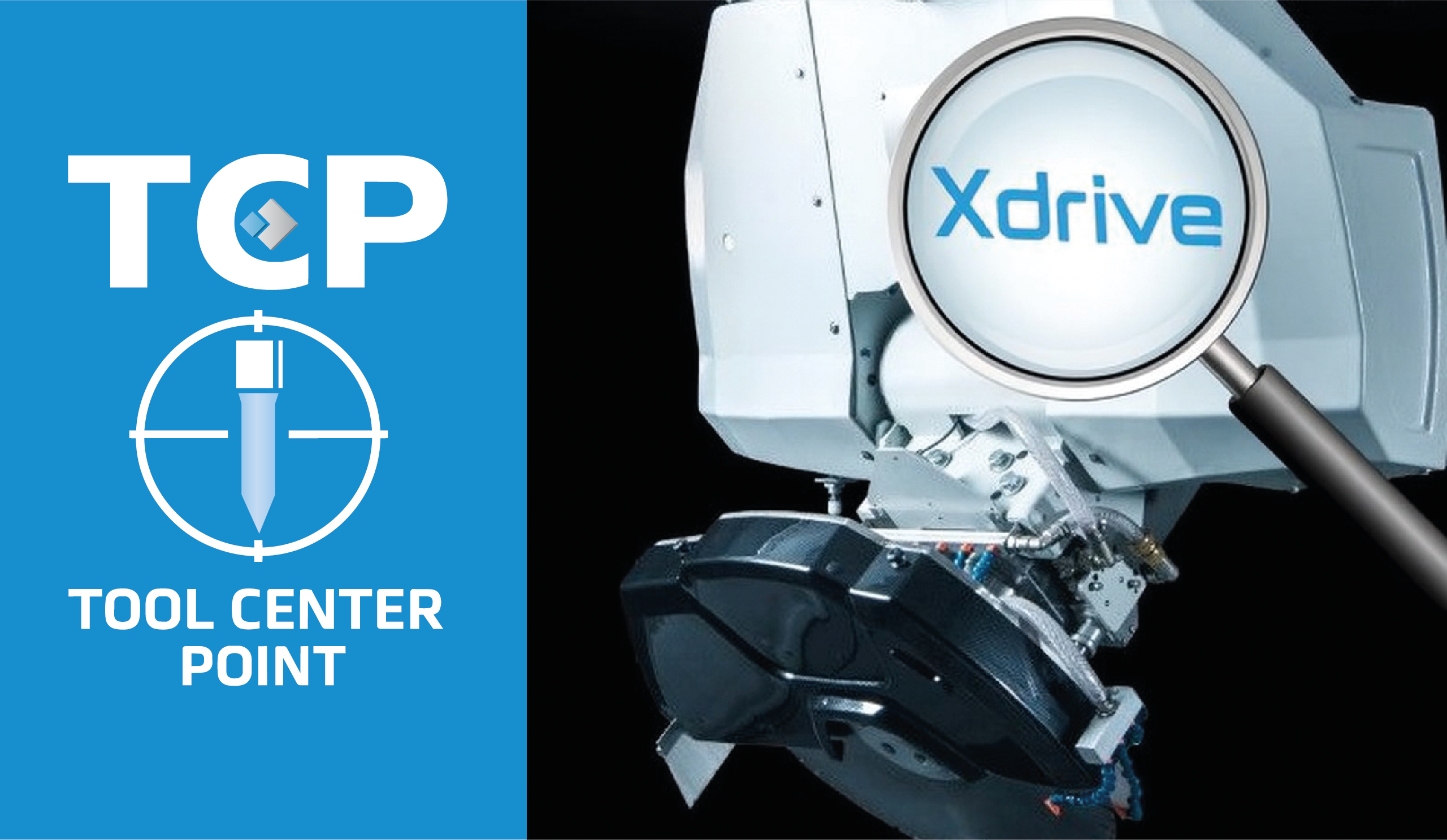

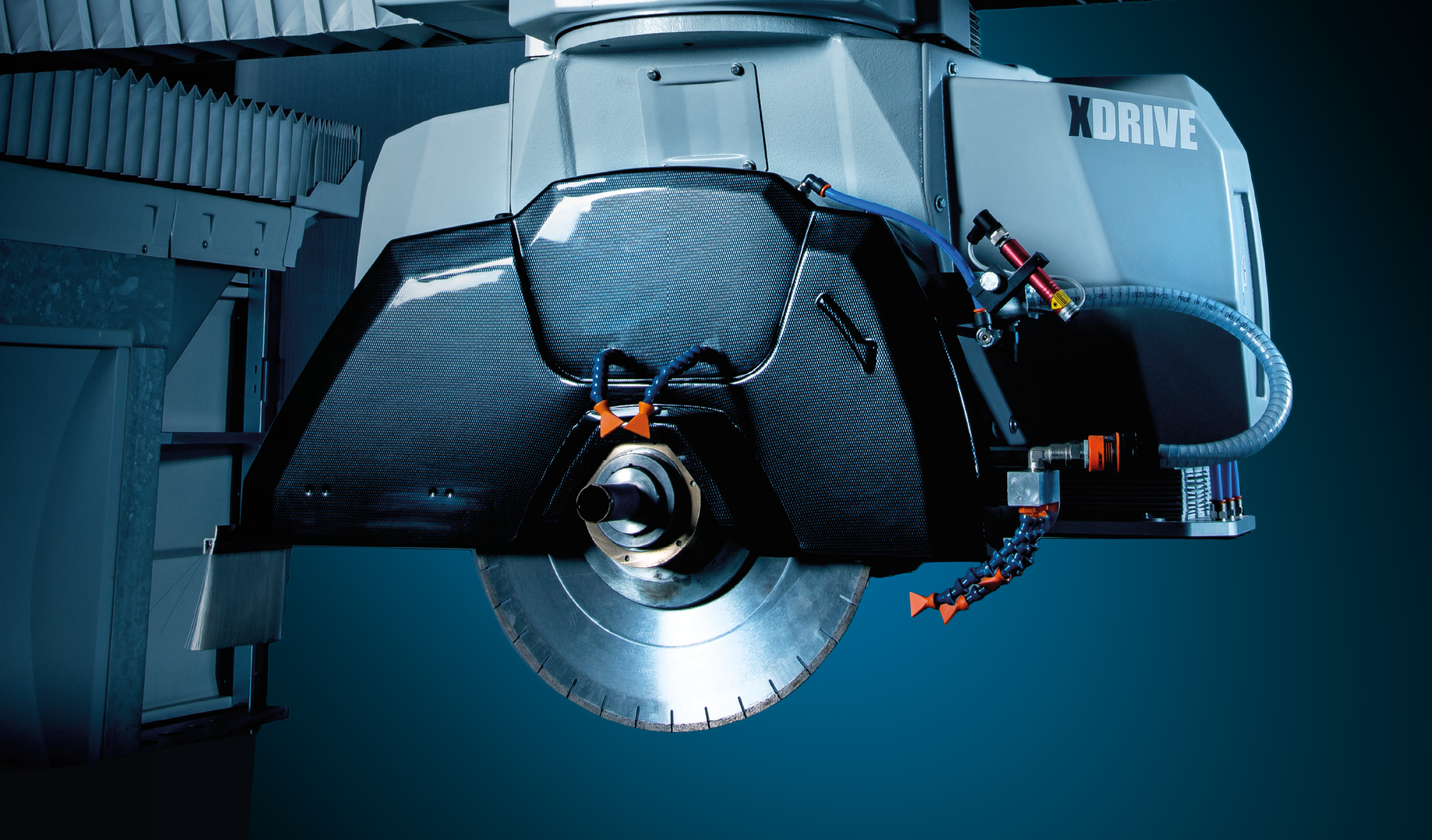

X-DRIVE – Dever technology for 5-axis head with TCP

High-rigidity motor support fork and ZERO backlash precision gearboxes. Tool Center Point to keep the tool and disc perpendicular to…

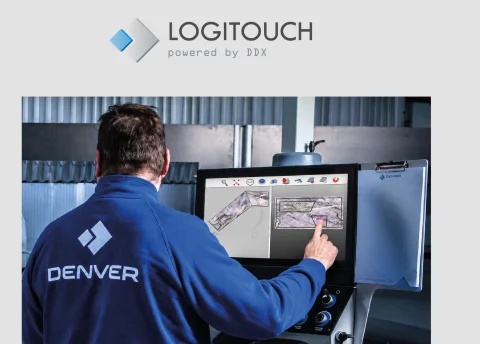

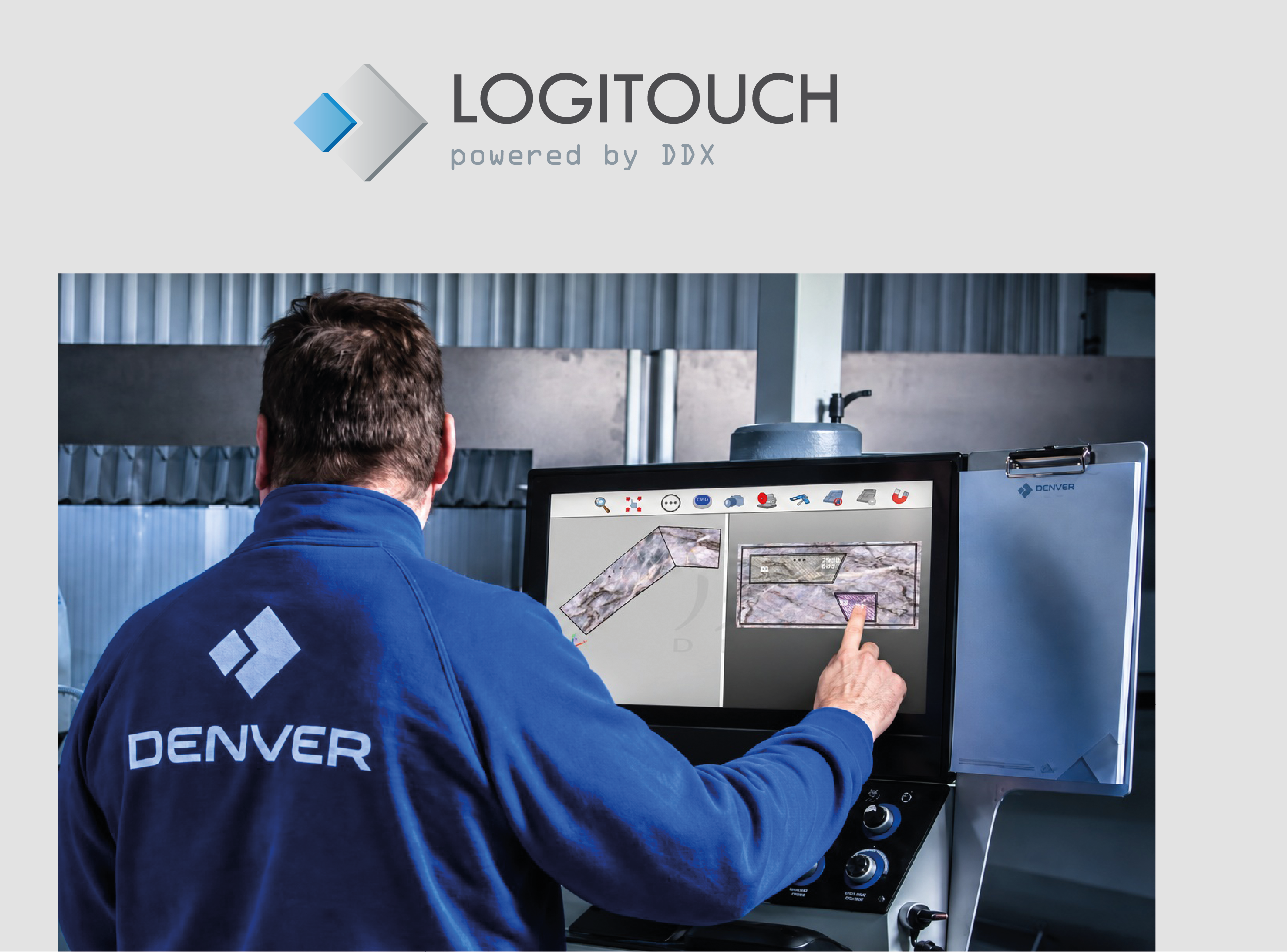

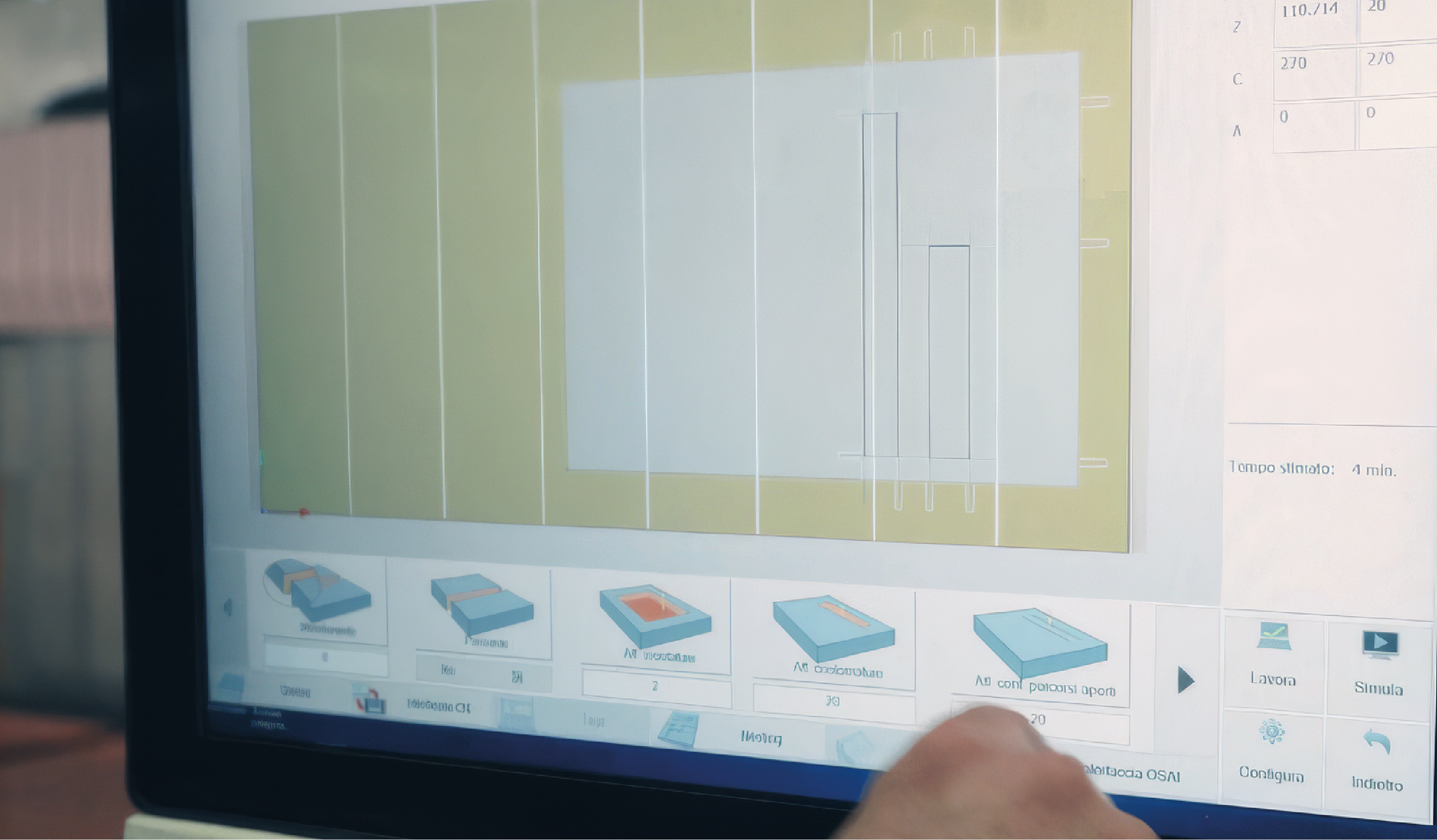

Make it easy with Logitouch Parametric Interface powered by DDX

To run semi and fully automatic cut cycles and profiling, including DXF importability.

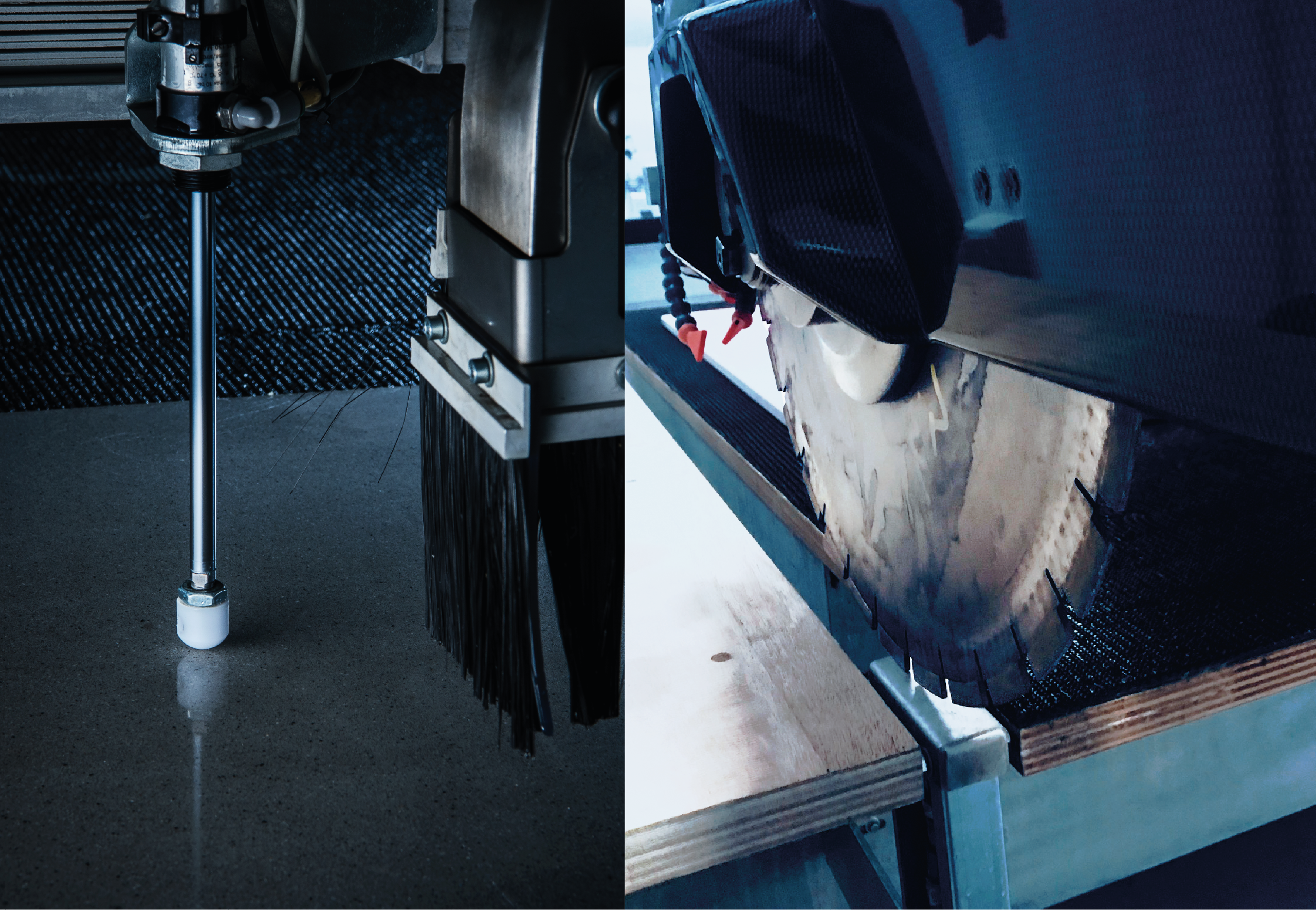

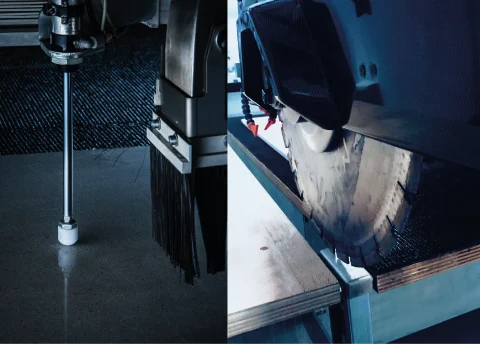

Touch Probes

For auto measuring the slab thickness and auto detection of blade diameter / lenght of the tool, to allow continuos…

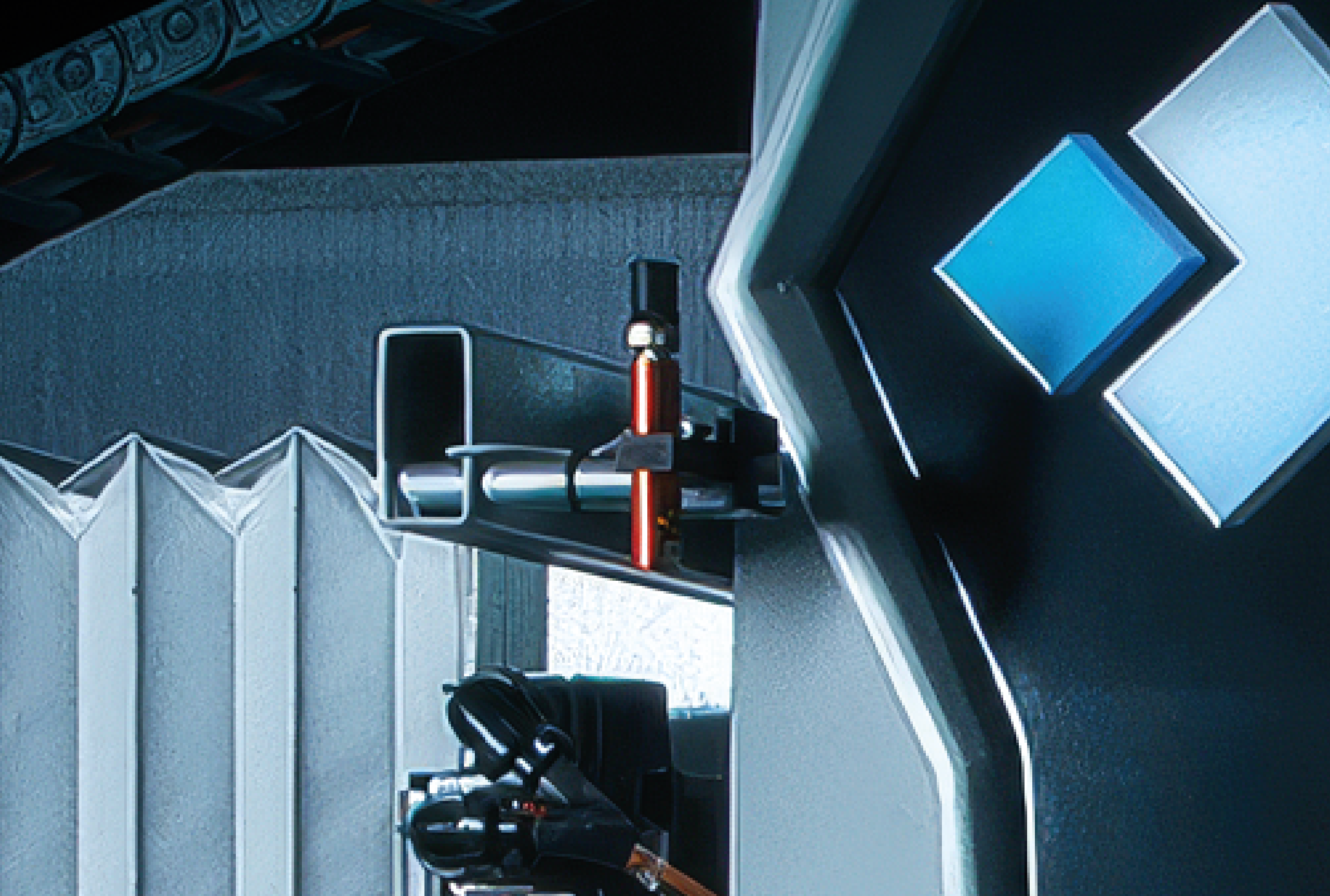

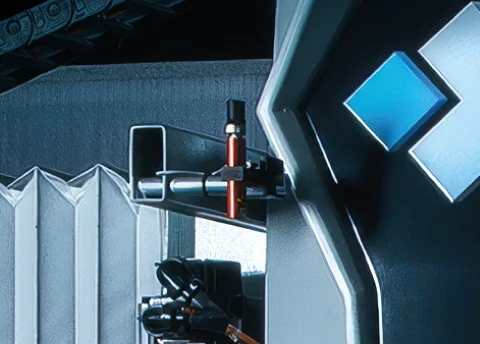

Laser Point

Laser point to ease the location and storage of the origin position and of the work piece dimensions and position,…

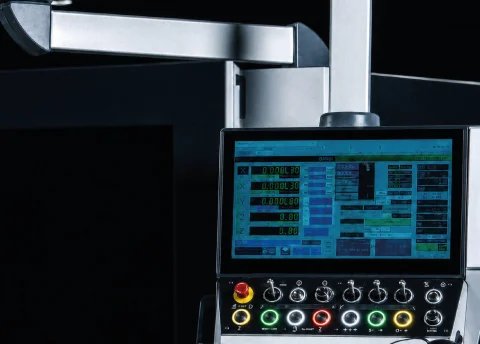

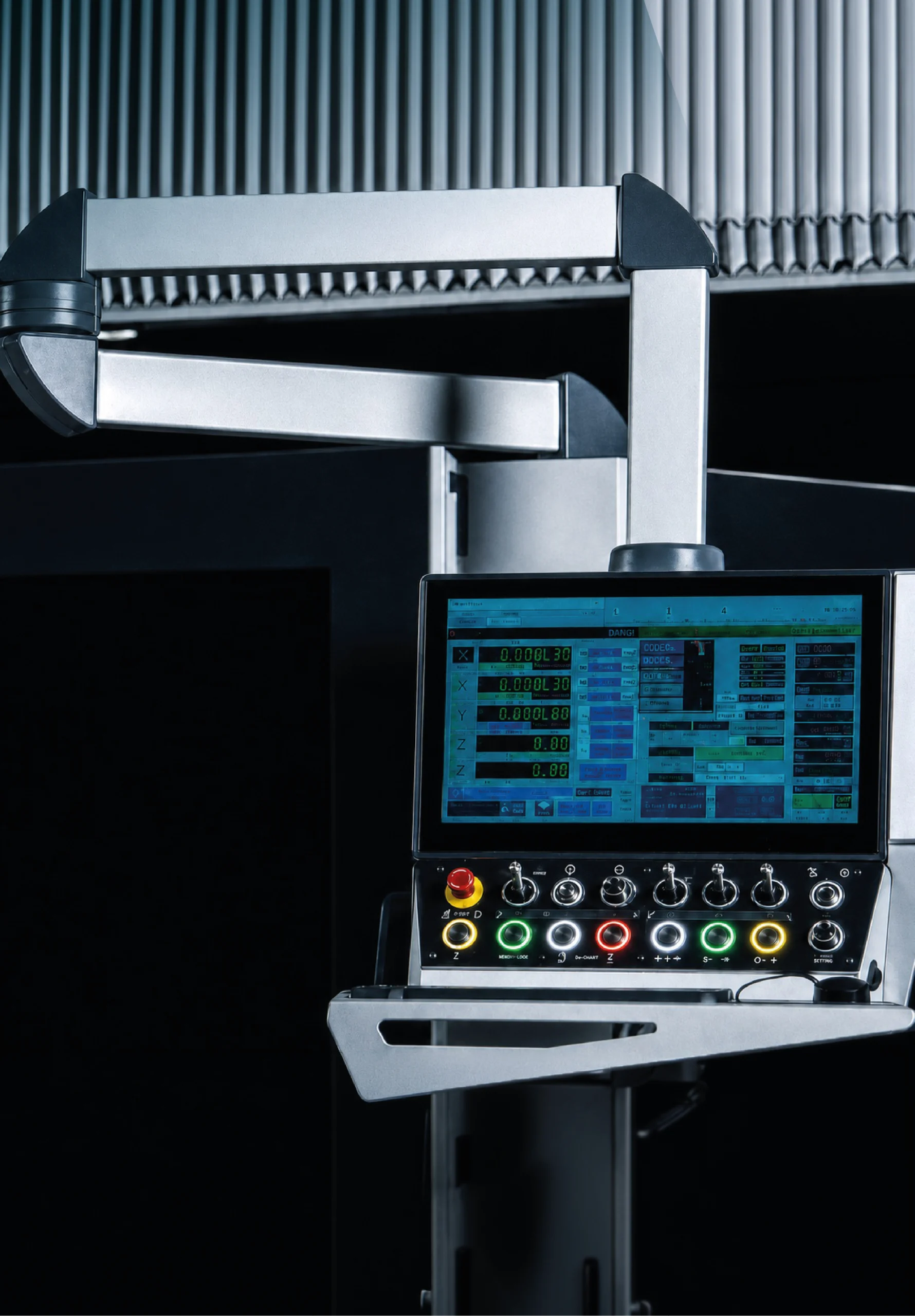

Control Panel

Control panel with 21” colored touch screen and ergonomic keyboard design offering max efficiency and intuitive controls.

SKEMA

Processing

What you can do with this machine

Ask for more

Complex cuts / Nesting

Tilted cuts up to 90°

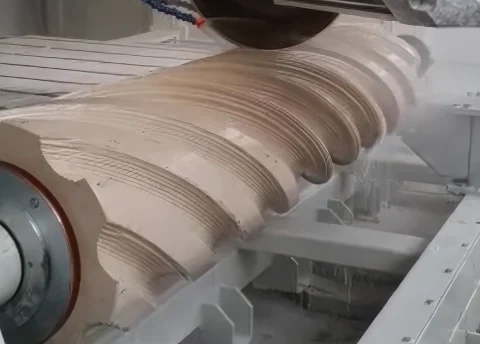

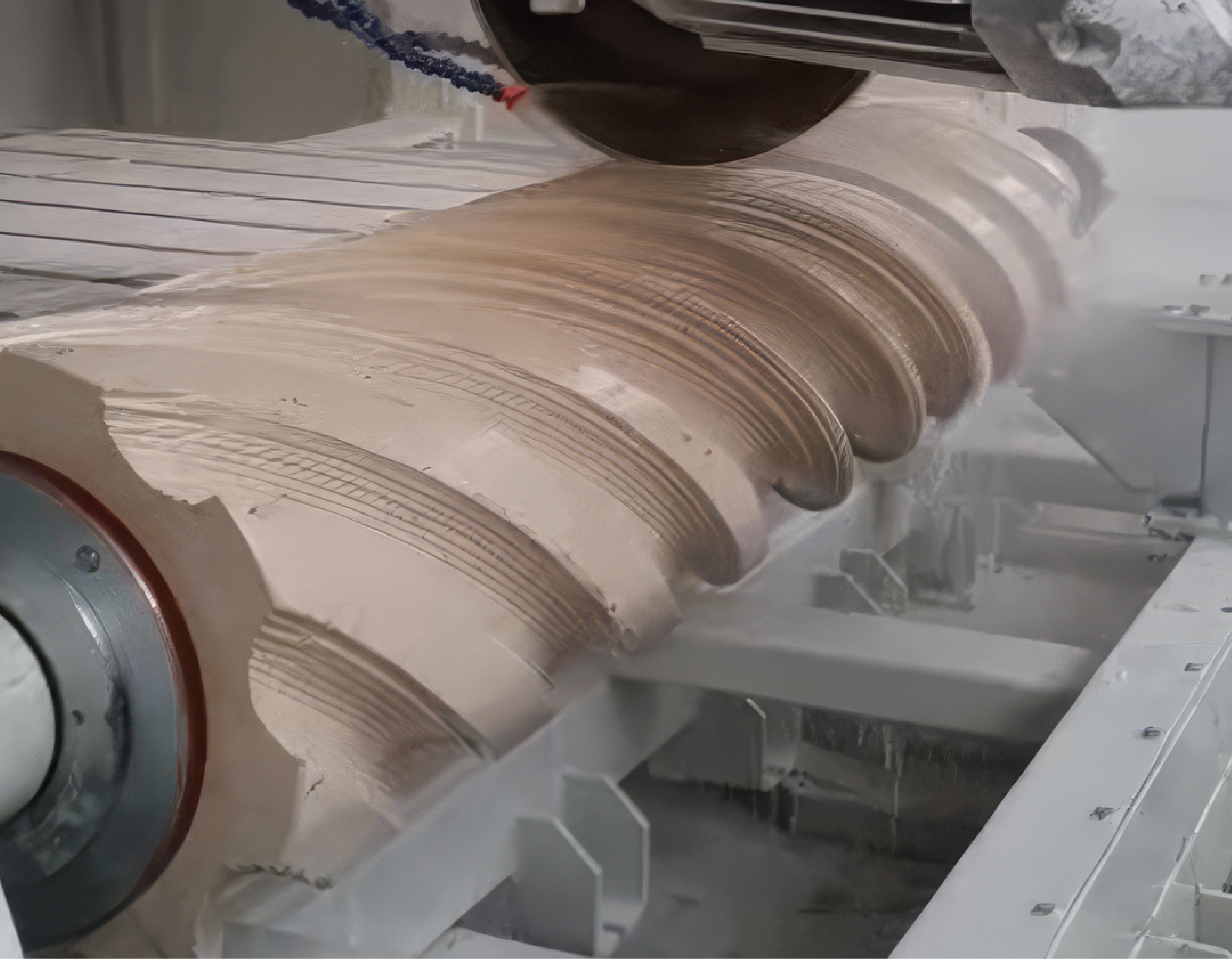

Working with Lathe

Surface Processing for Leathering & Honing

Solid Blocks Processing

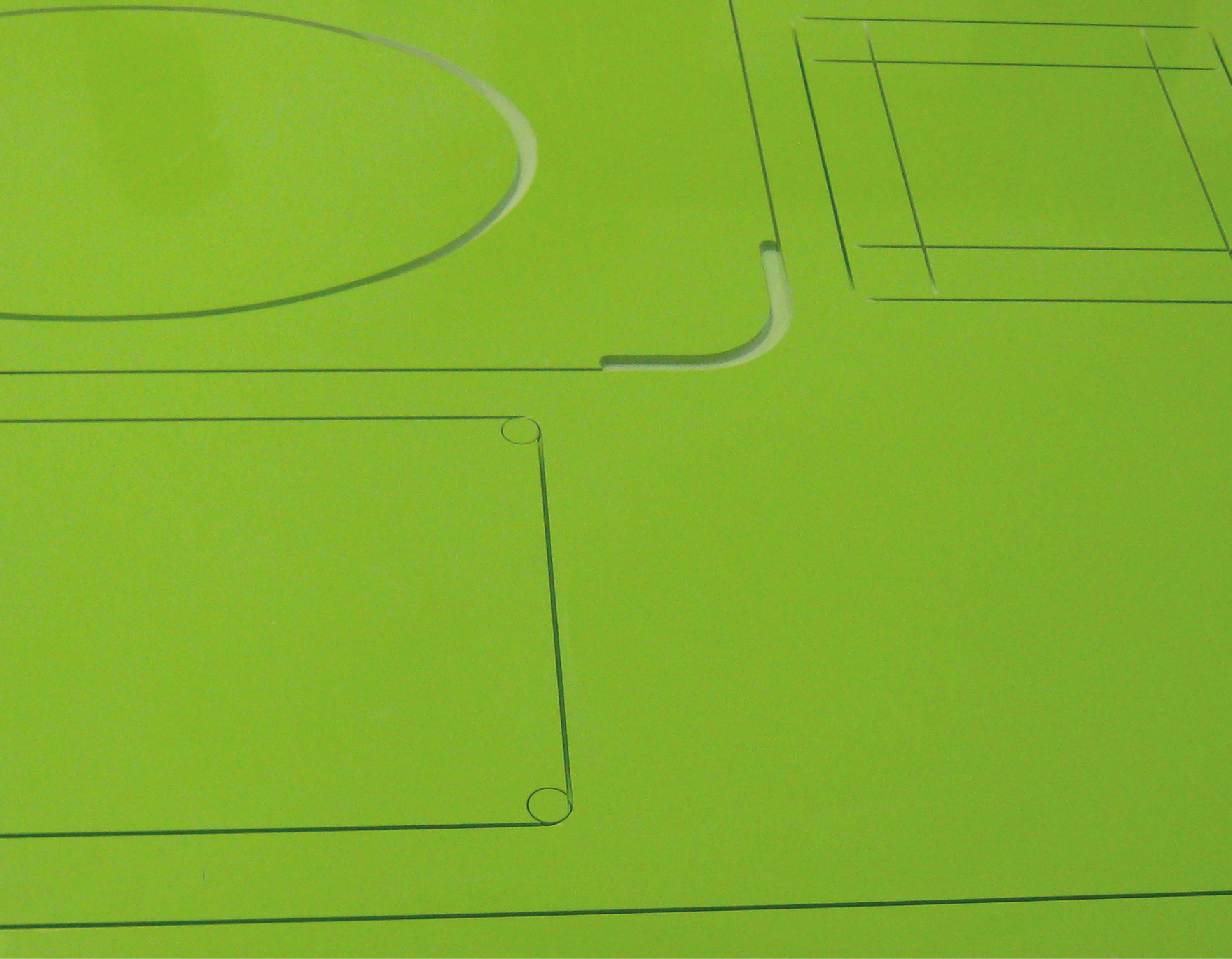

Combo processing with disc & mills/drills

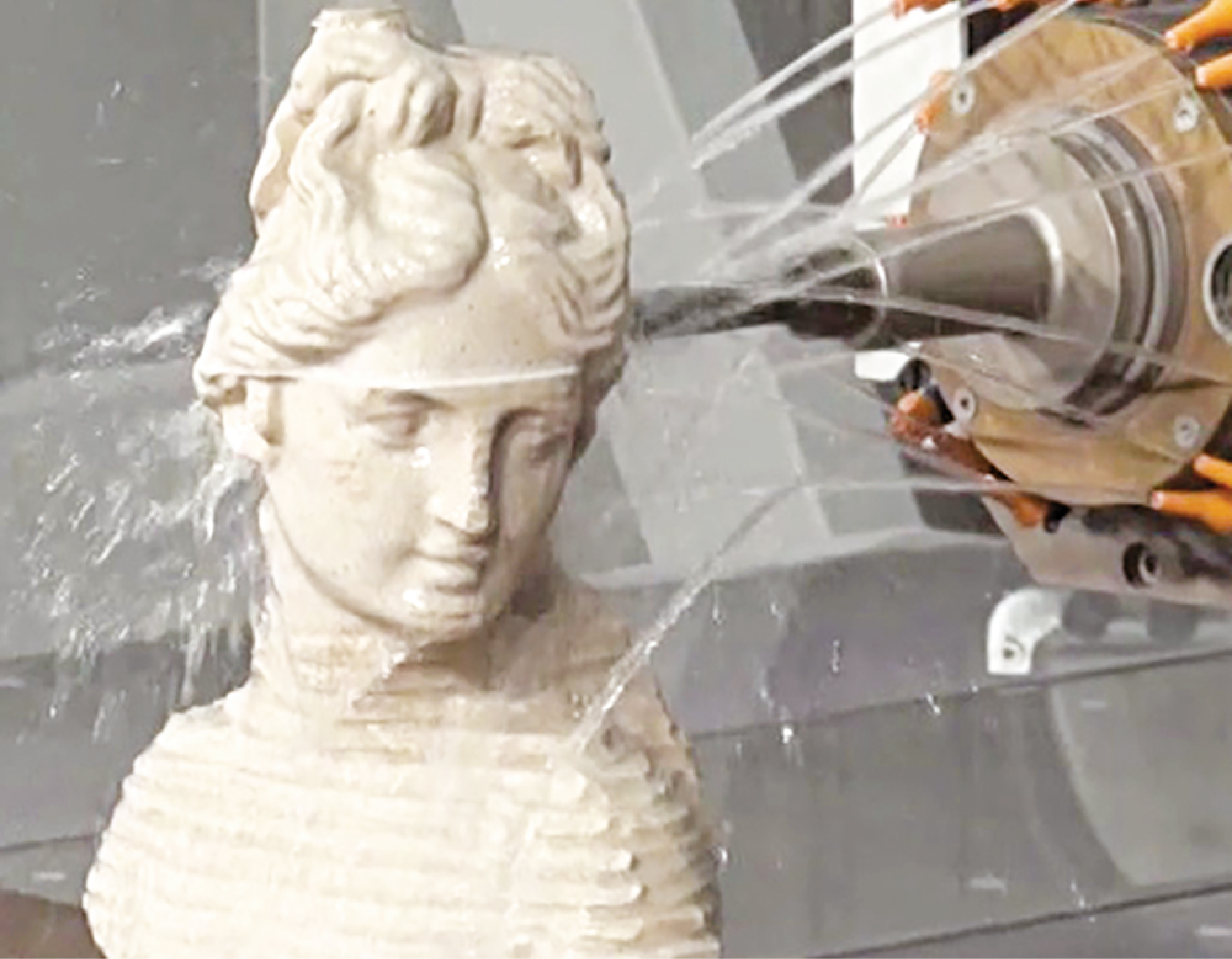

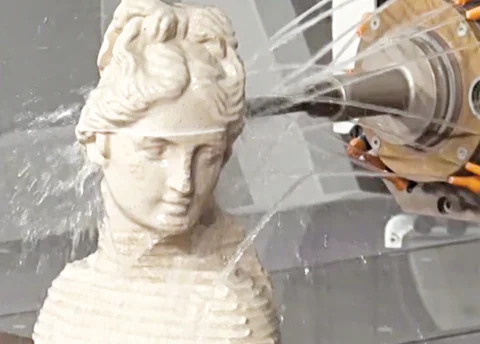

5-Axis Disc/Mill Carving

3D Shaping with Disc

SKEMA

Optionals

Available configurations and optional equipment connected to this product.

Ask for more

On Board Photo Software Package with Camera

For auto workpiece contouring, measuring and vein matching.

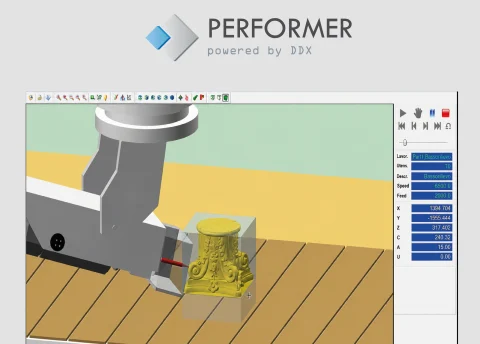

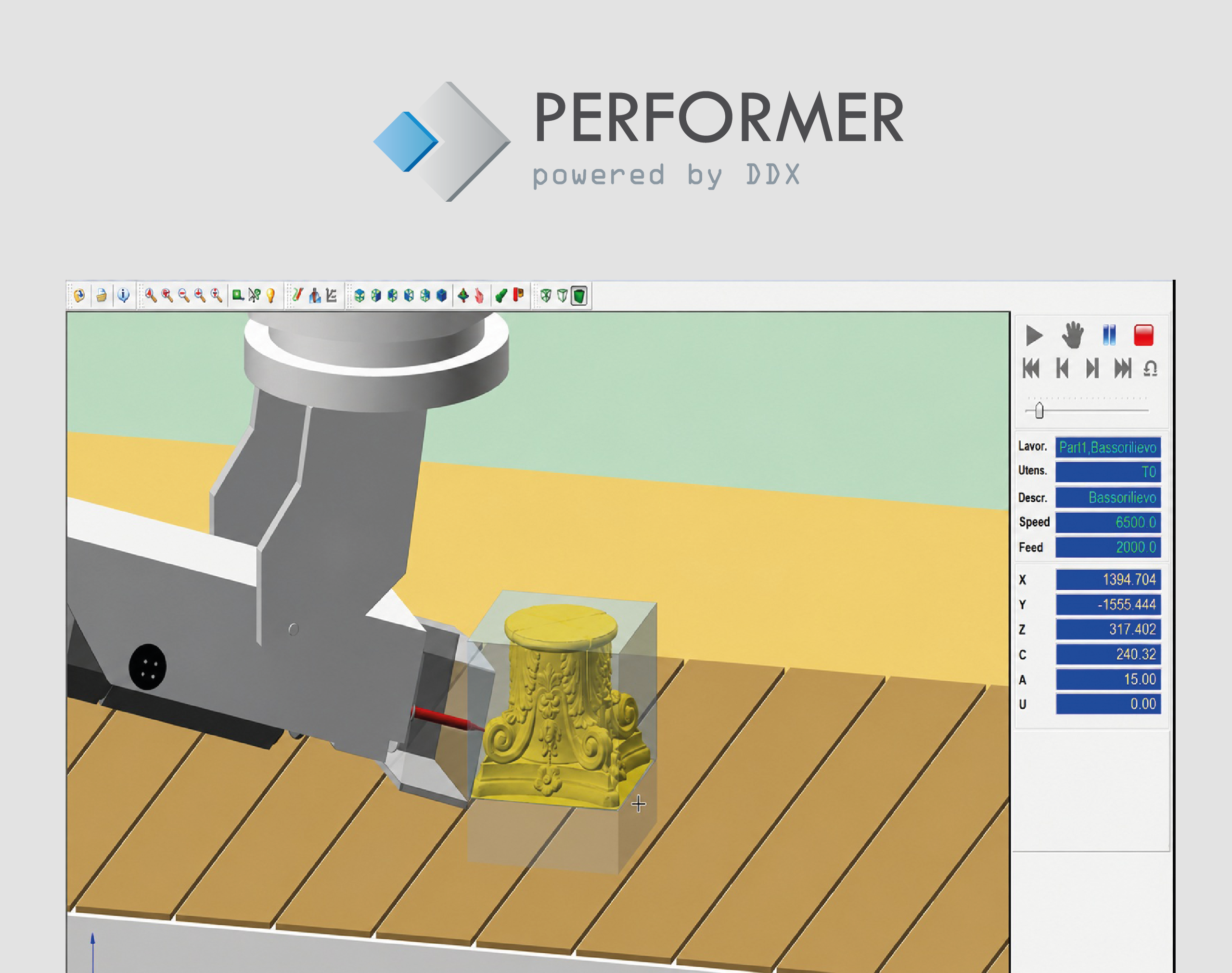

Cad-Cam software package for tridimensional processings

and funerary art applications

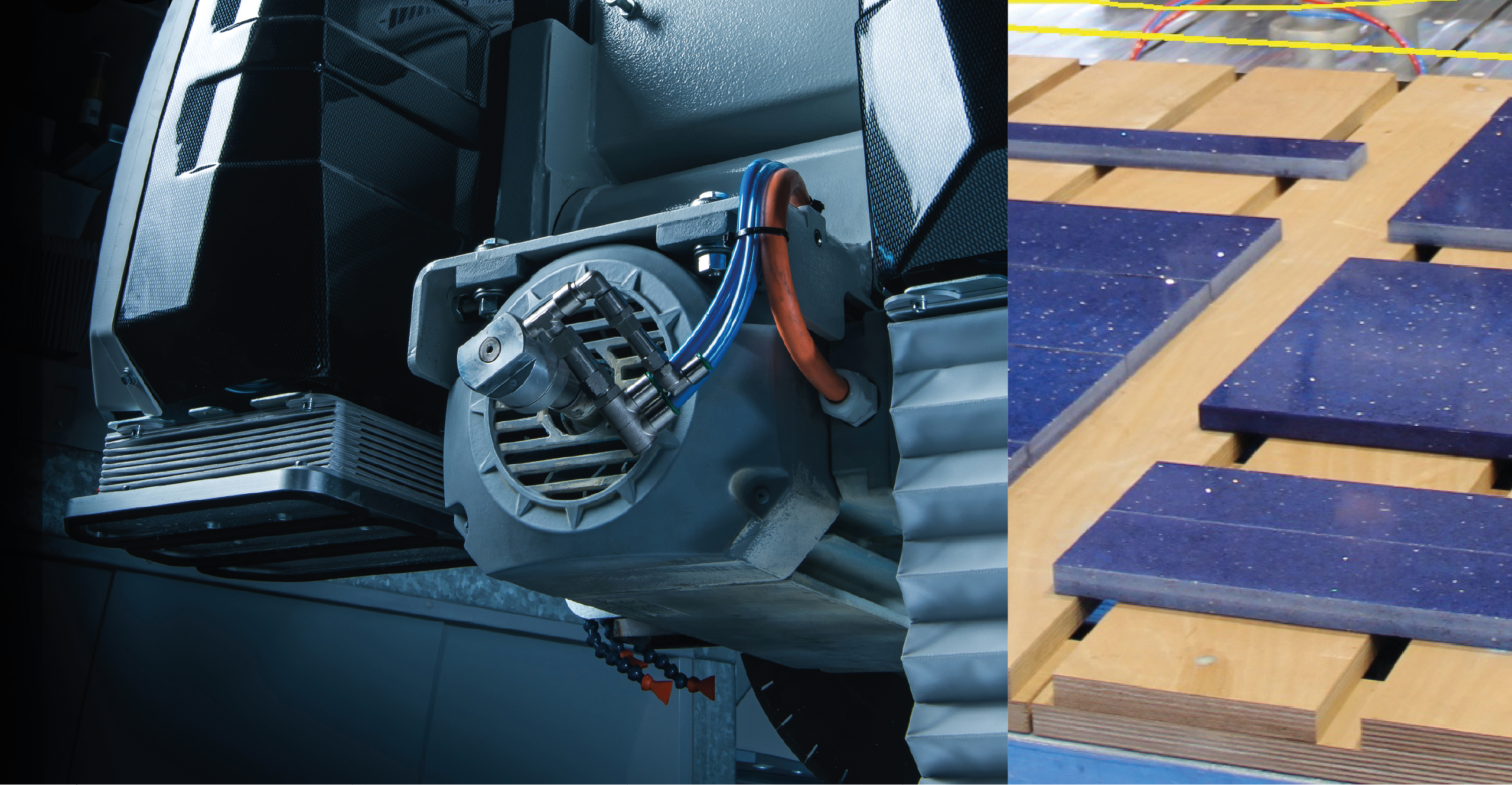

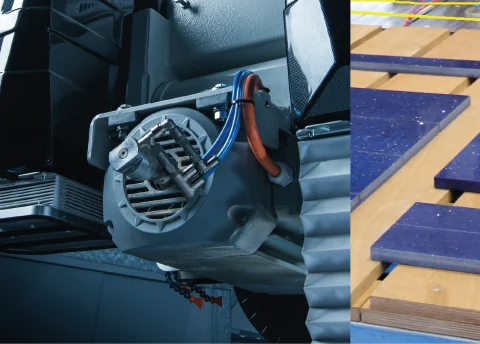

Vacuum System

With 2 independent cups, for cut cycle optimization through automatic placement of the pieces.

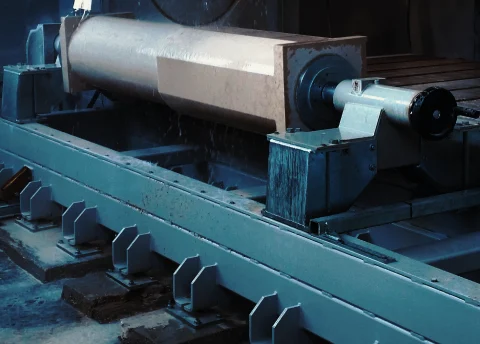

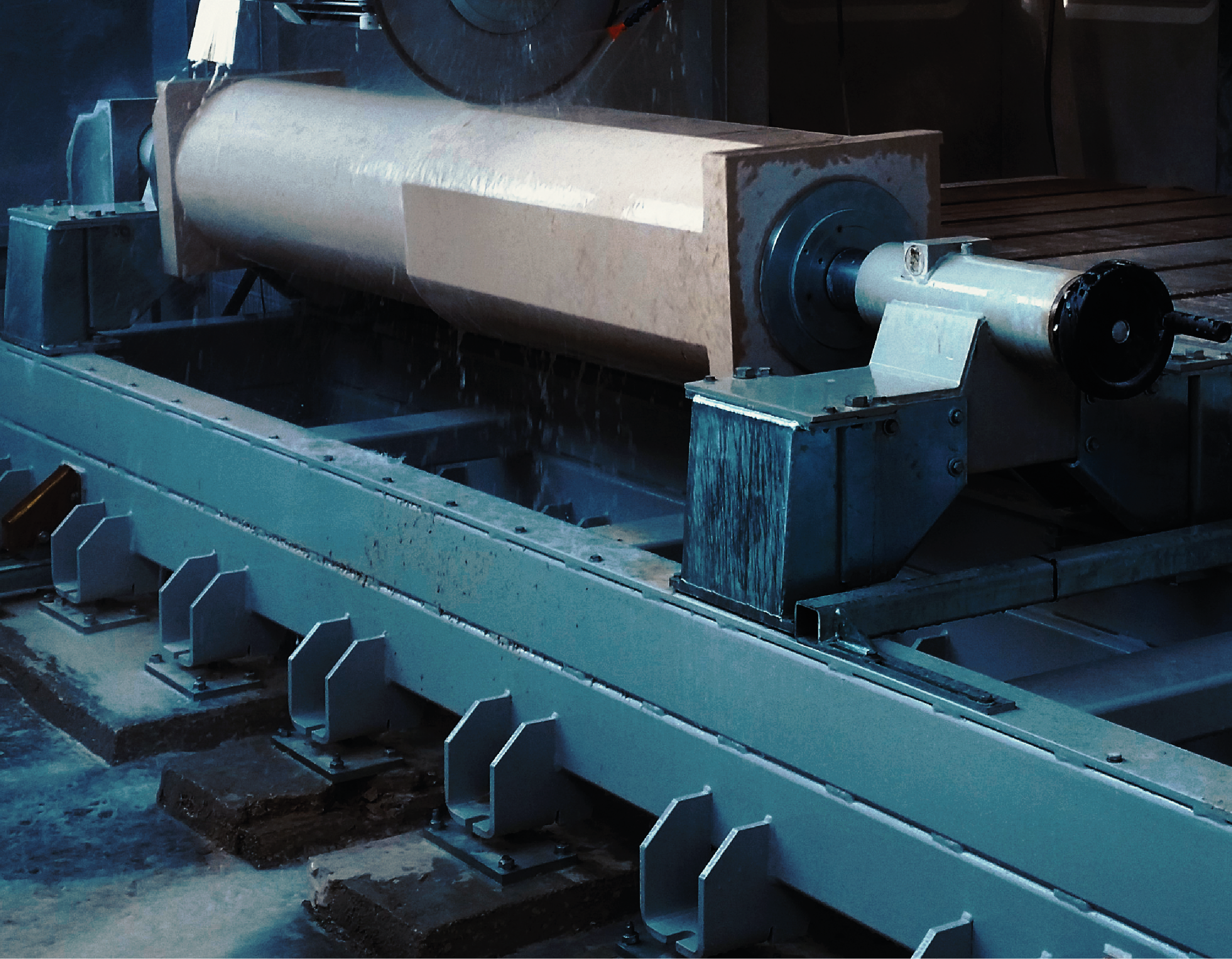

Lathe

Standard module or Interpolated unit for advanced profiling of columns, statues and capitals.

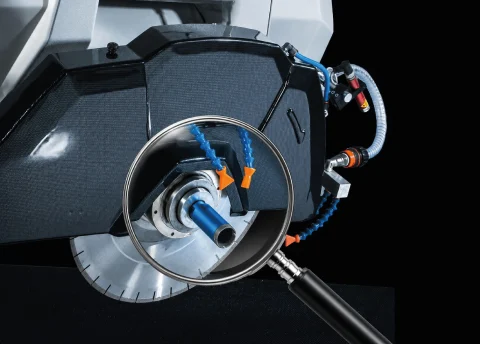

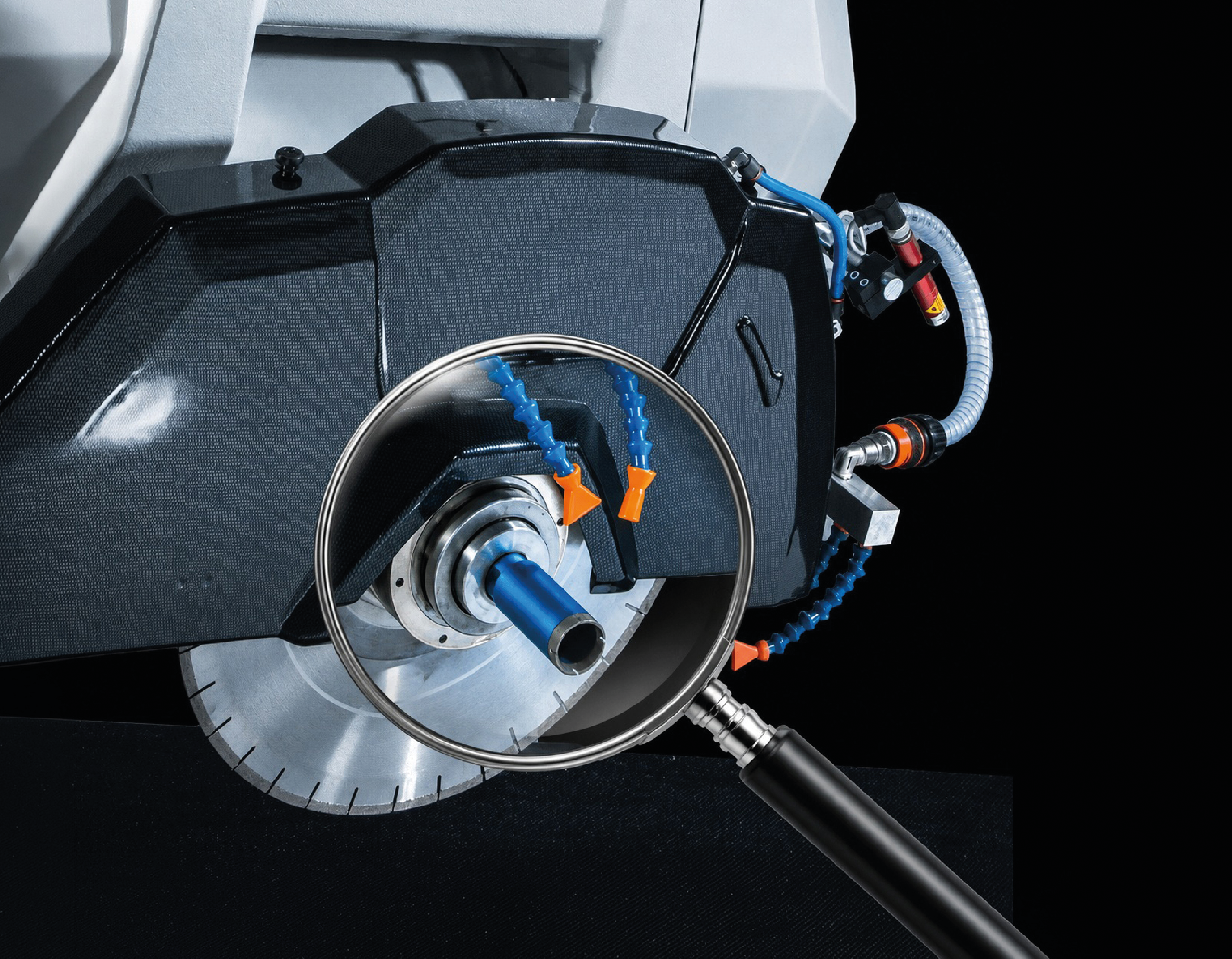

Disc Motor with Front Tool Attachment

Suitable for complex cutting and milling with disc and bit tools.

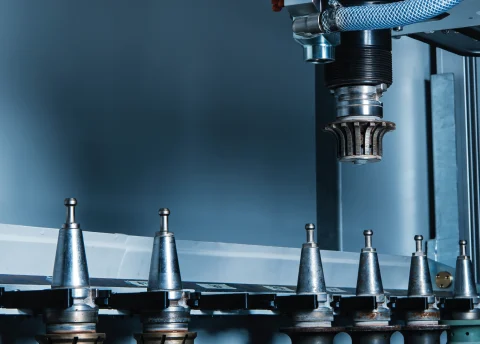

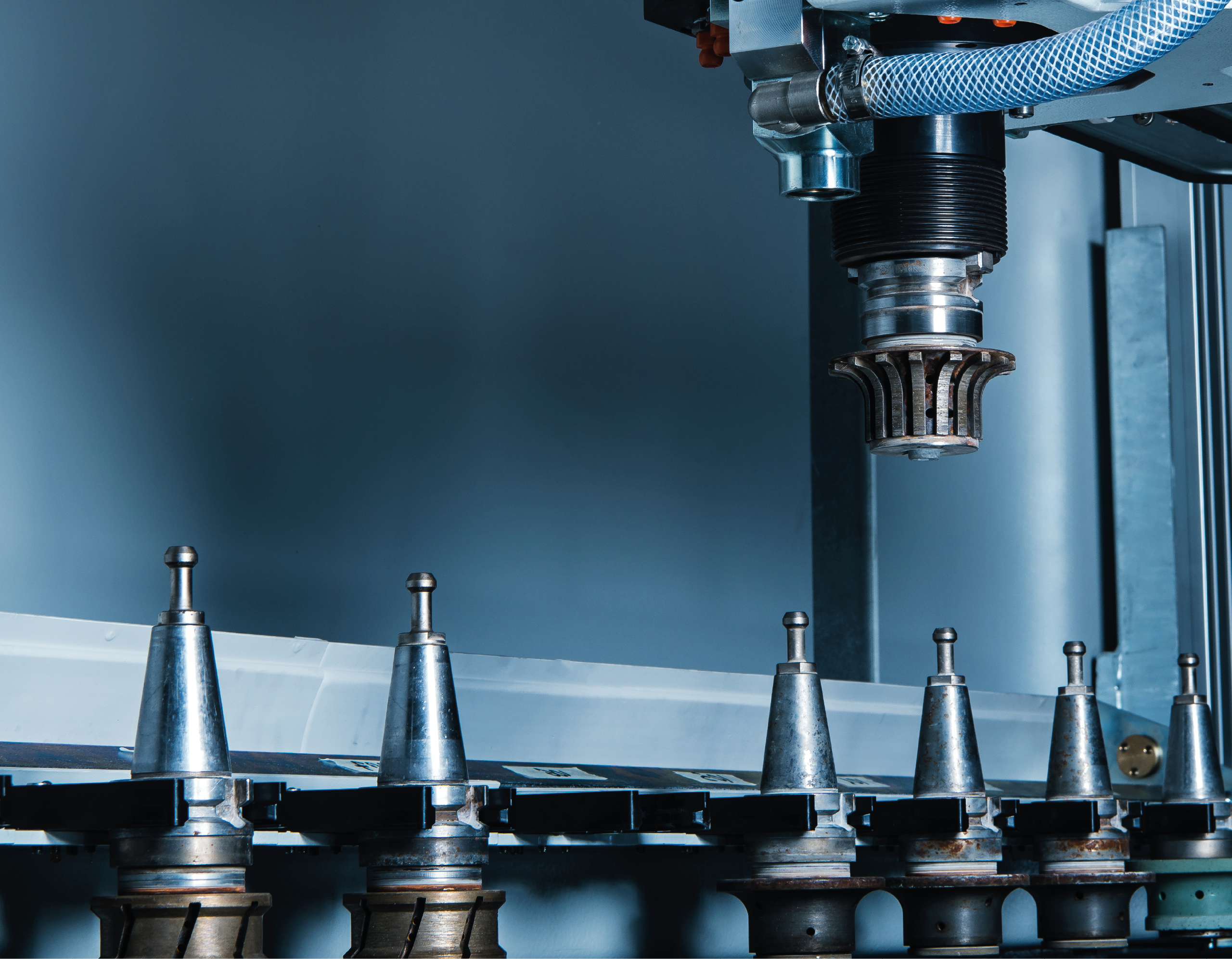

Auto Tool Changer System

ISO40 electrospindle and disc/tools magazine to carry out fully automatic management of working cycles.

Other videos

Frequently asked questions

Find quick answers about configuration, installation and production use.


Where can I find the complete product technical datasheets?

Technical datasheets for all models are available in the Products section of the website. For detailed documentation or technical drawings, you can also contact our sales department.


Are CAD-CAM software packages included with the machine?

Yes, Denver machines are supplied with dedicated CAD-CAM software already configured. The license, training and updates are included in the standard supply package.
