Glass line

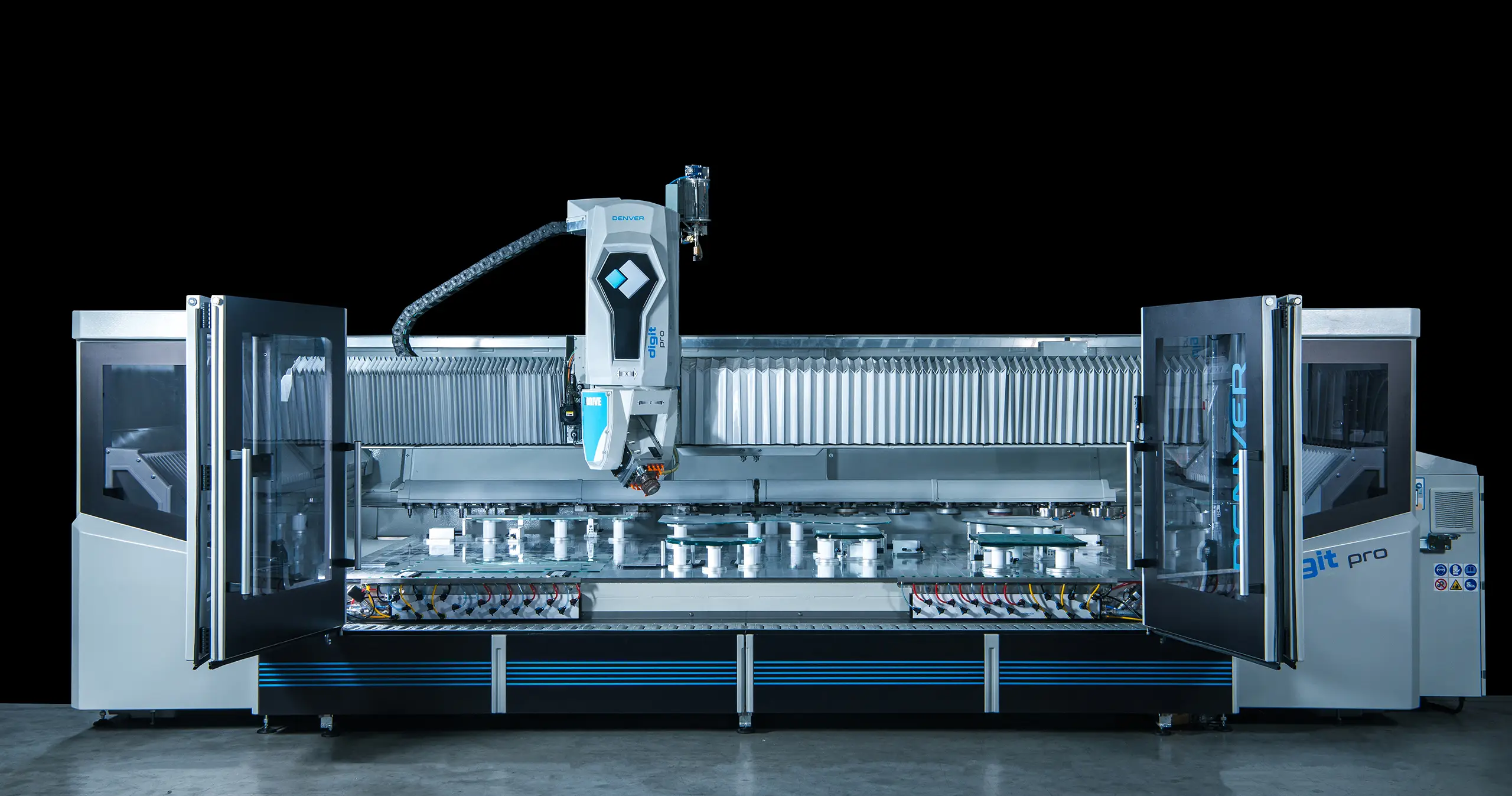

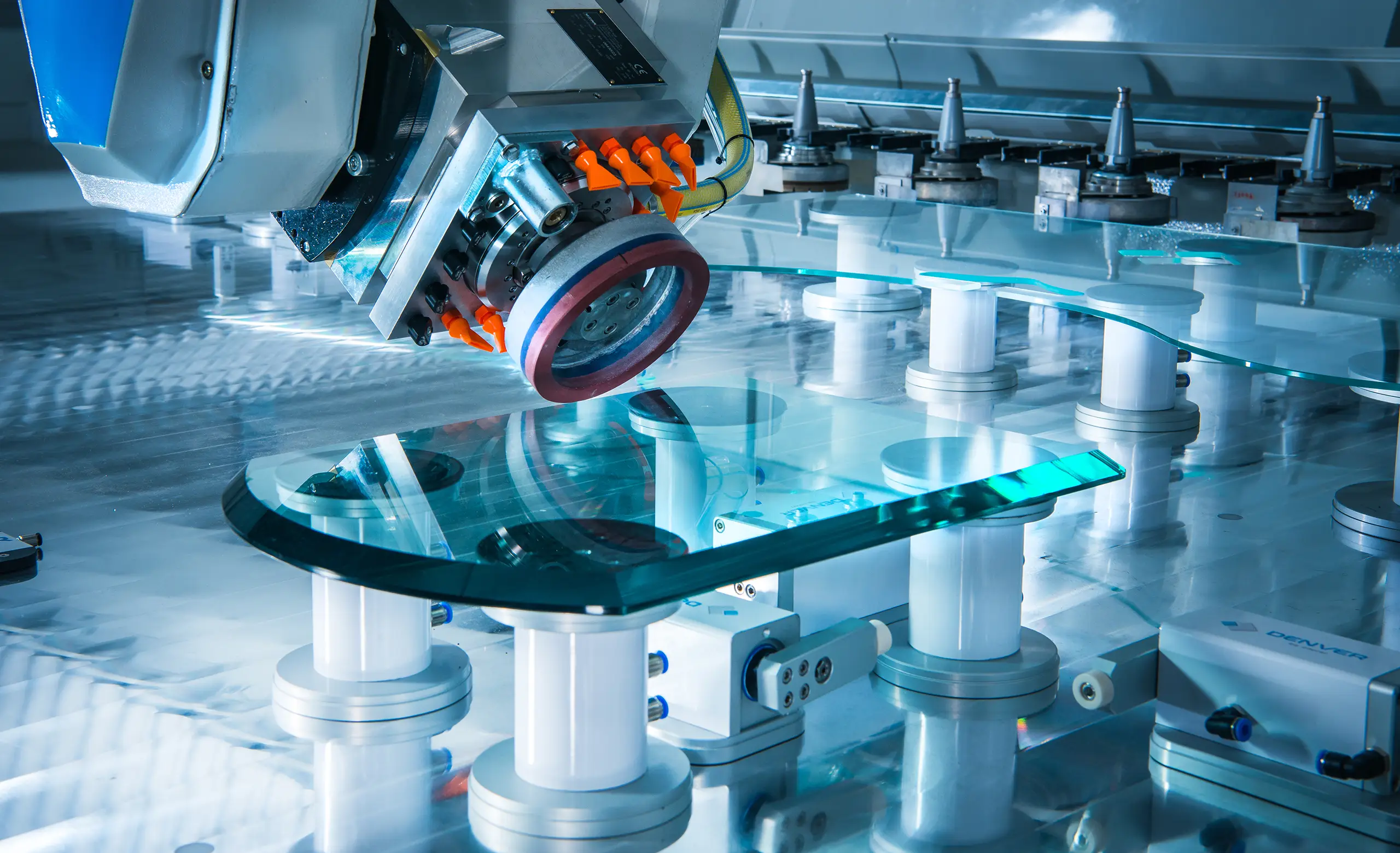

Digit PRO

5 AXES X:4200 Y:2450 Z:405

Interested? Let’s talk

THE STATS

Digit PROmain data of the machine

Work Area

X 4200 mm – 165"
Y 2450 mm – 96"
Z 405 mm – 15"

A axis

90°

C axis

540°

Motor power

Kw 17 – Hp 12,5 (S6)
0 ÷ 10000 rpm

Weight

5500 kg
12500 lbs
Automatic Tool Change
N°28 – ISO40

SKEMA

Features

Projects, technologies, events and insights from the world of stone and glass processing.

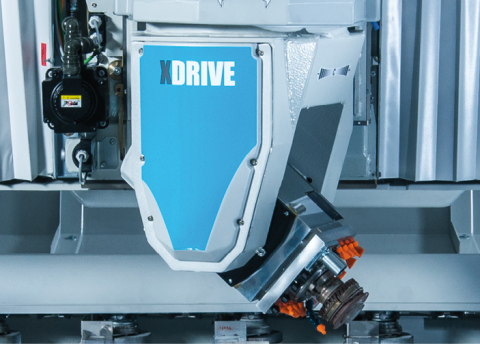

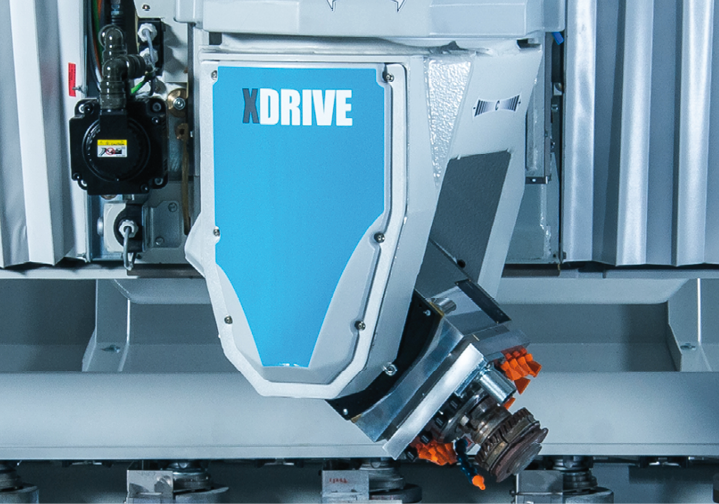

X-Drive

5 axes head including “zero” backlash gearbox on the “A” tilting axis (+/- 90°), and robust electrospindle suitable for the…

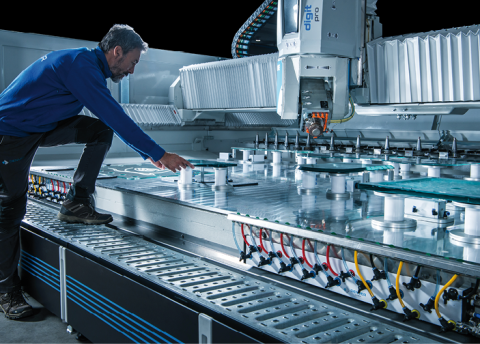

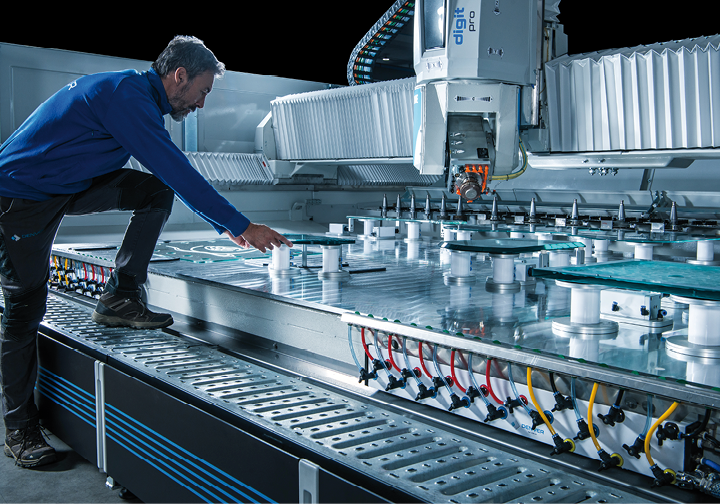

Easy Access for Max Operator’s Comfort.

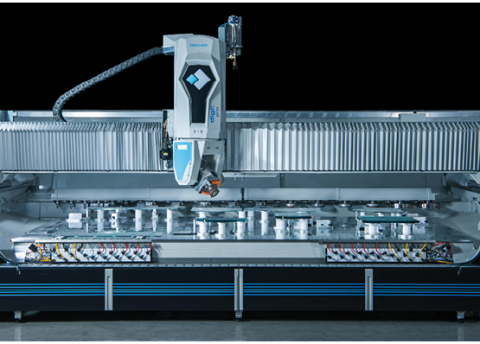

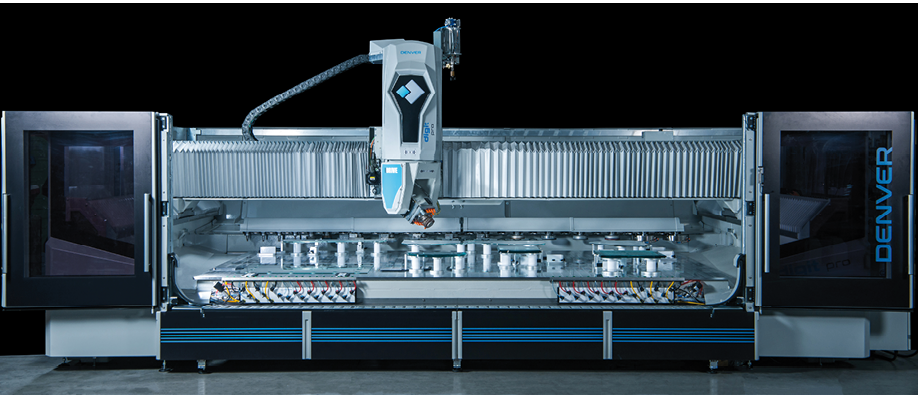

Efficency and Ergonomics

Foldable safety doors and integrated control cabinet for best yield/footprint ratio.

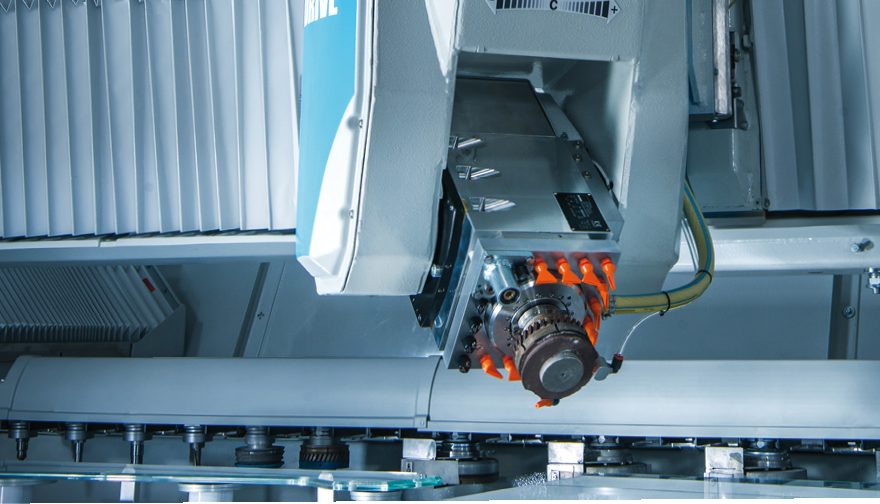

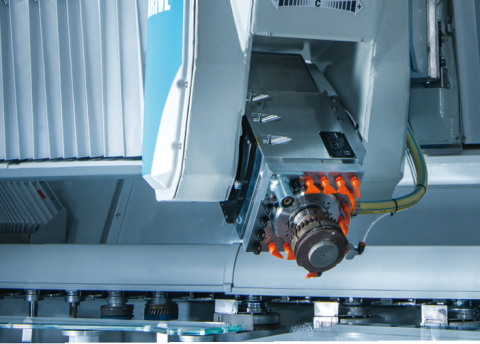

C Axis +/- 540°

C-axis rotation with an exclusive patented cable system which dramatically reduces all maintenance costs.

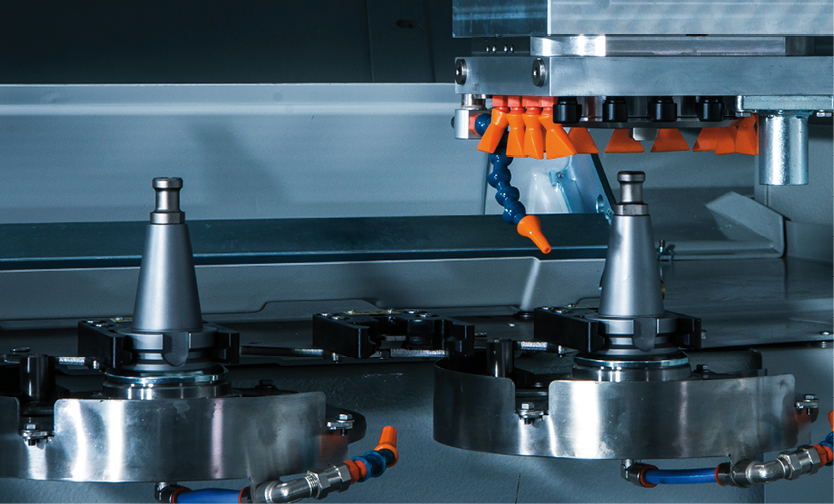

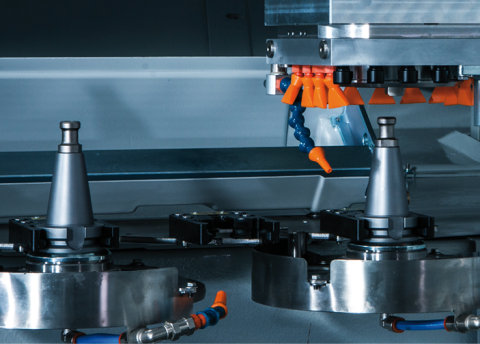

Automatic Tool Change

28 positions rear automatic magazine for fast tool change and max working capacity.

SKEMA

Processing

What you can do with this machine

Ask for more

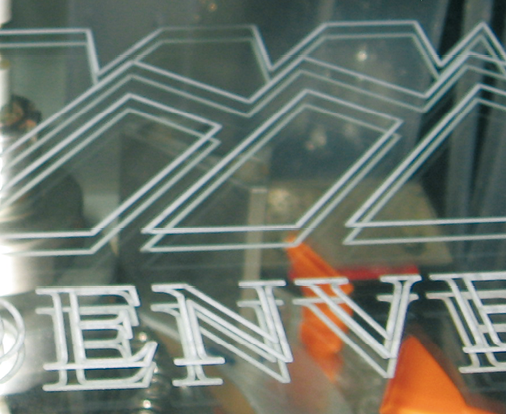

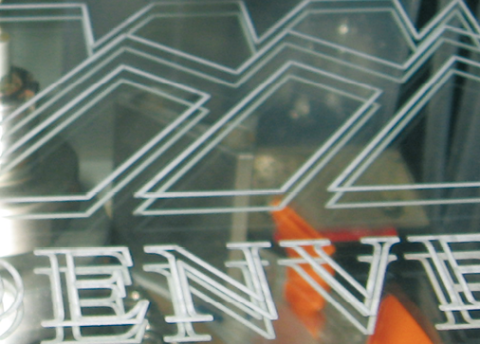

Writing

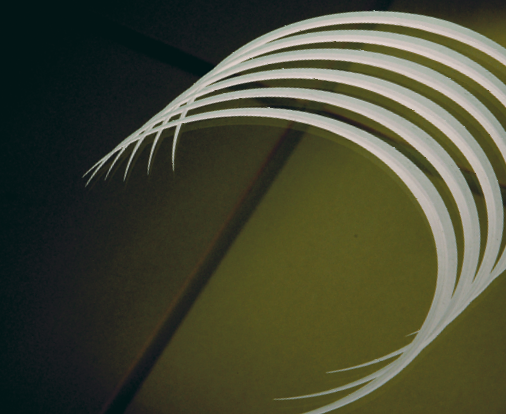

Grooving

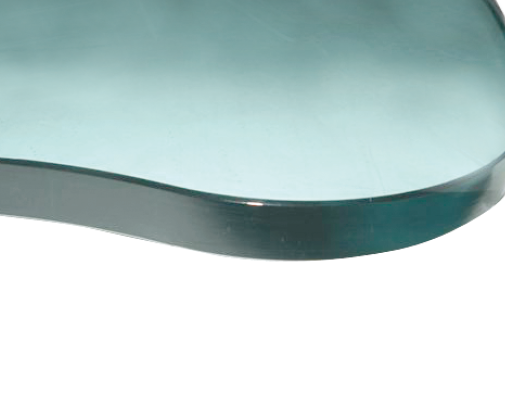

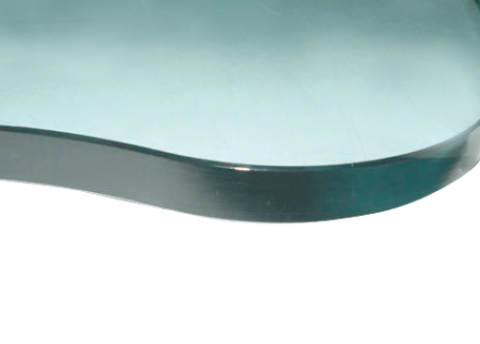

Polishing

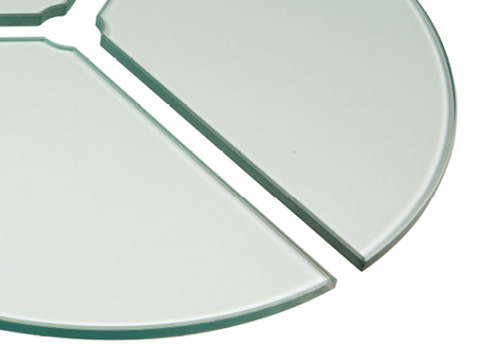

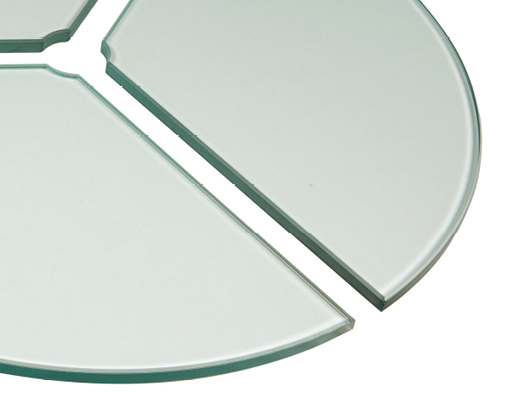

Routing

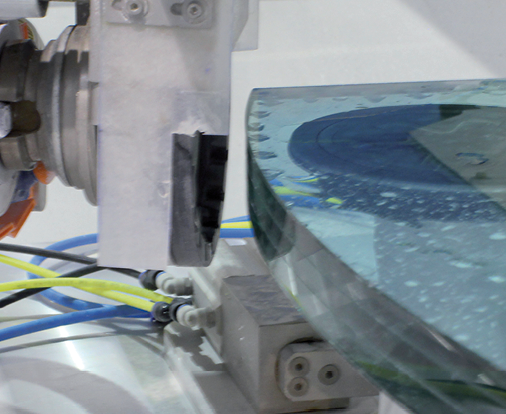

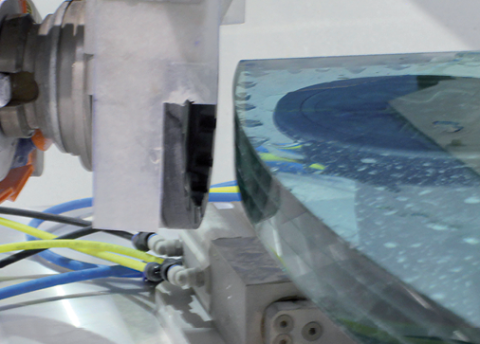

Flat edge grinding and polishing

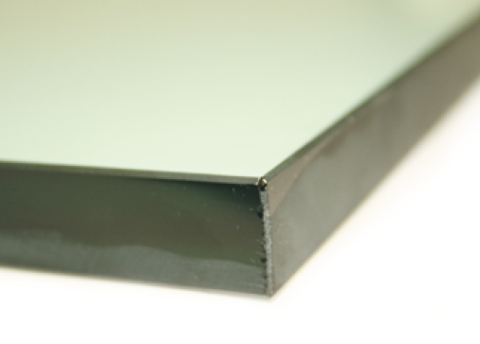

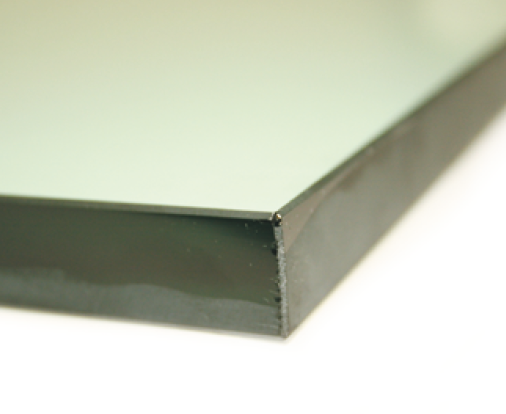

Flat saw blade cutting

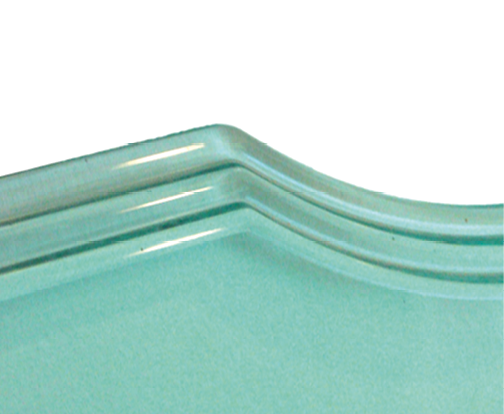

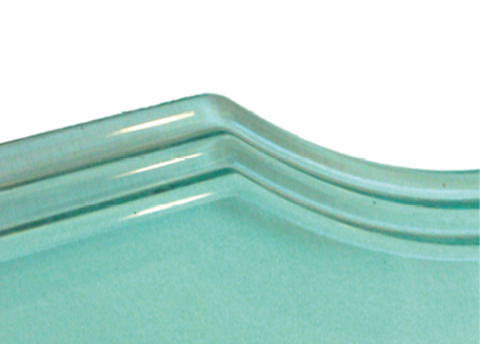

Grinding

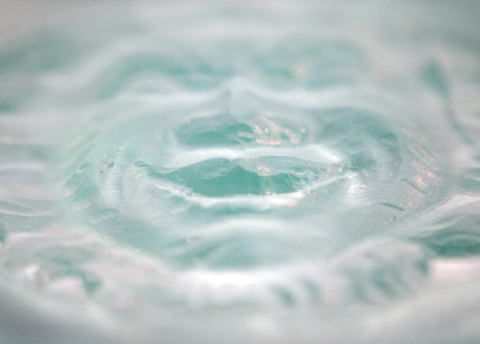

3D processings

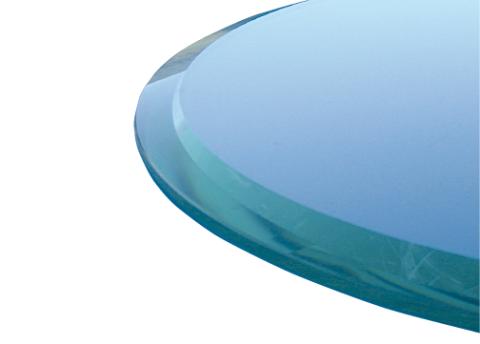

Bevelling

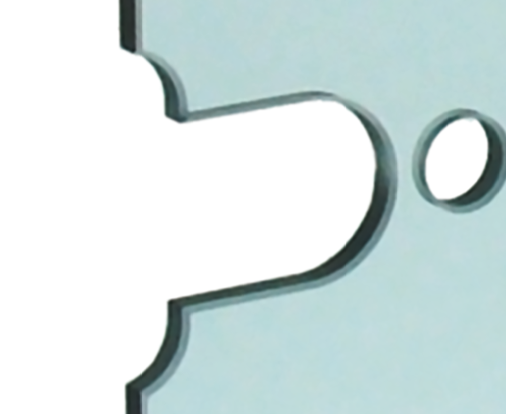

Drilling / Countersinking

SKEMA

Optionals

Available configurations and optional equipment connected to this product.

Ask for more

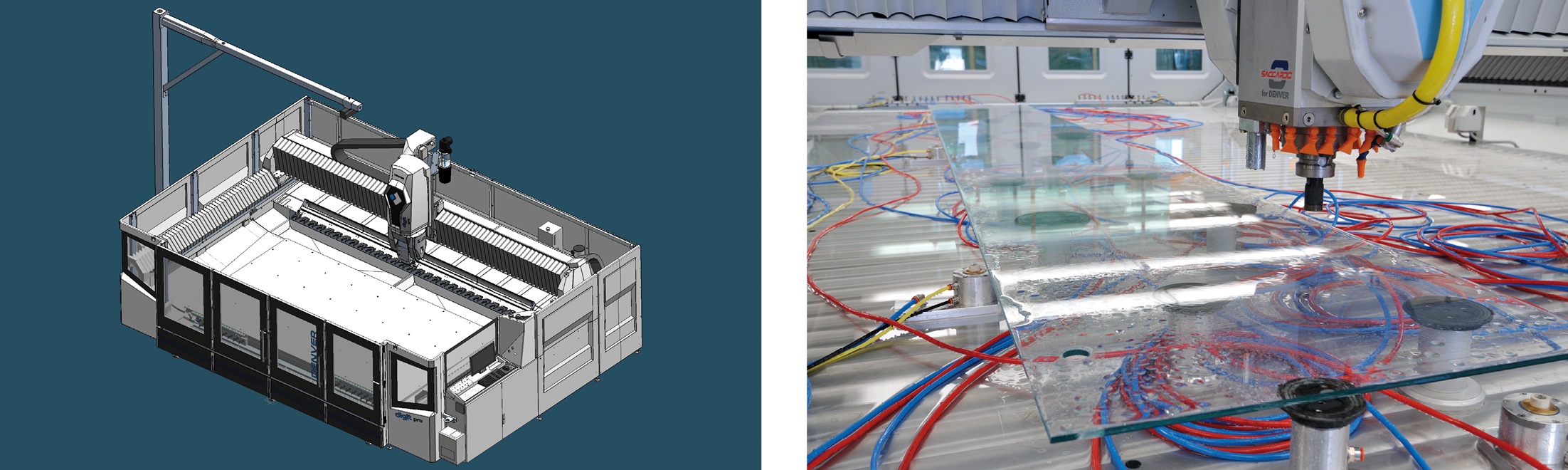

Jumbo version

Flexibility and throughput for both fabricating large single pieces, and the mass fabrication of medium-small pieces in pendulum processing.

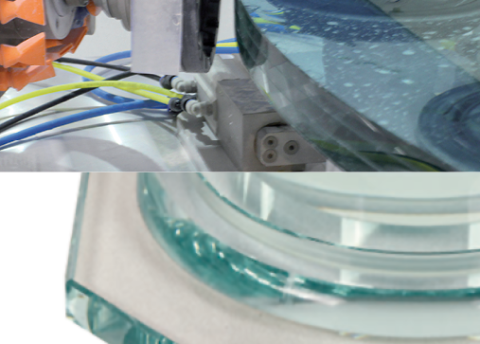

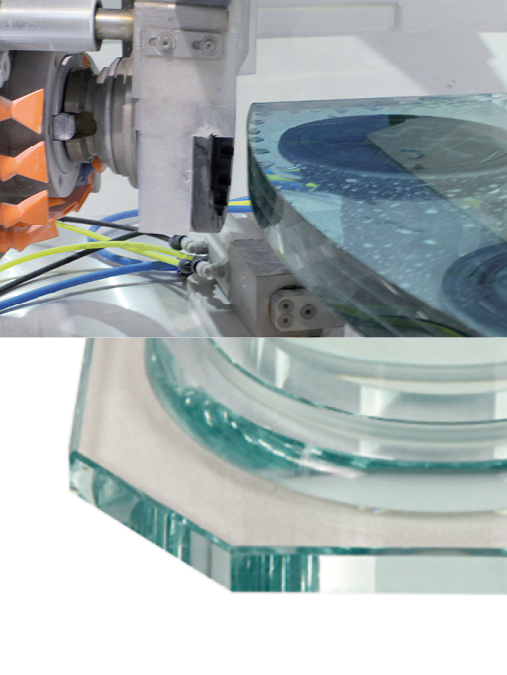

For flat edge processing with cup wheels

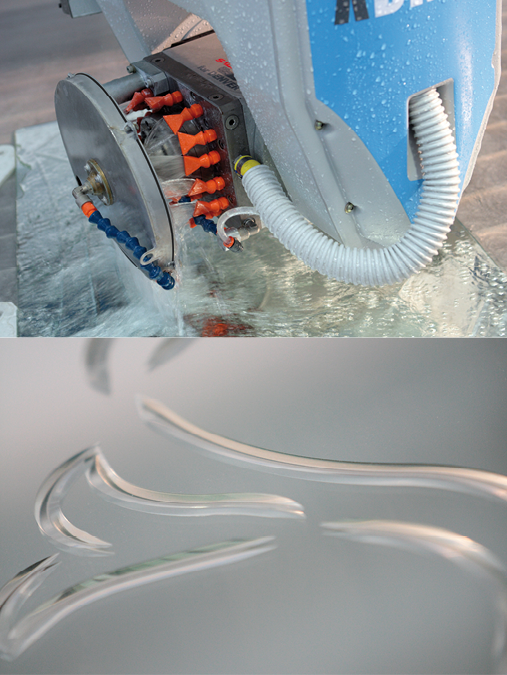

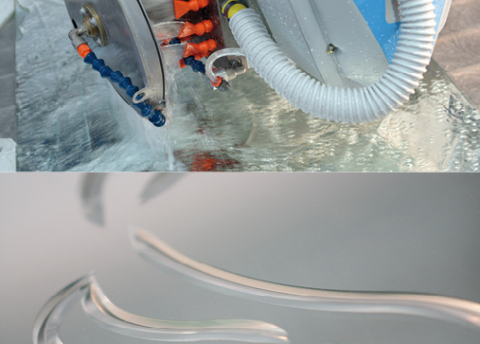

For grooving wheels

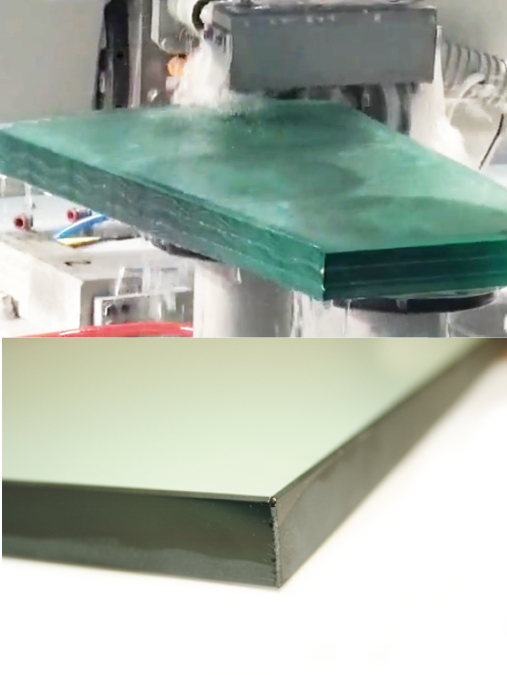

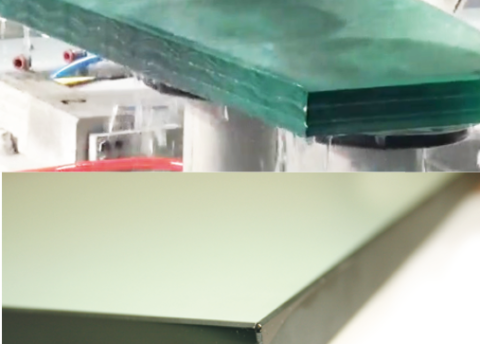

For cutting with blade

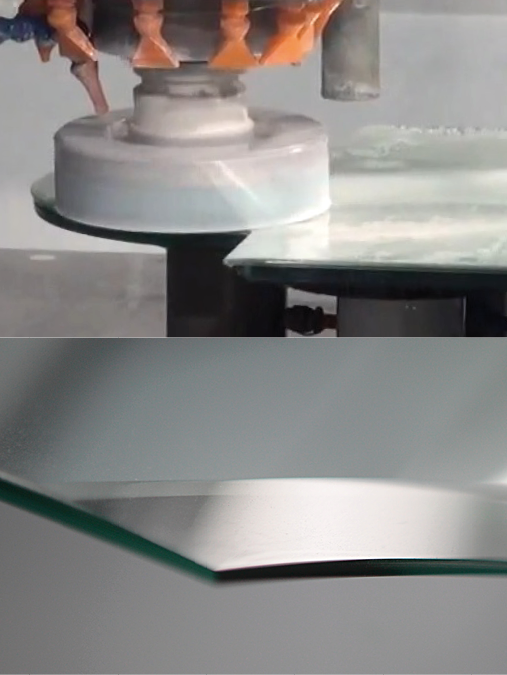

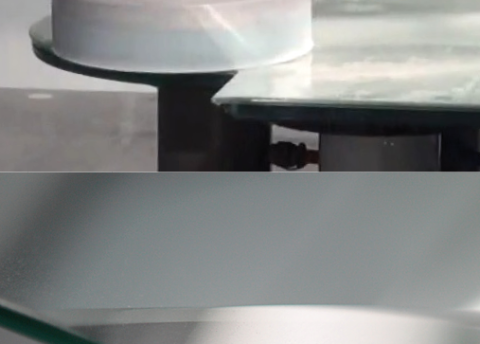

For bevelling with liquid cerium dispenser

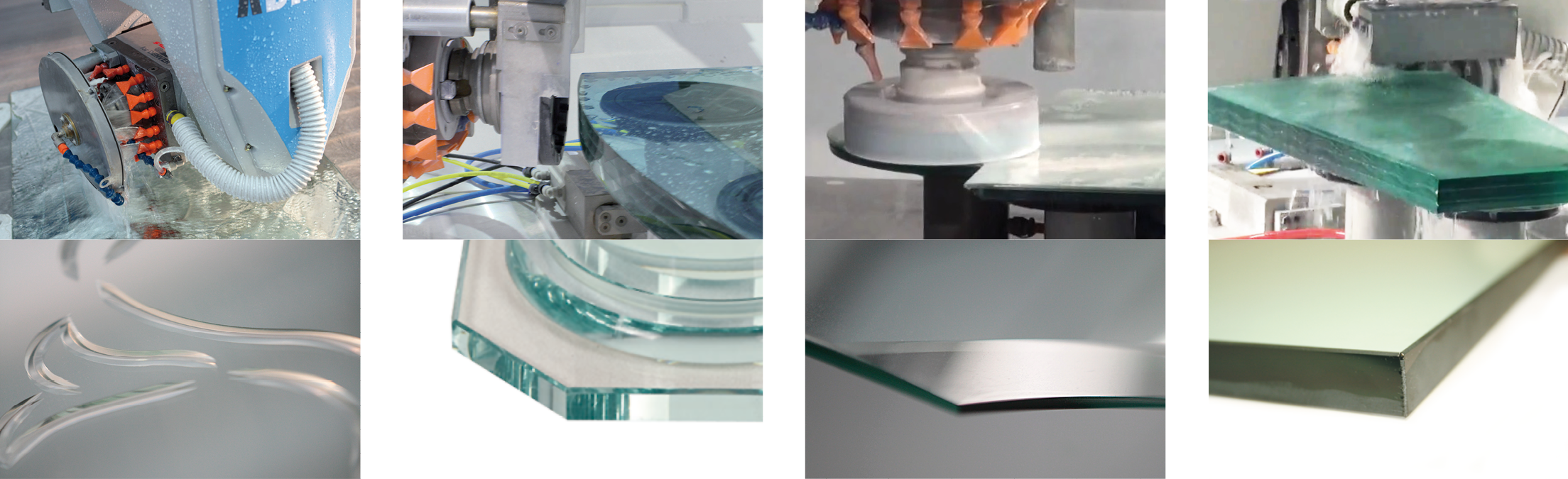

Direct-drive Devices

For cup wheels, discs and grooving wheels. No need for expensive and over time less accurate aggregates with angular gearbox.

Other videos

Frequently asked questions

Find quick answers about configuration, installation and production use.


Where can I find the complete product technical datasheets?

Technical datasheets for all models are available in the Products section of the website. For detailed documentation or technical drawings, you can also contact our sales department.


Are CAD-CAM software packages included with the machine?

Yes, Denver machines are supplied with dedicated CAD-CAM software already configured. The license, training and updates are included in the standard supply package.
