Stone line

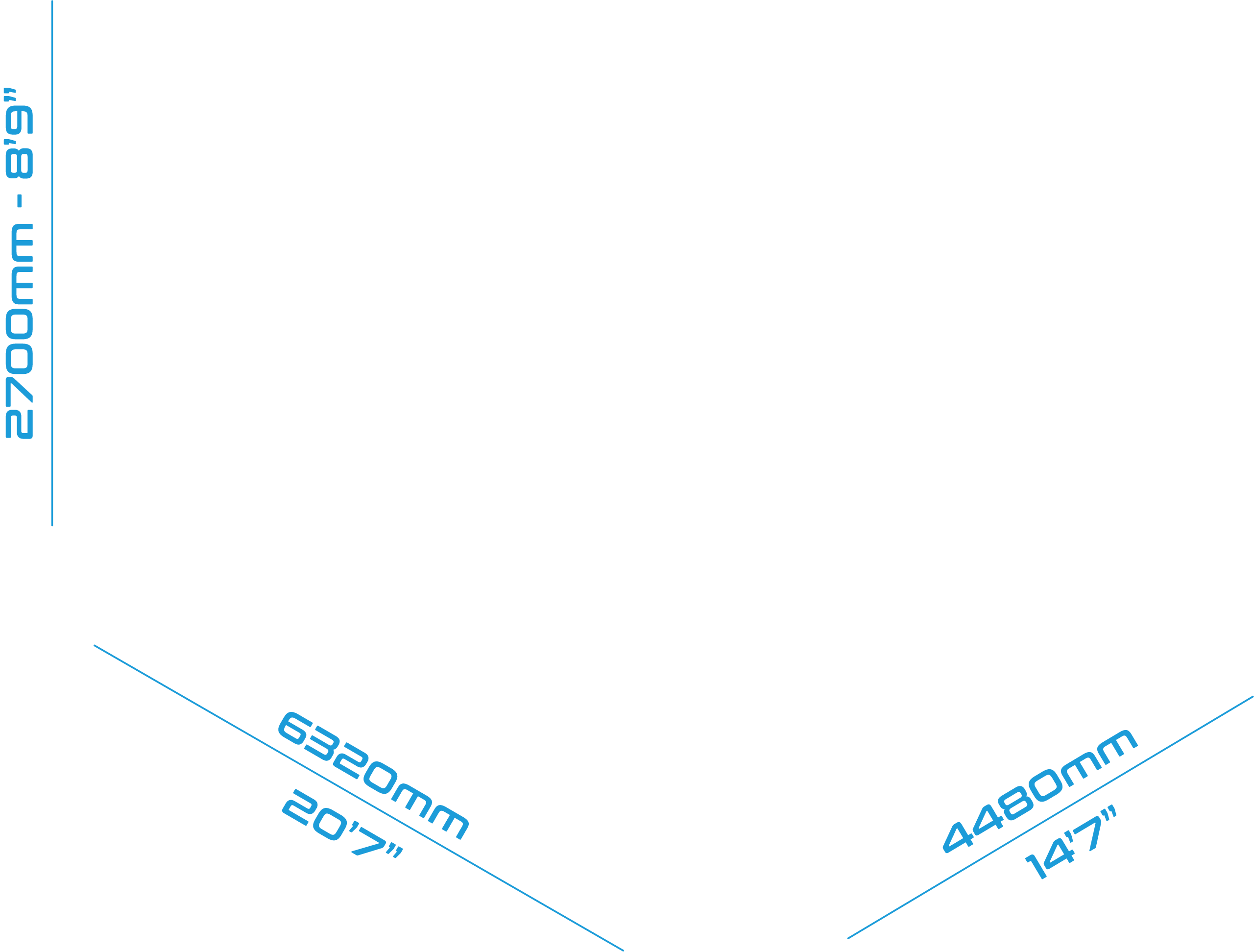

Quota Pro Stone 4200

3 AXES X:4200 Y:2450 Z:520

Interested? Let’s talk

THE STATS

Quota Pro Stone 4200main data of the machine

Work Area

X 4200 mm – 165,3“
Y 2450 mm – 96,4“
Z 520 mm – 20,4“

C axis

0 ÷ 360°

Motor power

Kw 11 – Hp 15 (S6)
0 ÷ 12000 rpm
(opt. Kw.14.1 / Hp.19)

Weight

5000 kg
11000 lbs
Automatic Tool Change
28 positions
(opt. 40 positions)

T axis

0 ÷ 0.3°

SKEMA

Features

Projects, technologies, events and insights from the world of stone and glass processing.

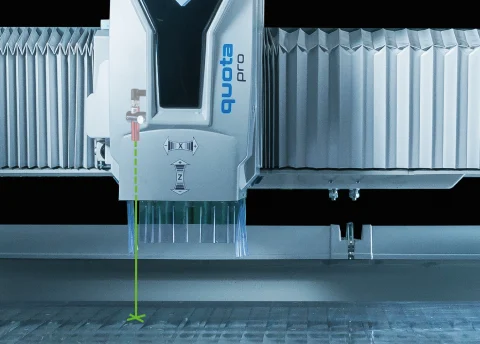

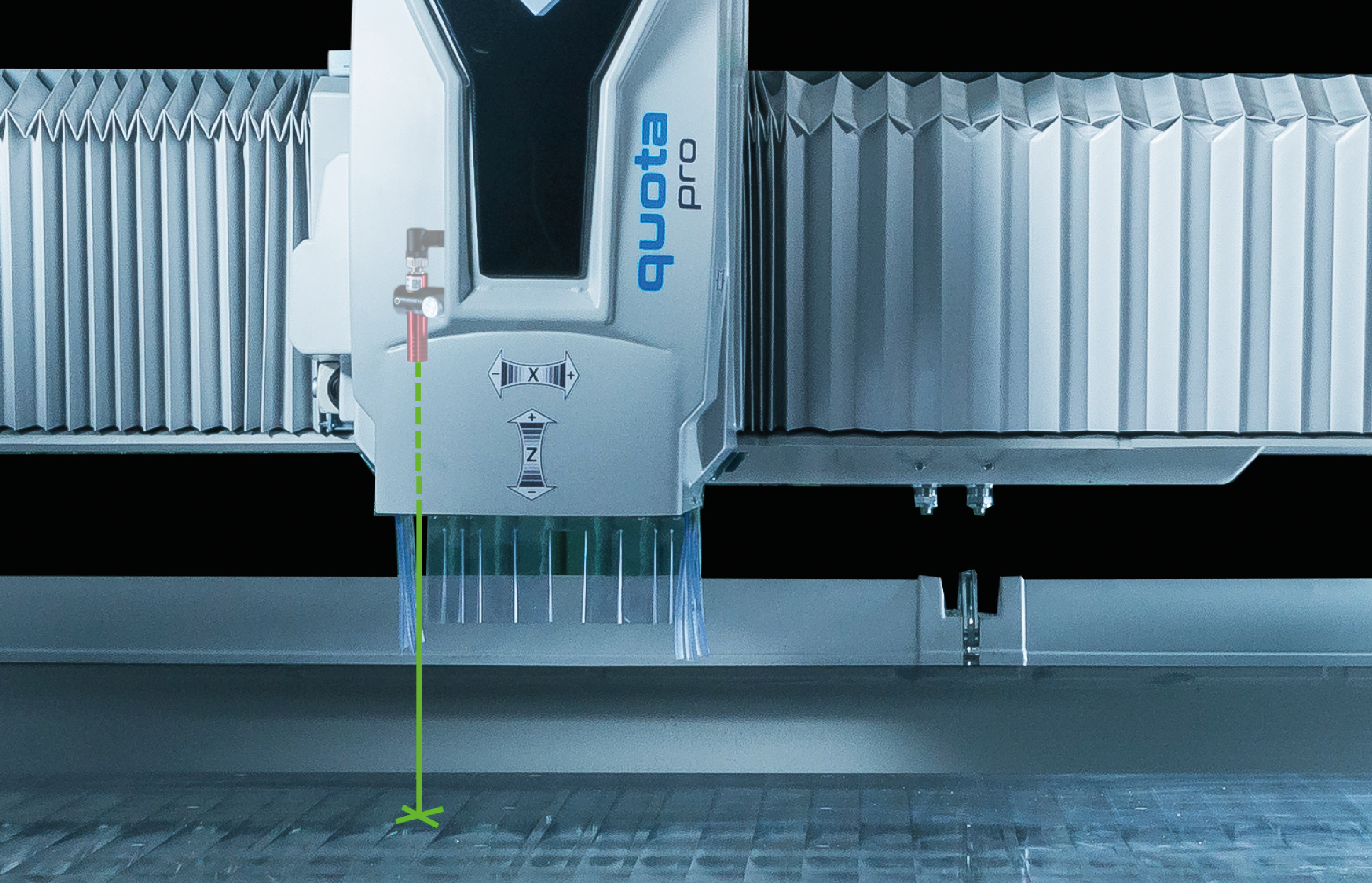

Green cross laser

For workpiece origin detection, suction cup positioning and template digitization.

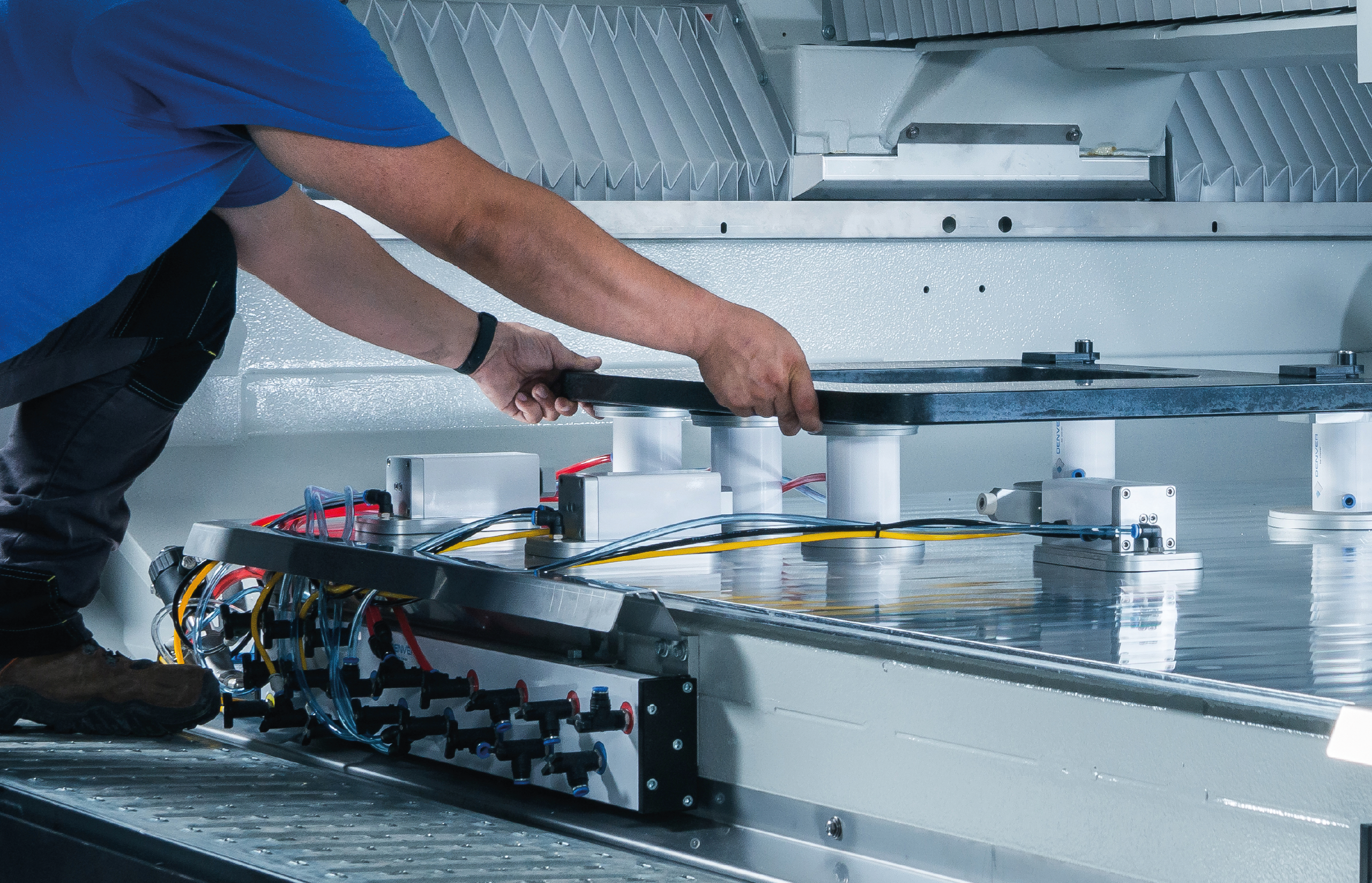

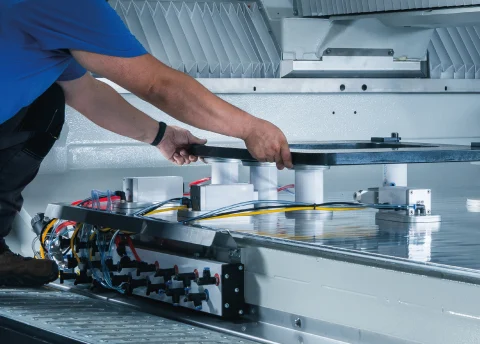

Self-adjusting aluminum table

(PATENTED) To ensure planarity longevity and working perfection. Solid surface to ease and freely positioning the suction cups and backstops.

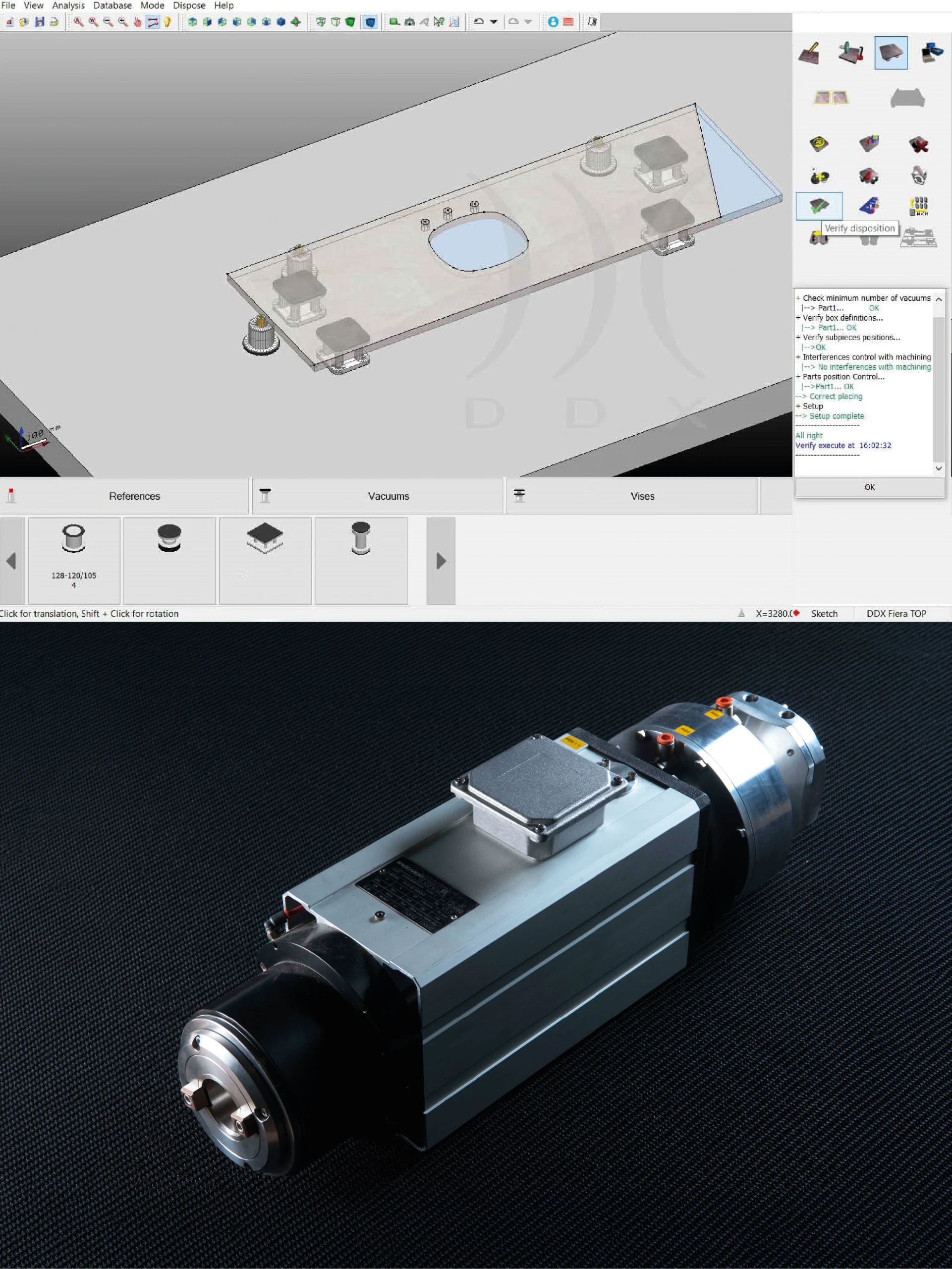

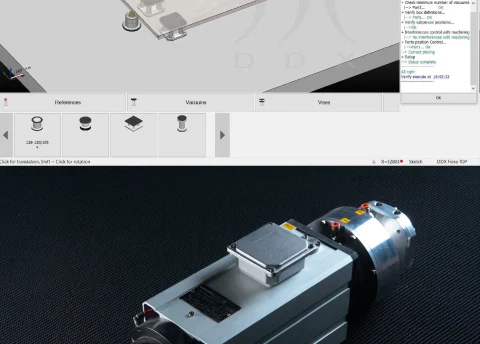

Proven reliability

Hundreds of references all over the world. The full auto machine processings and parameters are programmable by PROTECH, an advanced…

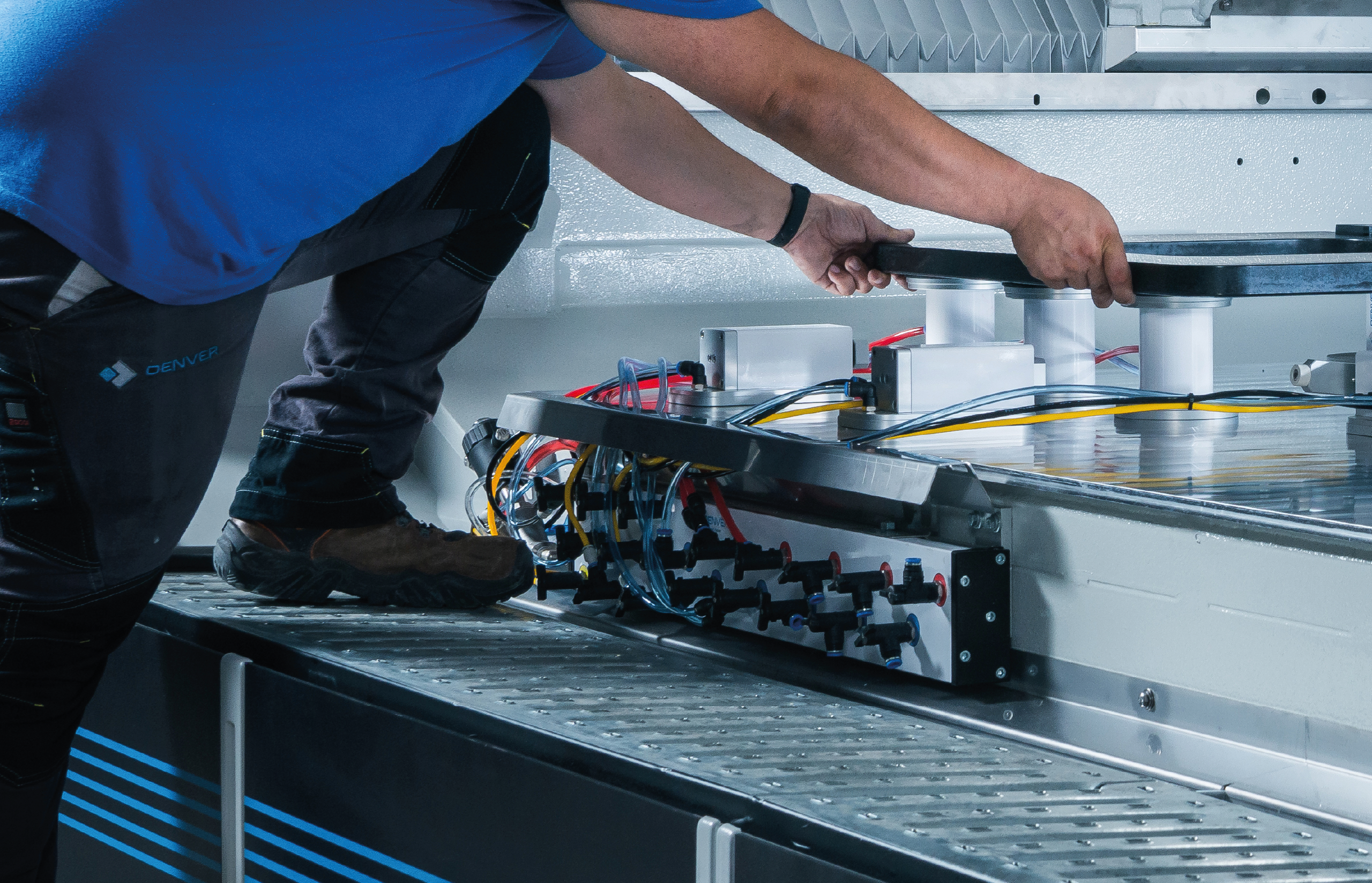

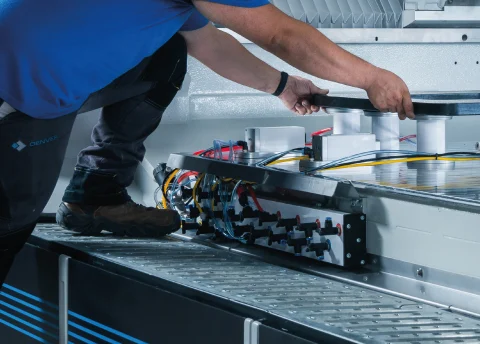

Integrated walk-on platform

Designed to ensure a safe and comfortable position for the operator during loading, positioning and unloading operations of the workpieces.

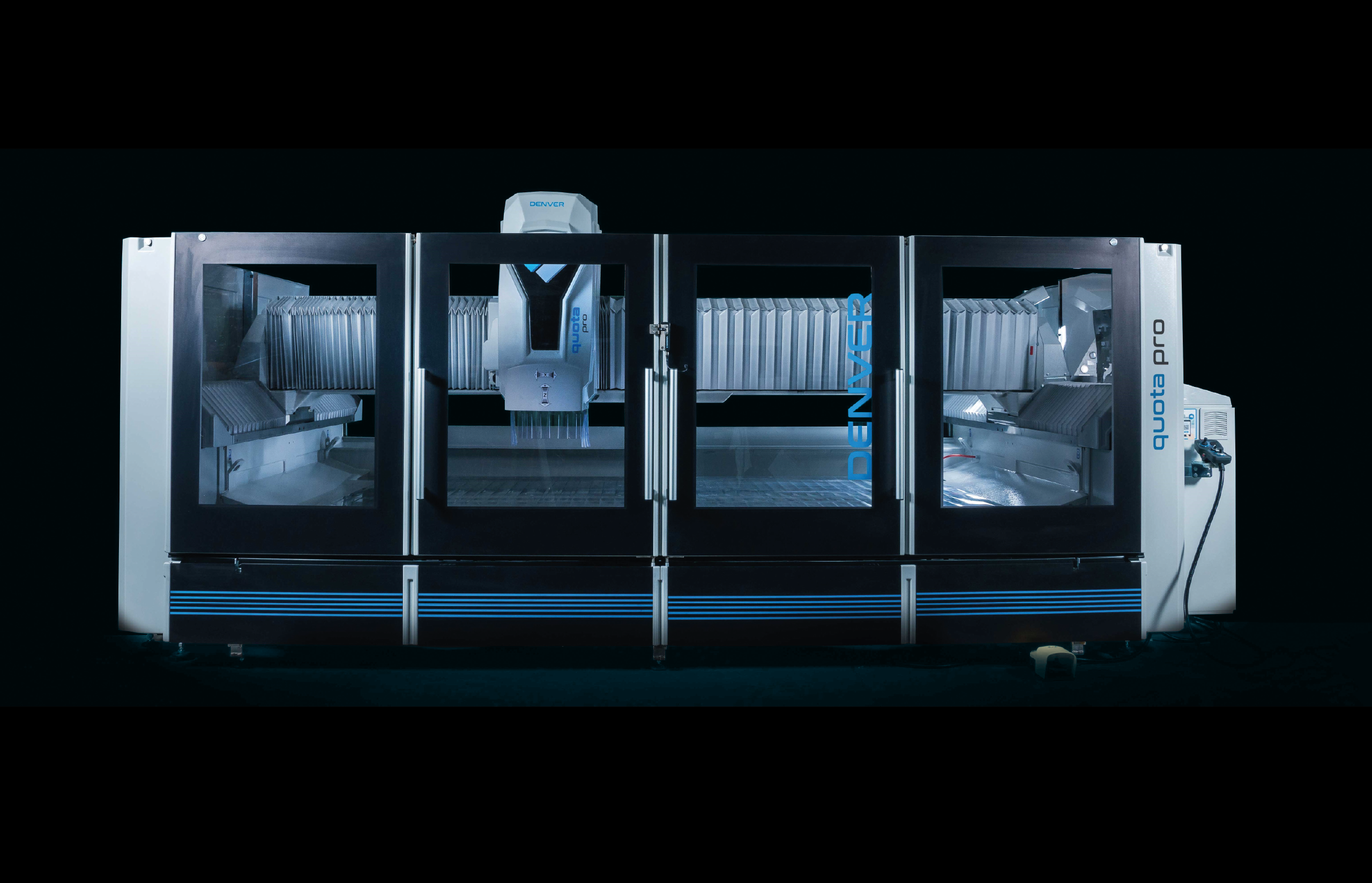

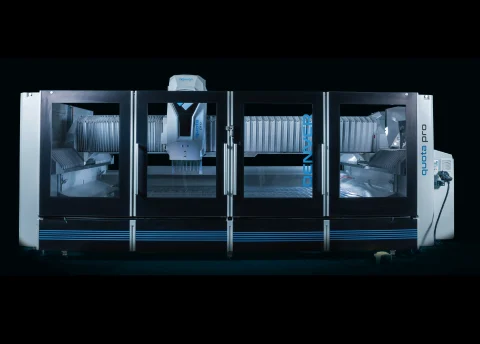

Excellence in compactness

The various model sizes excellently combine reduced space needs and productivity performance.

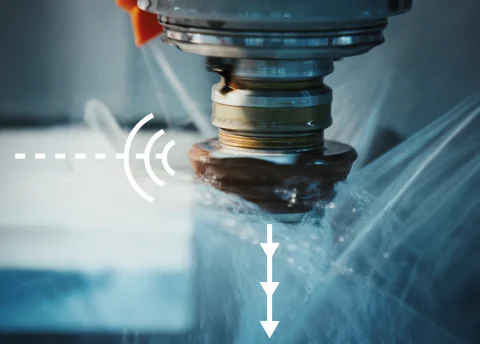

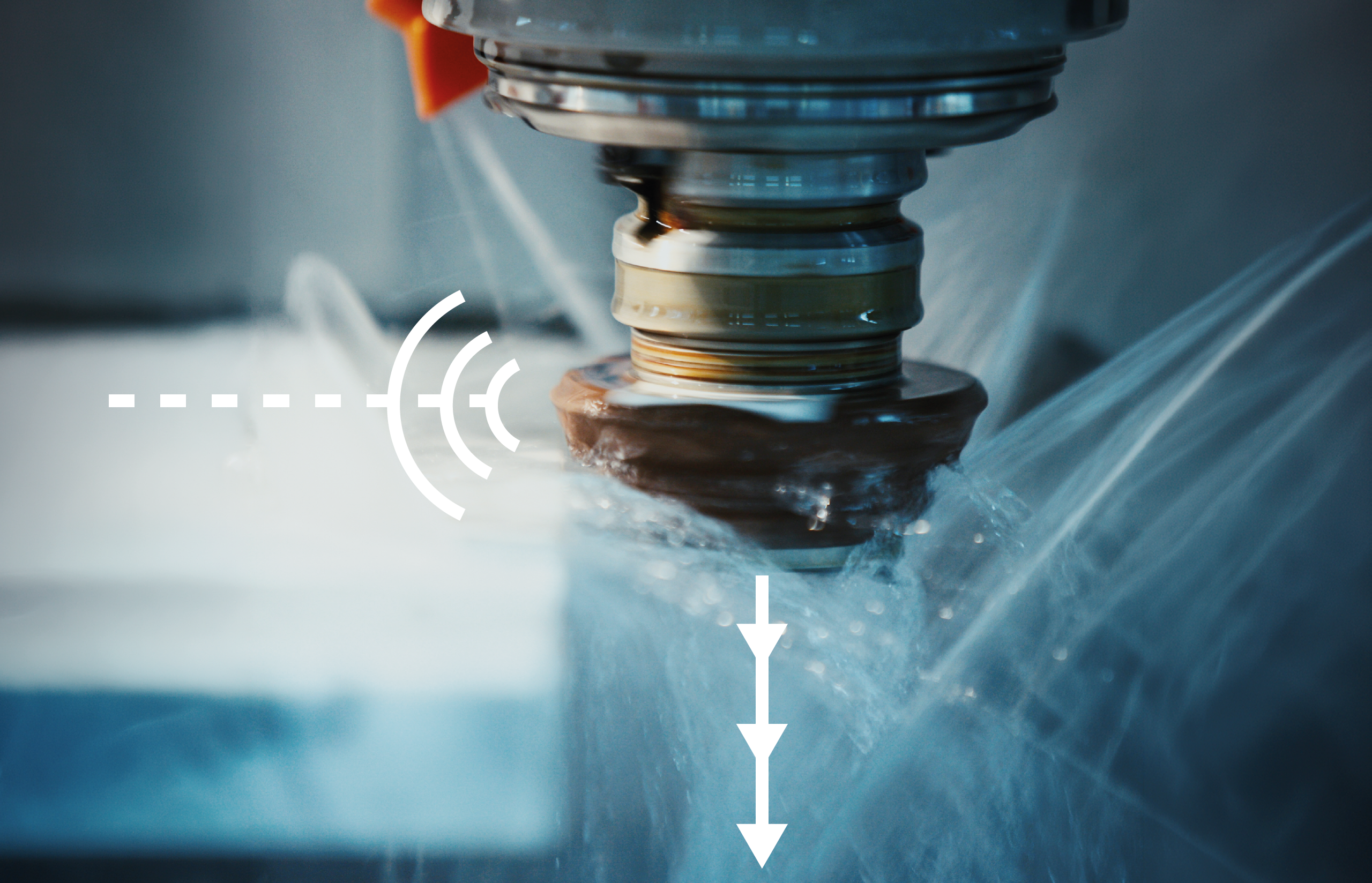

Dynamic and statistic tool’s wear control

For the best polishing results.

SKEMA

Processing

What you can do with this machine

Ask for more

Low/High reliefs

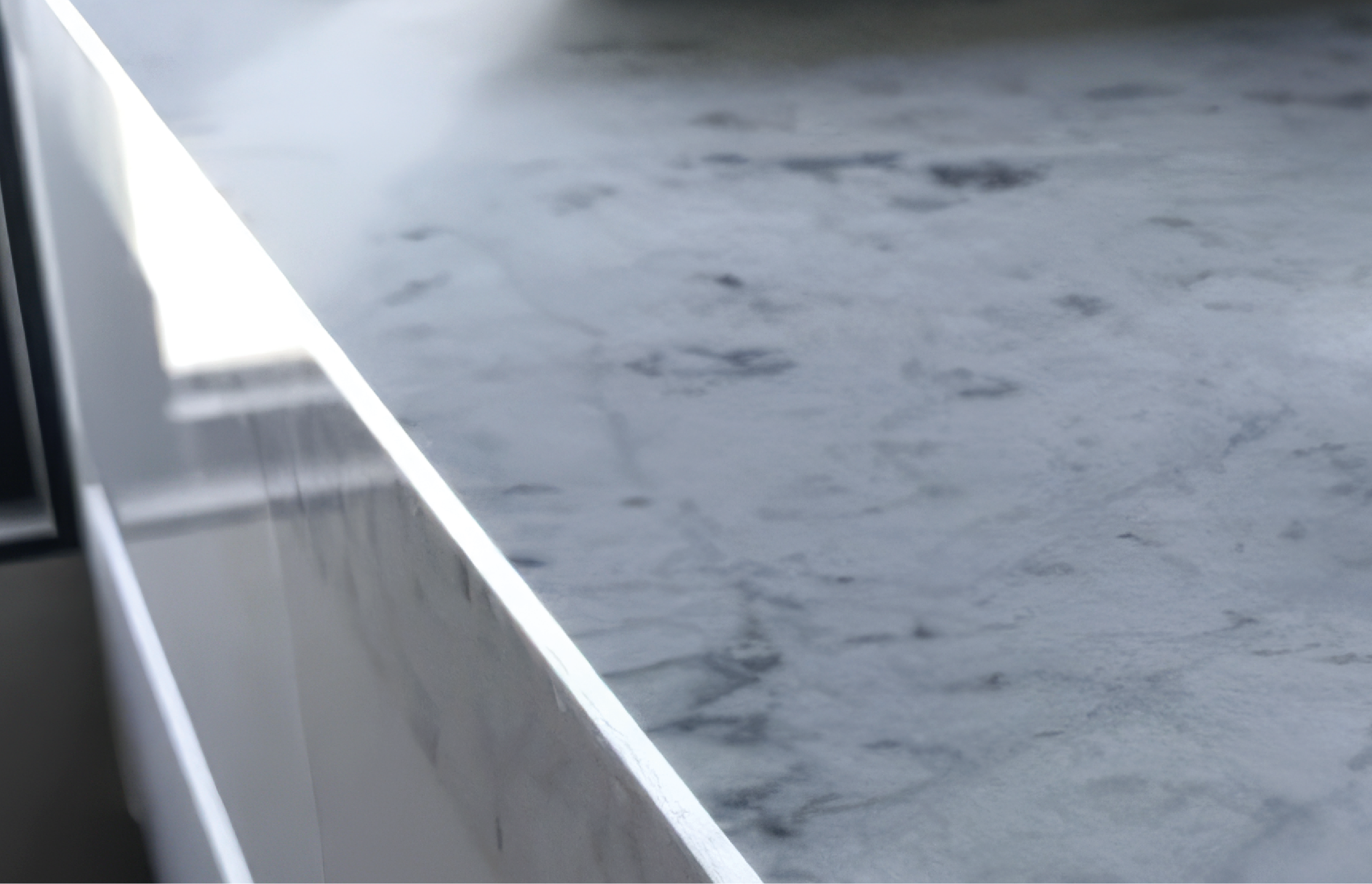

Profiling / Polishing

Textures

Shaping

Side engraving and writing

Tapering

Drain boards

Embossed writing

Hollowing

Routing

SKEMA

Optionals

Available configurations and optional equipment connected to this product.

Ask for more

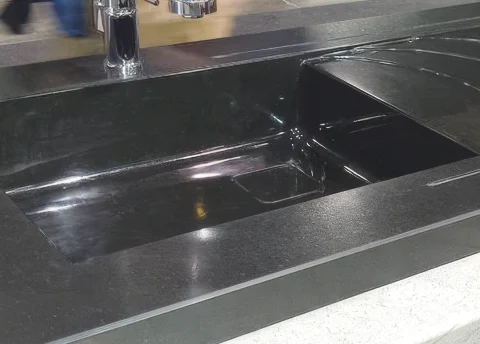

“T” Axis for inclined drain board

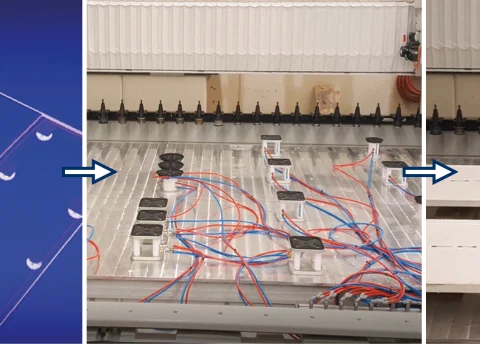

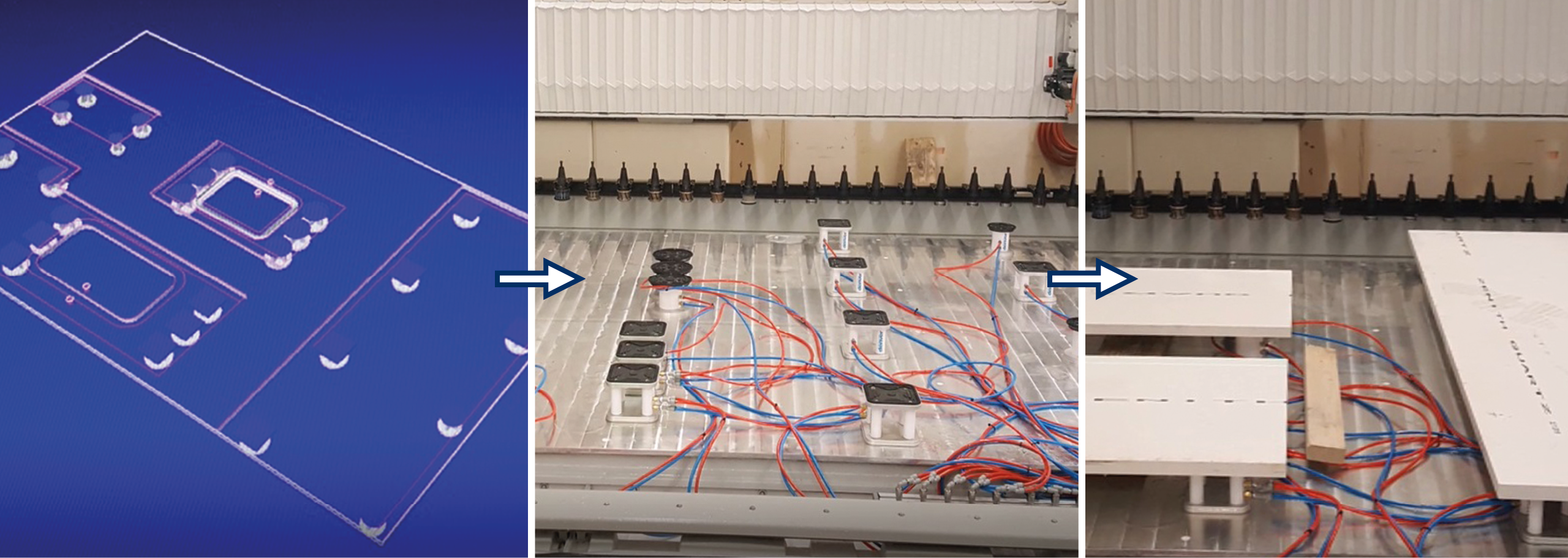

Laser projector

For worktable set-up.

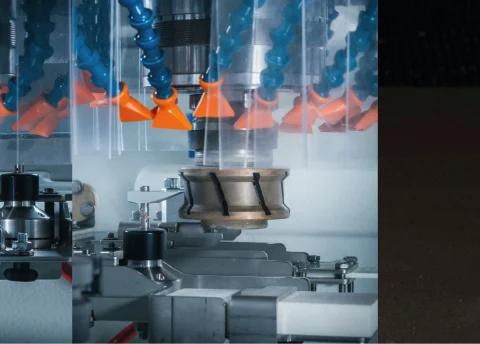

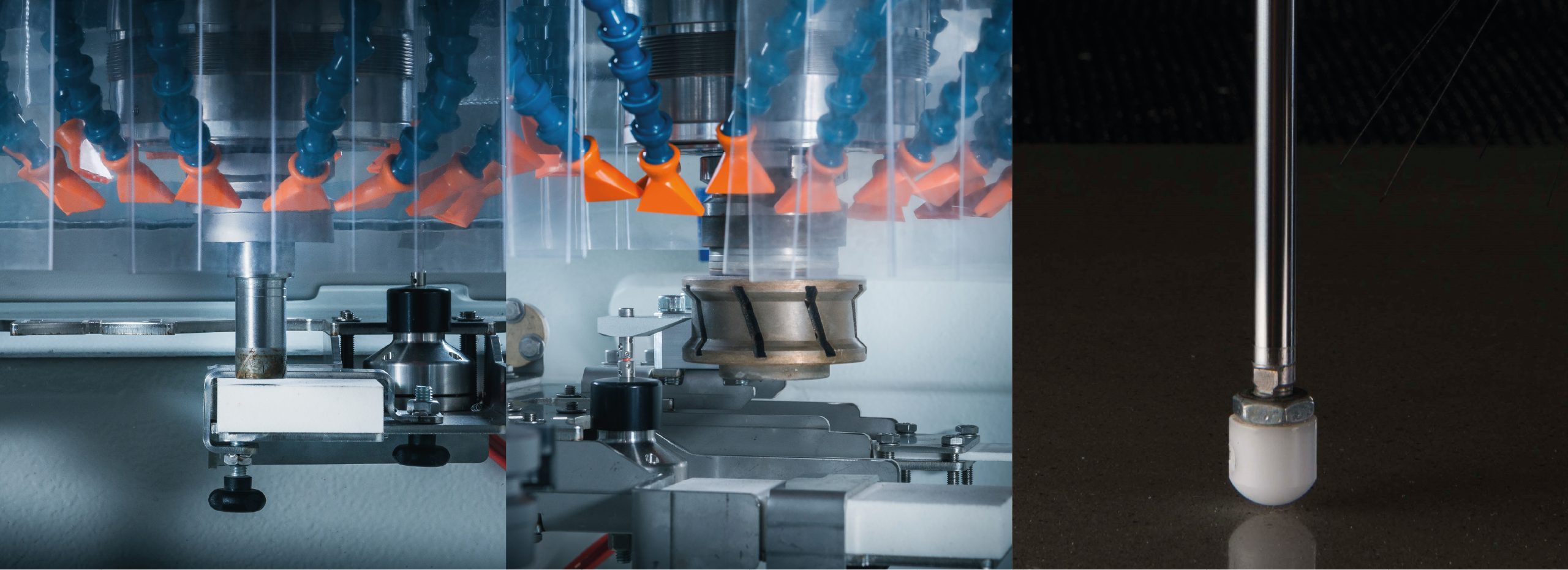

Drill Bit Auto redressing station /

touch probes For auto gauging the piece thickness and diameter / height of the tool.

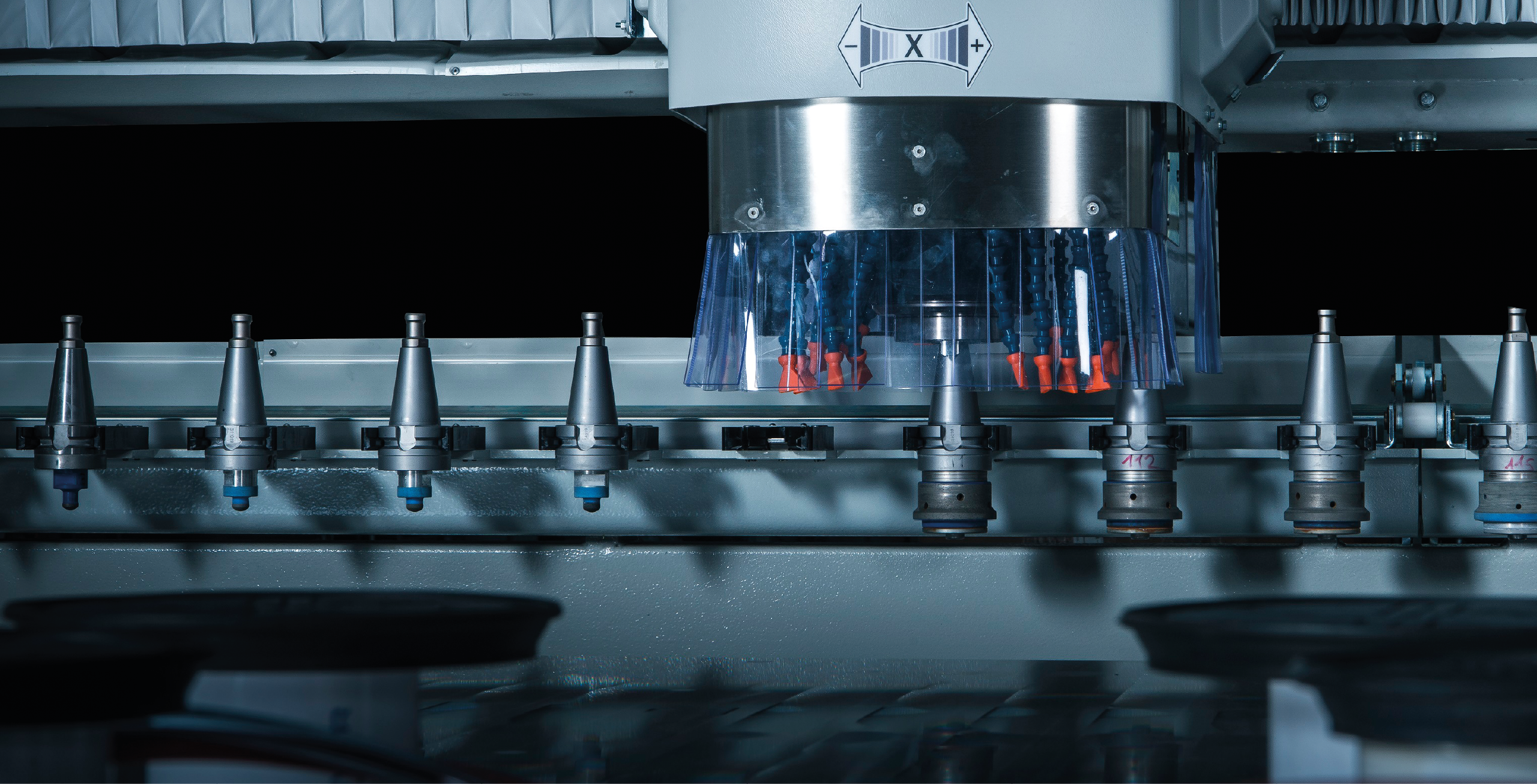

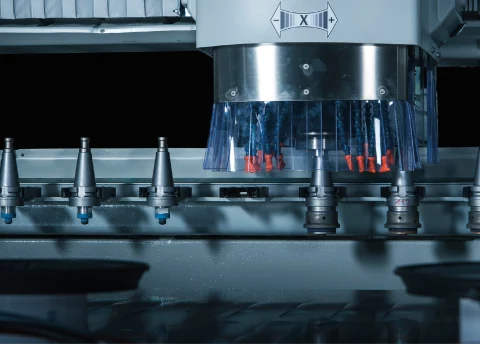

High density tool rack

On the Quota 4200 it is possible to increase the number of tool holders up to a maximum of 40…

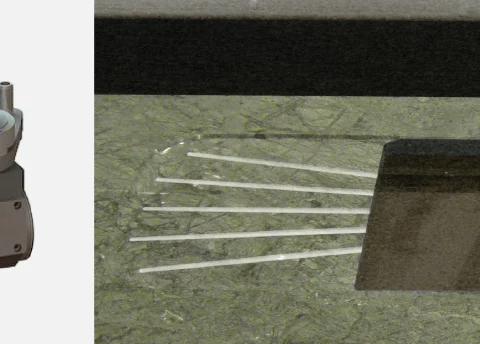

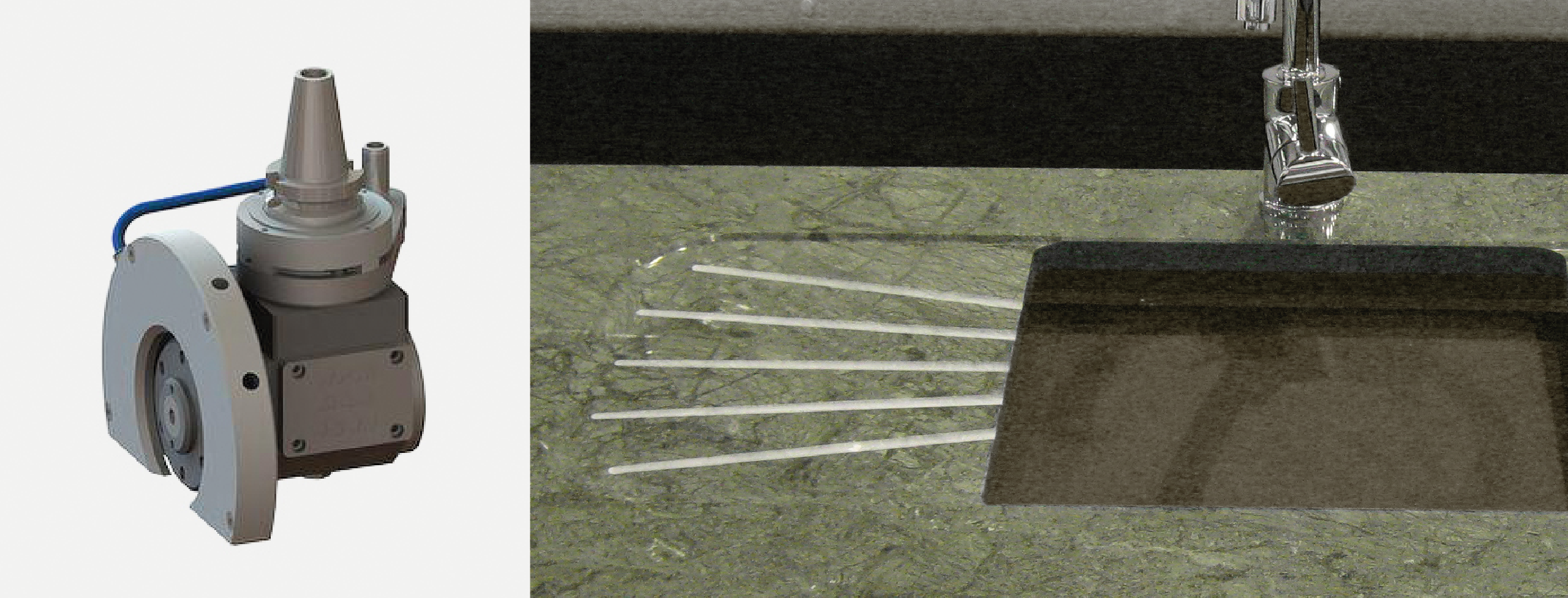

90° Angled gearbox for disc

For cutting and grooving.

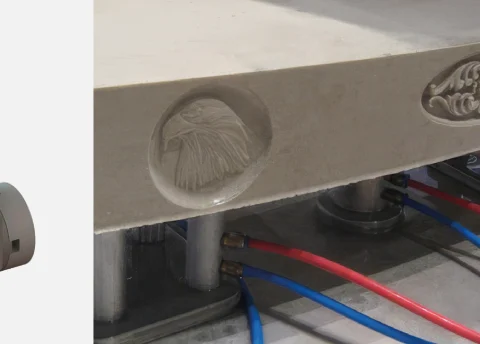

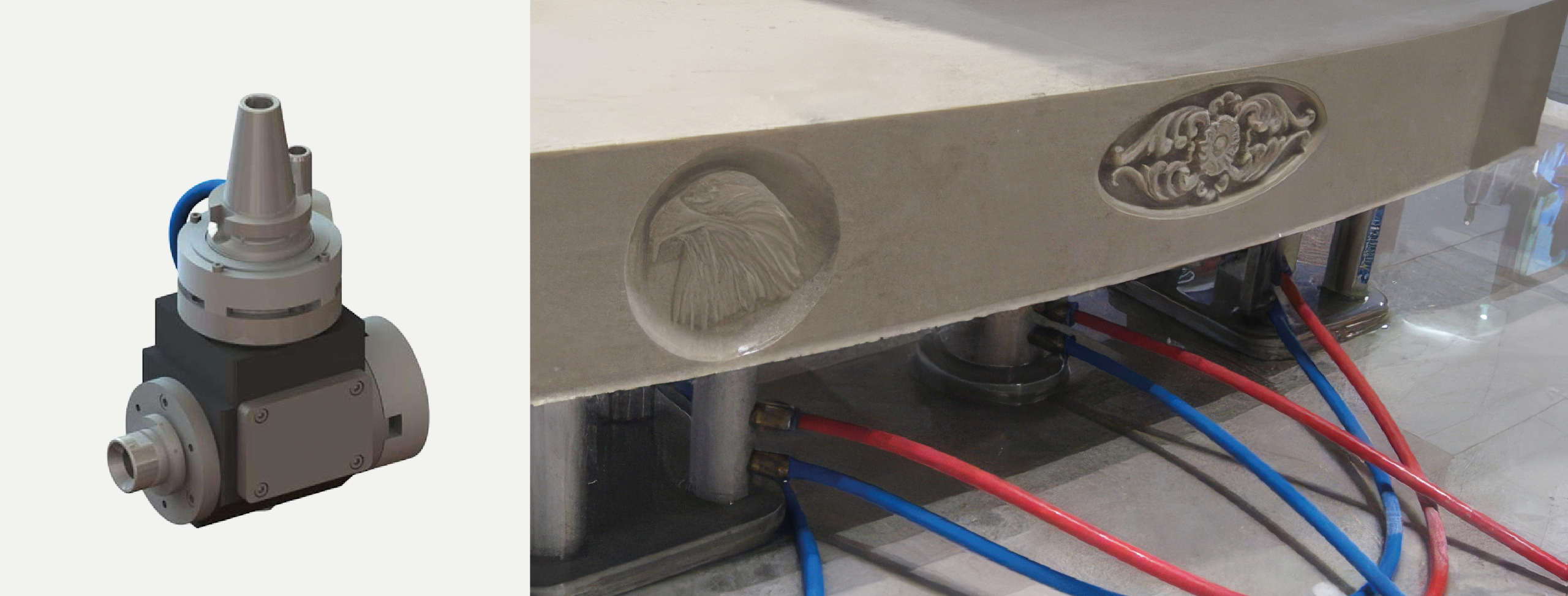

90° Angled gearbox for bit tools

For side engraving, lettering and texturing.

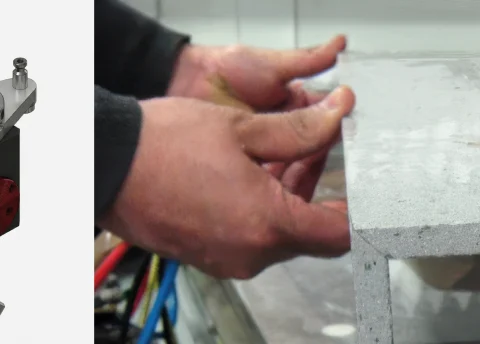

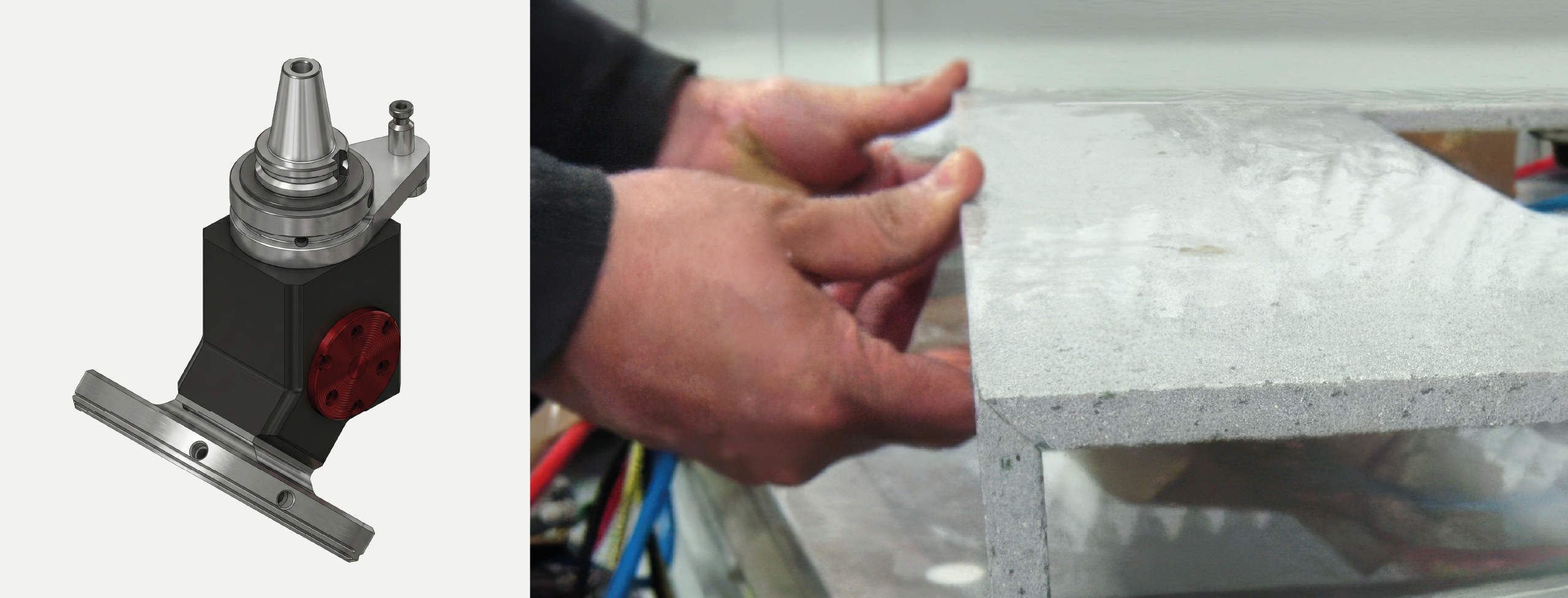

45° Angled gearbox for disc

For tilted cuts 45° with disc.

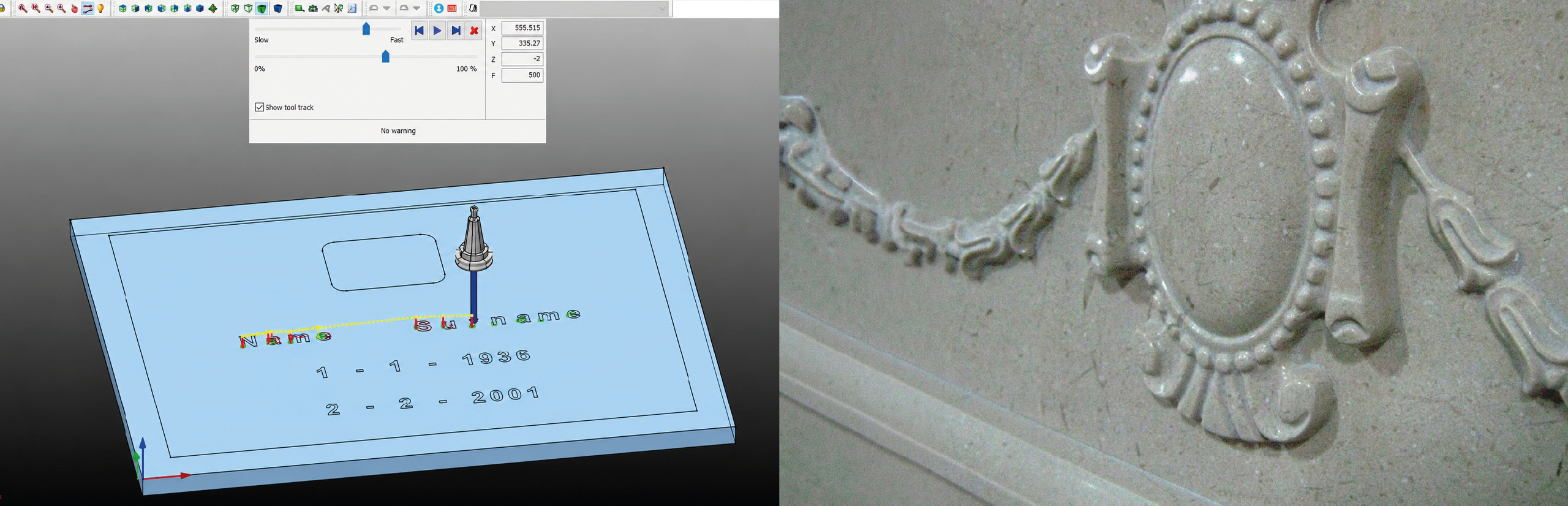

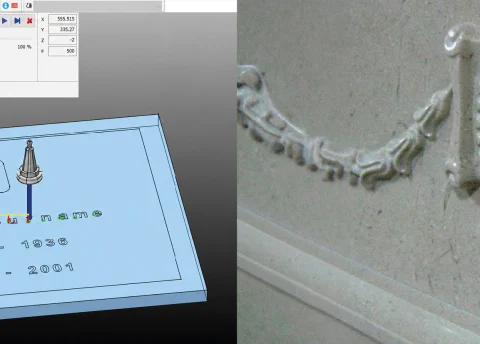

3D software package

Set your imagination free!

Other videos

Frequently asked questions

Find quick answers about configuration, installation and production use.


Where can I find the complete product technical datasheets?

Technical datasheets for all models are available in the Products section of the website. For detailed documentation or technical drawings, you can also contact our sales department.


Are CAD-CAM software packages included with the machine?

Yes, Denver machines are supplied with dedicated CAD-CAM software already configured. The license, training and updates are included in the standard supply package.
