Stone line

Dynamika

5 AXES X:3700 Y:1900 Z:225

Interested? Let’s talk

THE STATS

Dynamikamain data of the machine

Work Area

X 3700 mm – 144 “
Y 1900 mm – 74,8 “
opt. 2275 mm – 89,5”
Z 225 mm – 8,8 “

A axis

0° – 90°

C axis

0° + 180°
opt. 0° + 360°

Motor power

Kw 11 – Hp 15 (S6)
0÷3000 rpm
opt. HP 17.5 1/2 gas
÷6000 rpm

Disc diameter

300÷400 mm
12 ÷ 16 ”
opt. 500 mm
20“

Weight

3500 kg
7700 lbs

SKEMA

Features

Projects, technologies, events and insights from the world of stone and glass processing.

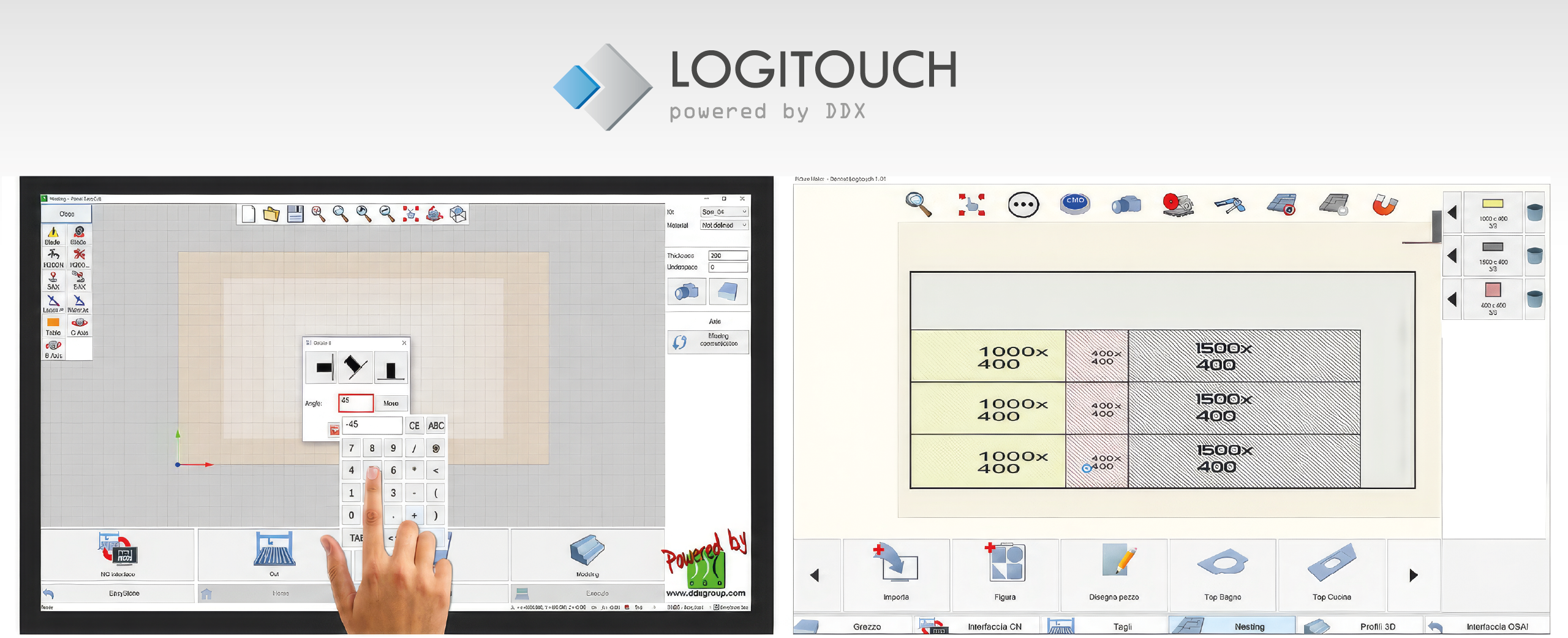

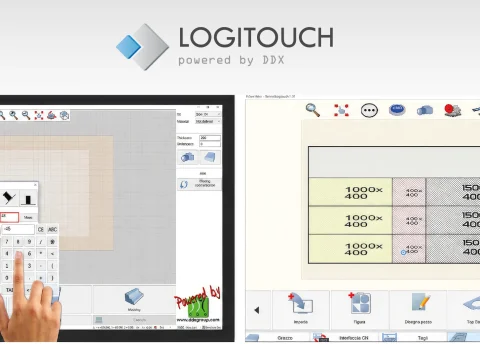

Logitouch software

LOGITOUCH touch interface powered by DDX for programming straight, curved and angled cuts, importing DXF files and CSV cutting lists,…

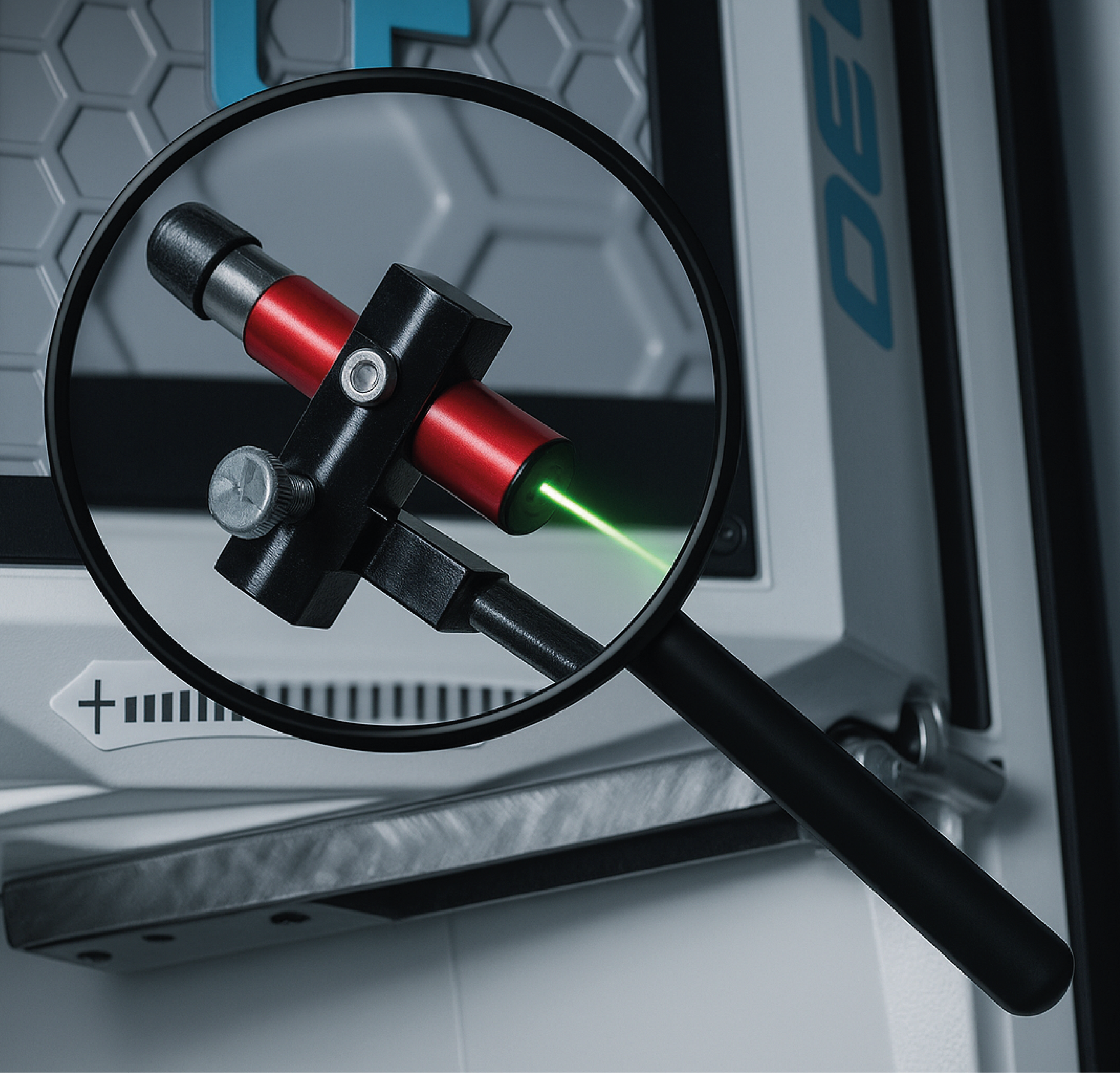

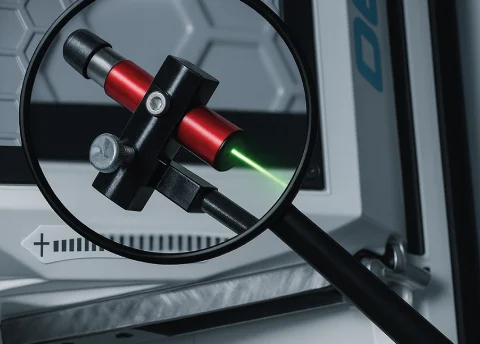

Green laser projecting cutting-line

Green crosslaser for detecting and storing the work origin and the geometry/position of the workpiece, as well as polygonal shapes…

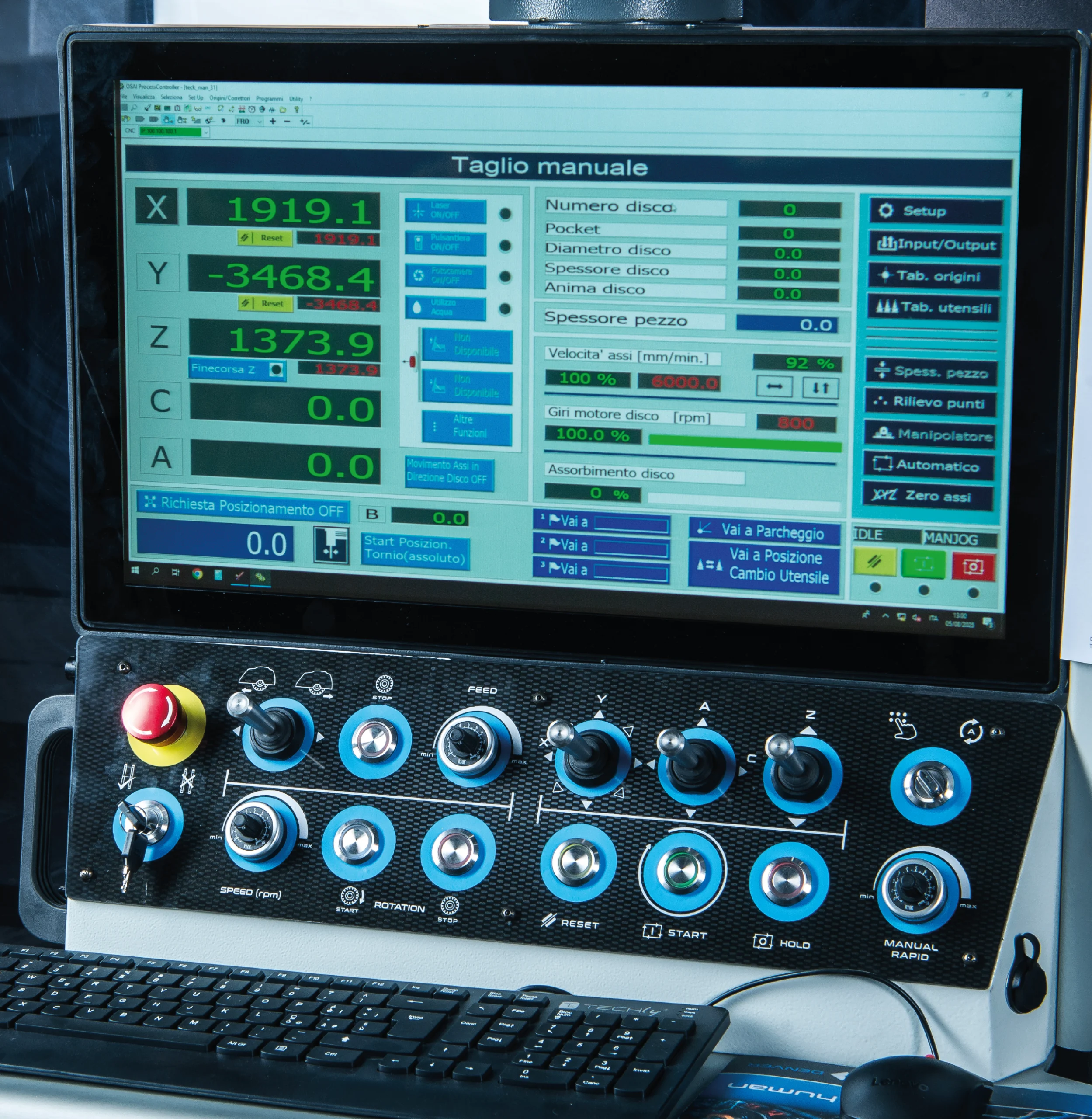

Control Instruments

Control panel on articulated arm, and mobile control panel to facilitate positioning and work cycle preparation.

SKEMA

Processing

What you can do with this machine

Ask for more

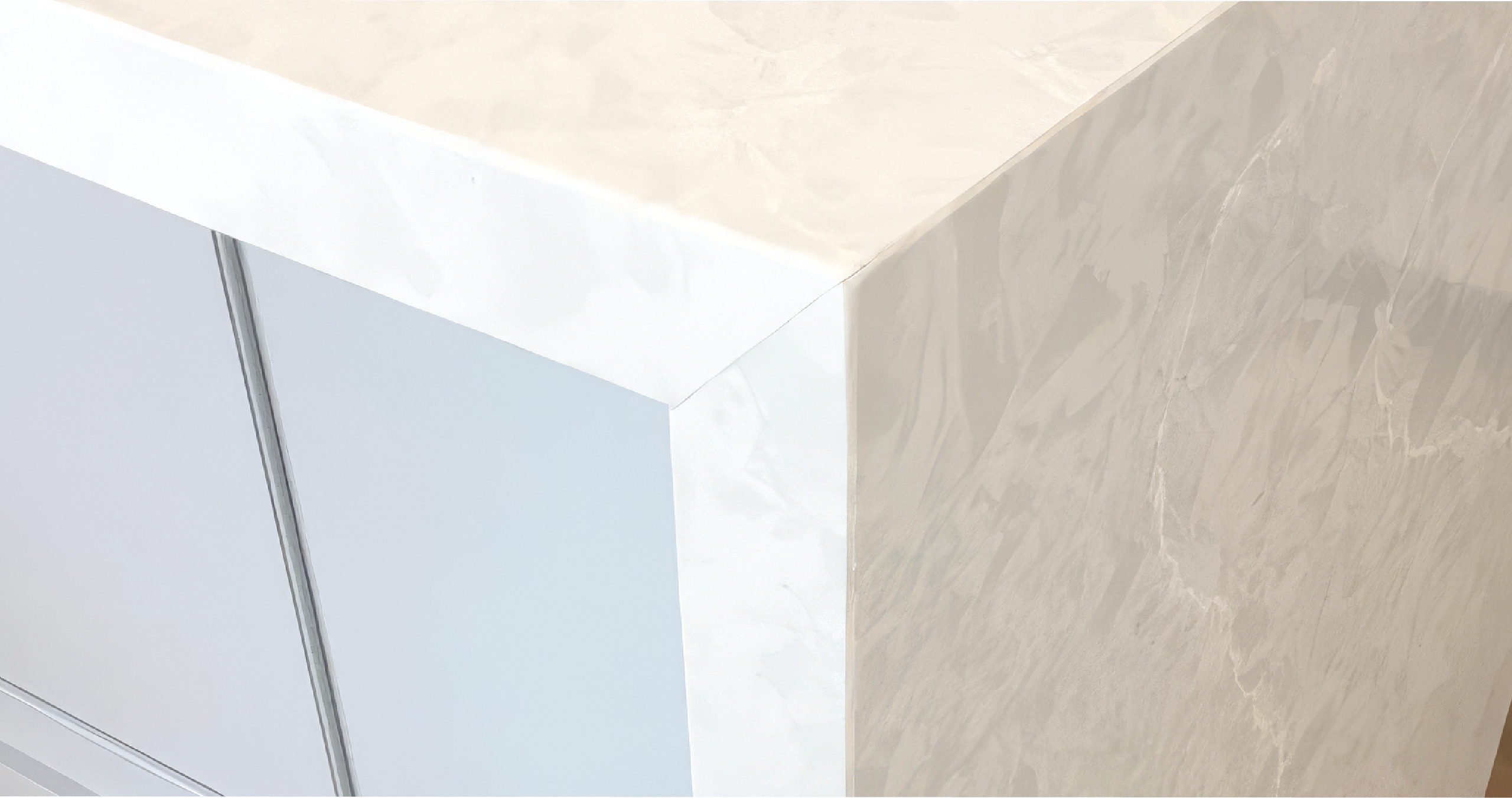

Tilted cuts up to 90°

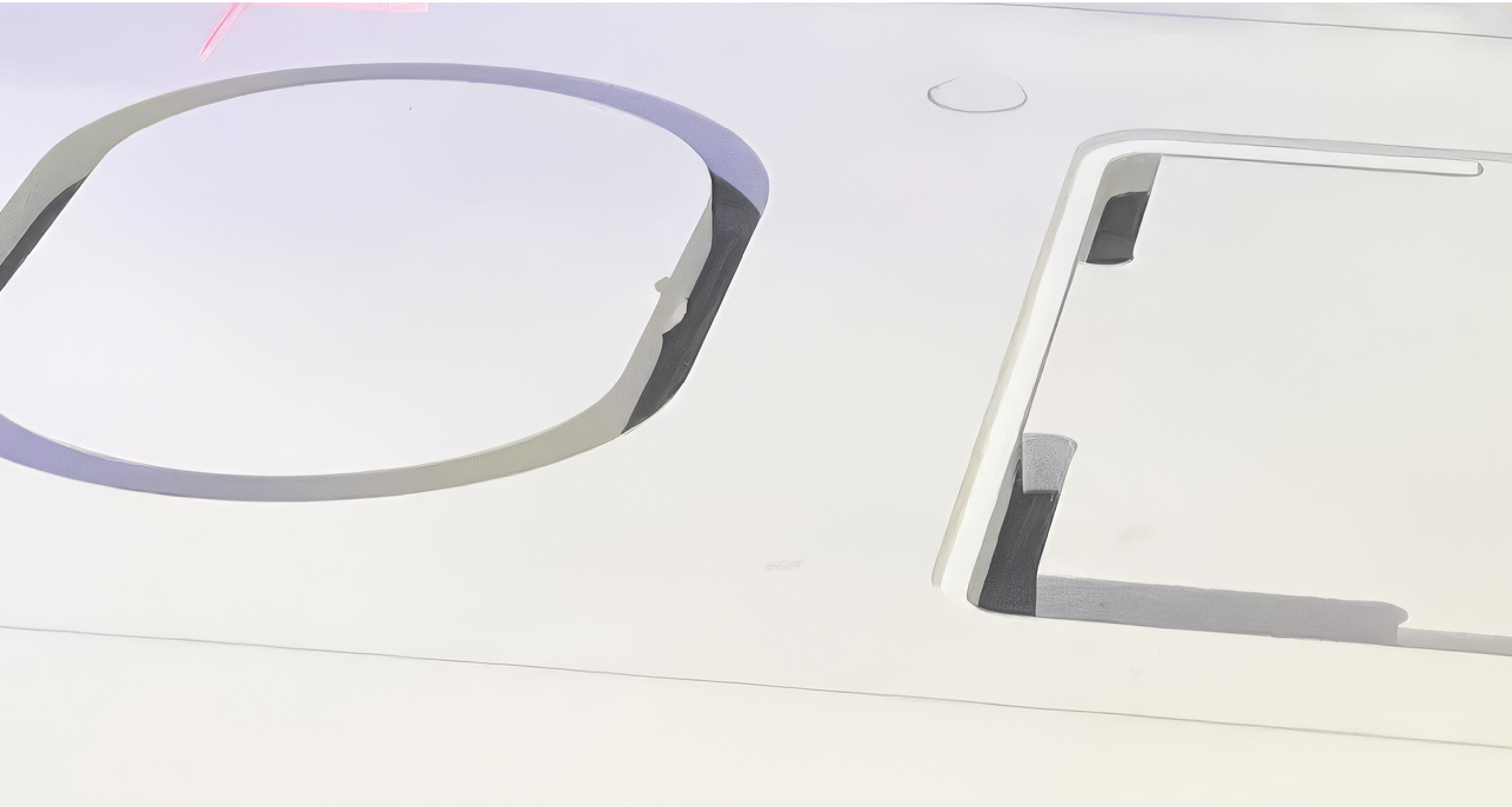

Sink-cut-outs-and-flush-mount

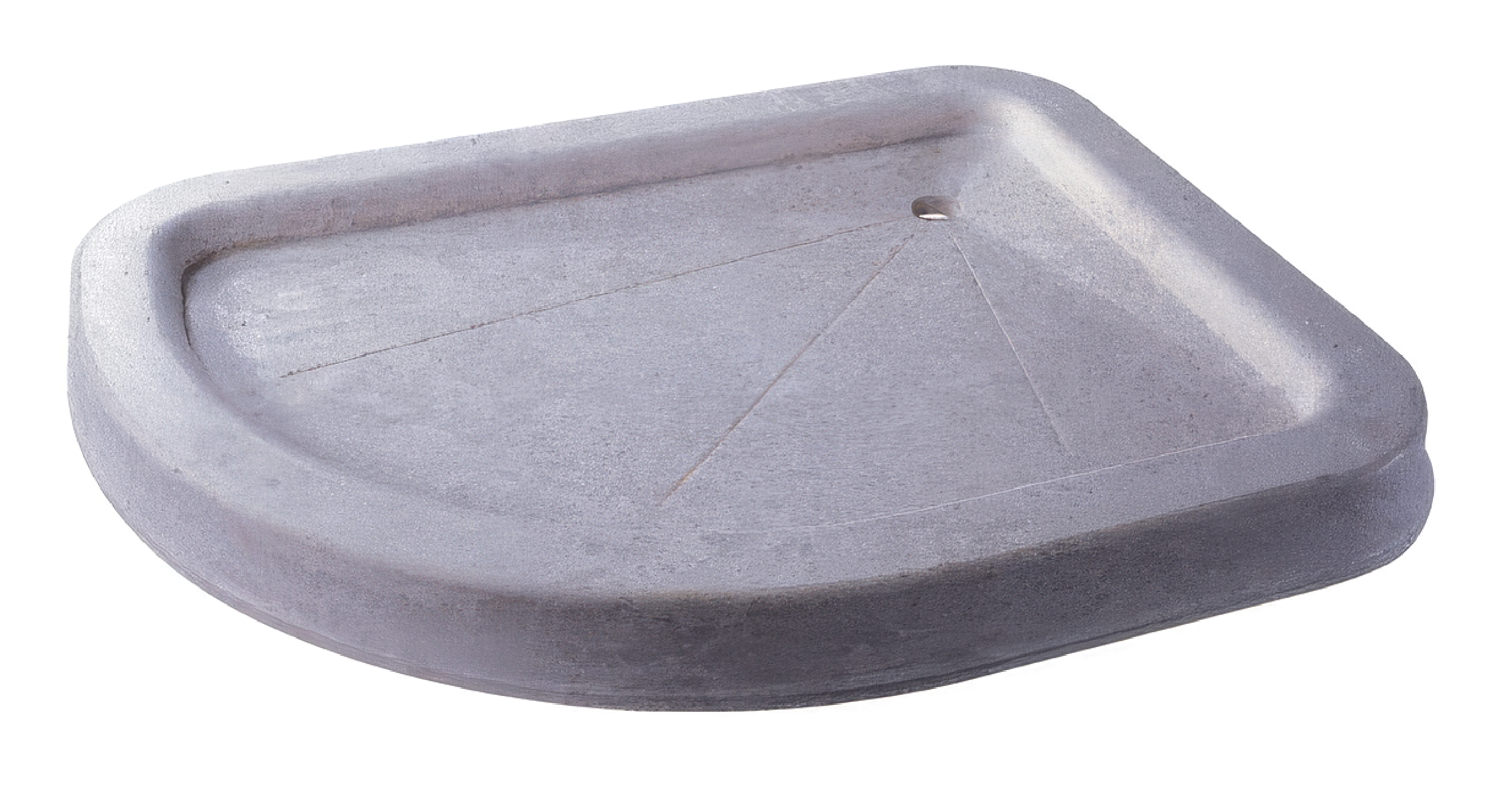

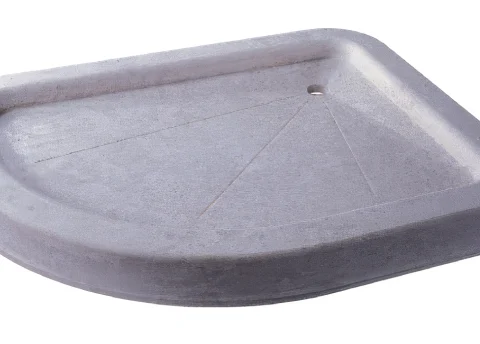

Tapering

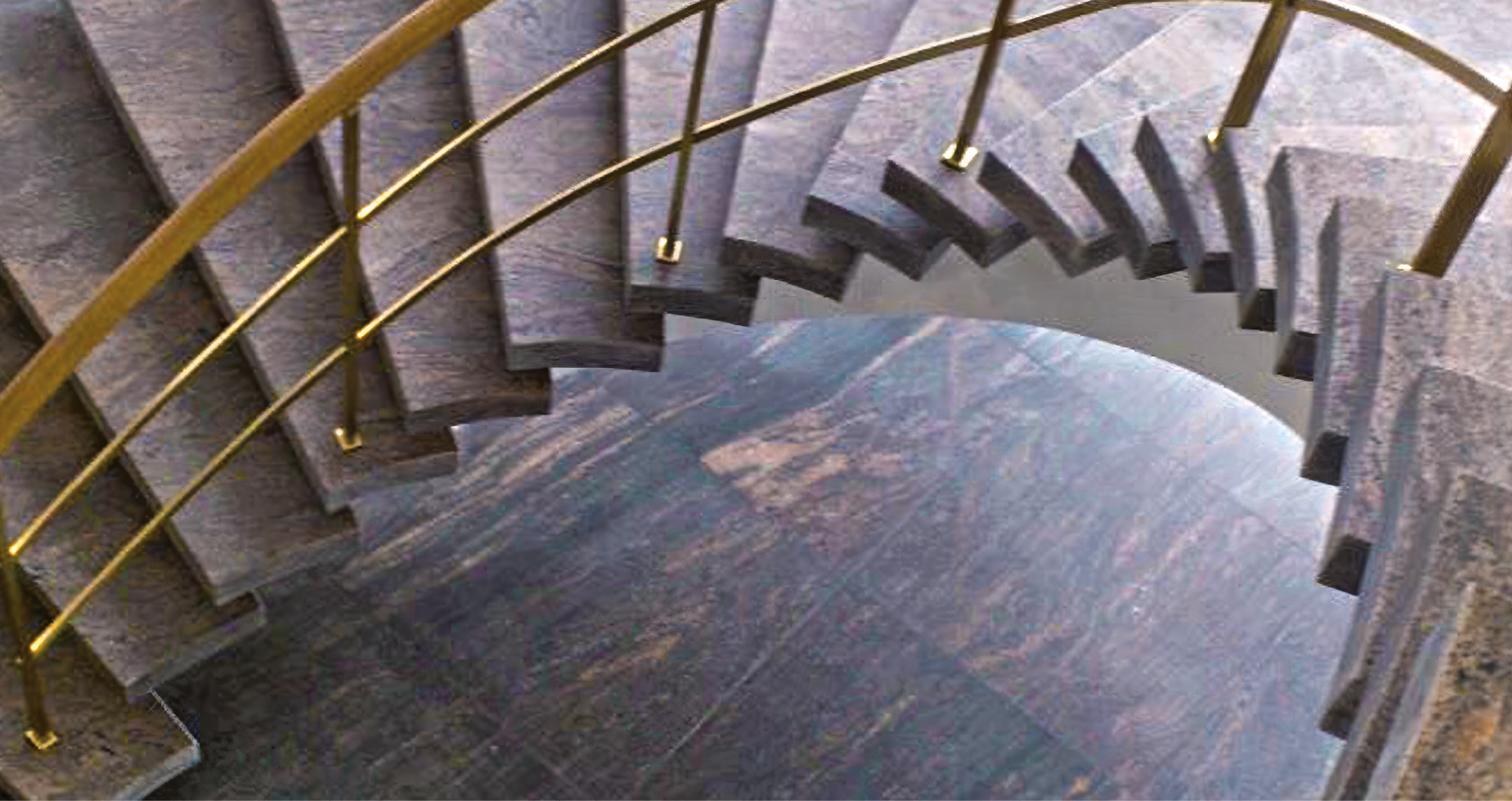

Multidirectional and Curved Cuts

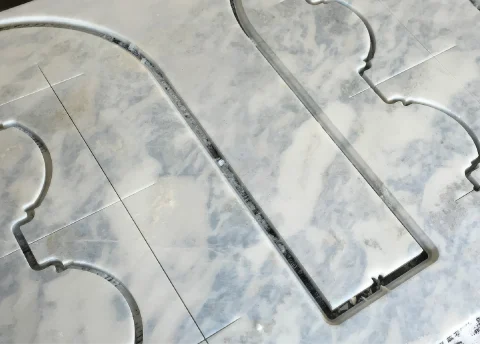

Milling

Cuts Optimization

/ Nesting

Lettering

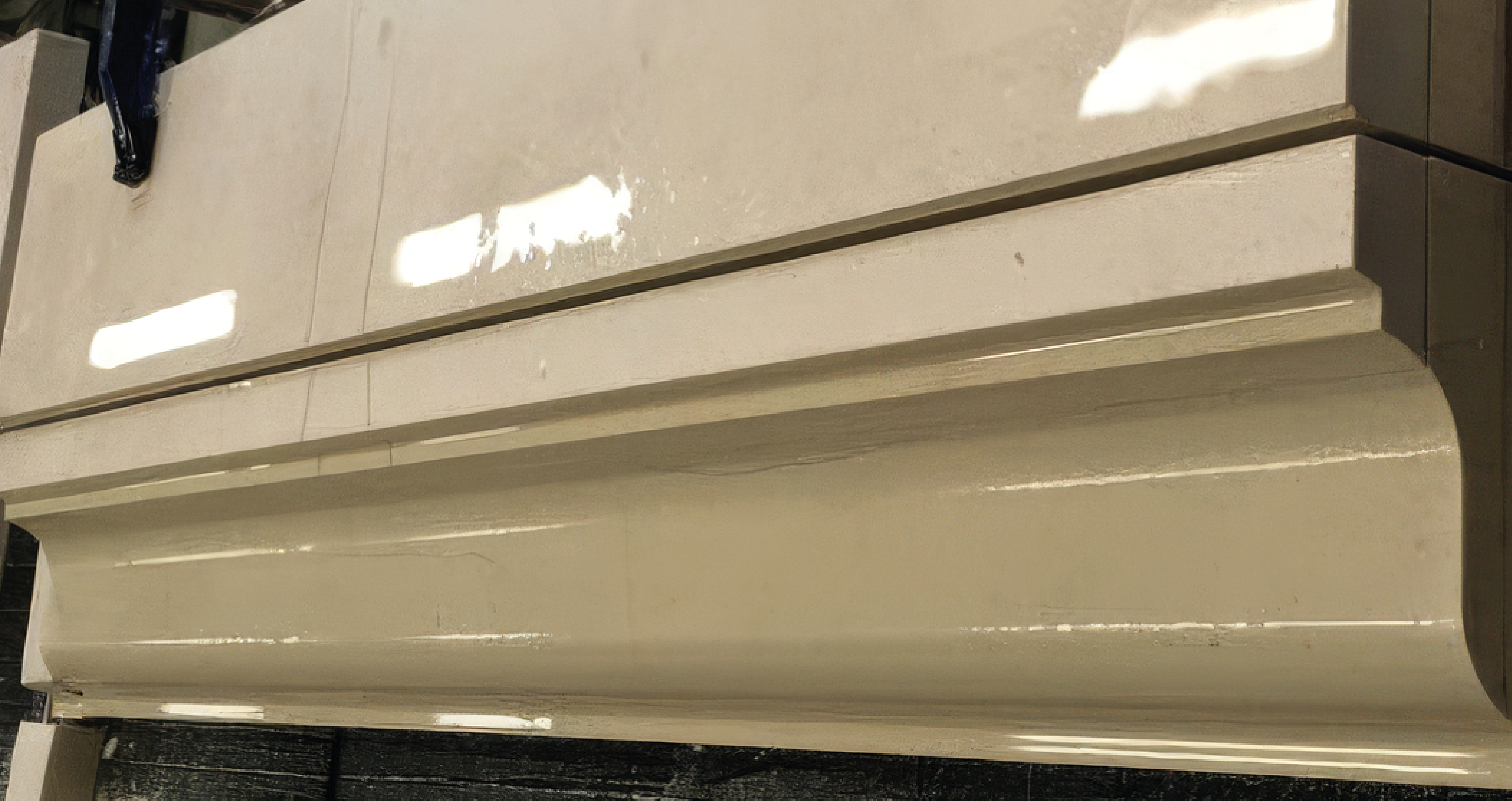

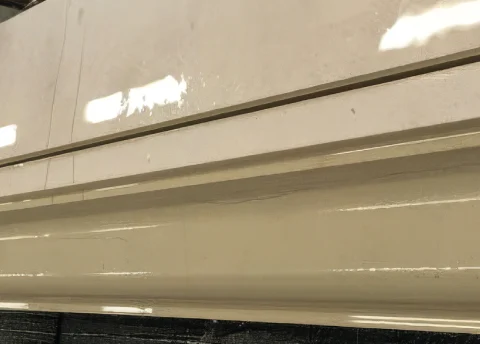

3D Shaping with Disc

SKEMA

Optionals

Available configurations and optional equipment connected to this product.

Ask for more

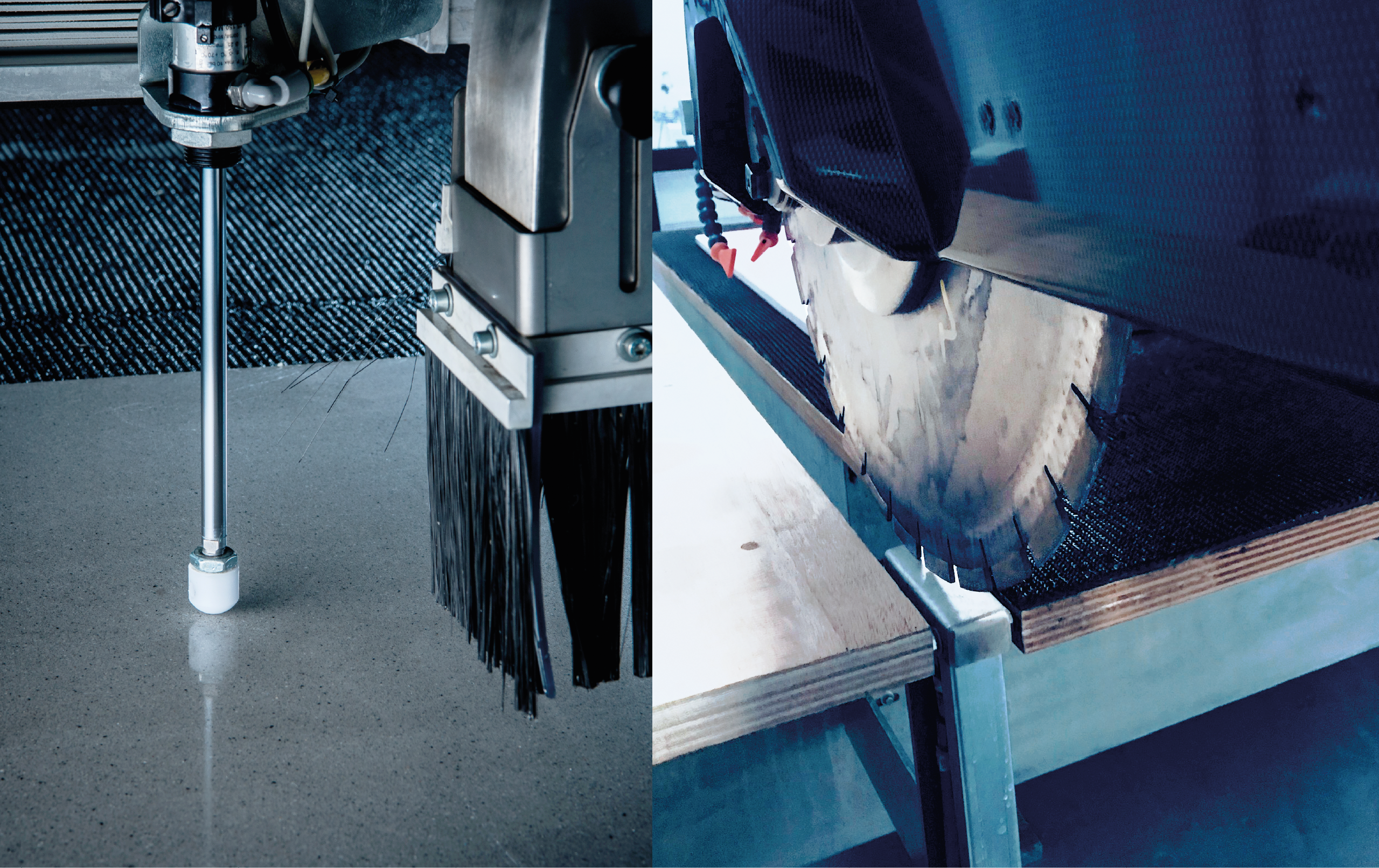

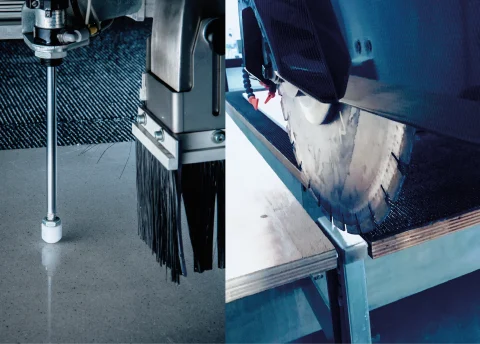

Touch Probes

For auto measuring the slab thickness and auto detection of blade diameter / lenght of the tool, to allow continuos…

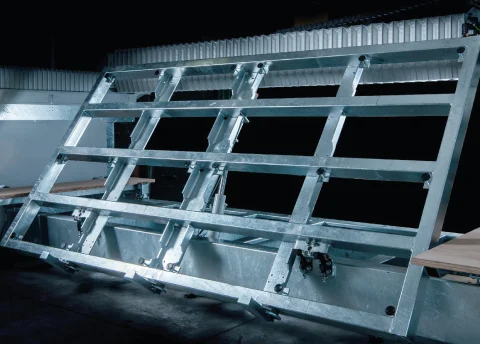

Tilting Table

Hydraulically driven.

Redressing Devices for Disc and Core Drill, including Automatic

Management Software

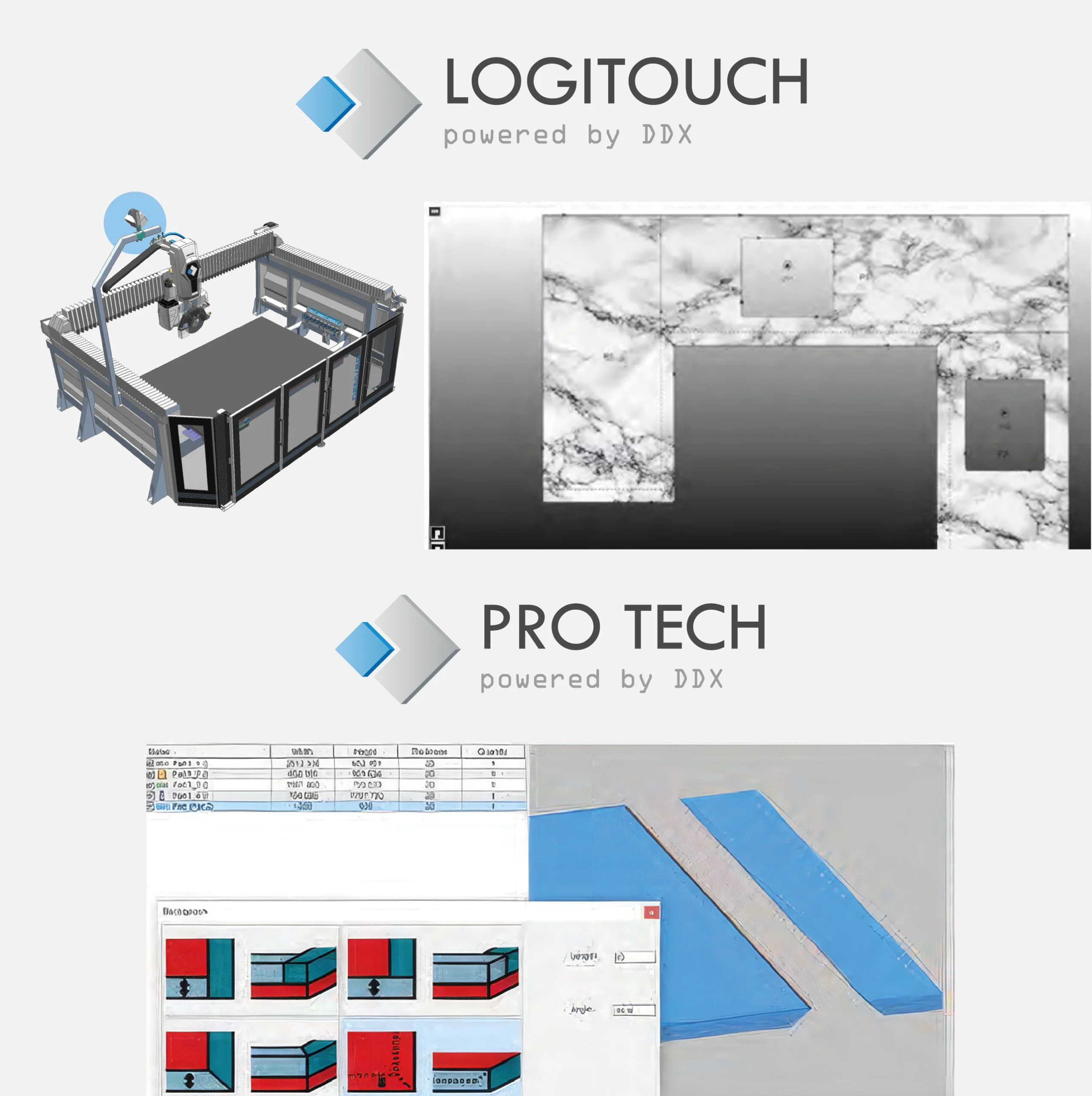

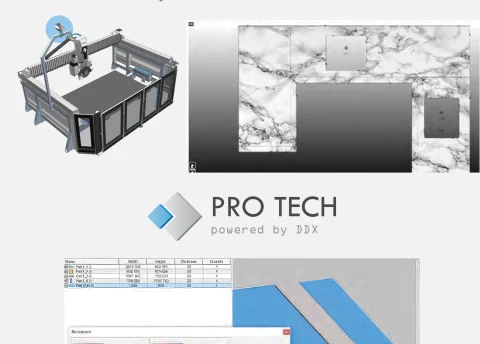

On Board Photo Logitouch and ProTech Cad-cam

For auto workpiece contouring, measuring and vein matching. For multi-tasking programming of the fully automatic working cycles, both from the…

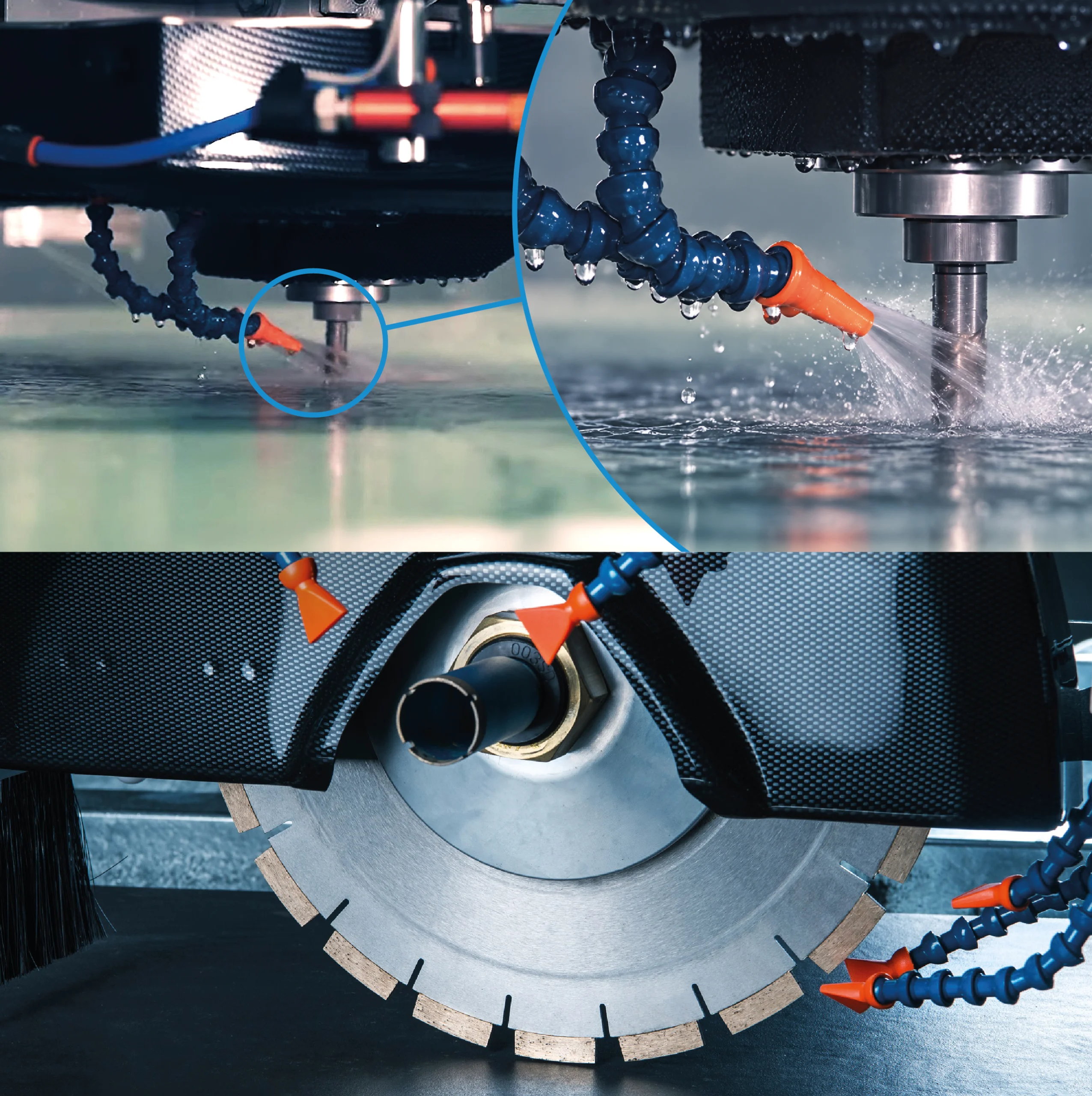

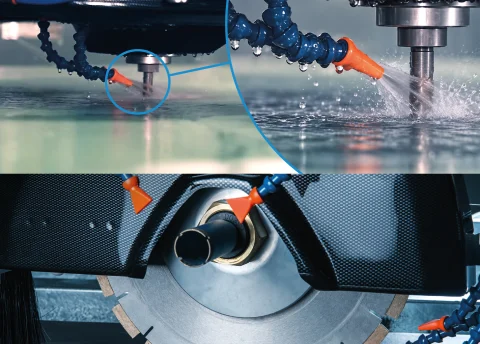

Hp 17.5 / Kw 13 (S6) motor with ½” gas conn

interchangeable Easyspin insert with 1/2 gas right thread, adjustable speed till 6000 rpm’s. It allows the fitting of bit tools…

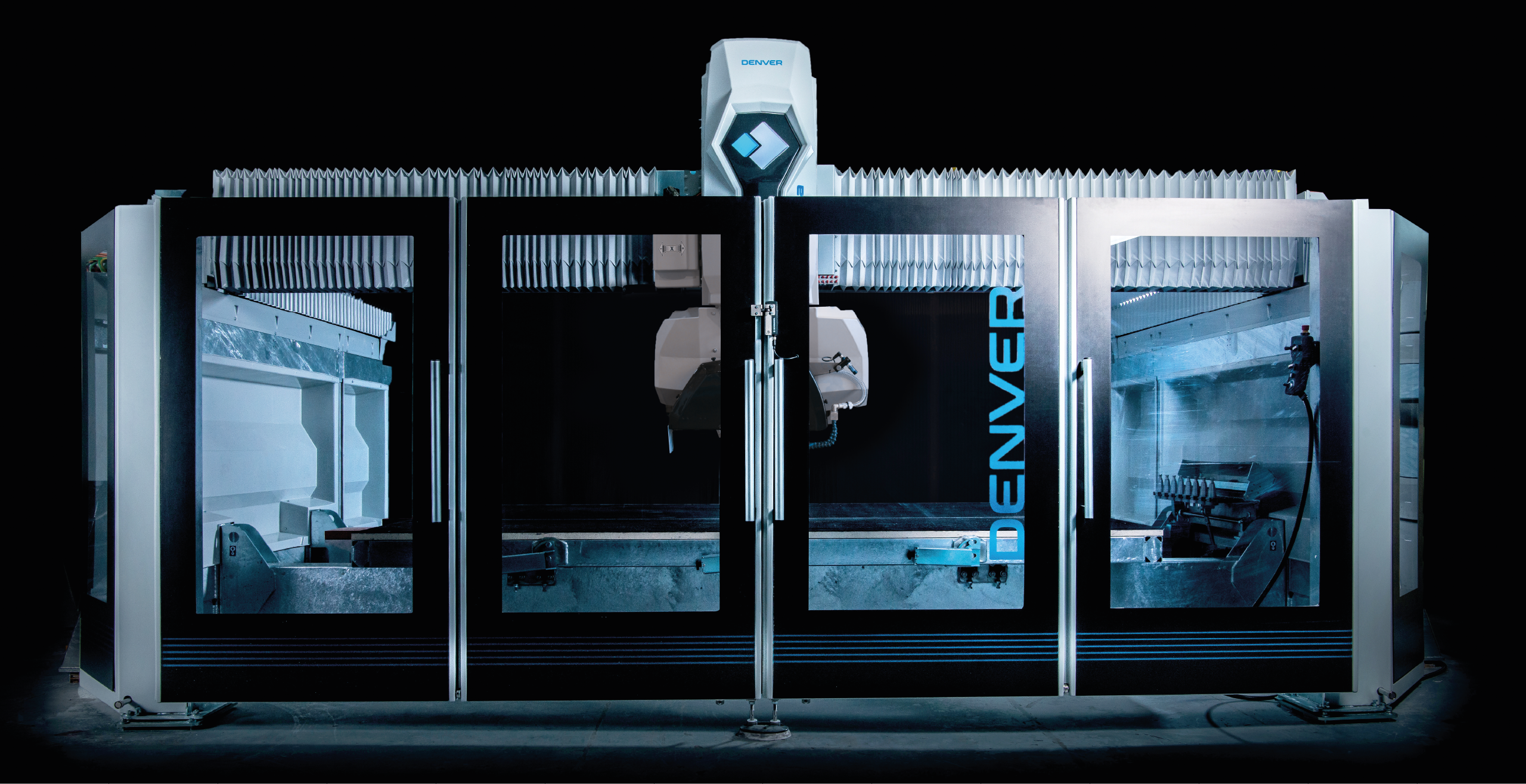

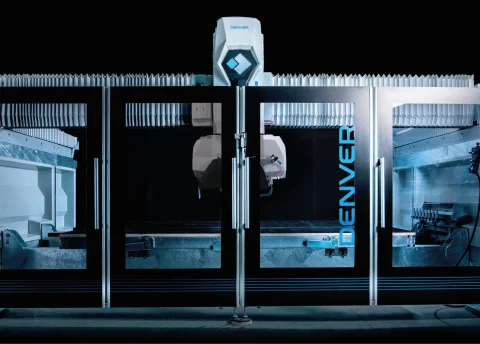

Front enclosure doors

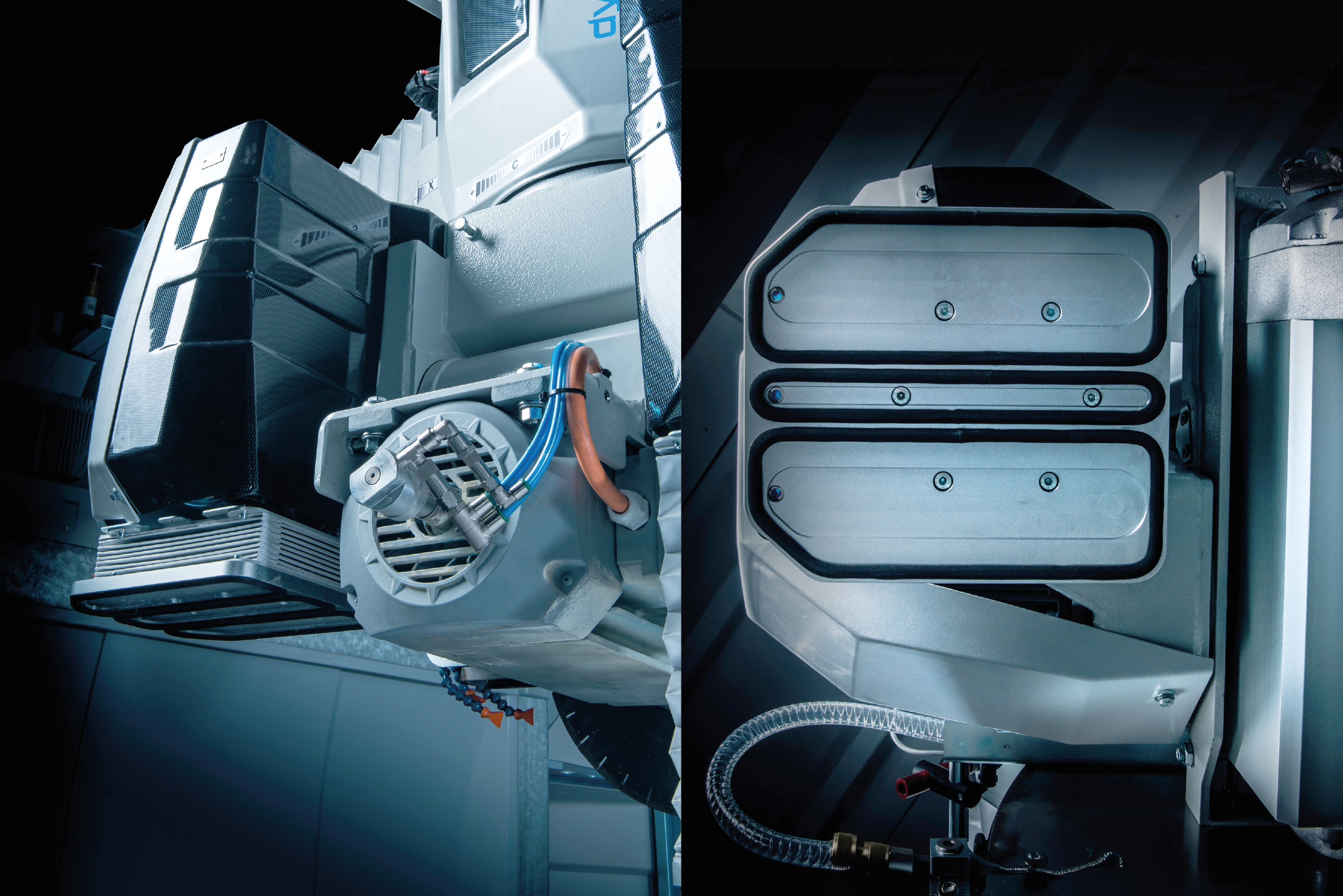

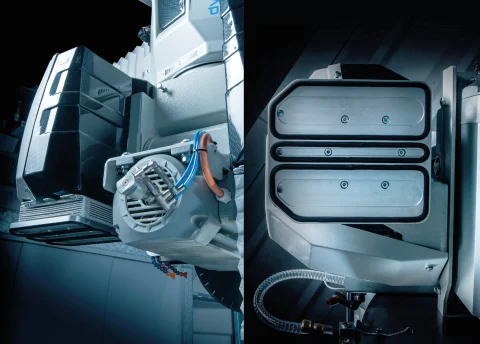

X-Motion System

Vacuum system with 2 independent cups, for cut cycle optimization through automatic placement of the pieces.

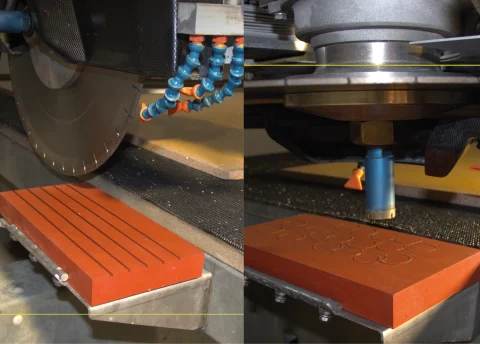

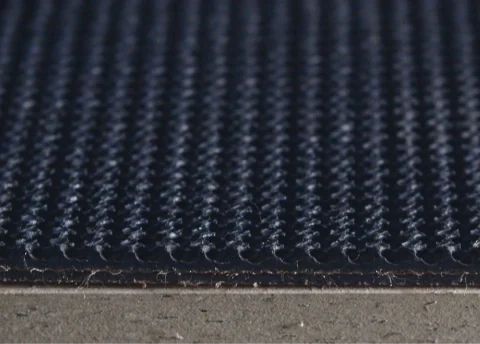

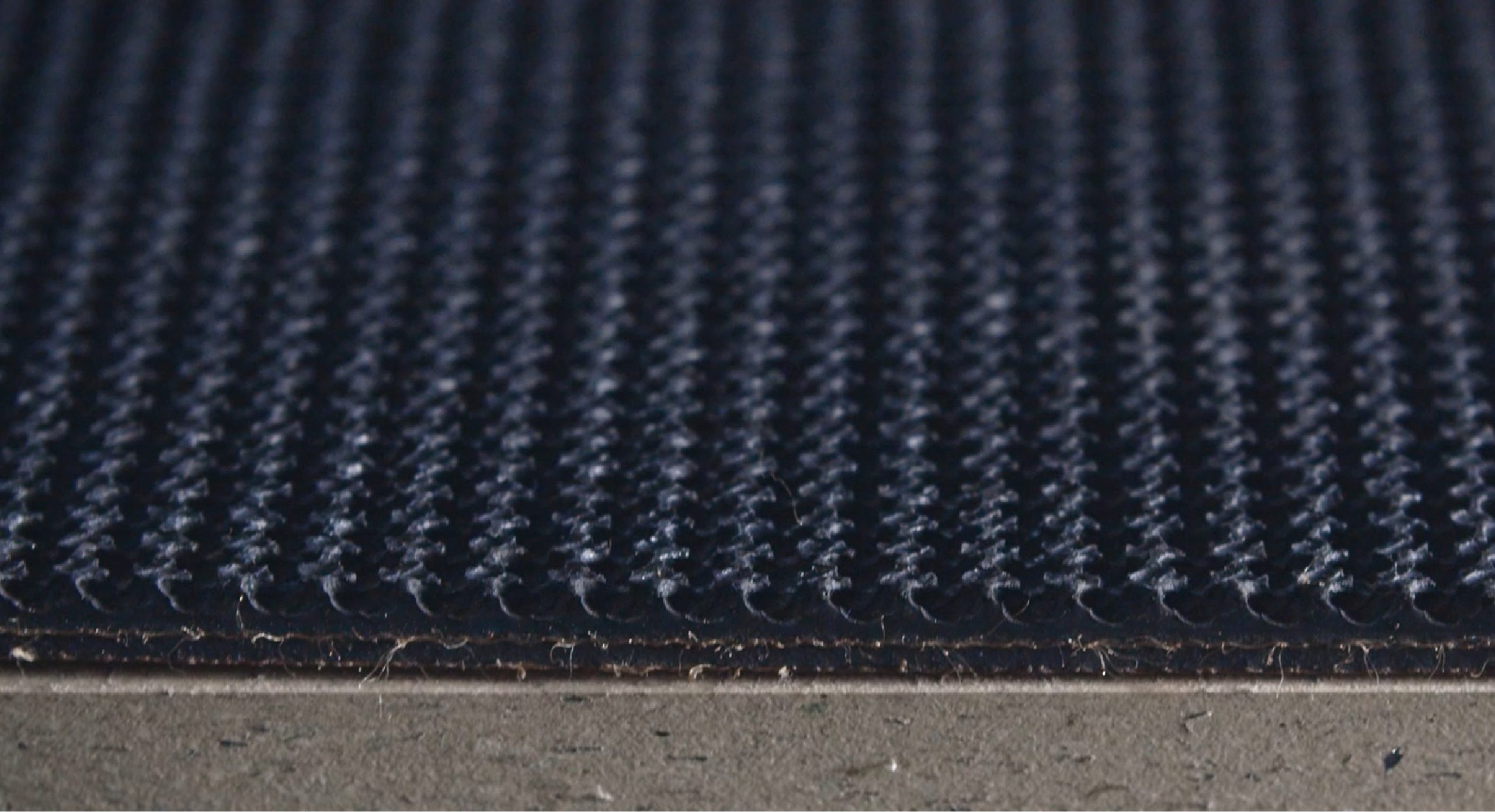

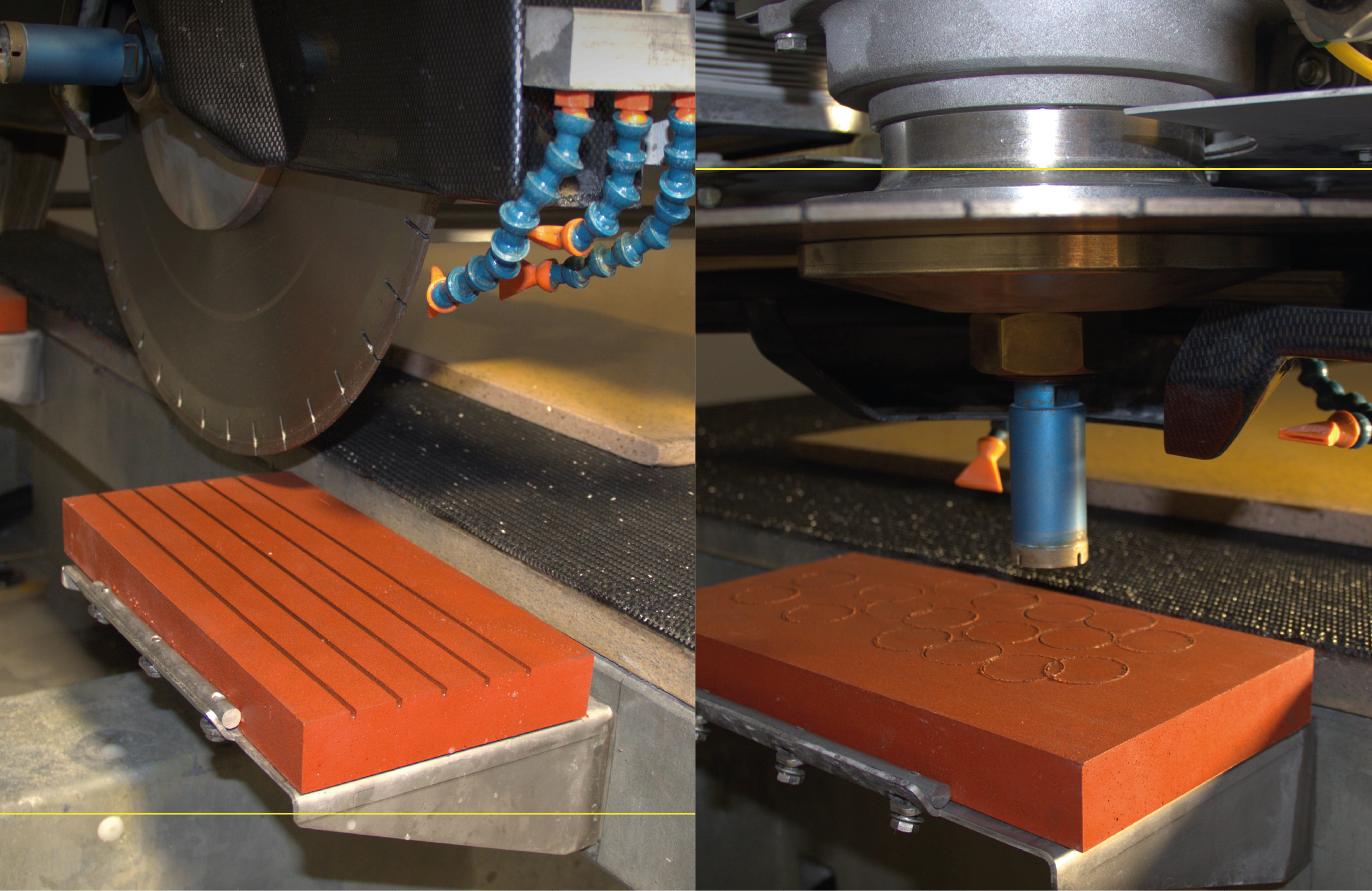

D-Grip Table Cover

Polyurethane table covered by rubber mat. • High density • Not sensitive to moisture • Not decomposable • Mold resistant…

SKEMA

Technologies

What you can do with this machine

Ask for more

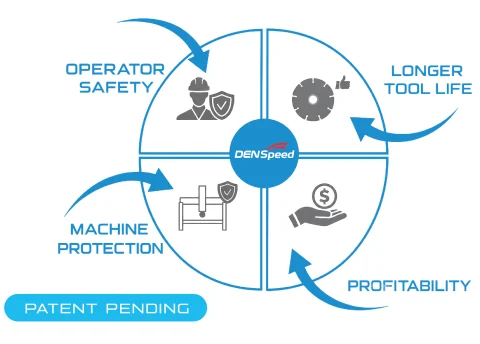

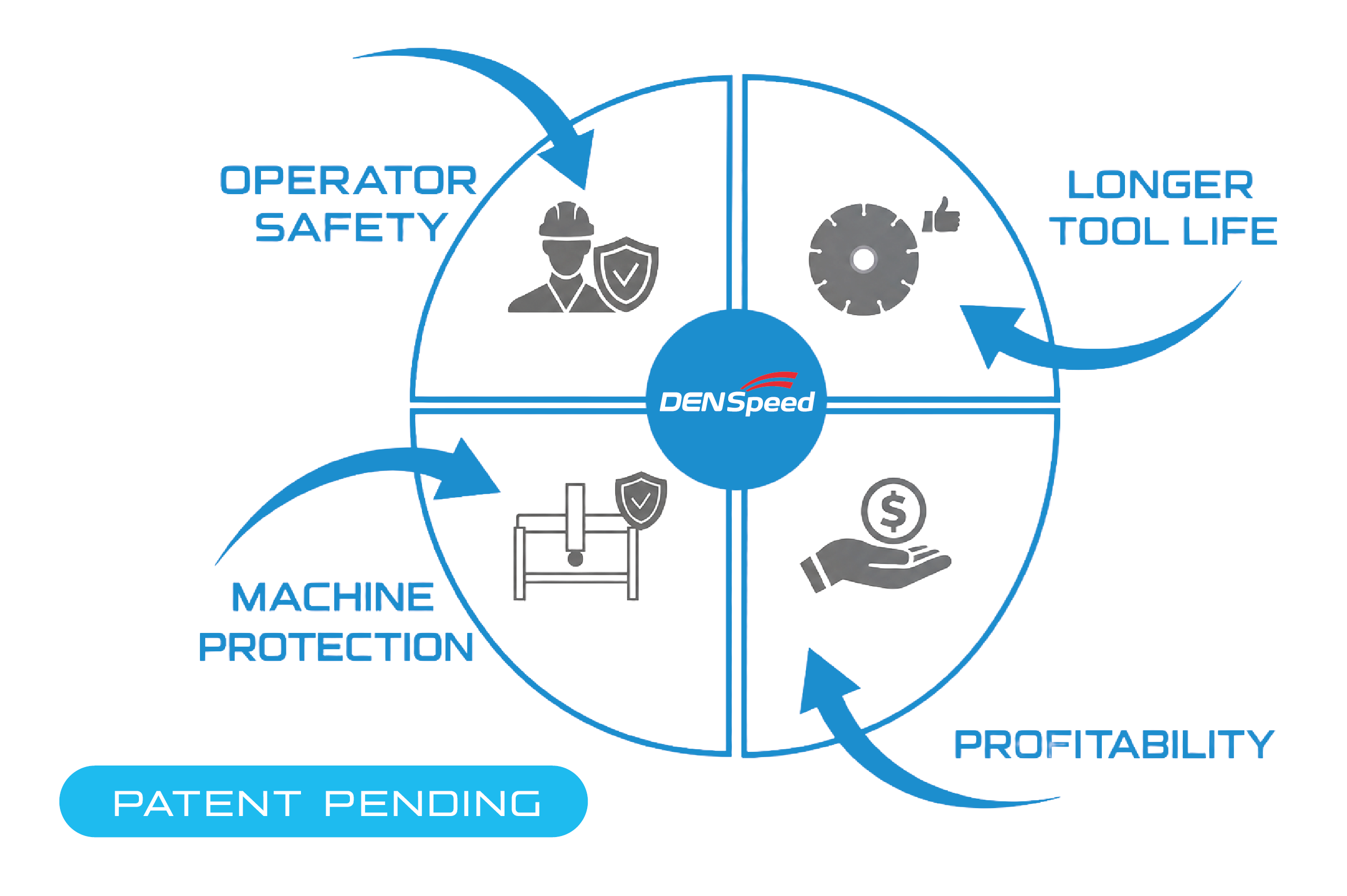

DEN Speed

Smart technology that automatically ensures the actual disc diameter never exceeds the value set in the program, protecting the machine,…

Frequently asked questions

Find quick answers about configuration, installation and production use.


Where can I find the complete product technical datasheets?

Technical datasheets for all models are available in the Products section of the website. For detailed documentation or technical drawings, you can also contact our sales department.


Are CAD-CAM software packages included with the machine?

Yes, Denver machines are supplied with dedicated CAD-CAM software already configured. The license, training and updates are included in the standard supply package.
