Stone line

Arteka

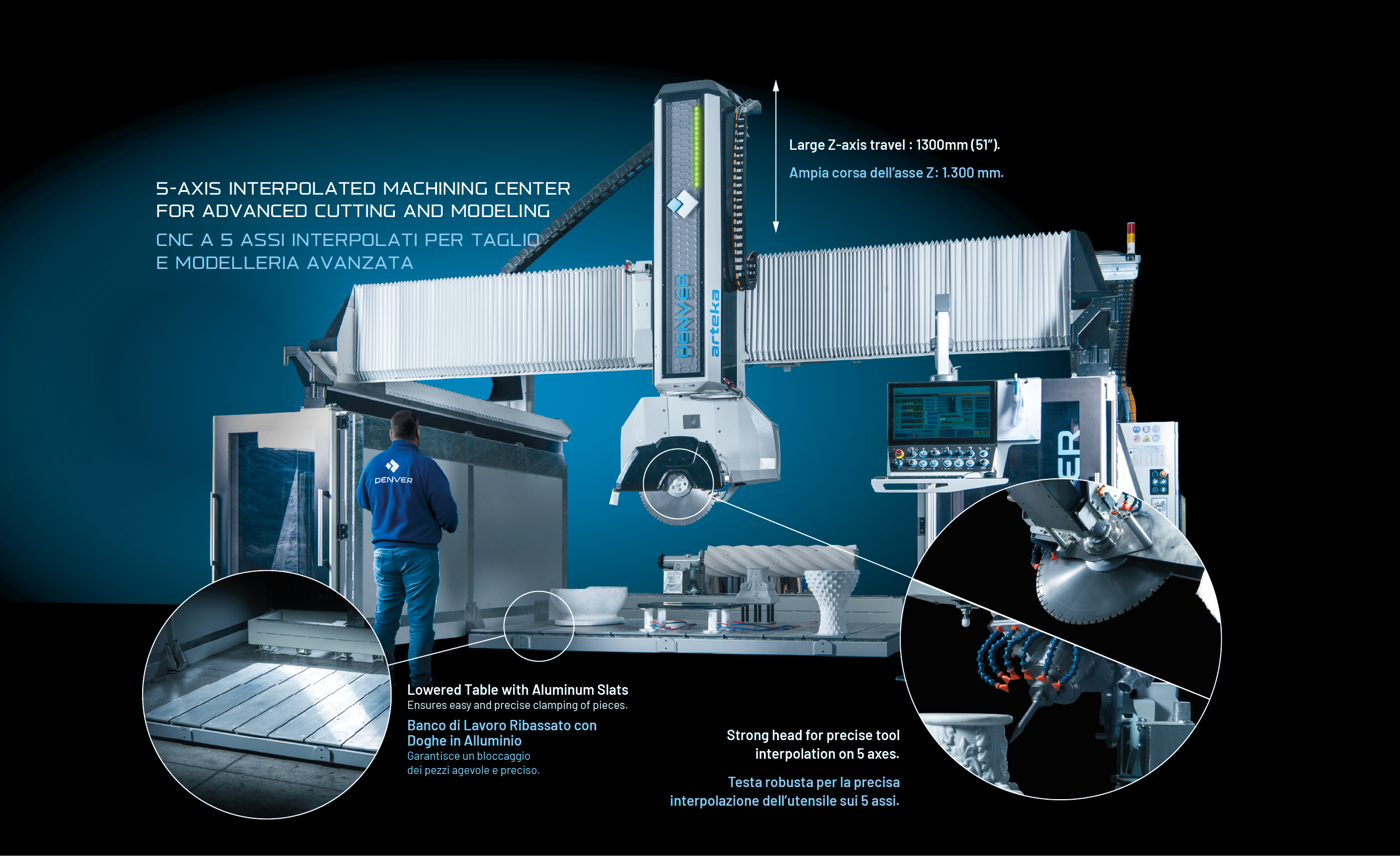

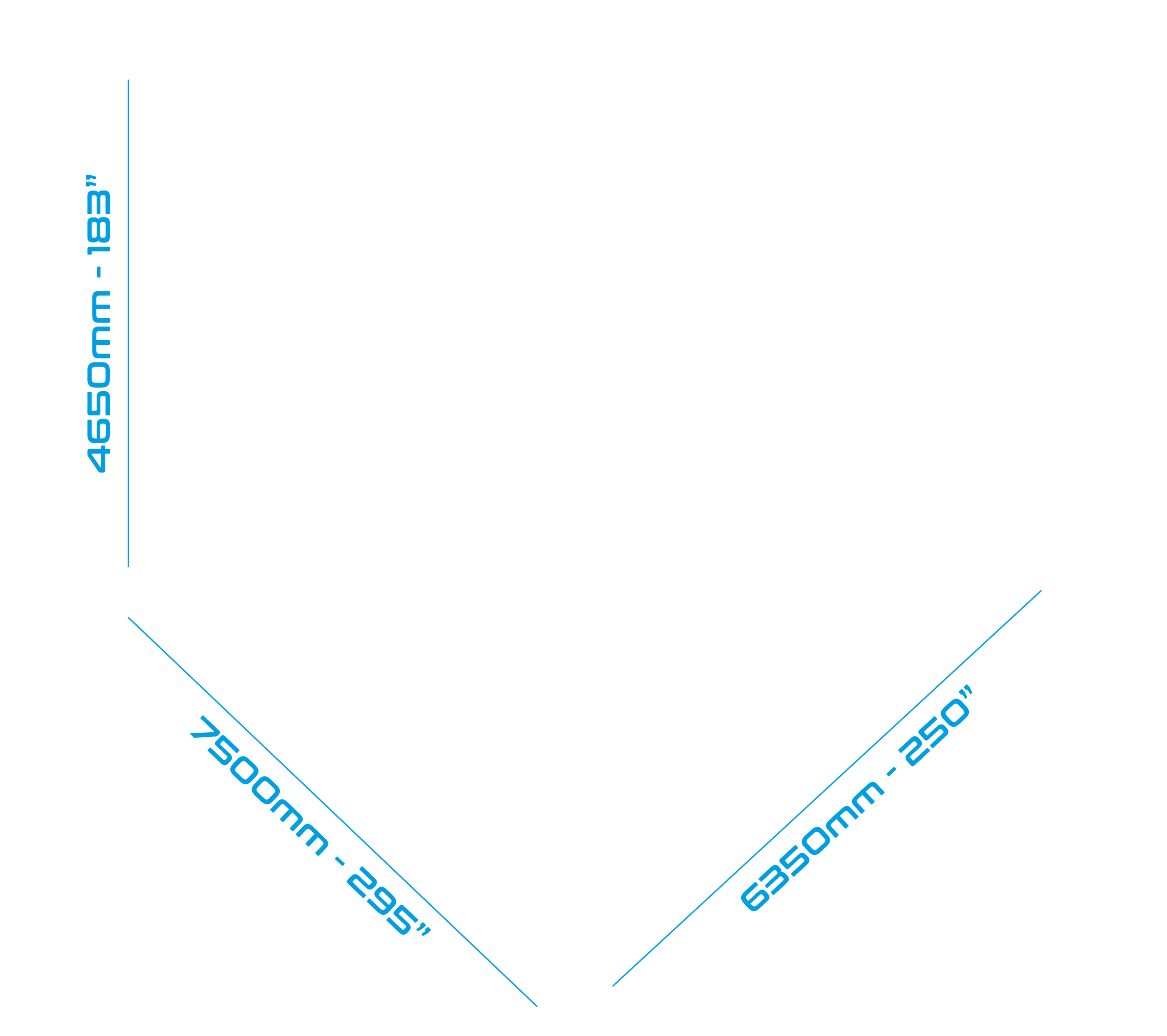

5 AXES X:4400 Y:3800 Z:1300

Interested? Let’s talk

THE STATS

Artekamain data of the machine

Work Area

X 3600 mm – 141,7“
Y 3800 mm – 323“
Z 1300 mm – 28,3“

A axis

-20° + 90° (for tools)
0° – 90° (for discs)

C axis

-3° + 363°

Motor power

ISO40 Kw 28 – Hp 37,5 (S6)
0 ÷ 10000 rpm
opt. ISO50 kw.40 – Hp.53,6 (S6)
0 ÷ 8000 rpm

Disc diameter

400÷625 mm
16 ÷ 24”
Opt. Ø 825 – 1000 – 1200 mm
32” – 39”
Automatic Tool Change
12 positions
(opt. 12 positions)

Weight

6200 kg
14000 lbs

SKEMA

Features

Projects, technologies, events and insights from the world of stone and glass processing.

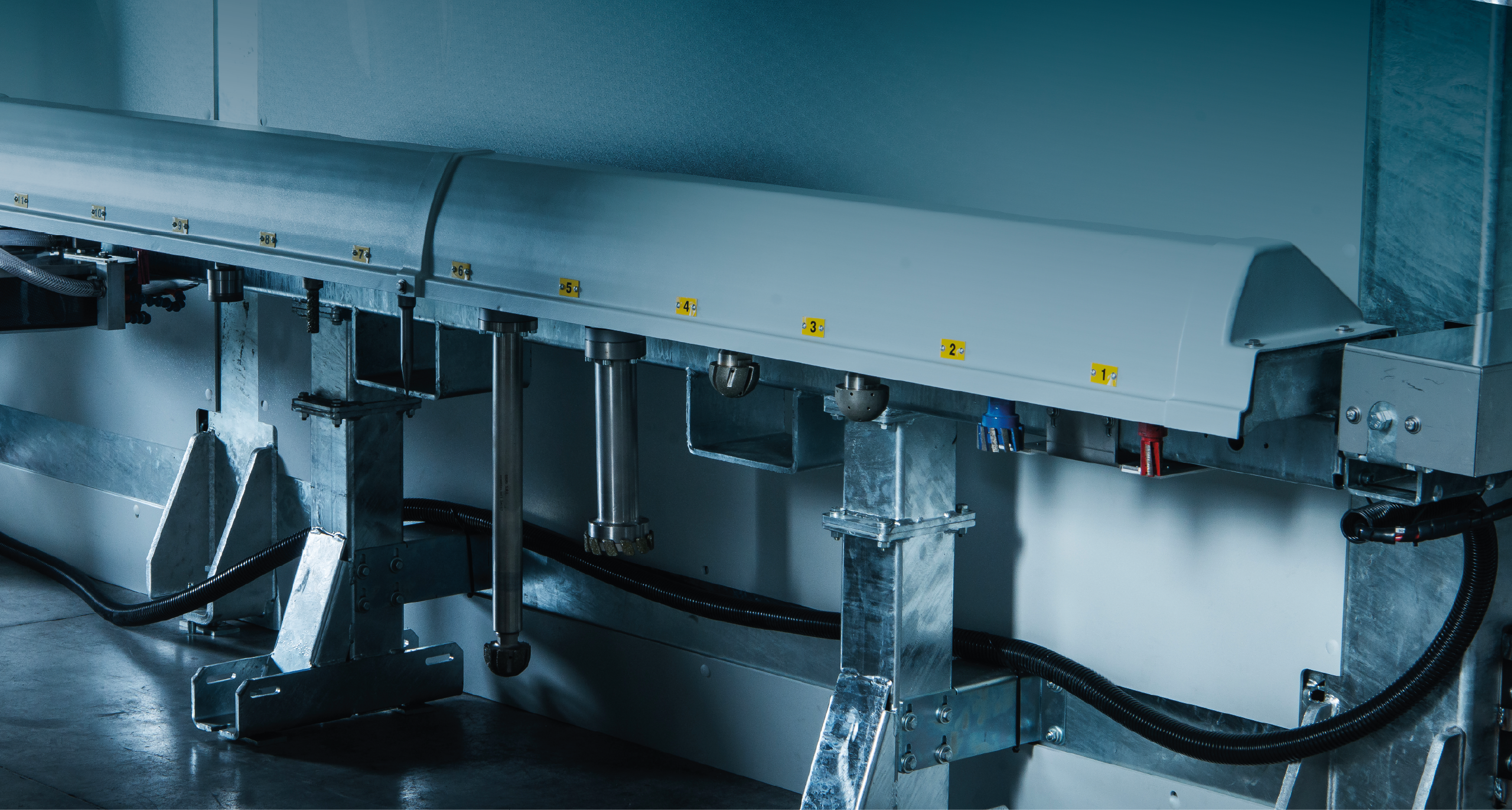

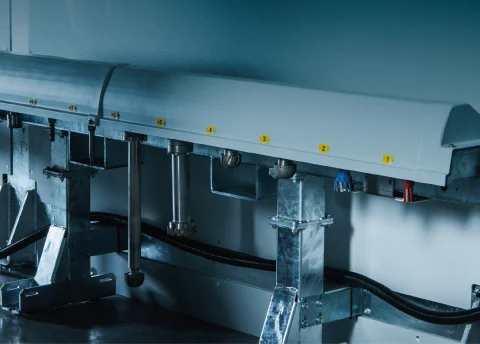

Tool Rack

12-positions lateral linear magazine

Safety Equipment

Ergonomic front safety doors offering compact footprint.

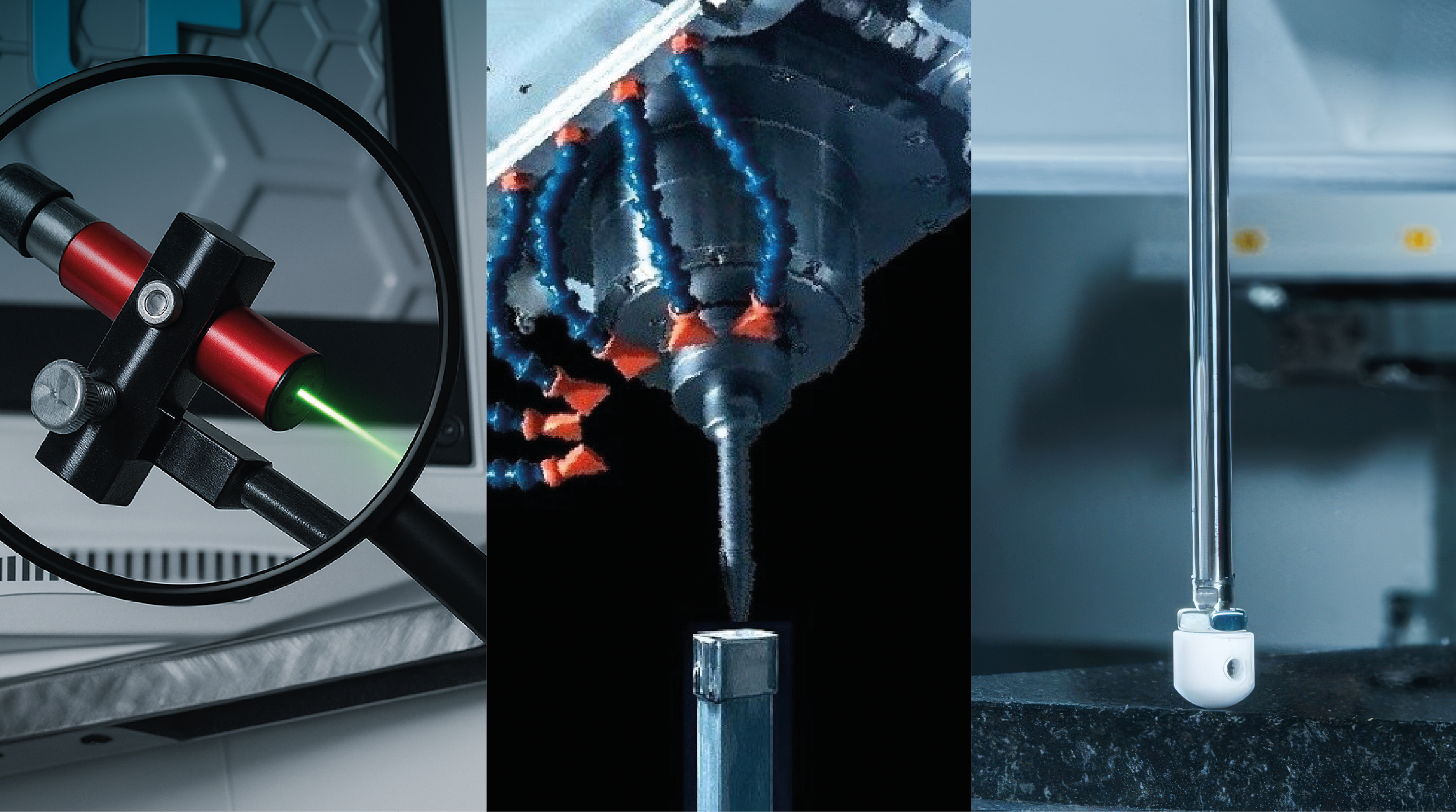

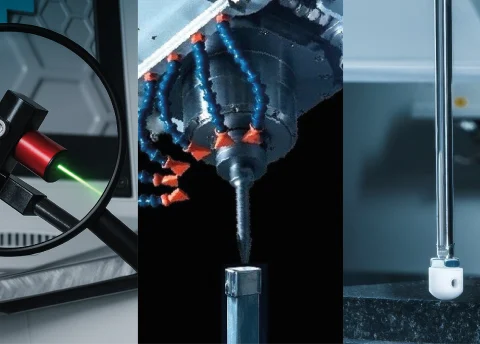

Line Laser

Cross Laser Touch Probes – for piece thickness and tool lenght / disc diameter

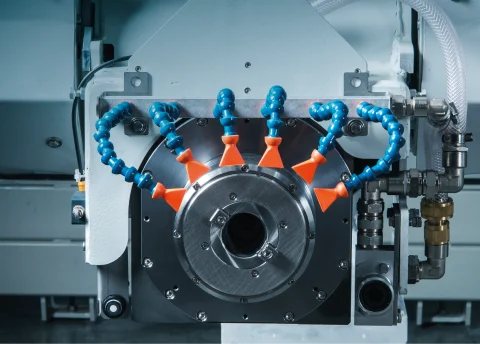

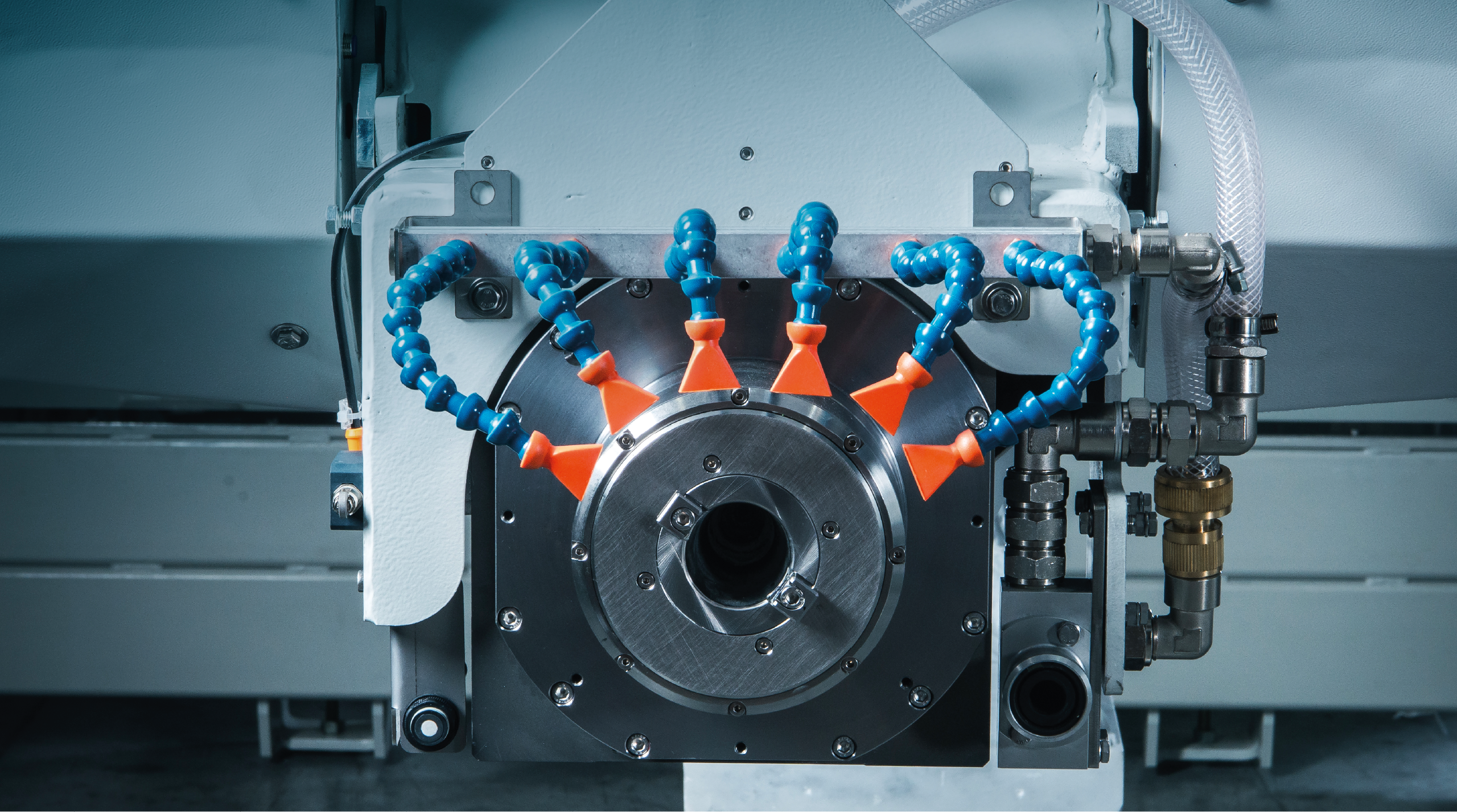

Hp 37.5 Main Spindle Motor

ISO40 electrospindle, Kw.28 (S6) , liquid-cooled, with adjustable speed up to 10,000 rpm.

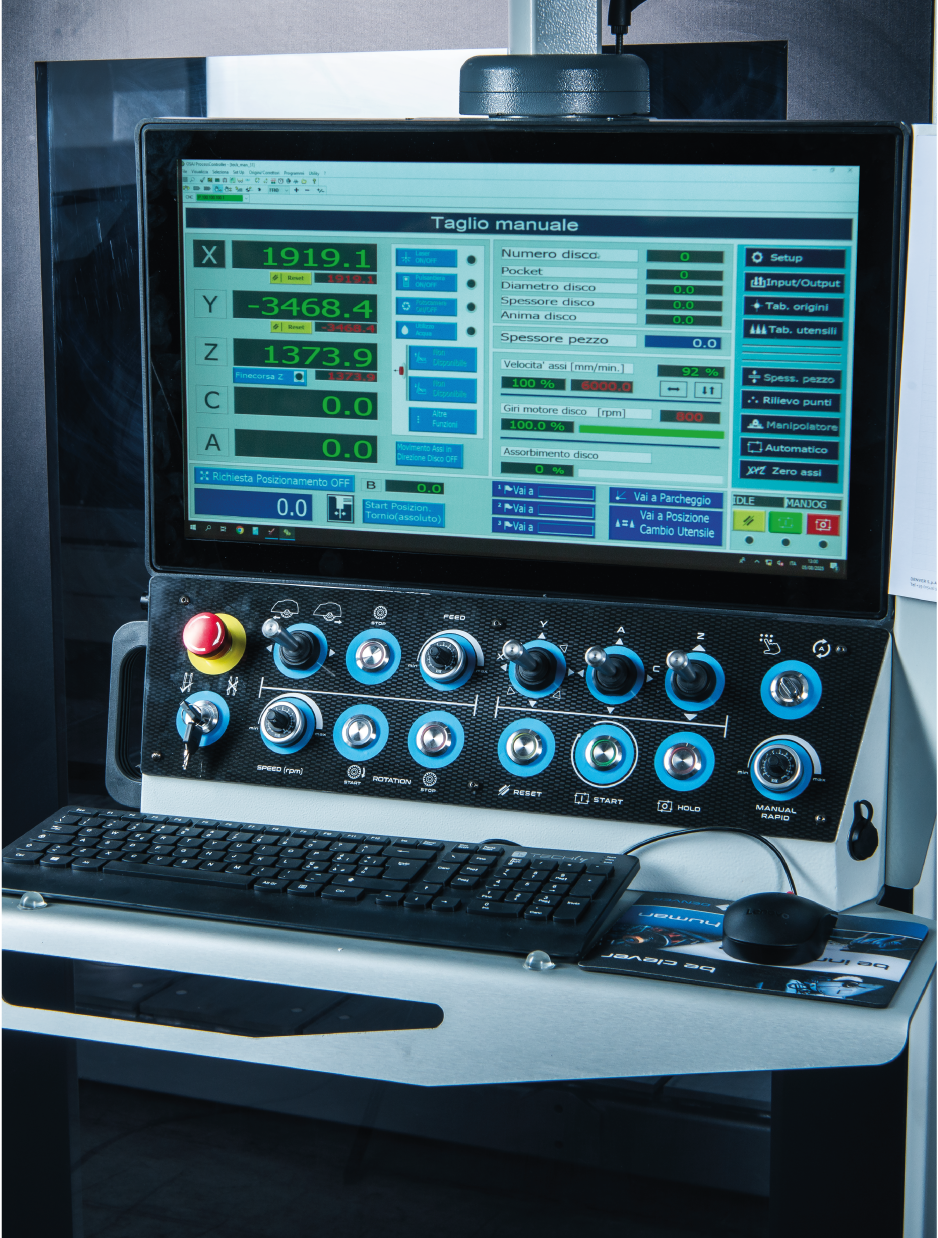

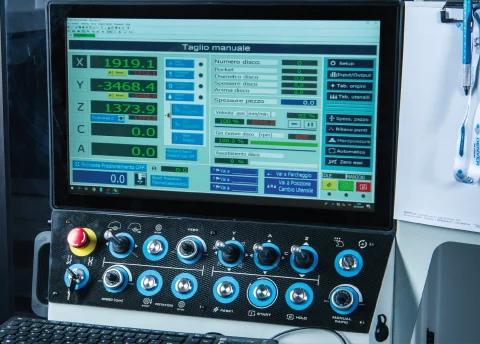

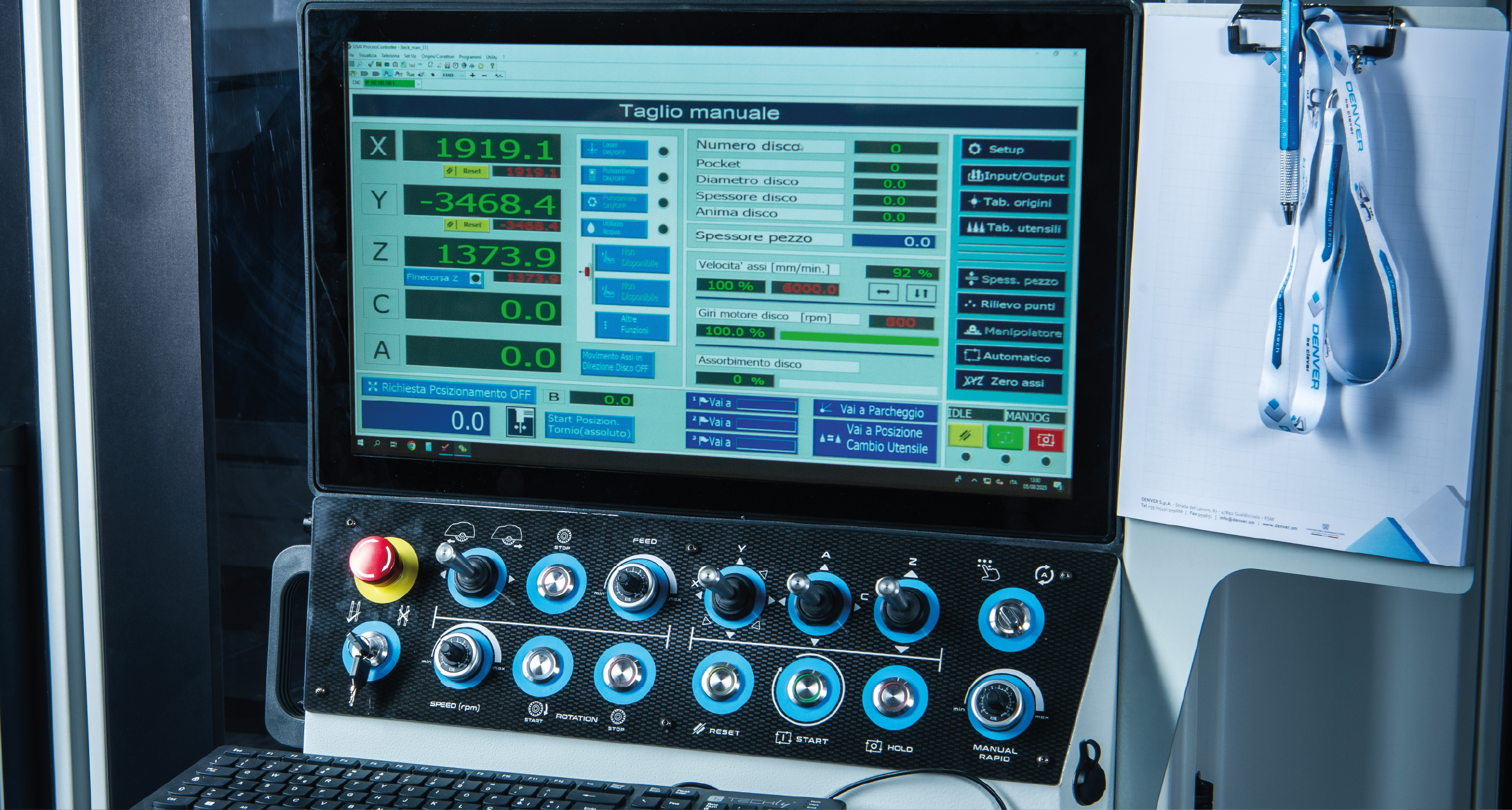

Control Instruments

Control panel on articulated arm.

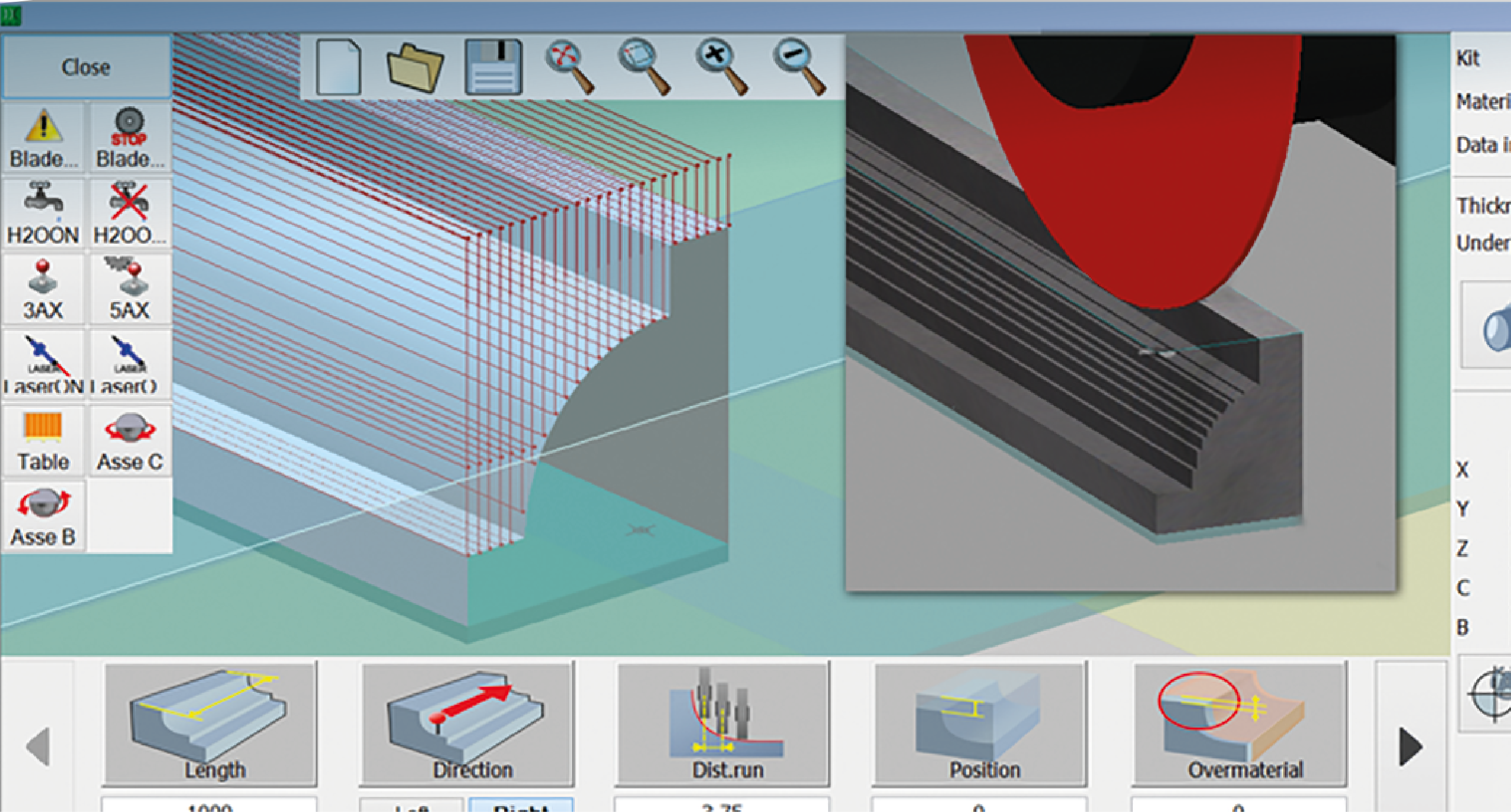

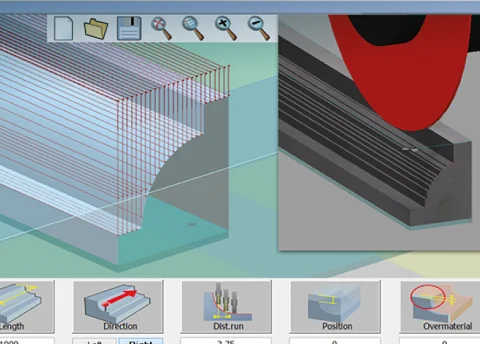

Advanced 5-axis Performer Software Powered by DDX

A single work environment capable of managing every phase of production: from 3D design to part layout to machine program…

SKEMA

Processing

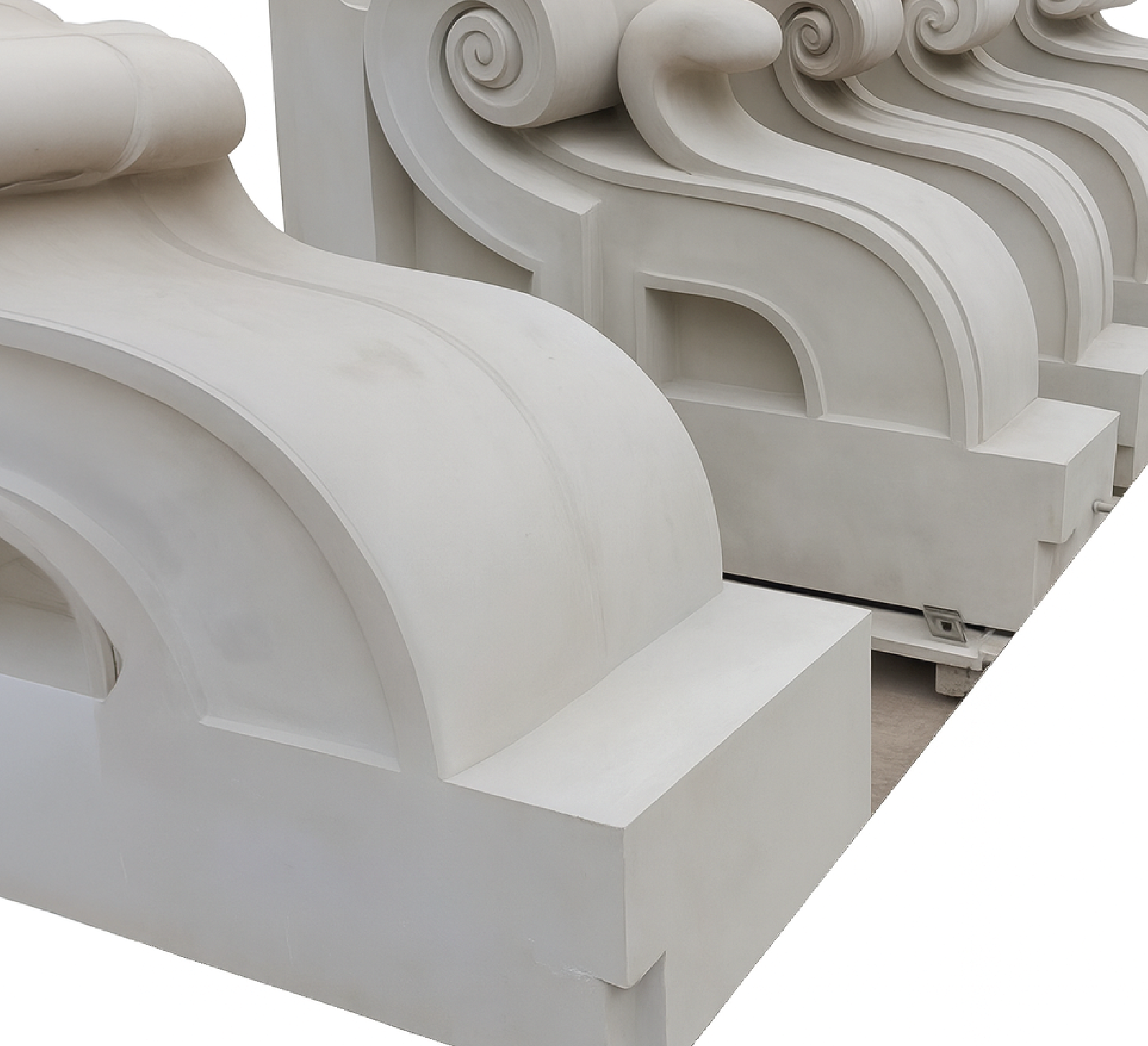

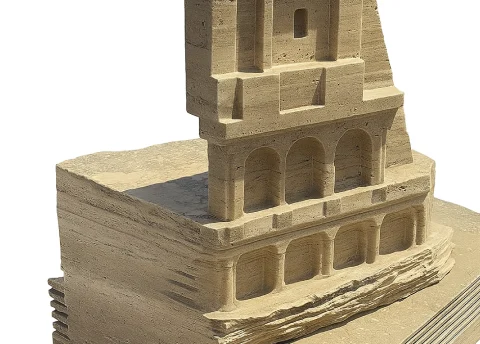

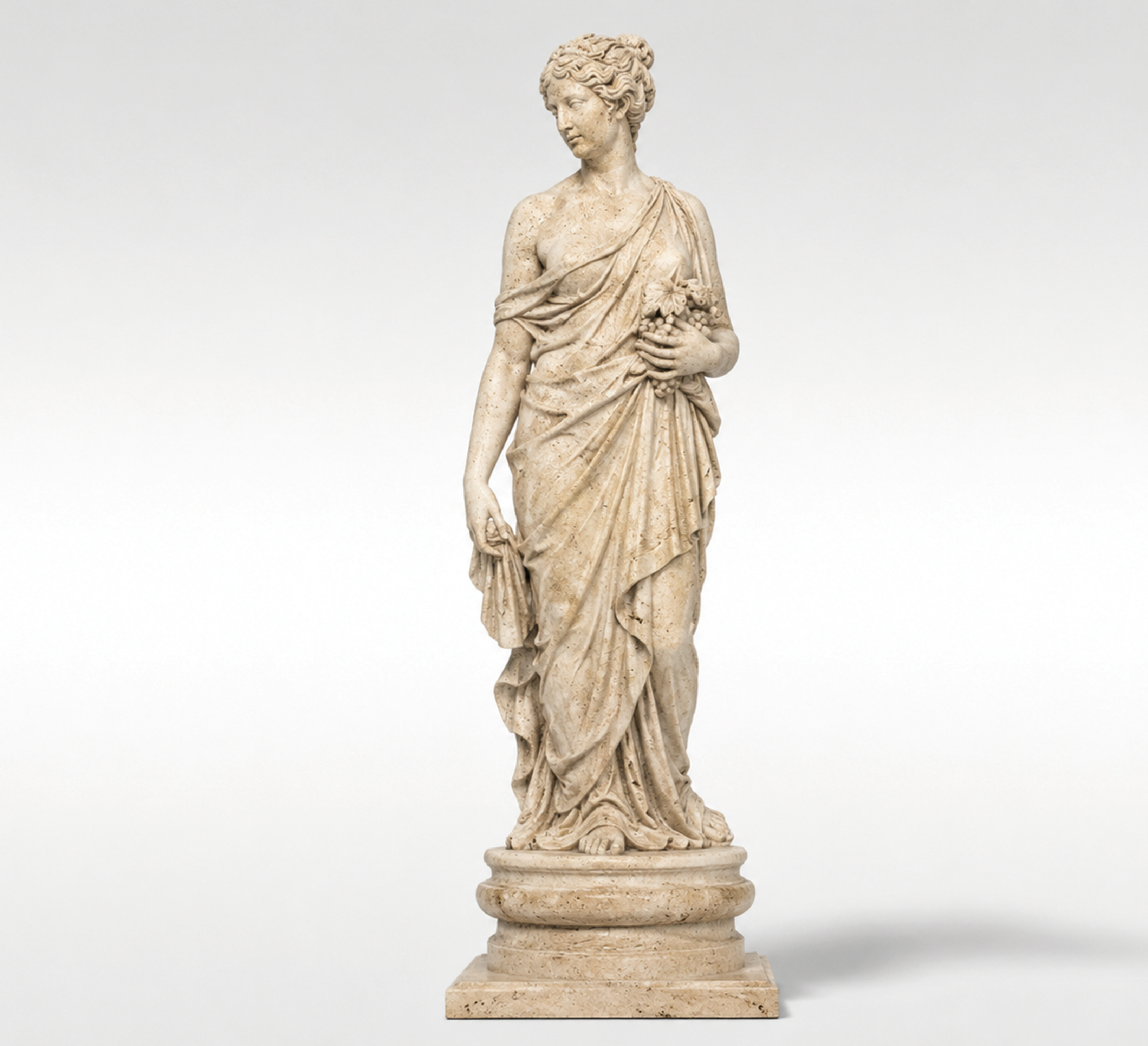

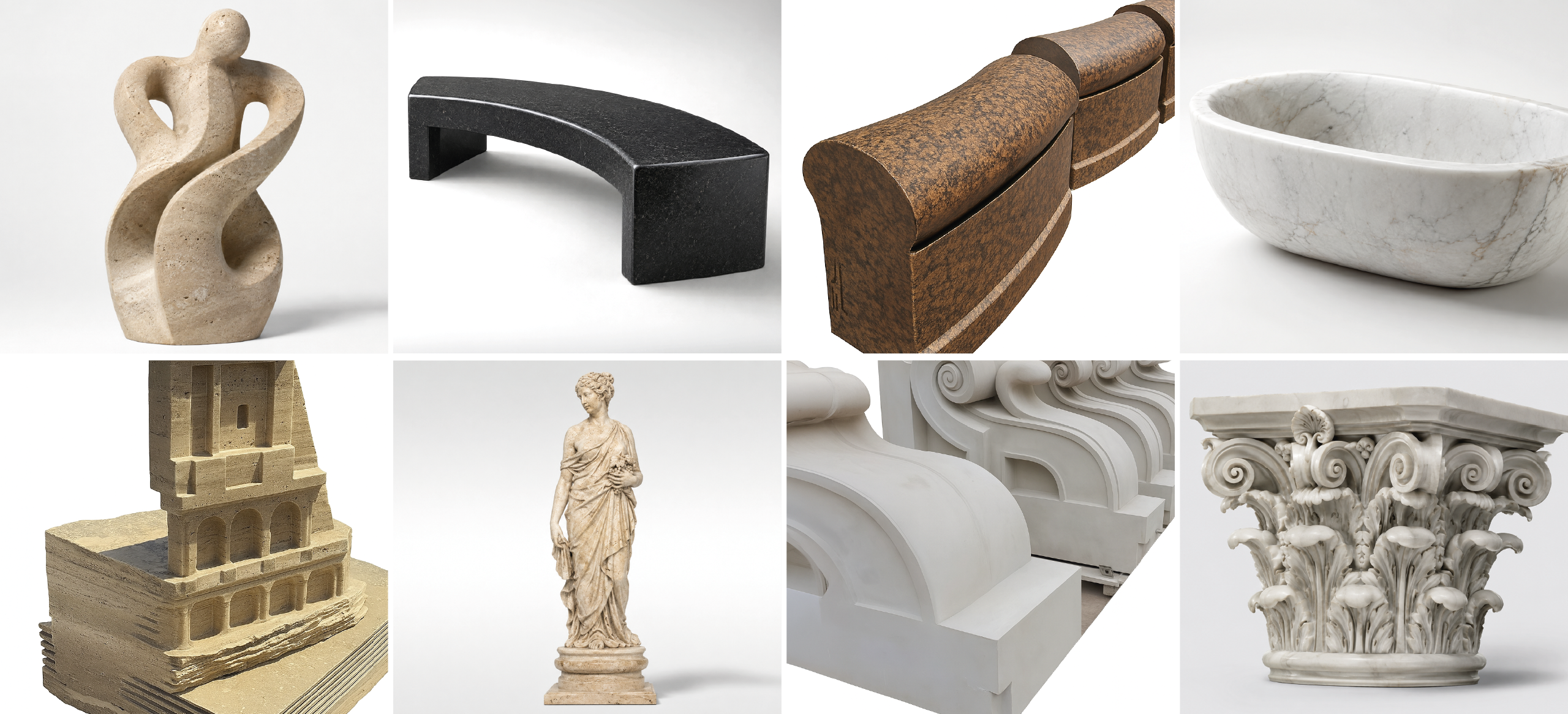

What you can do with this machine

Ask for more

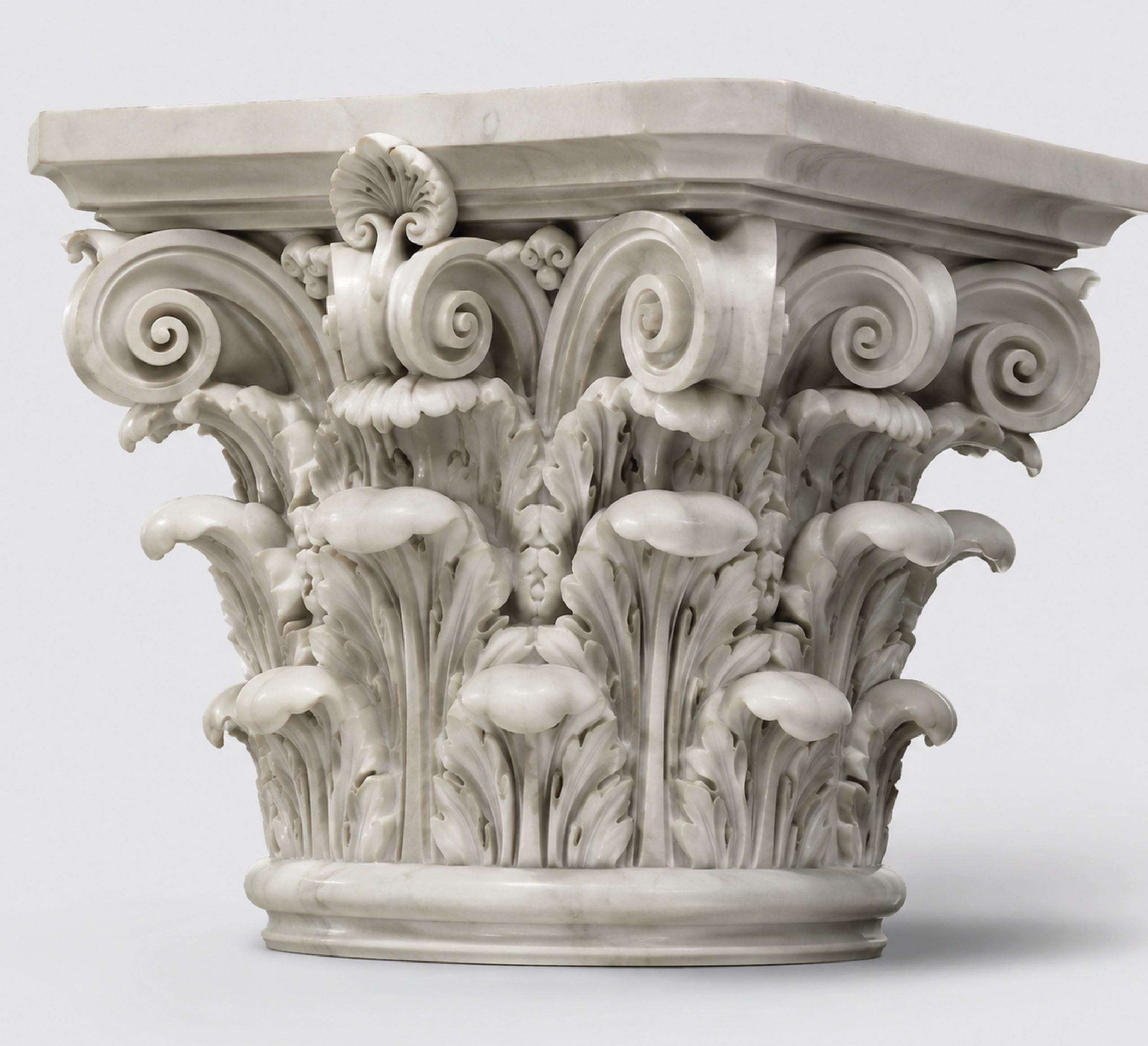

Process 08

Process 06

Process 07

Process 04

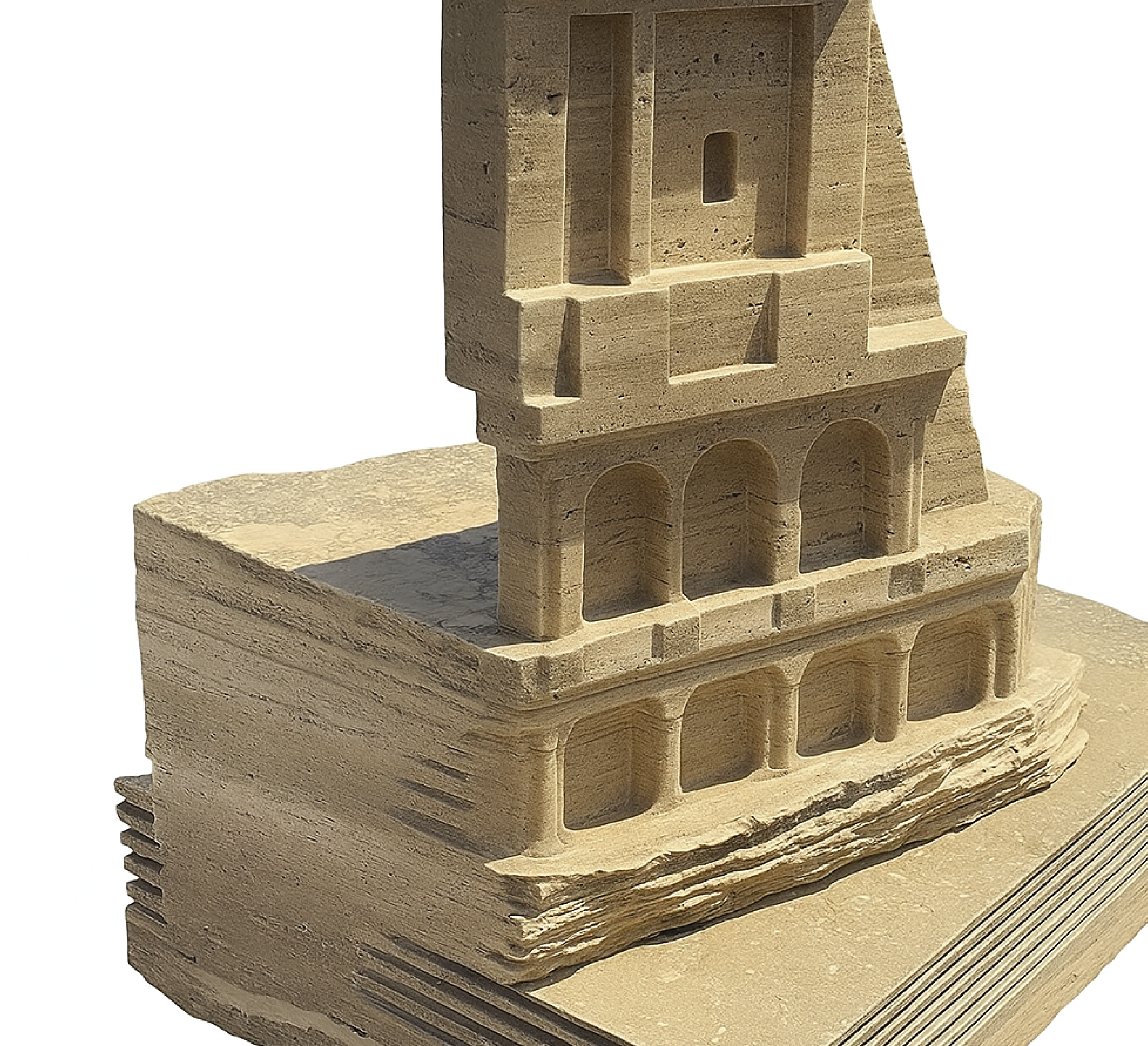

Process 05

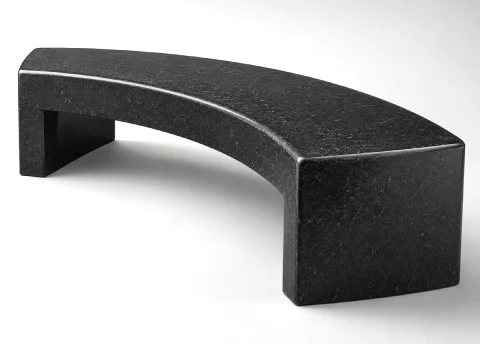

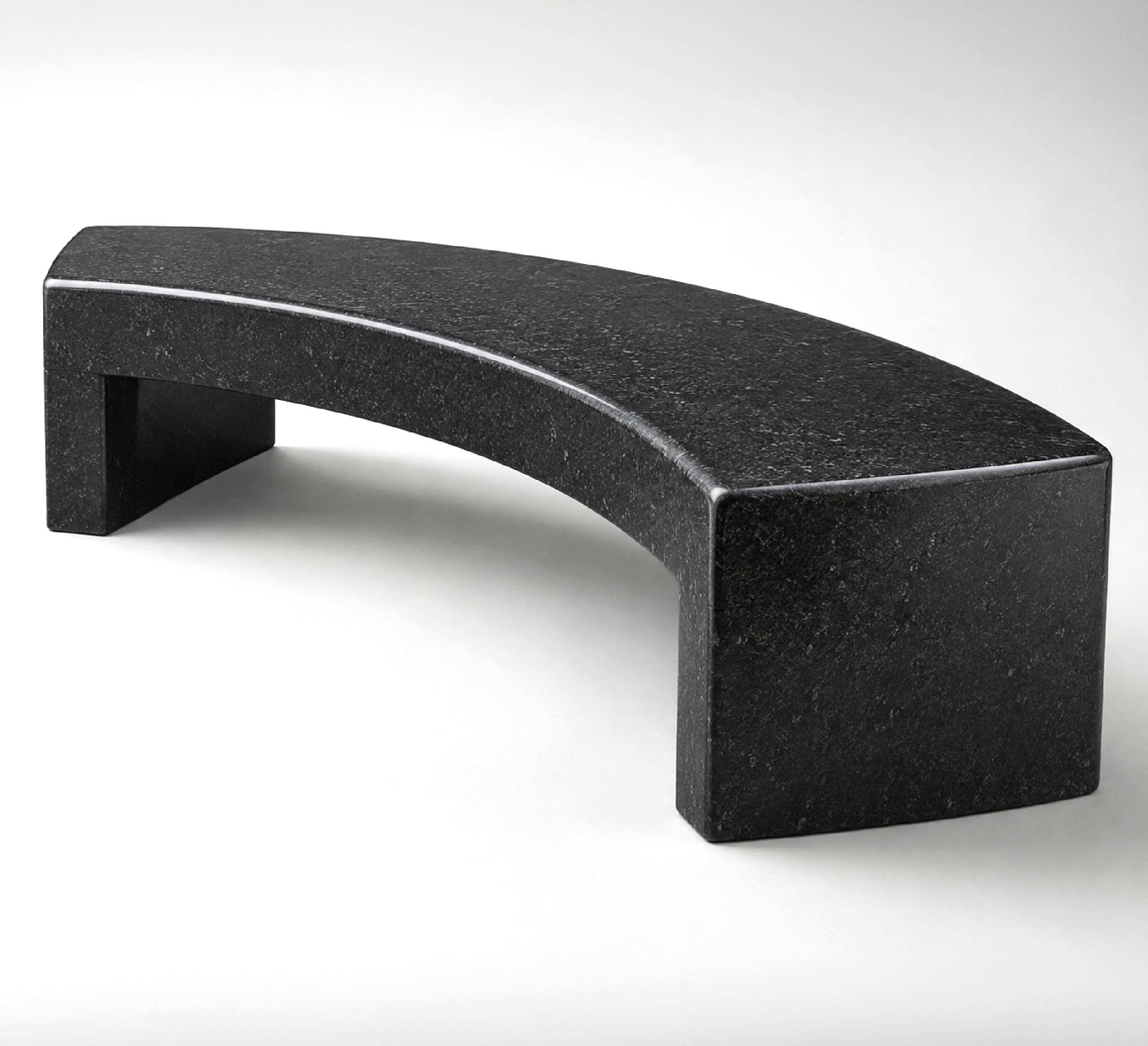

Process 02

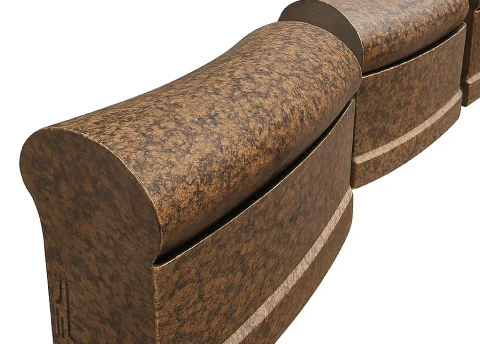

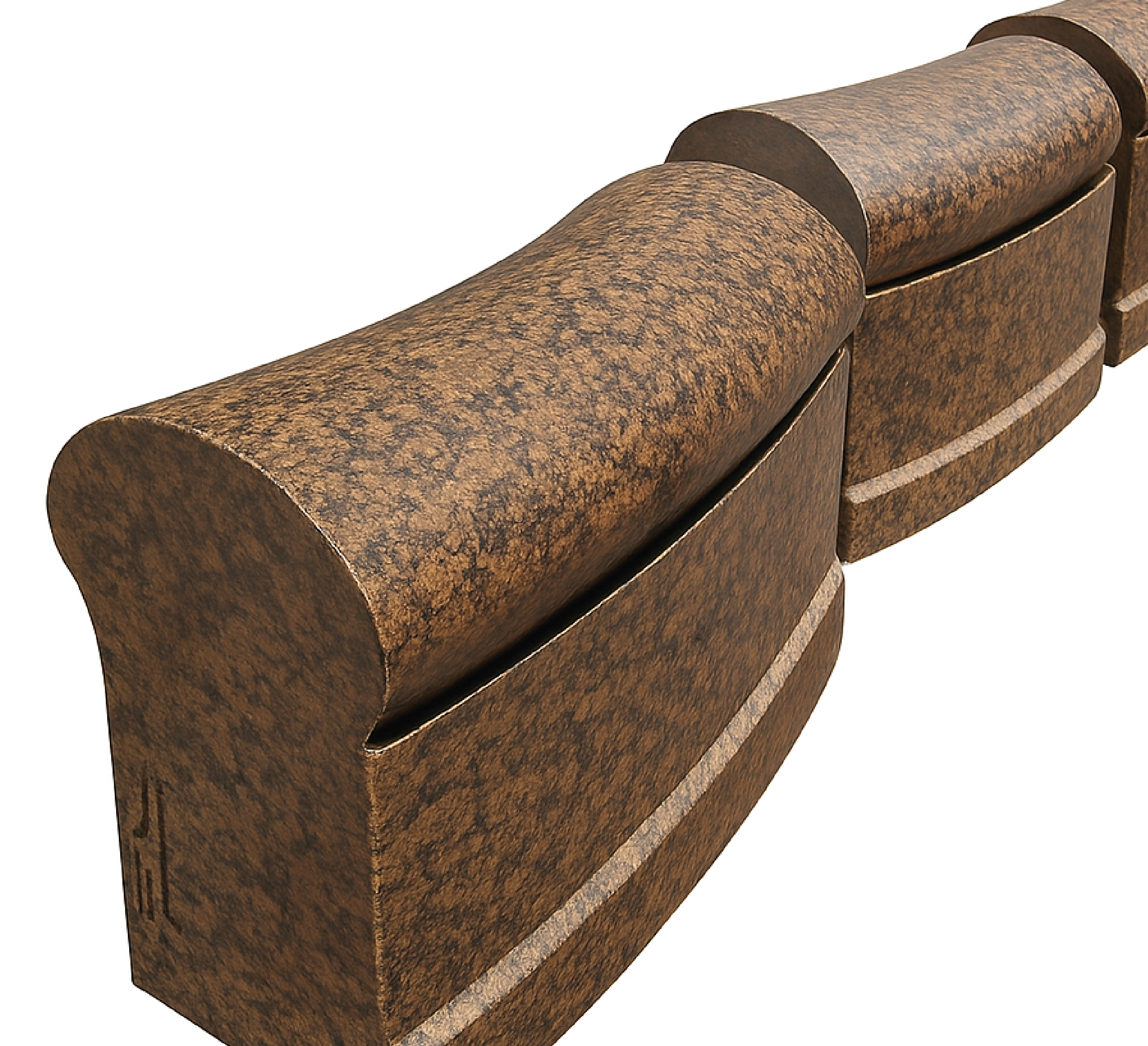

Process 03

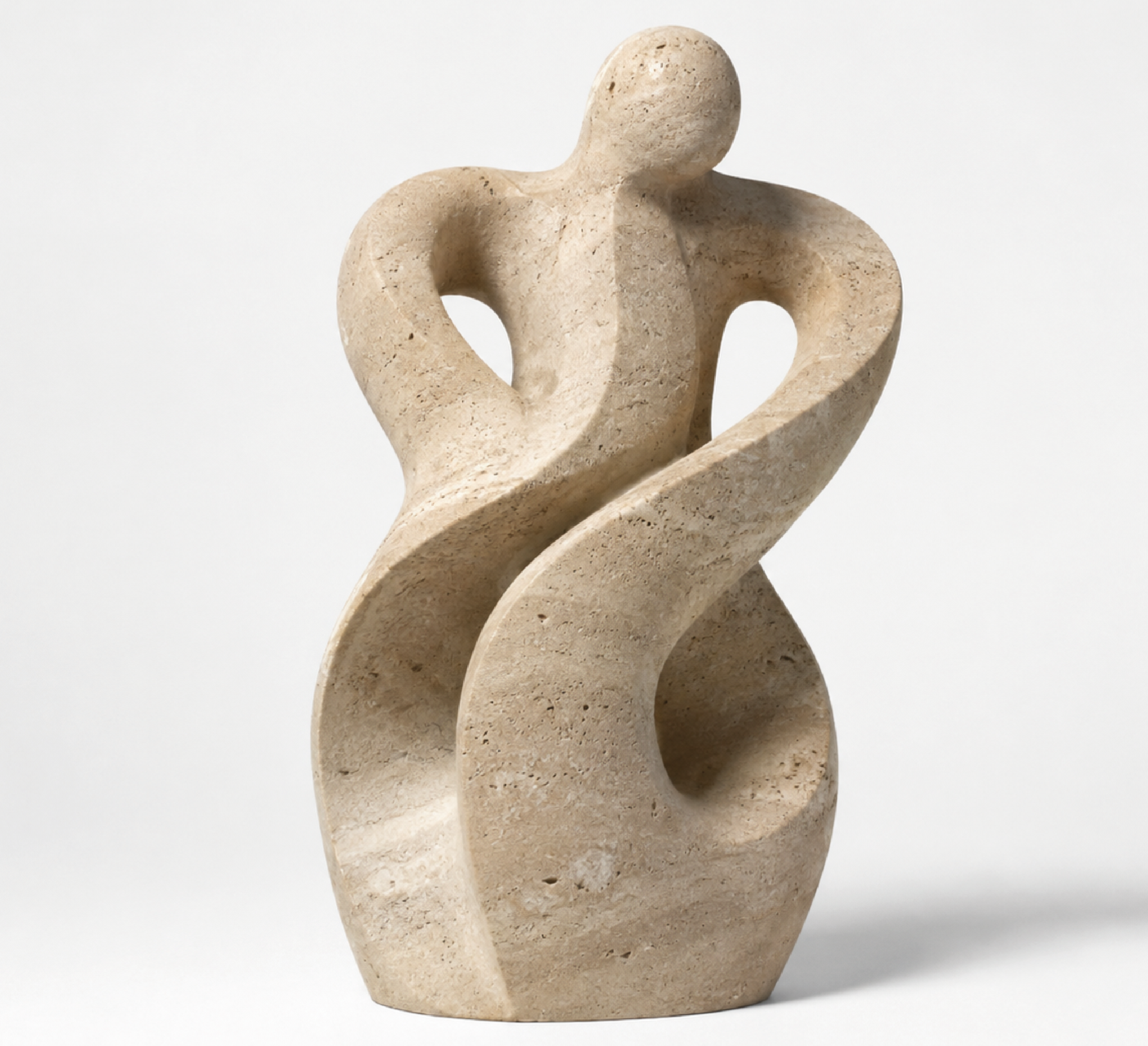

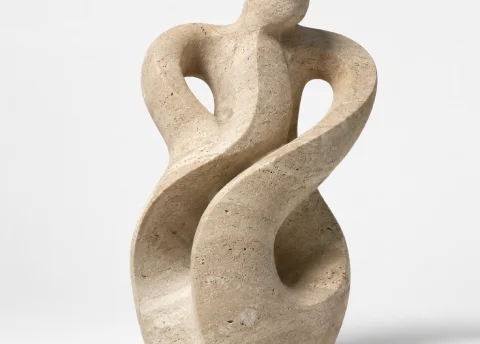

Process 01

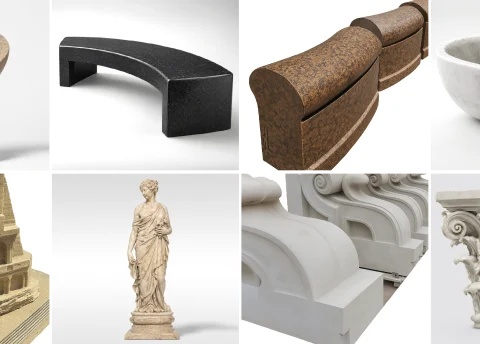

What you can do with this machine

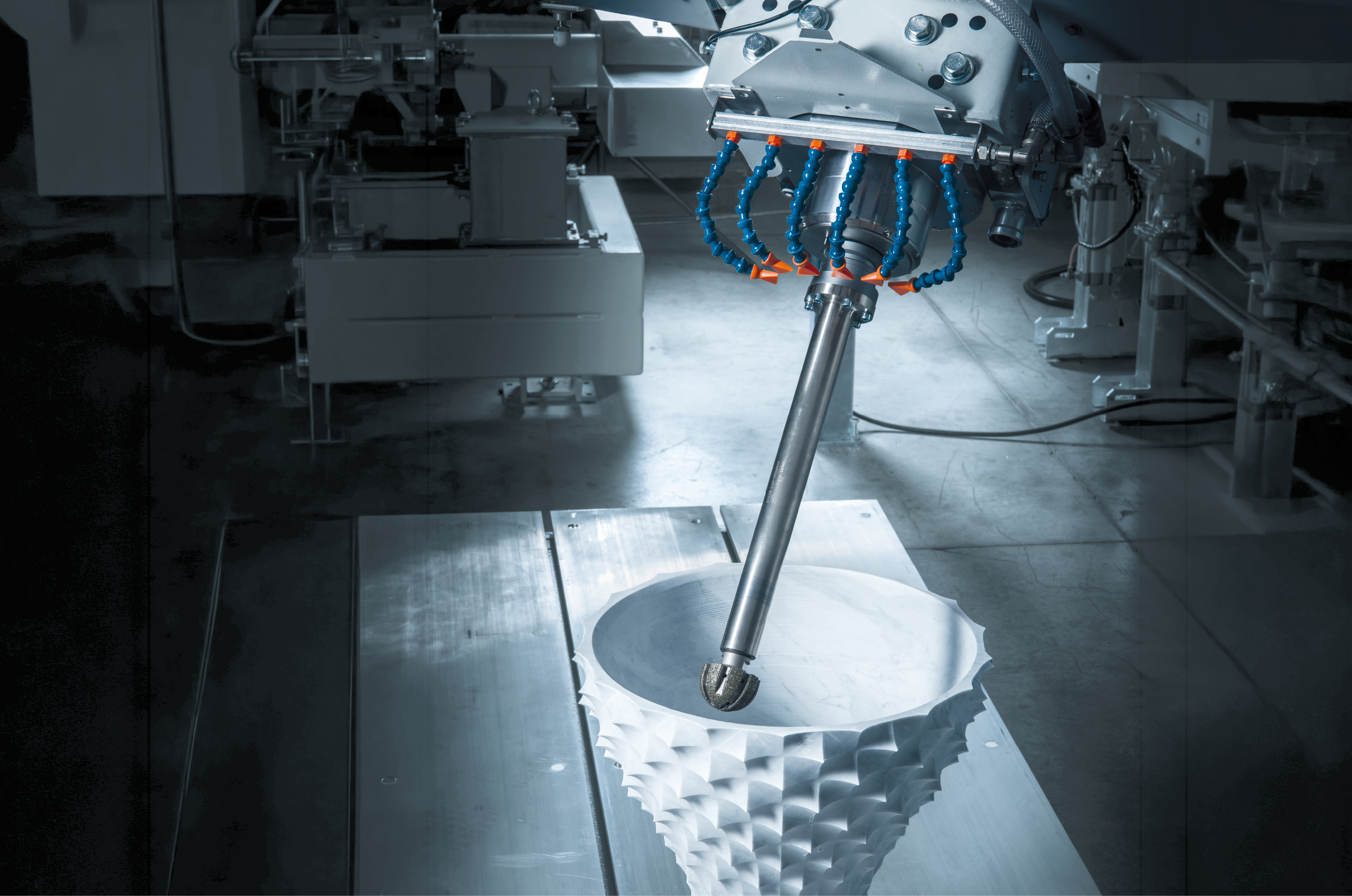

The solidity of the structure, the advanced software, the rotation and inclination of the head combined with the 5 interpolated…

SKEMA

Optionals

Available configurations and optional equipment connected to this product.

Ask for more

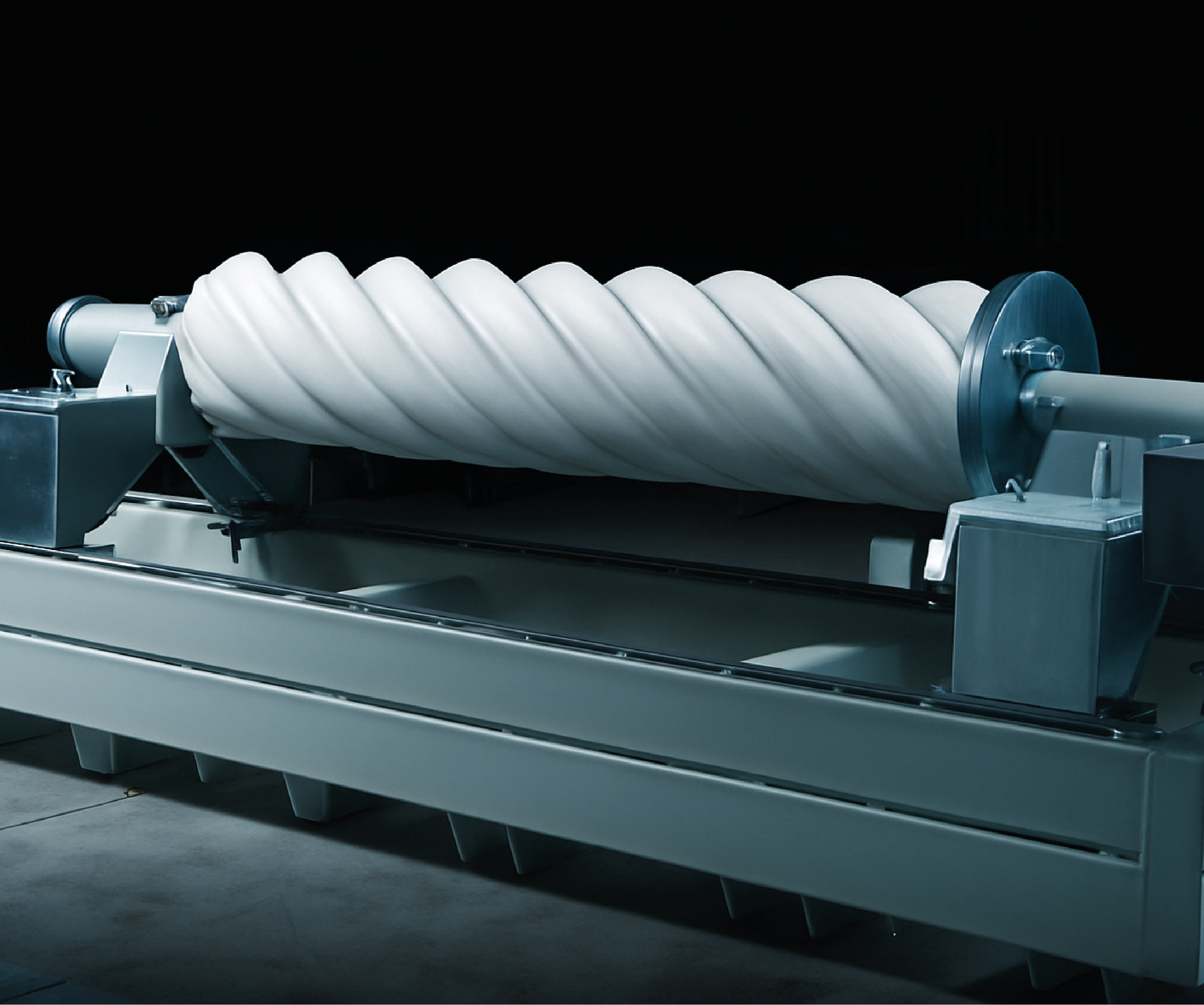

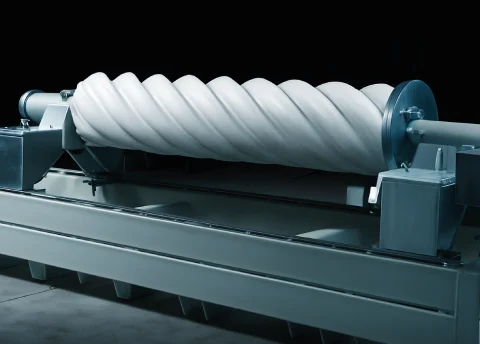

Interpolated Lathe (6° axis)

For complex multi-shaped statues and columns.

DEN-AROUND, maximum machine utilization

The system automatically guides the head around the workpiece, optimizing movements and making full use of the available working area.

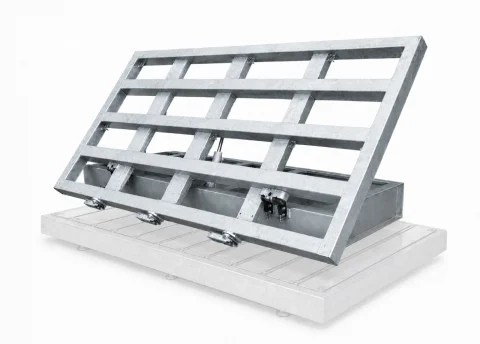

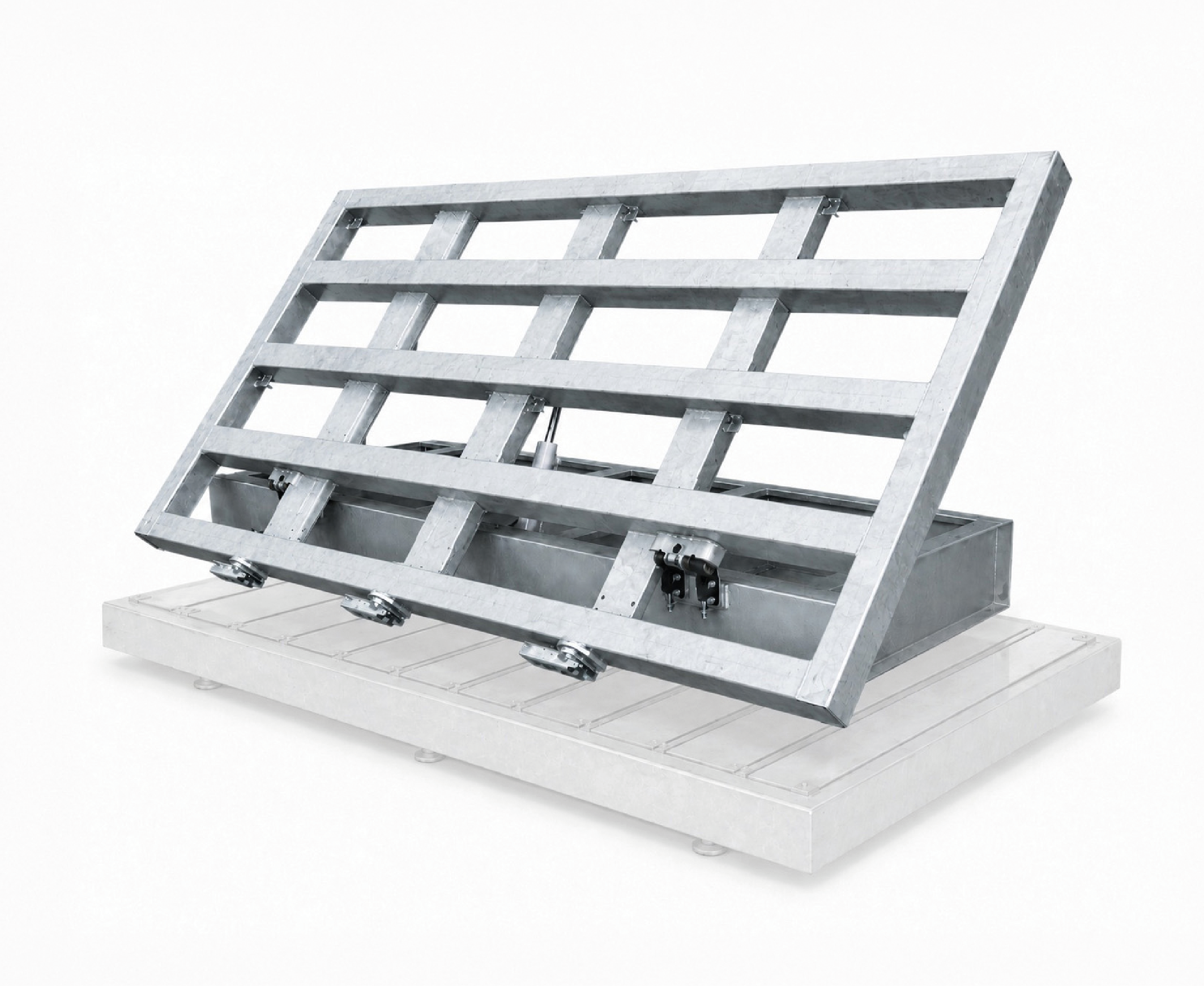

Additional removable and tilting workbench

to facilitate loading, cutting and unloading of thin slabs and thin blocks.

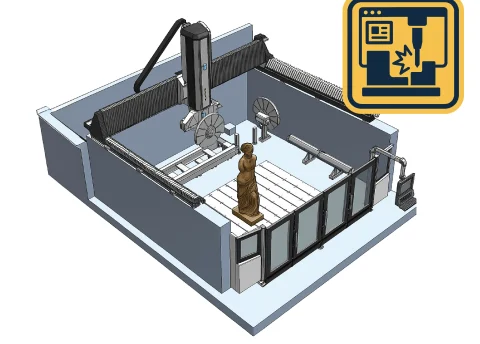

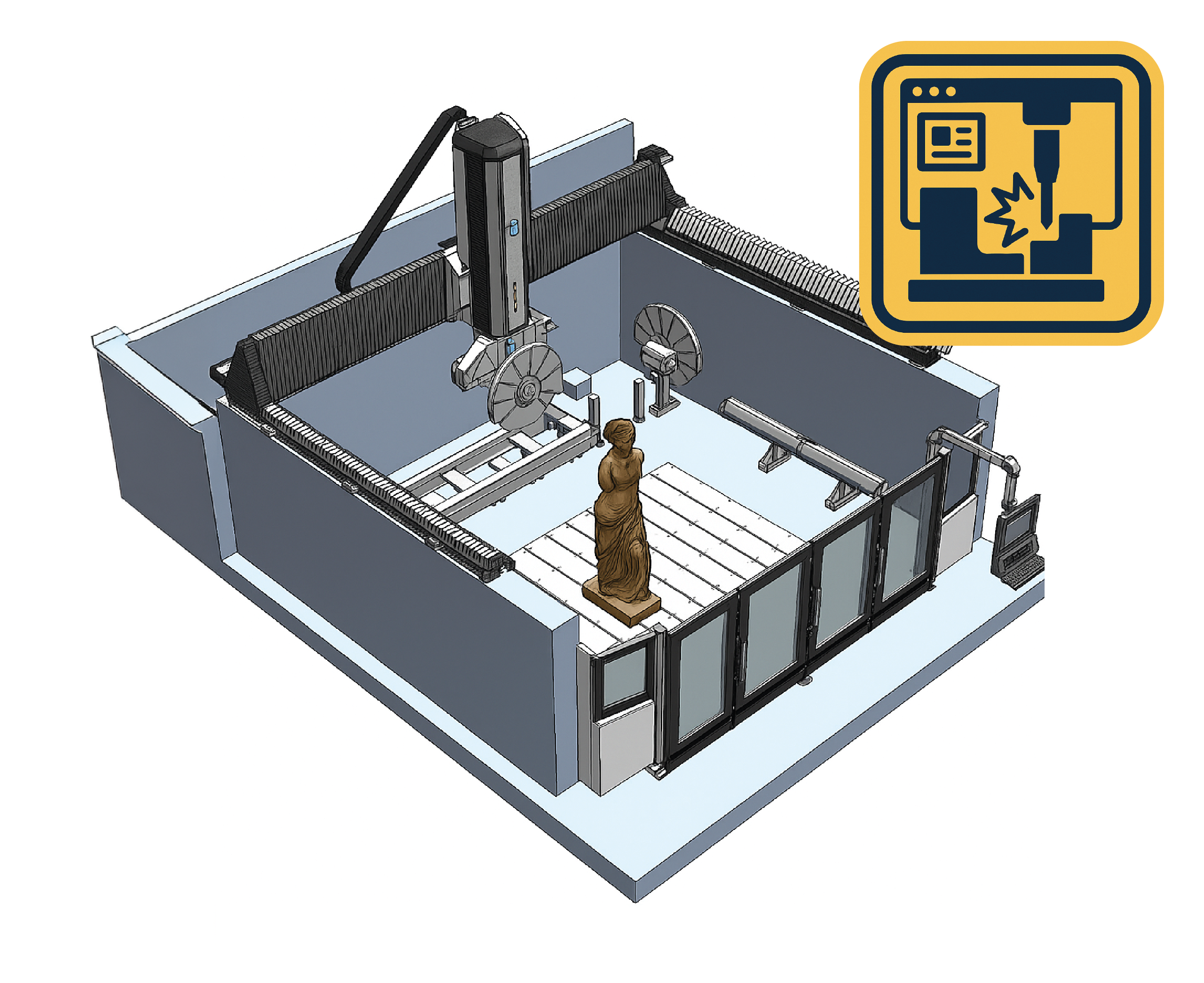

Software Module for Collision Control

Advanced 3D engine that accurately simu- lates every stage of the machining process, allowing to check toolpaths in advance and…

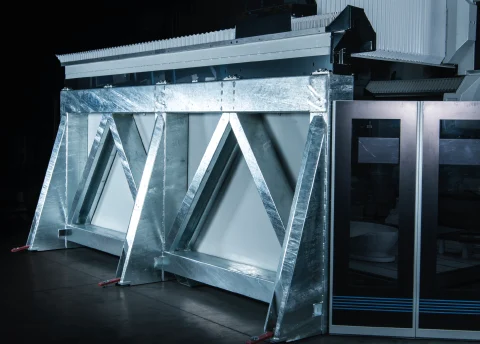

Heavy Duty Hot-dip Galvanized

Metal Supports as an alternative to reinforced concrete walls.

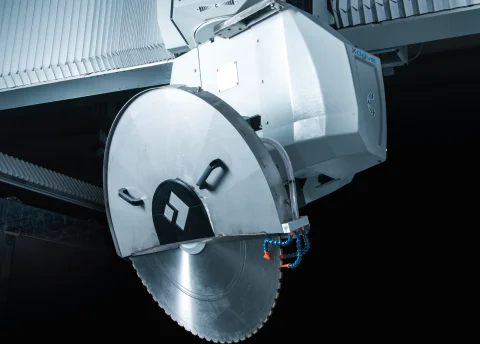

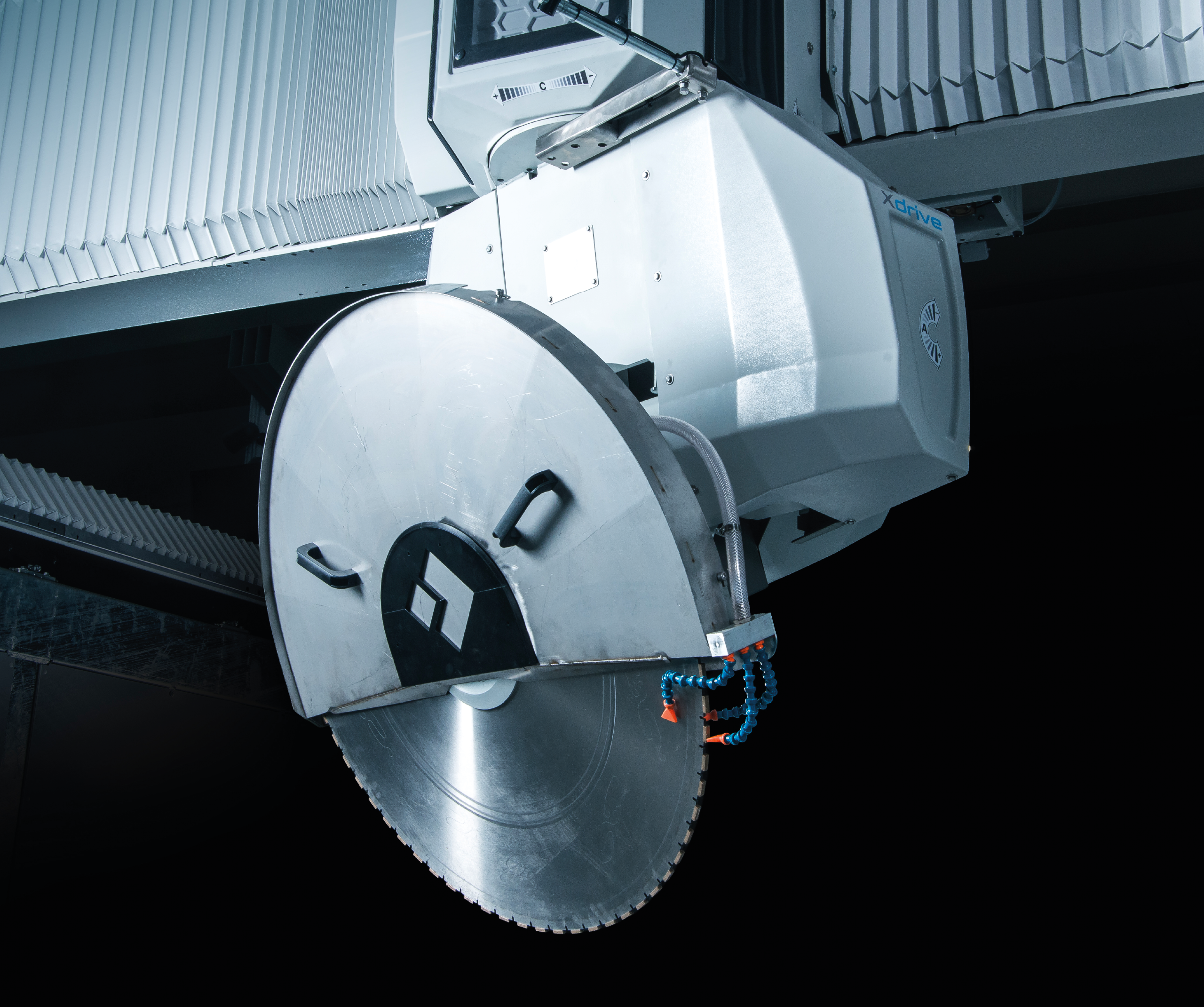

54 Hp Eletrospindle ISO 50

40 Kw (S6), 273 Nm torque, liquid cooled, with adjustable spindle speed up to 8,000 rpm. for discs till to…

SKEMA

Technologies

What you can do with this machine

Ask for more

DEN Speed

Smart technology that automatically ensures the actual disc diameter never exceeds the value set in the program, protecting the machine,…

TCP – Tool Center Point

Numerically controls tool movements, keeping the tool or blade perpendicular to the work point.

X-Drive – Denver Technology for 5-Axis Head

The X-Drive system features high-rigidity fork support for the motors combined with precision zero-blacklash gearboxes.

Frequently asked questions

Find quick answers about configuration, installation and production use.


Where can I find the complete product technical datasheets?

Technical datasheets for all models are available in the Products section of the website. For detailed documentation or technical drawings, you can also contact our sales department.


Are CAD-CAM software packages included with the machine?

Yes, Denver machines are supplied with dedicated CAD-CAM software already configured. The license, training and updates are included in the standard supply package.
