Glass line

Quota Pro Glass 4200

3 AXES X:4200 Y:2450 Z:520

Interested? Let’s talk

THE STATS

Quota Pro Glass 4200main data of the machine

Work Area

X 4200 mm – 165,3"
Y 2450 mm – 96,4"
Z 520 mm – 20,4"

C axis

360°

Motor power

Kw 11 – Hp 15 (S6)
0 ÷ 12000 rpm

Weight

5000 kg
11000 lbs
Automatic Tool Change
N° 28 – ISO40

SKEMA

Features

Projects, technologies, events and insights from the world of stone and glass processing.

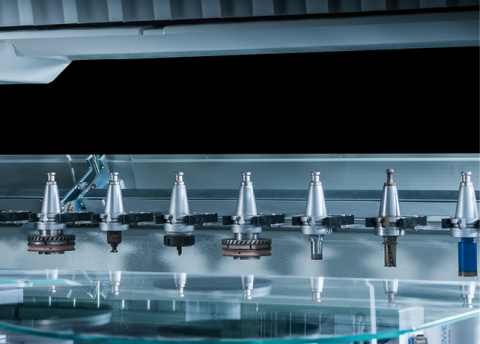

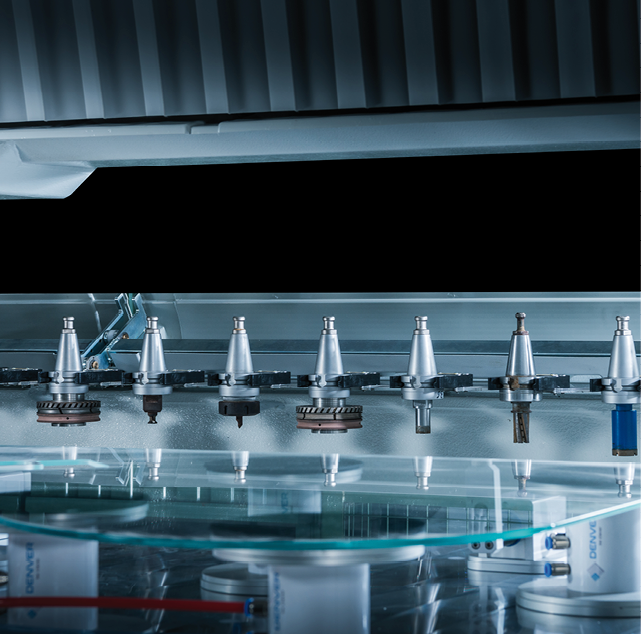

Linear tool magazine

– Better accessibility and dependability – Larger working area – Faster tool change – Up to 22 positions on Quota…

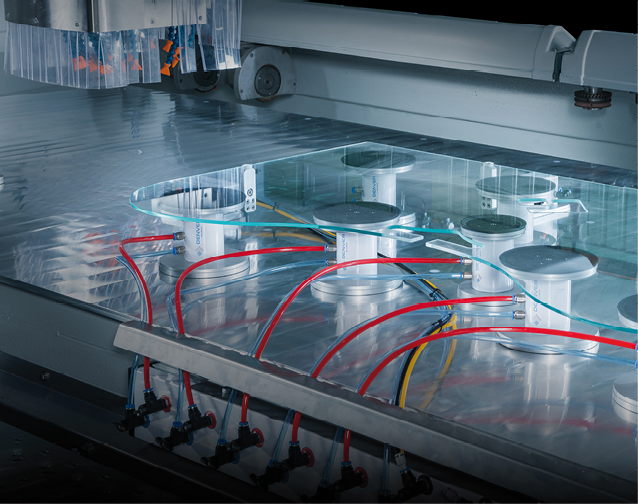

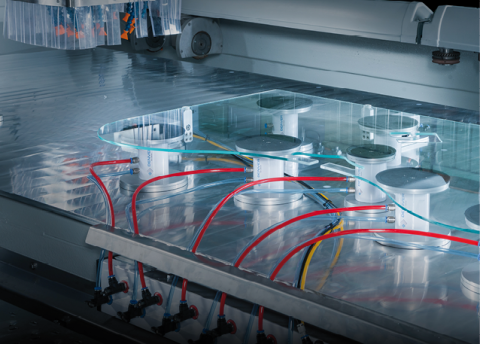

Self-adjusting Aluminum Table (Patented)

To ensure planarity longevity and working accuracy

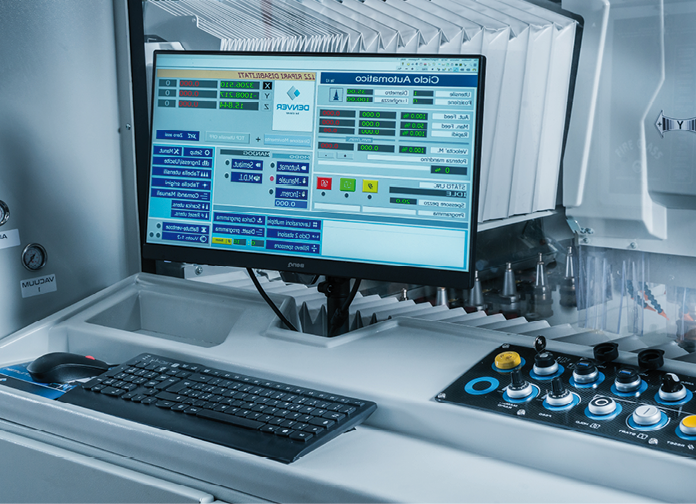

Hardware & Software

The CNC Osai digital Numerical Control and the user-friendly CAD-CAM Protech software powered by DDX (also programmable from remote PC…

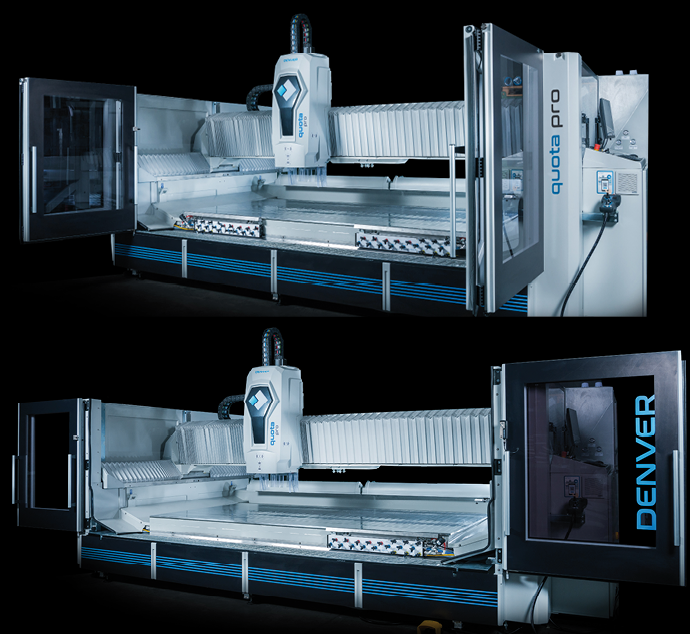

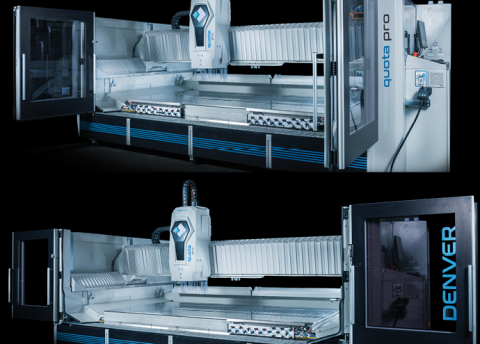

Excellence in Compactness

The various model sizes excellently combine reduced space needs and productivity performance

SKEMA

Processing

What you can do with this machine

Ask for more

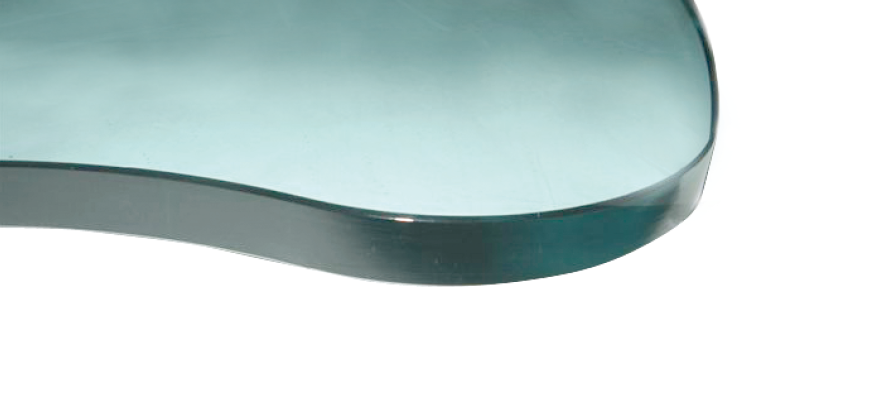

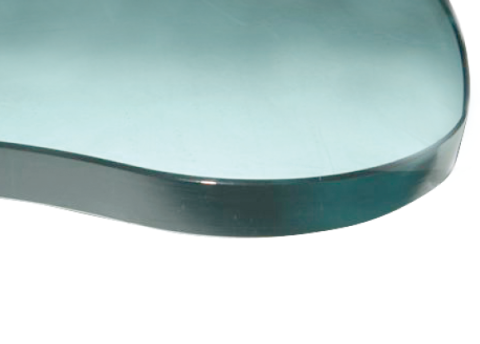

Polishing

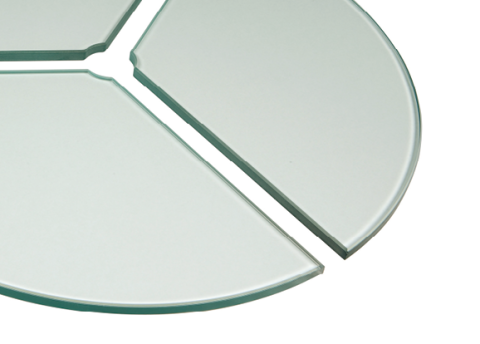

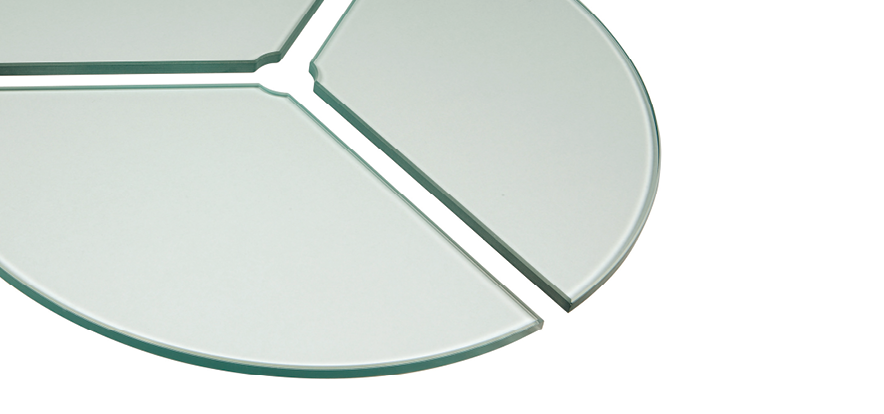

Routing

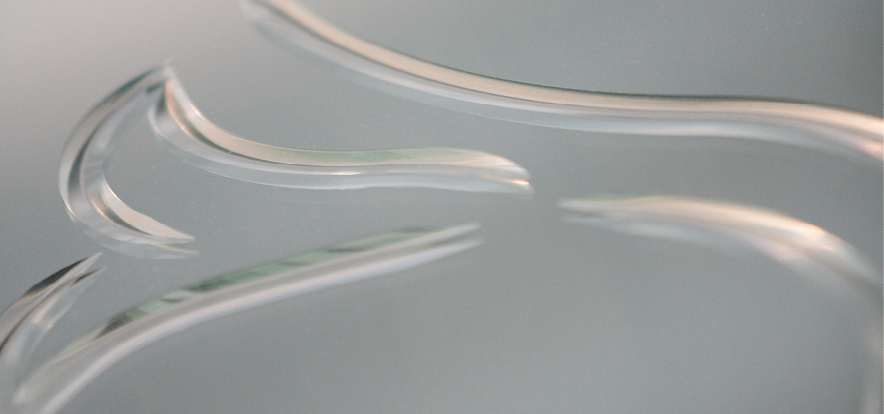

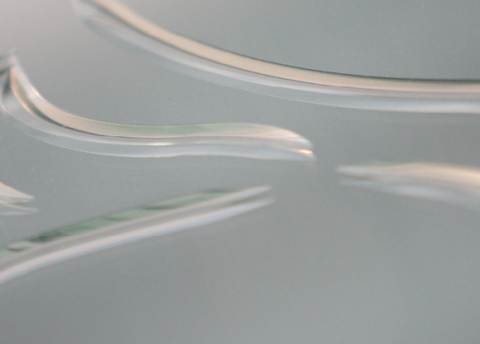

Grooving

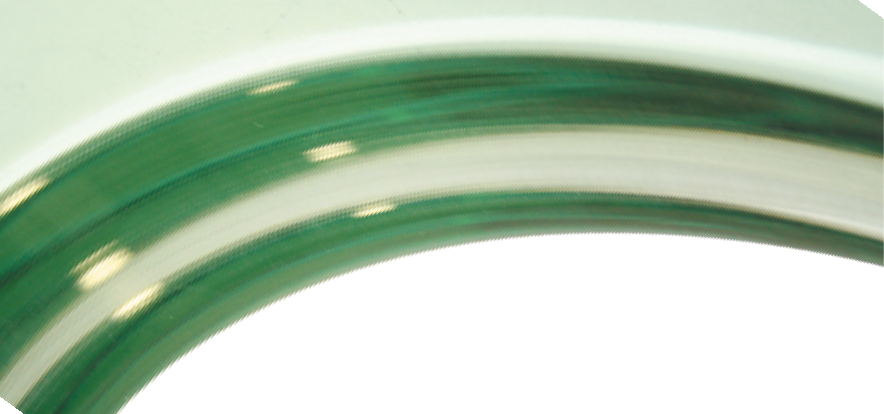

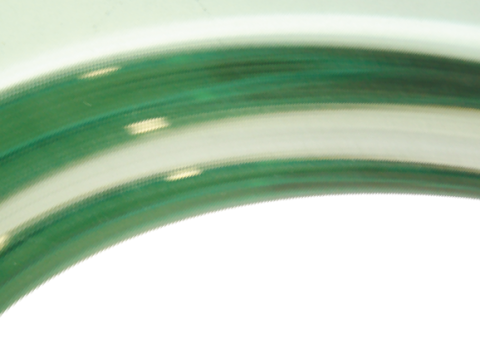

Grinding

SKEMA

Optionals

Available configurations and optional equipment connected to this product.

Ask for more

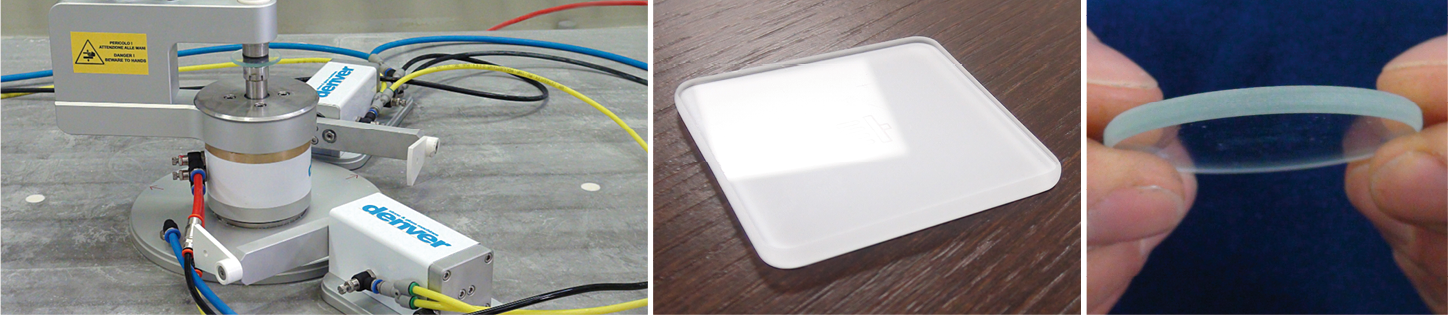

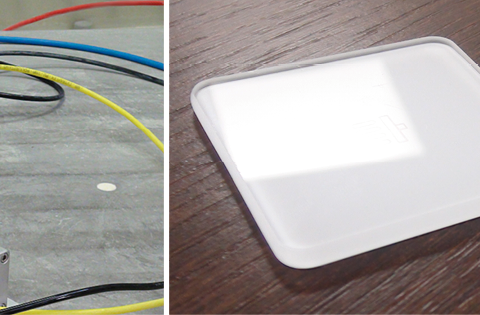

Rotating Suction Cup

Innovative device for grinding glass of small size with different shape (square, rectangular and round) for furniture, lighting and interior…

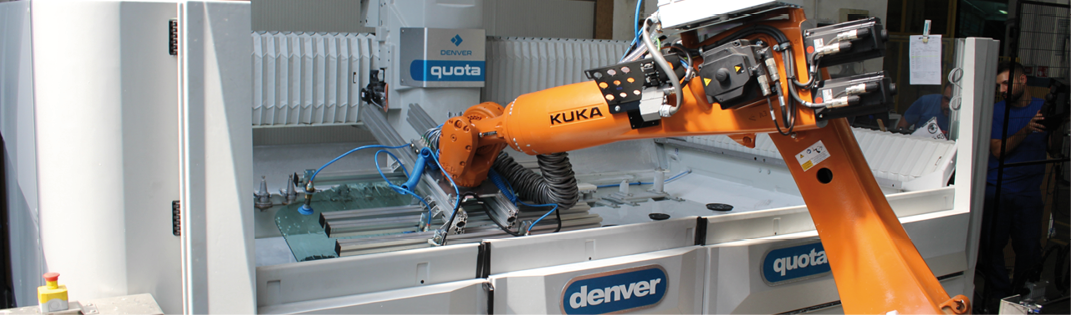

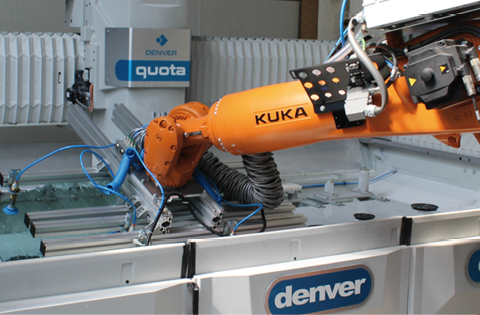

Robot Working Cell

Flexible, high productivity working cells specifically designed for electroappliance, automotive, and technical glass components.

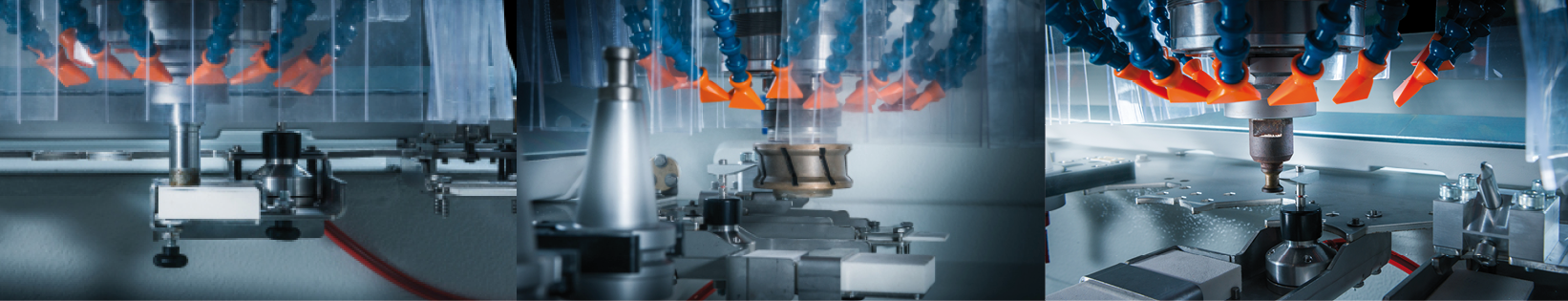

On-board devices for automatic tooling management

• Redresser for diamond wheels • Redresser for polishing wheels • Redresser for core drills • Tools presetter to micrometrically…

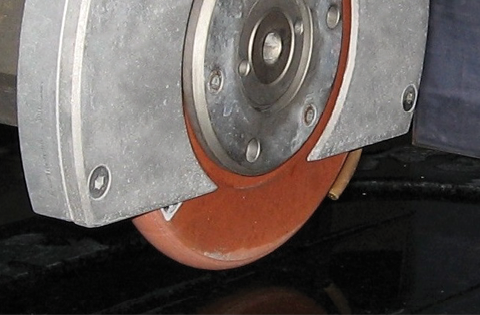

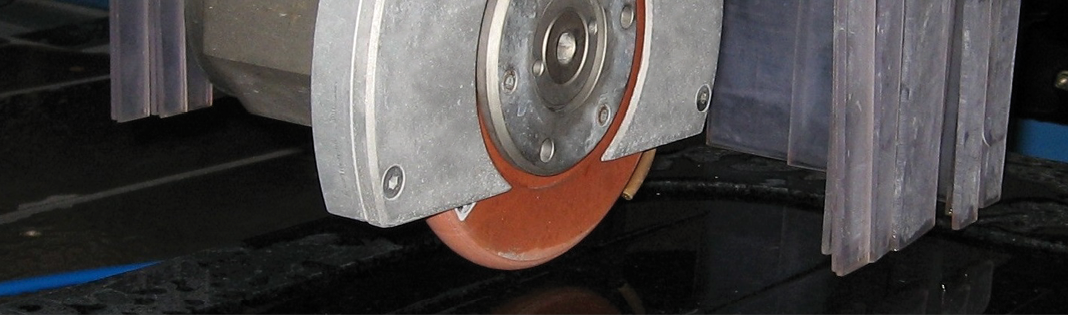

4th “C” axis

For grooving wheels, discs and bits on 90° gearboxes

Other videos

Frequently asked questions

Find quick answers about configuration, installation and production use.


How many years has Denver been manufacturing CNC machines?

Denver has more than forty years of experience in designing and manufacturing CNC machines for stone and glass, with ongoing investment in research and development to deliver advanced technology.


Where can I find the complete product technical datasheets?

Technical datasheets for all models are available in the Products section of the website. For detailed documentation or technical drawings, you can also contact our sales department.


Are CAD-CAM software packages included with the machine?

Yes, Denver machines are supplied with dedicated CAD-CAM software already configured. The license, training and updates are included in the standard supply package.
