Stone line

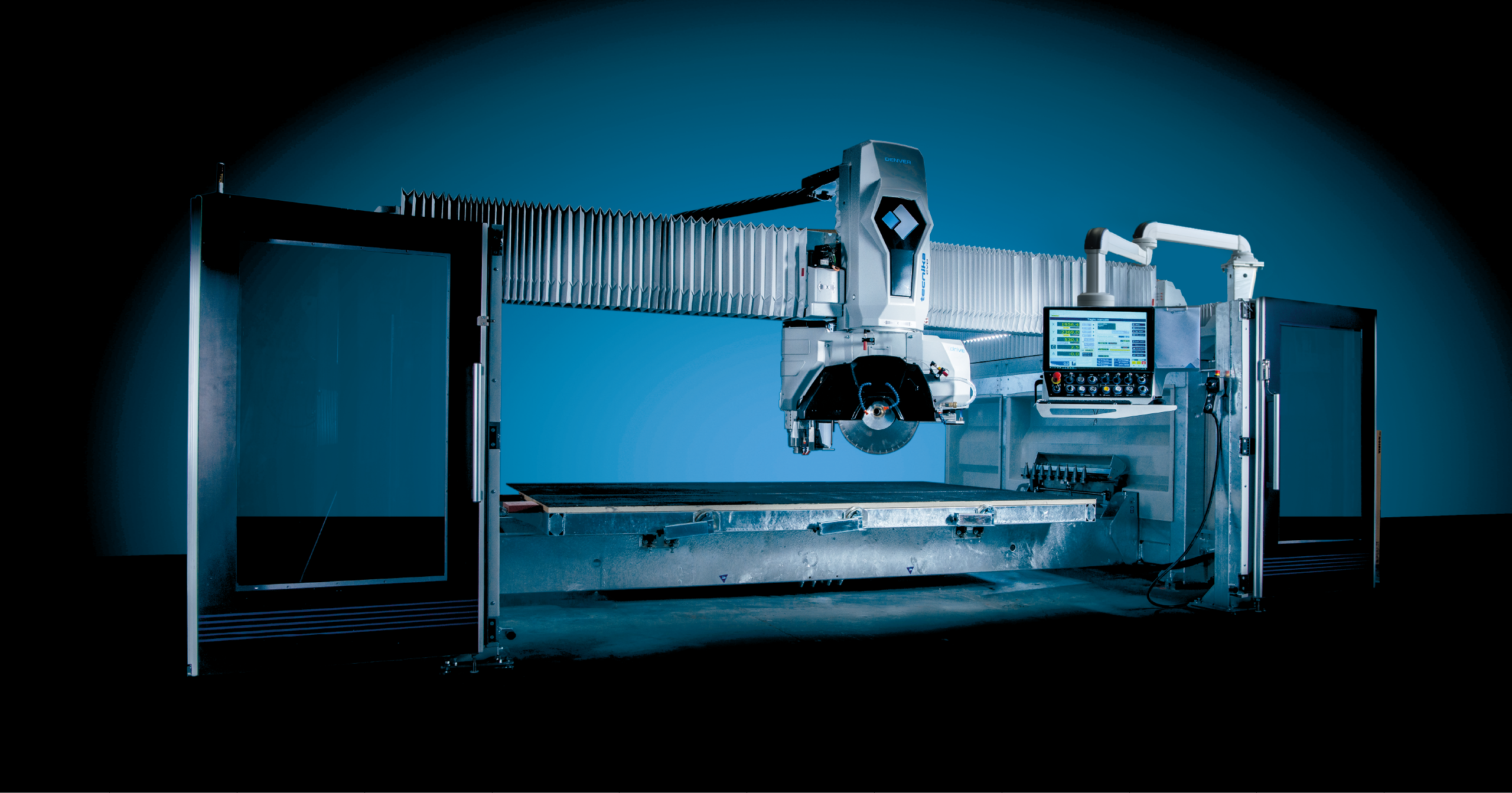

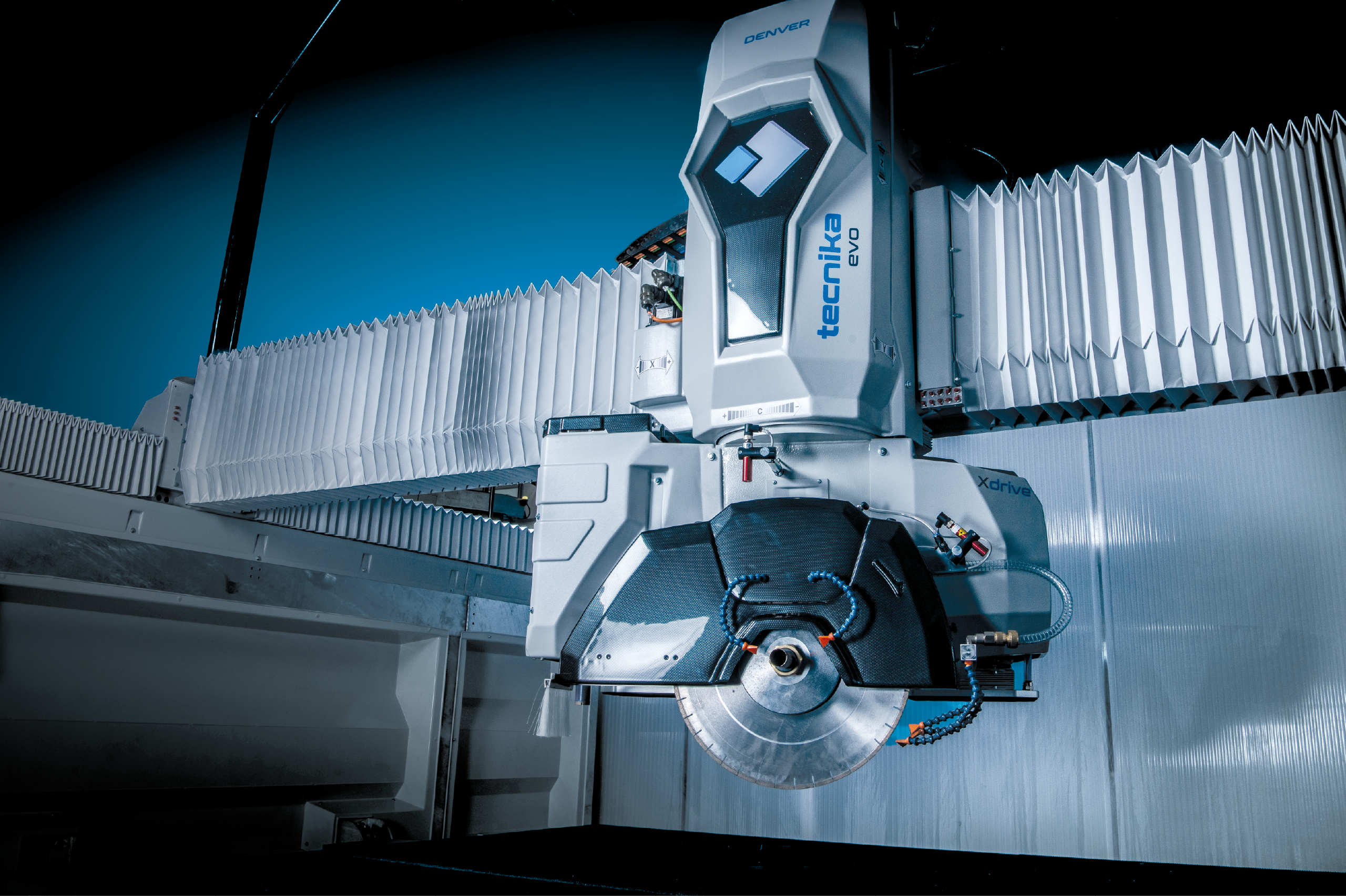

Tecnika EVO

5 AXES X:3700 Y:2650 Z:370

Interested? Let’s talk

THE STATS

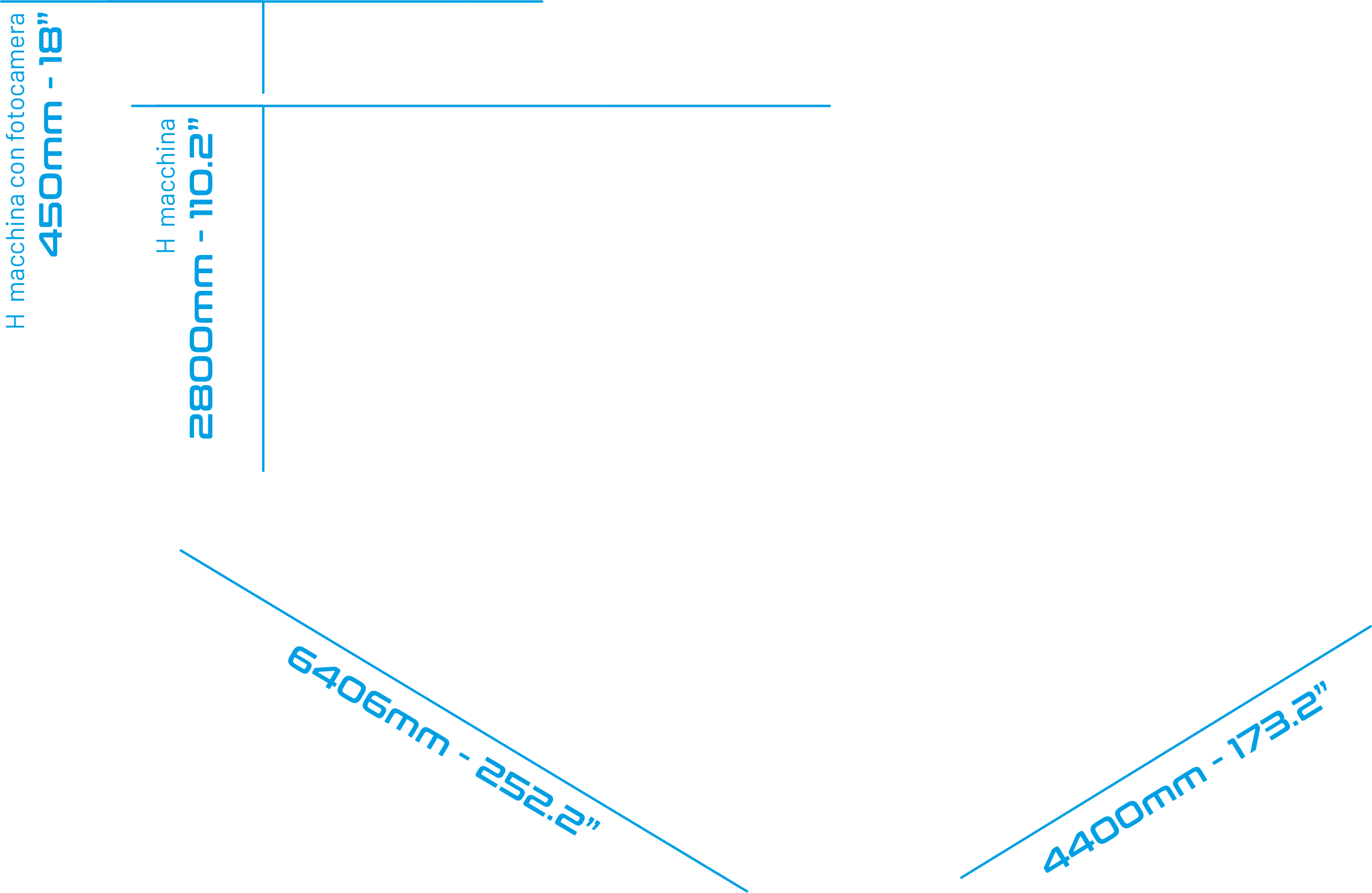

Tecnika EVOmain data of the machine

Work Area

X 3700 mm – 145,7 “
Y 2650 mm – 104,3 “
Z 370 mm – 14,5 “

A axis

0° – 90°

C axis

0° – 360°

Motor power

Kw 13 – Hp 17,5 (S6)
800 ÷ 6000 rpm
with right-hand threaded
½” gas connection
con attacco ½” gas filettato destro

Disc diameter

350÷625 mm
13 ÷ 24”

Weight

4700 kg
10000 lbs

SKEMA

Features

Projects, technologies, events and insights from the world of stone and glass processing.

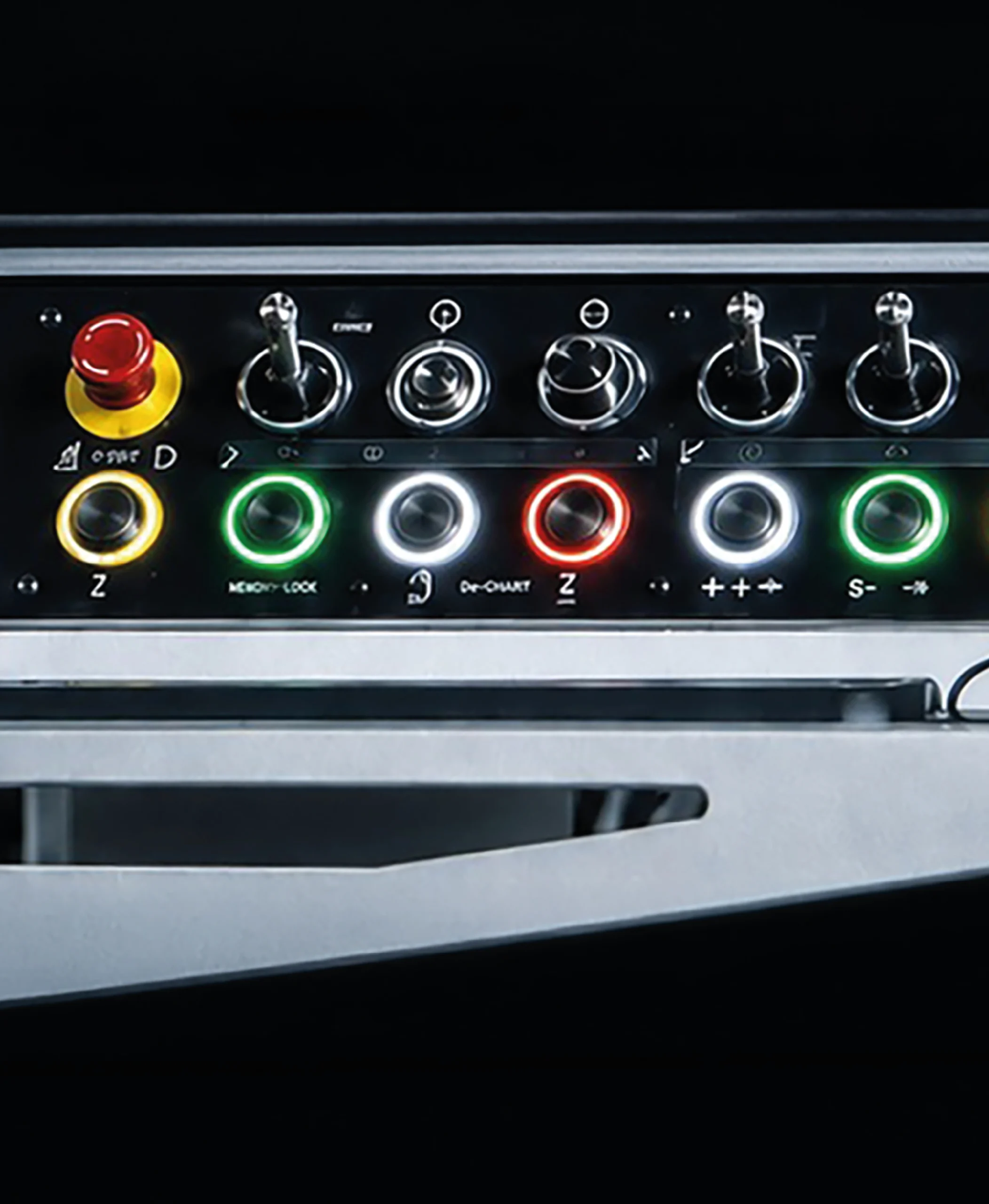

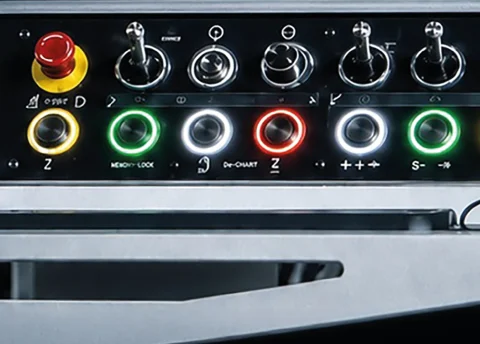

Pendant control panel offering wide visibility and ease of use.

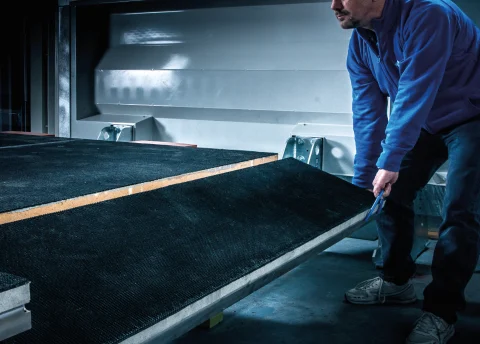

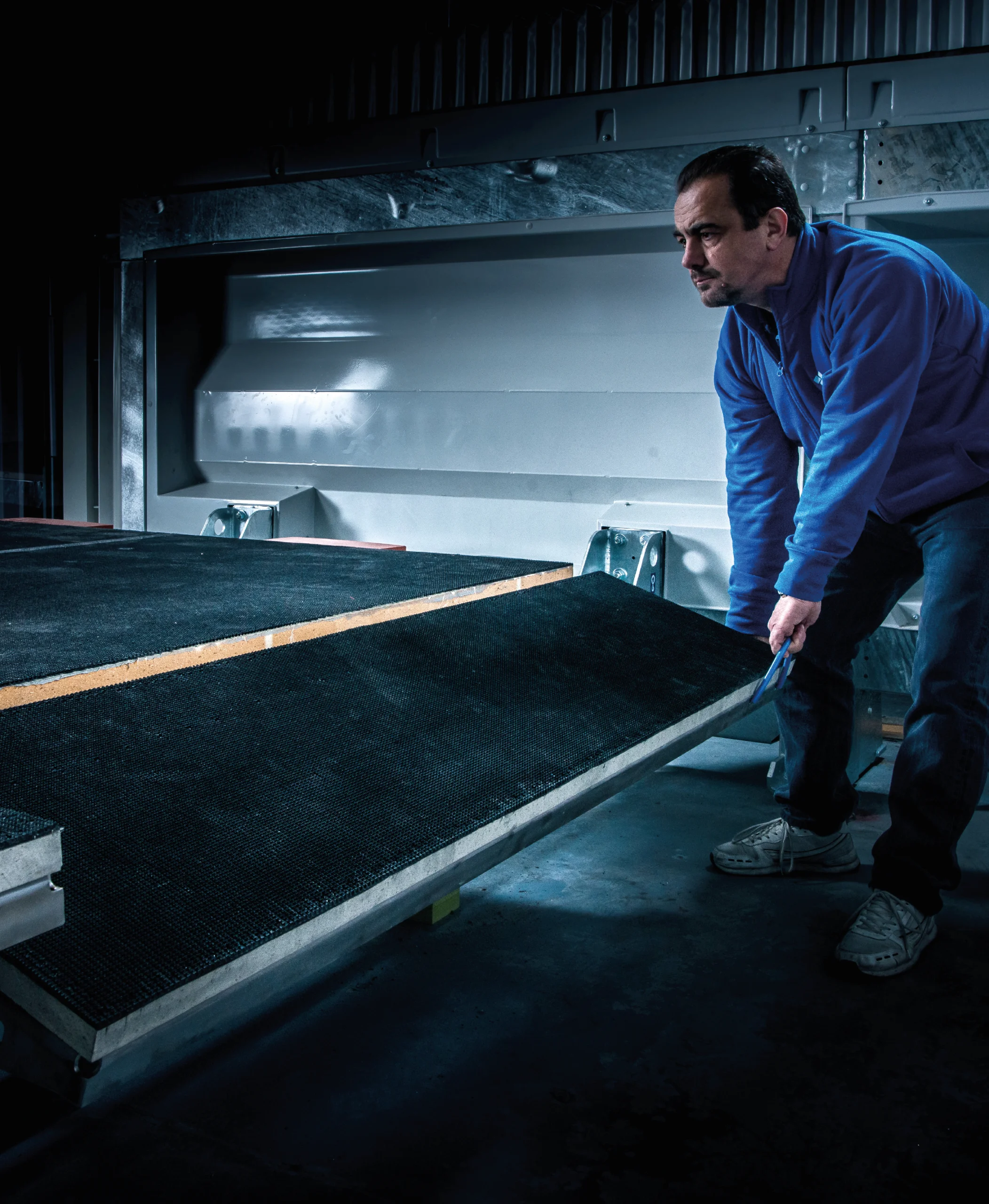

TFS (Table Folding System)

The bench can be quickly manually adjusted still allowing the tilting of slabs and cutting operations, allows processings directly on…

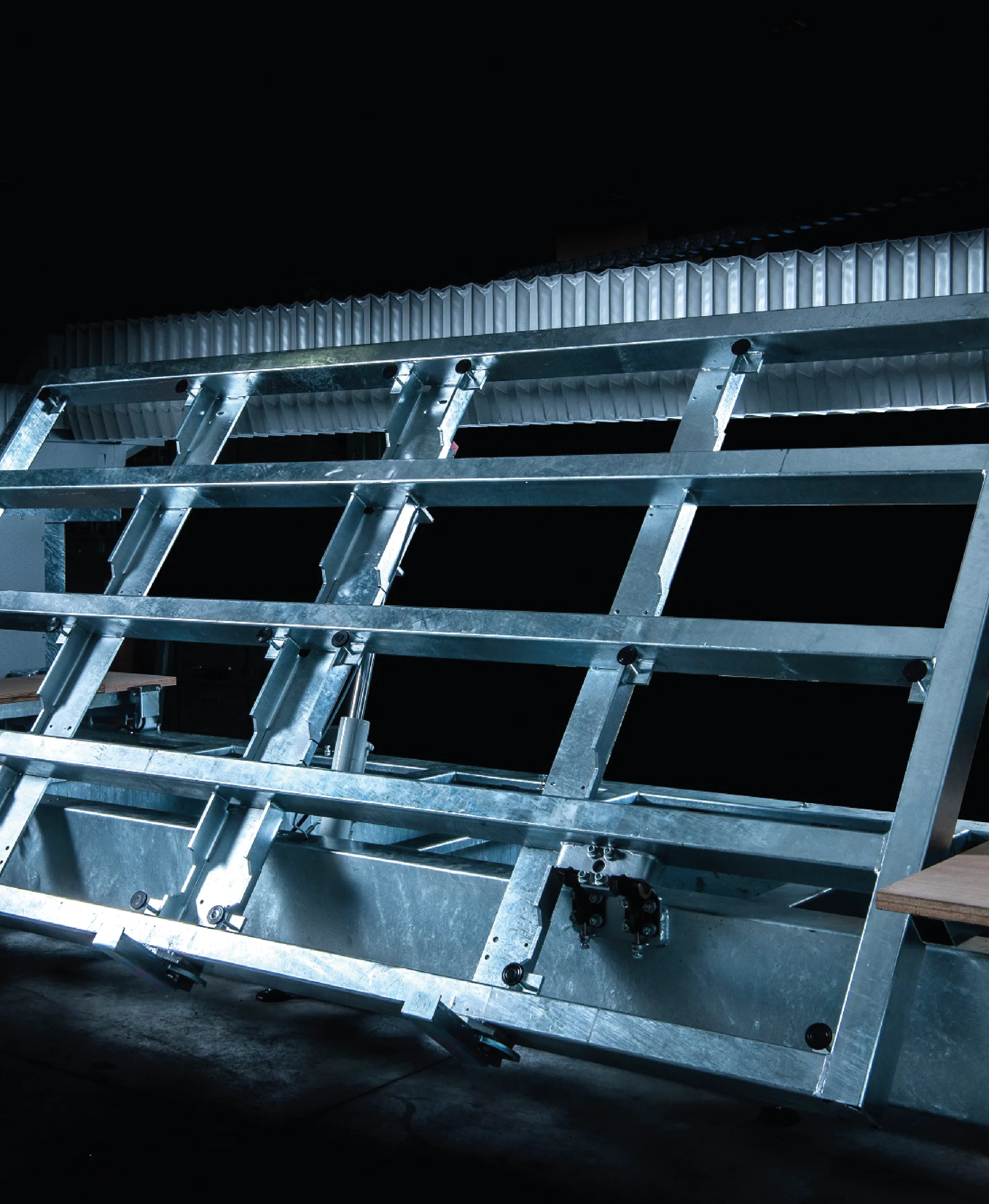

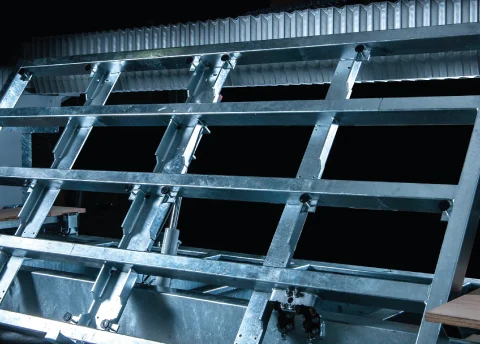

Tilting table

Hydraulically driven, for safe and easy loading of the slab. Tilt capacity 2500 kg /5500 lbs.

Make it easy with Logitouch software

powered by DDX To run semi- and fully automatic cut cycles and profiling, including DXF importability, and PARAMETRIC library.

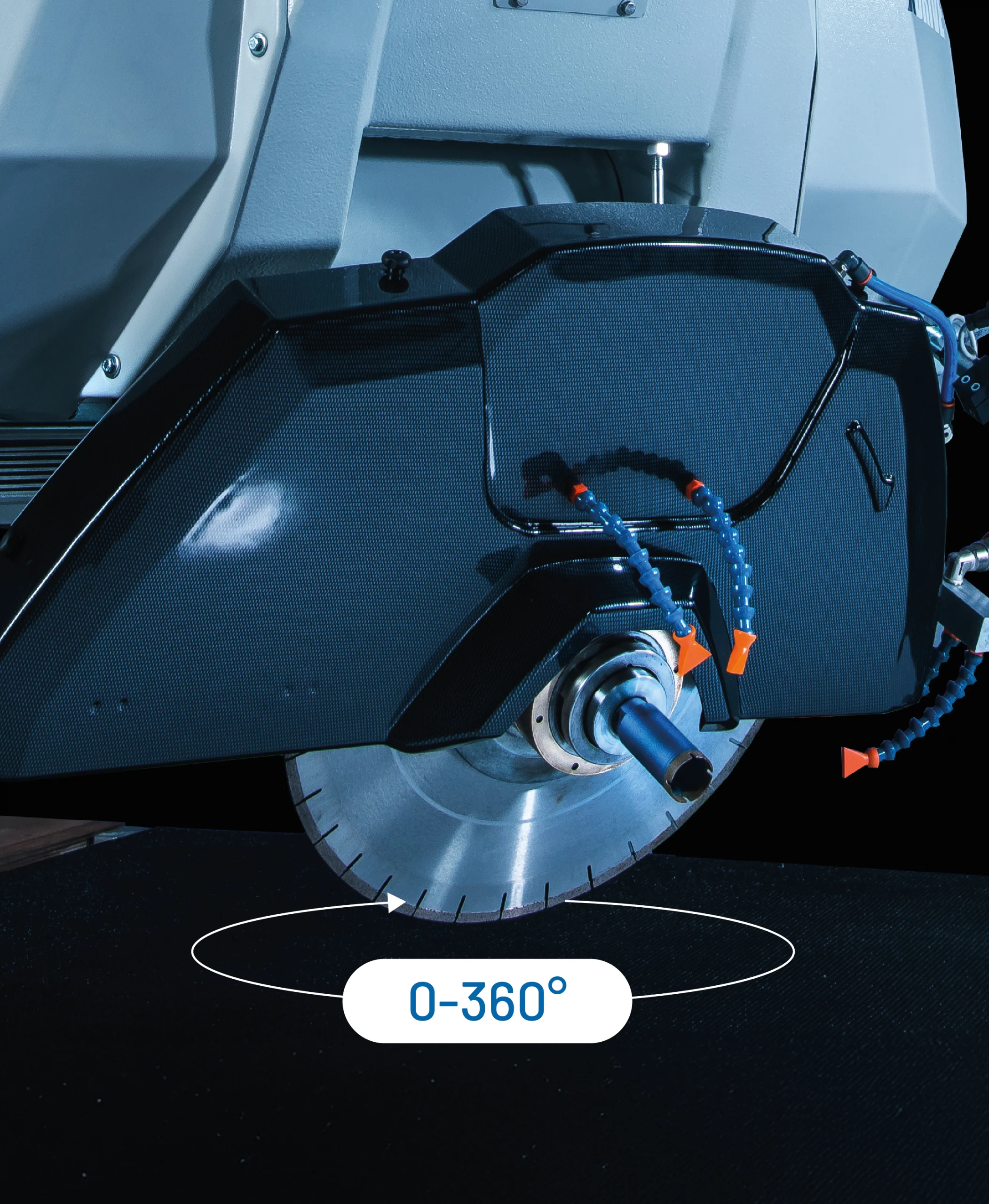

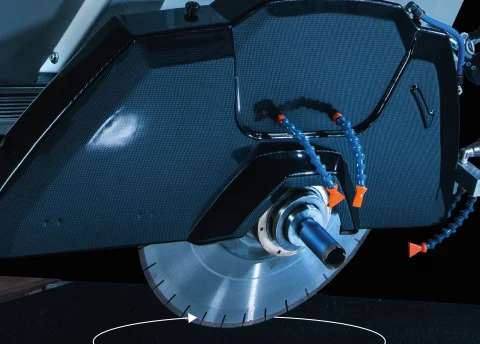

Interpolated auto head rotation for straight, diagonal and radius cuts (C axis).

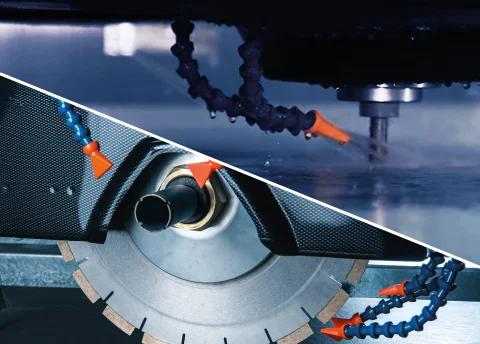

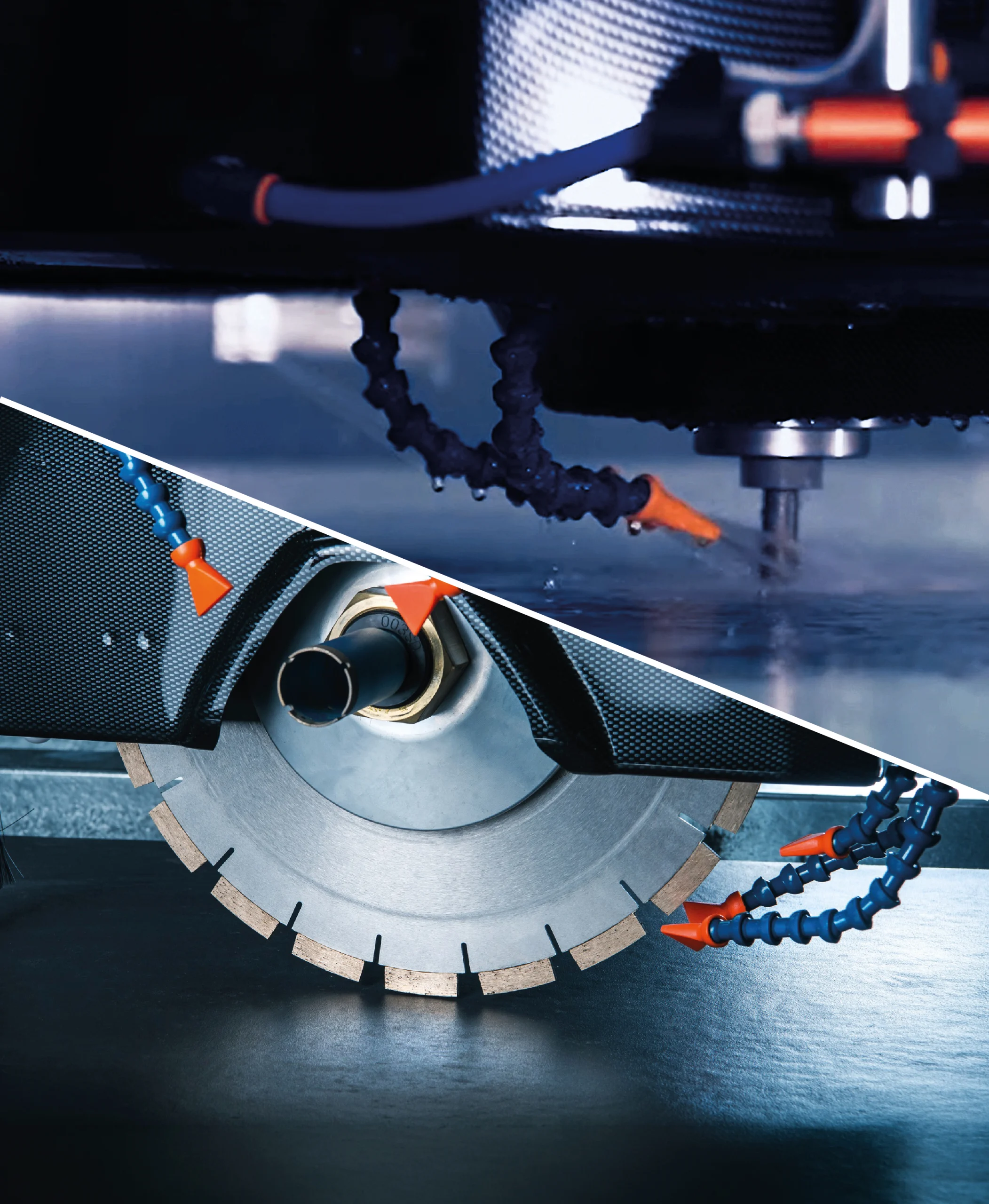

Kw 13 main spindle motor

With adjustable speed till 6000 rpm’s, complete with interchangeable Easyspin insert with 1/2 gas right thread. It allows the fitting…

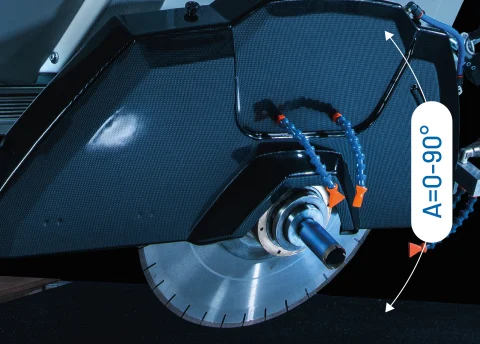

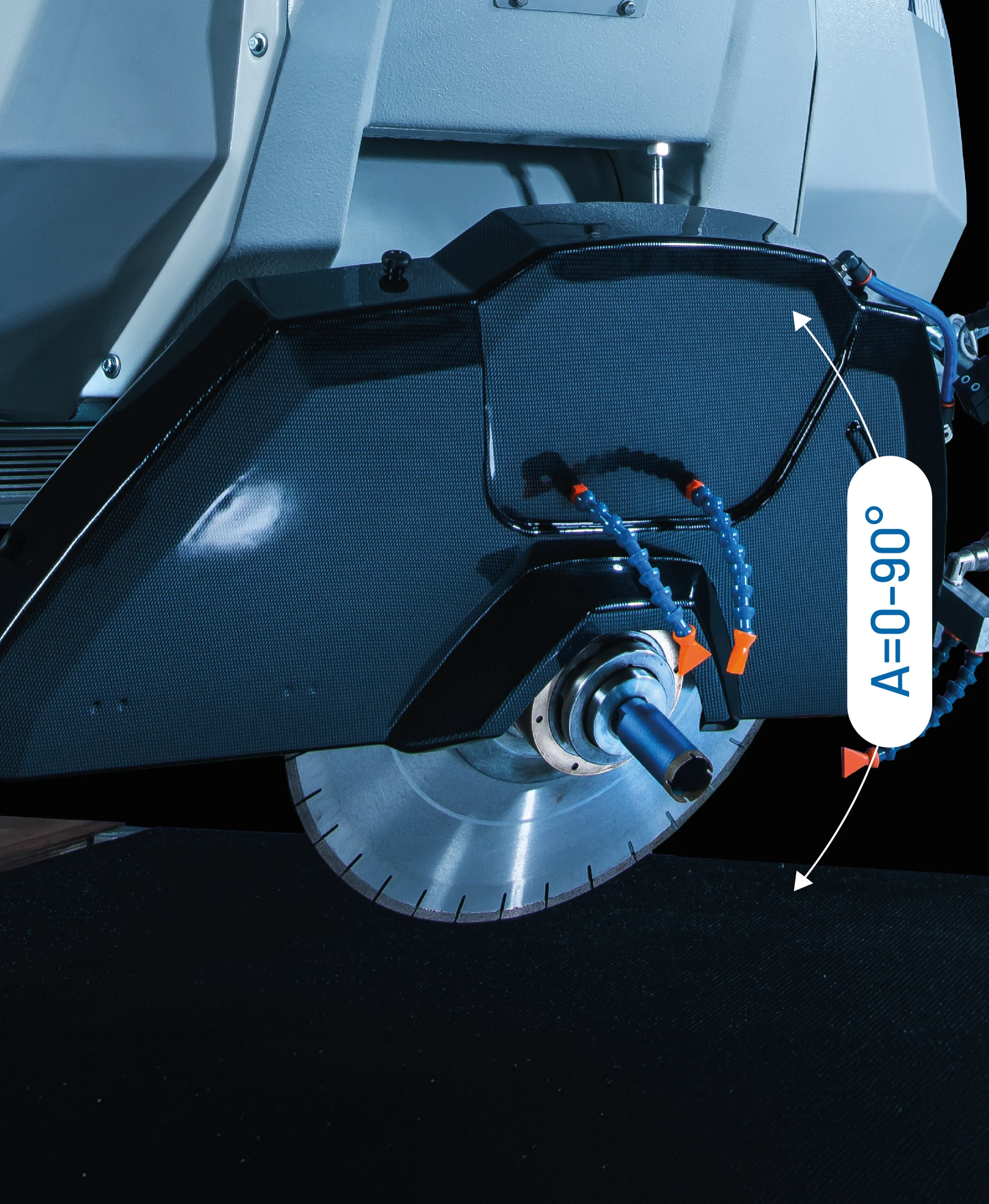

Interpolated auto head inclination for perfect miter and tilted cuts (A axis).

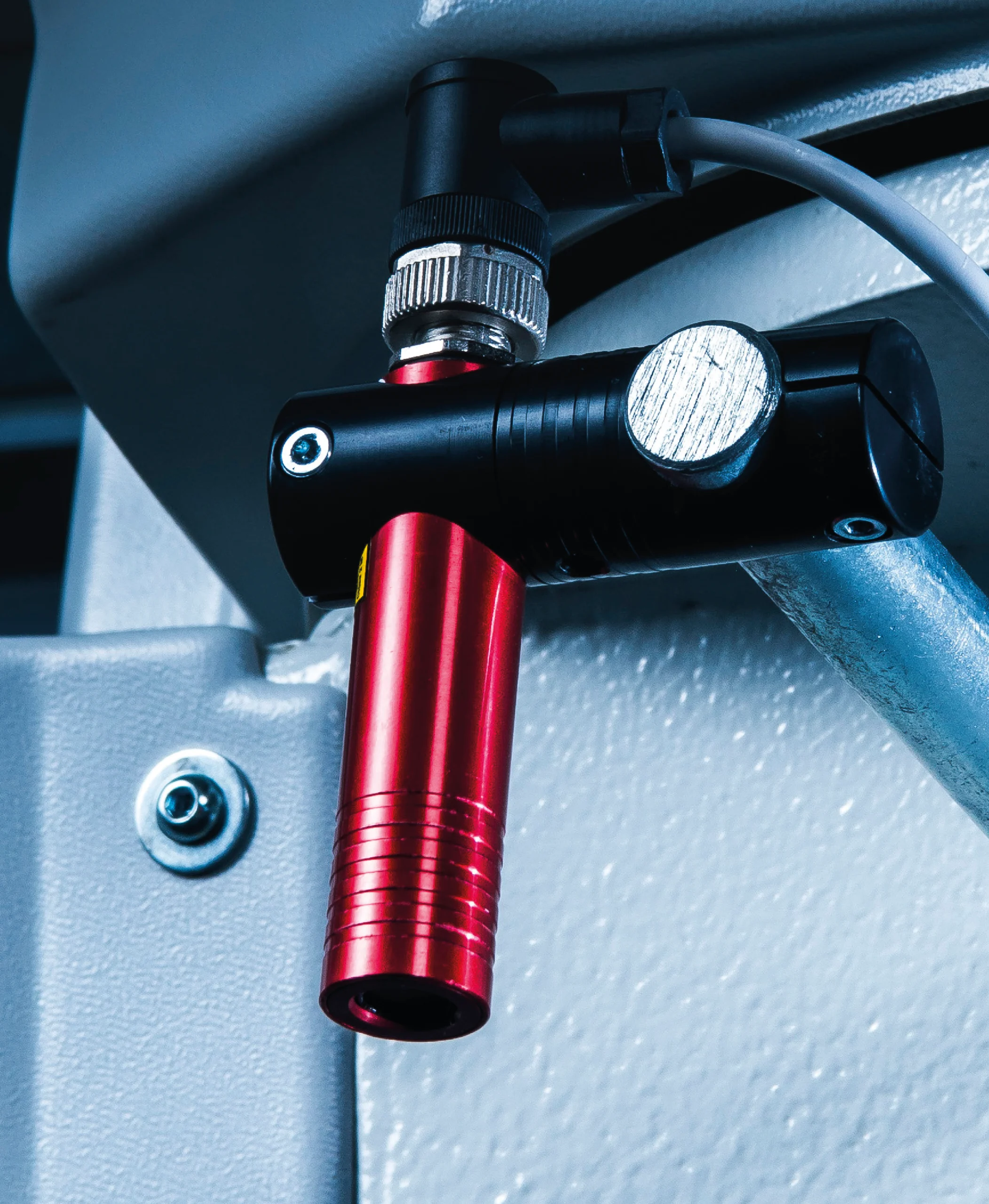

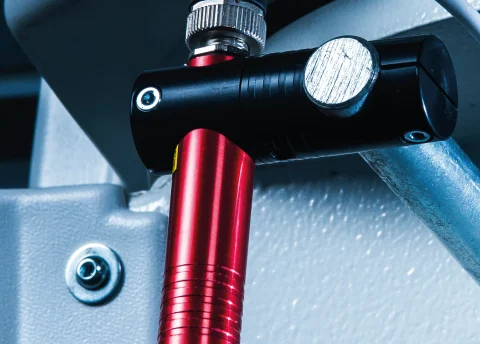

Cross laser

for detecting the origin and work piece dimension/position, and for digiting templates.

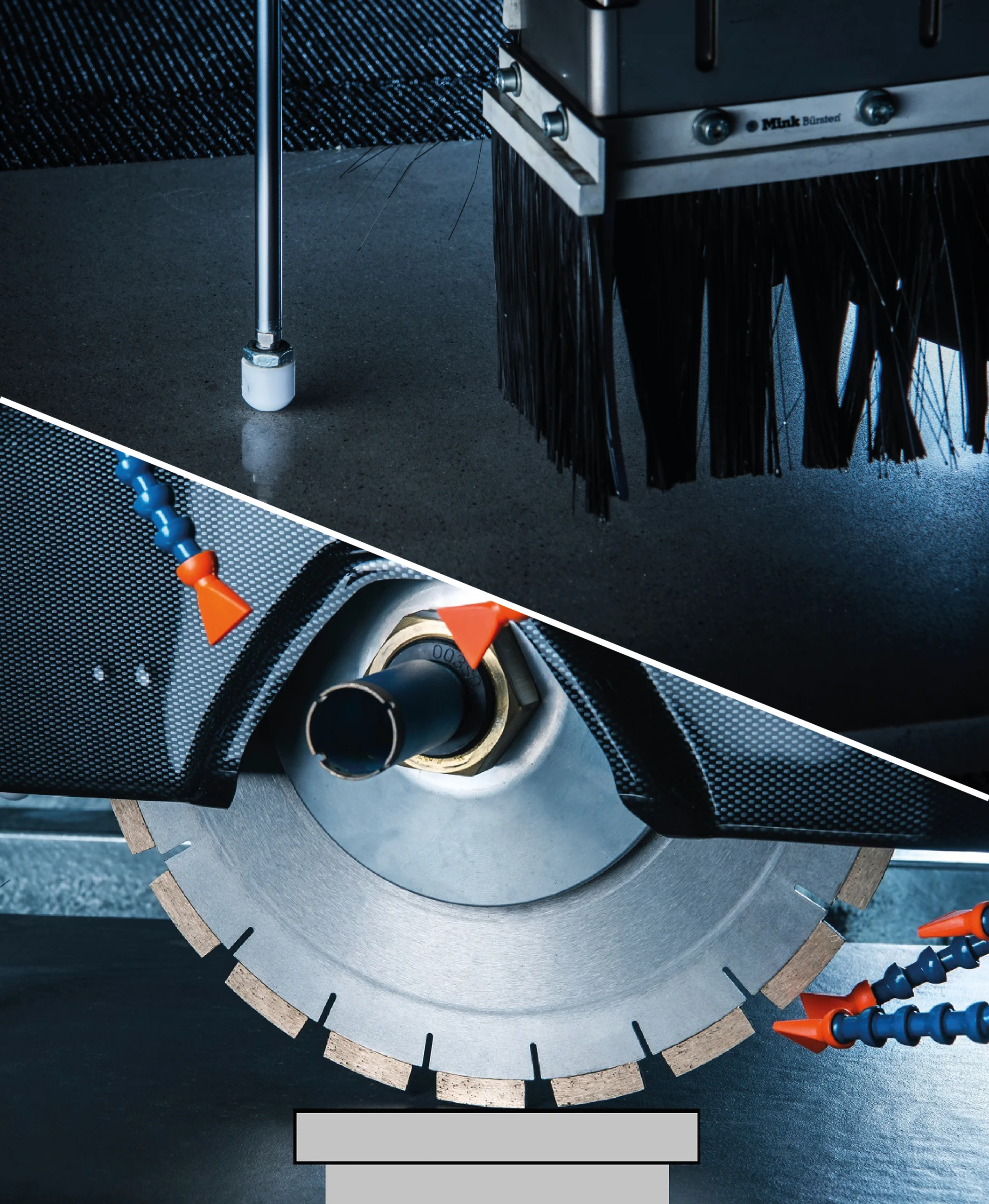

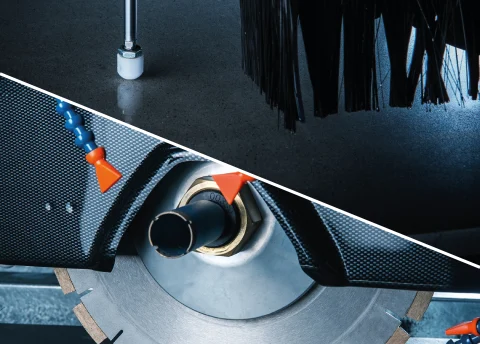

Auto touch probes

For slab thickness detection. For measuring disc diameter and tool lenght.

SKEMA

Processing

What you can do with this machine

Ask for more

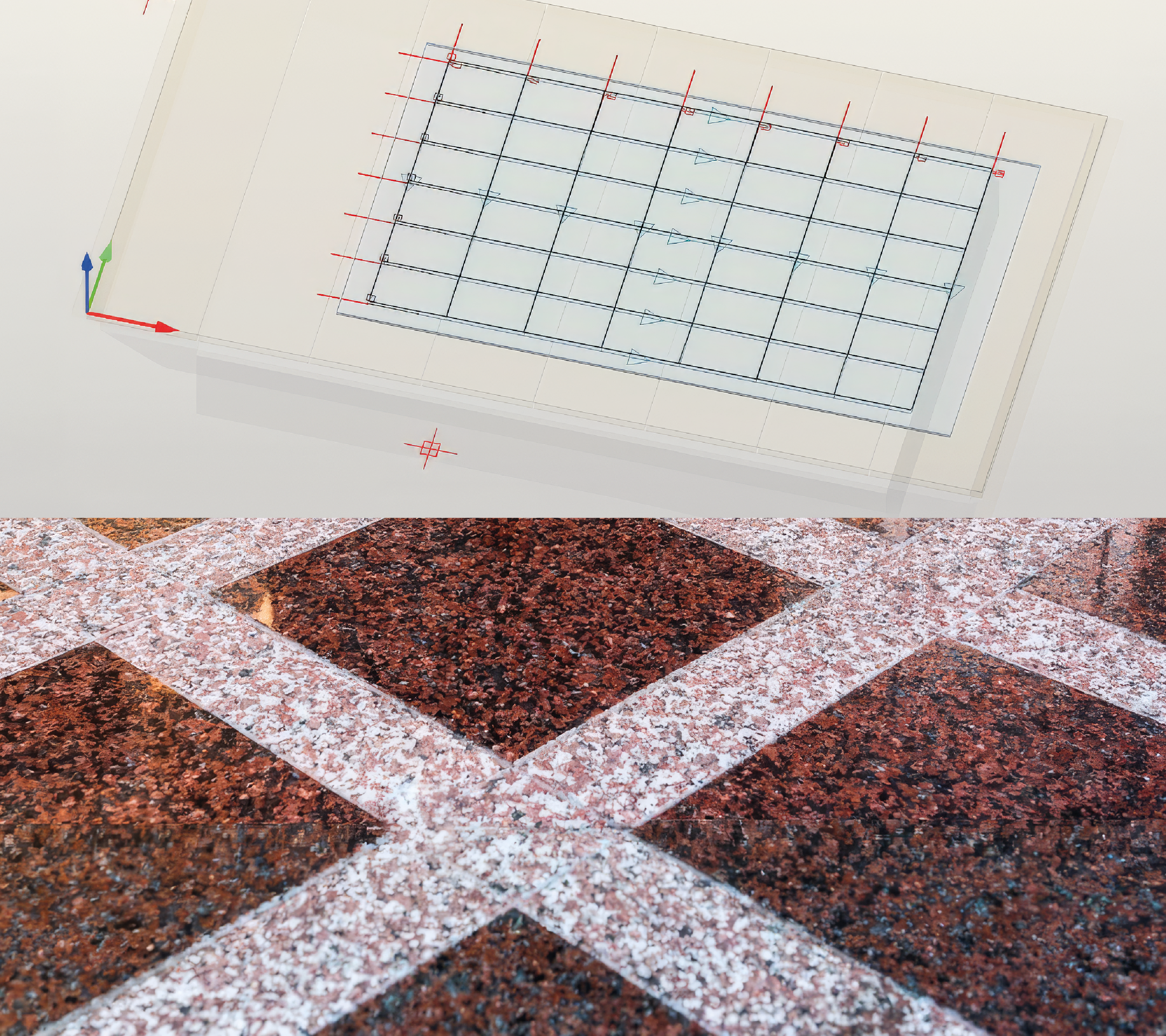

Right-angled cuts

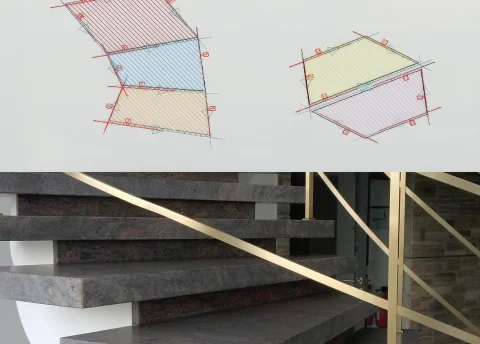

Diagonal cuts

Tilted cuts 45°

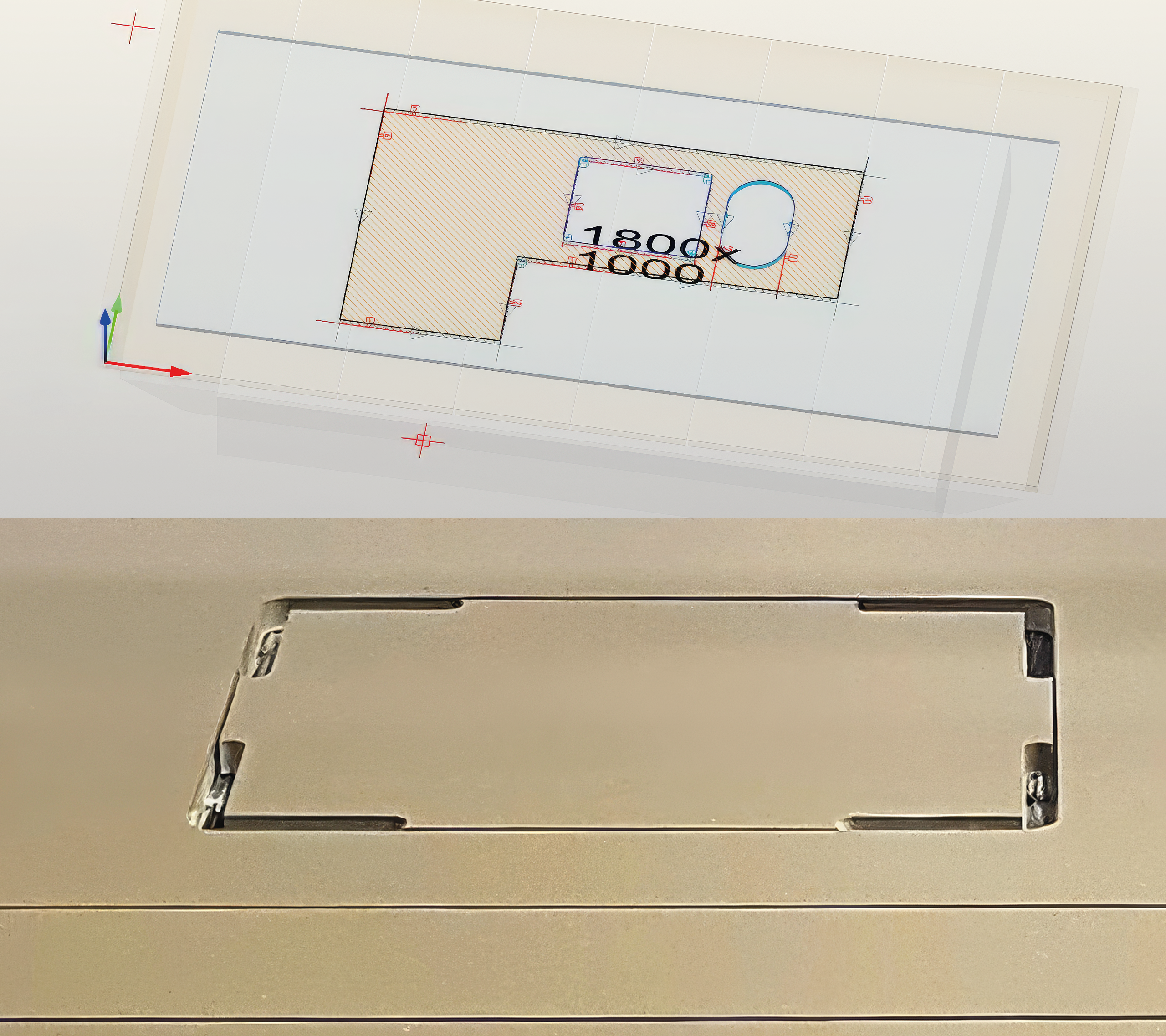

Sink and corner cut-outs

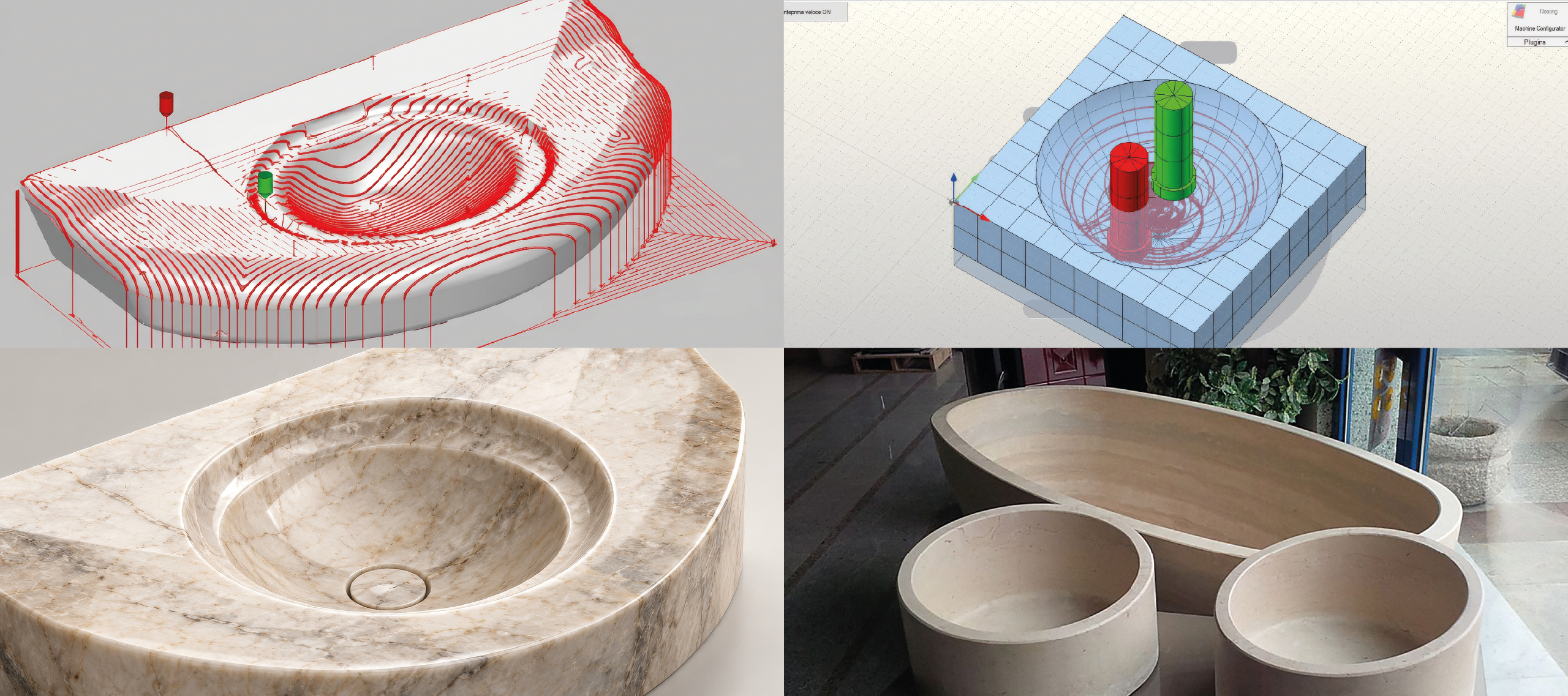

Solid blocks

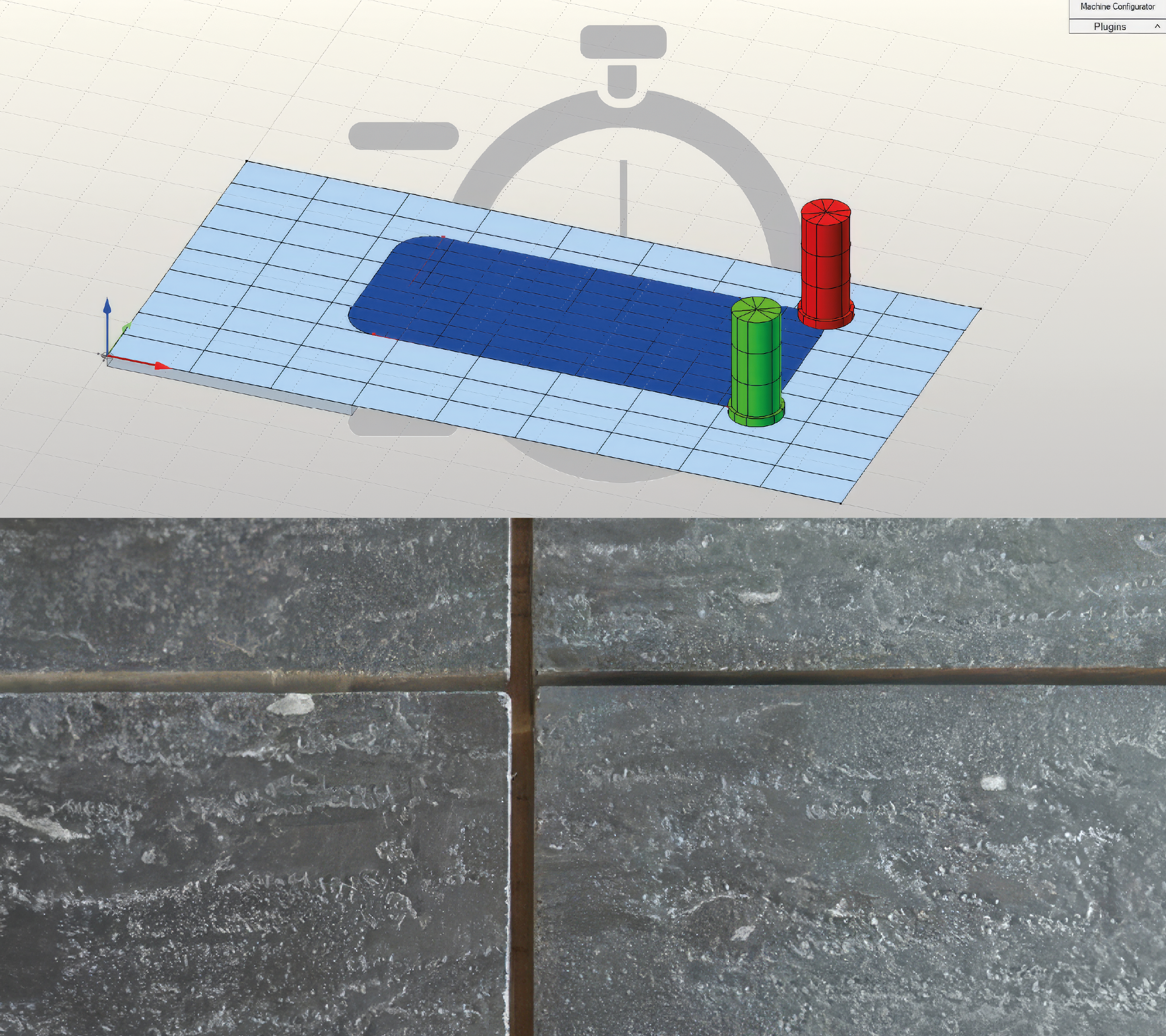

Surface finishings

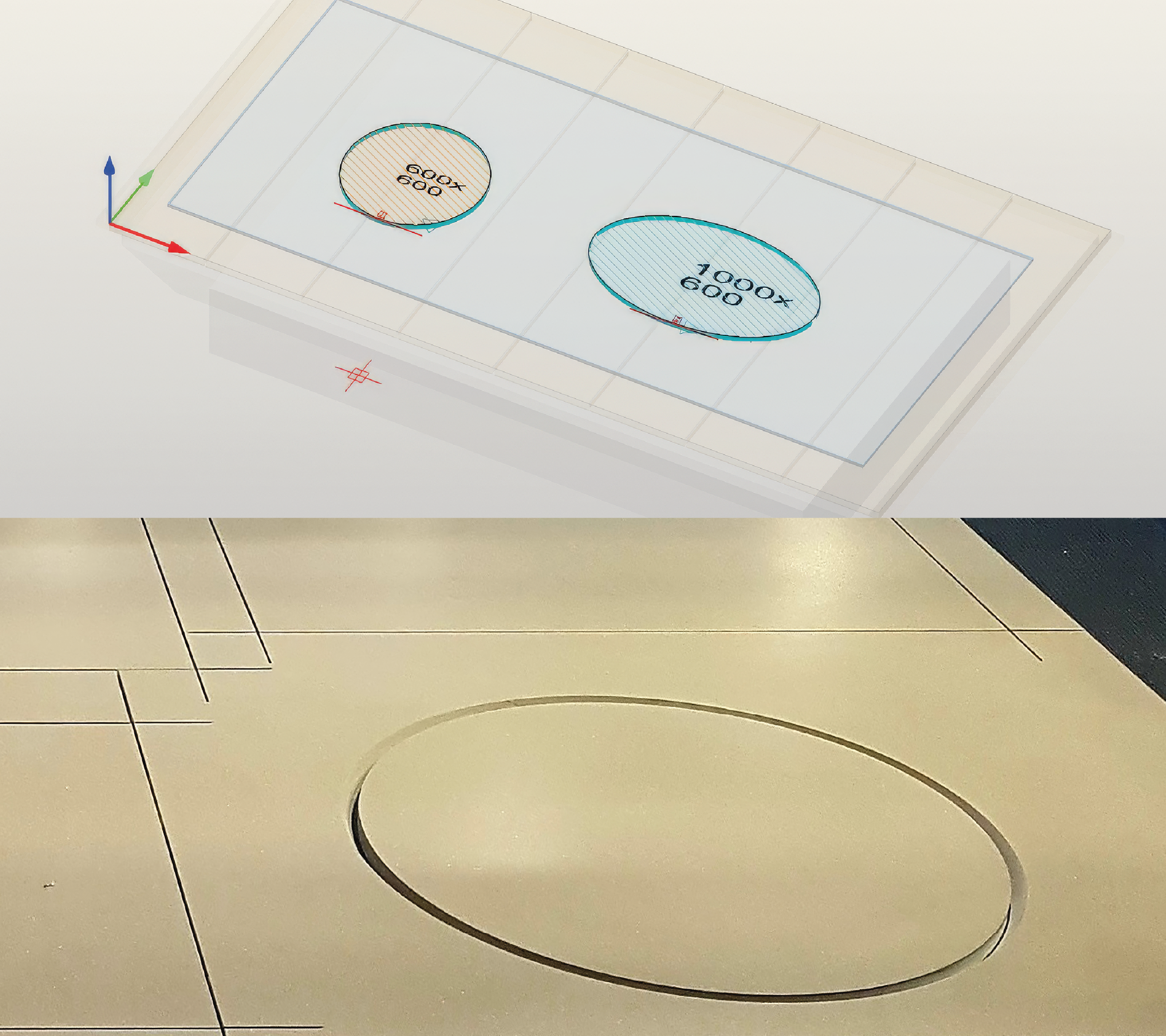

Radius and circle cuts

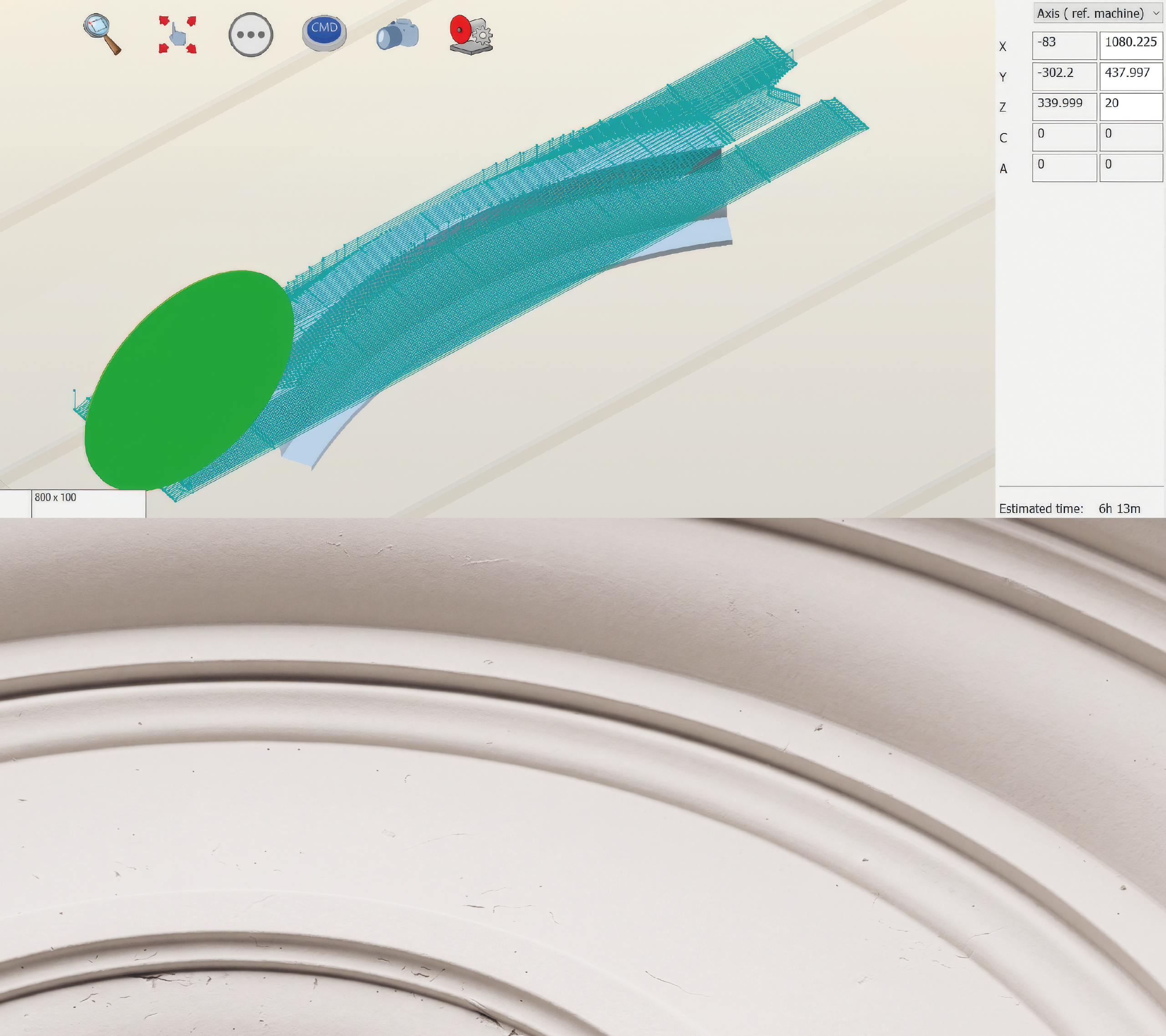

Moulding

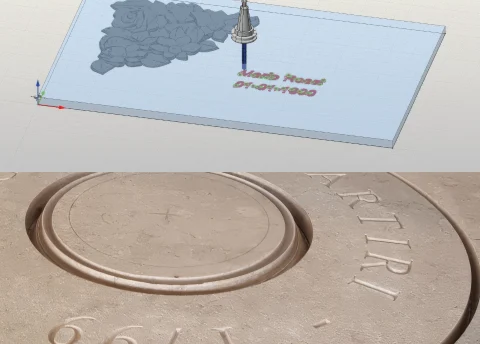

Engraving

SKEMA

Optionals

Available configurations and optional equipment connected to this product.

Ask for more

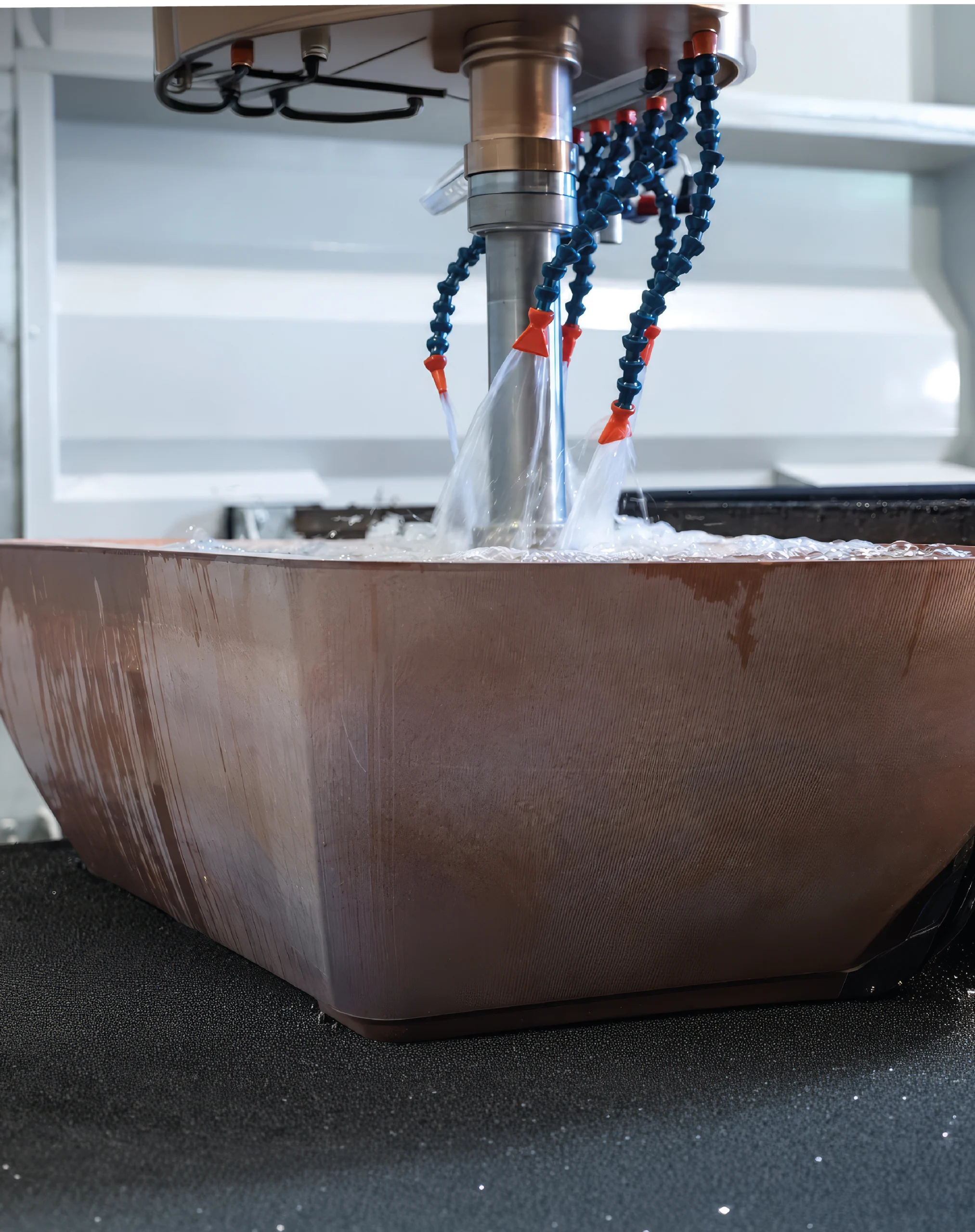

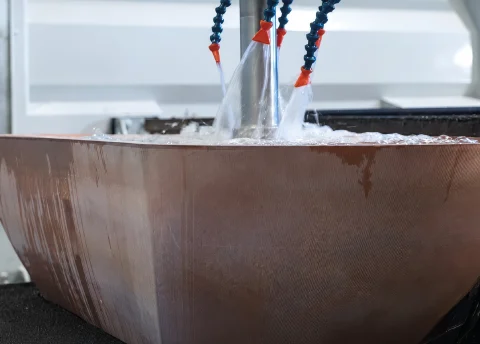

Stone Truck

Adapter device for mounting heavy-duty tools

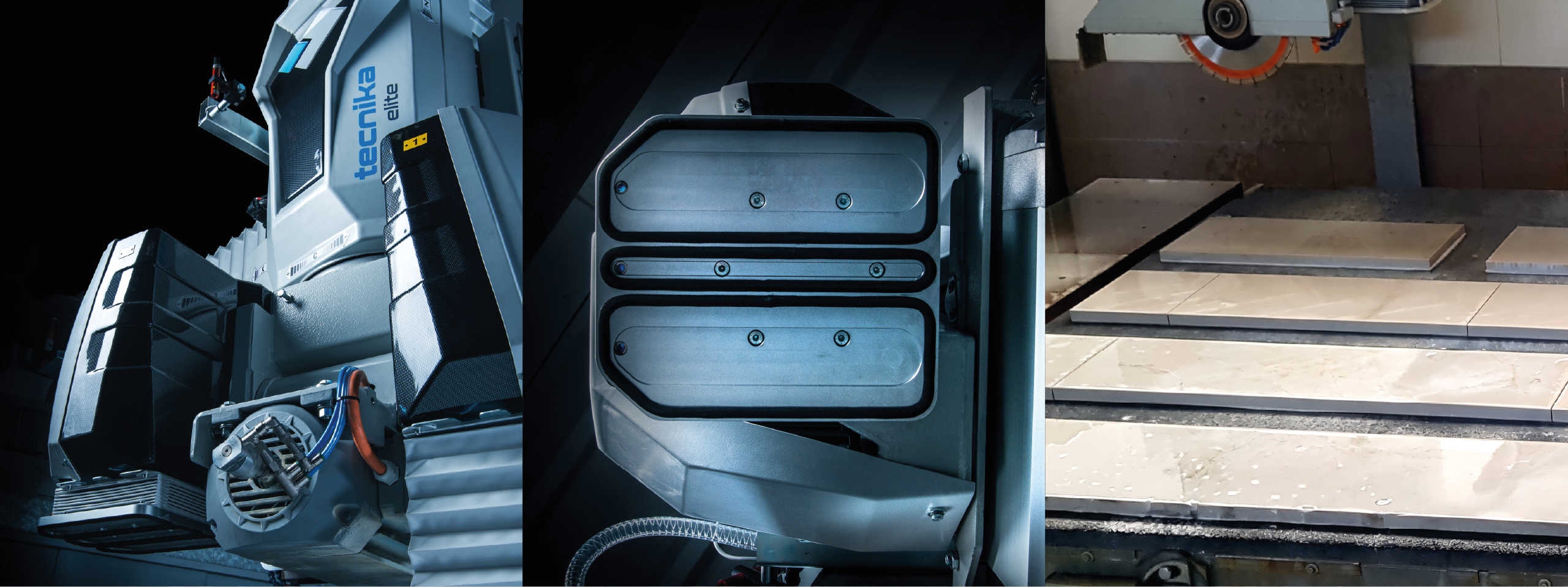

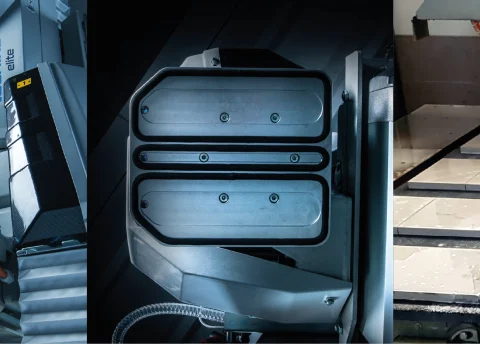

X-Motion System

Vacuum system with 2 independent cups, for cut cycle optimization through automatic placement of the pieces. Software for the independent…

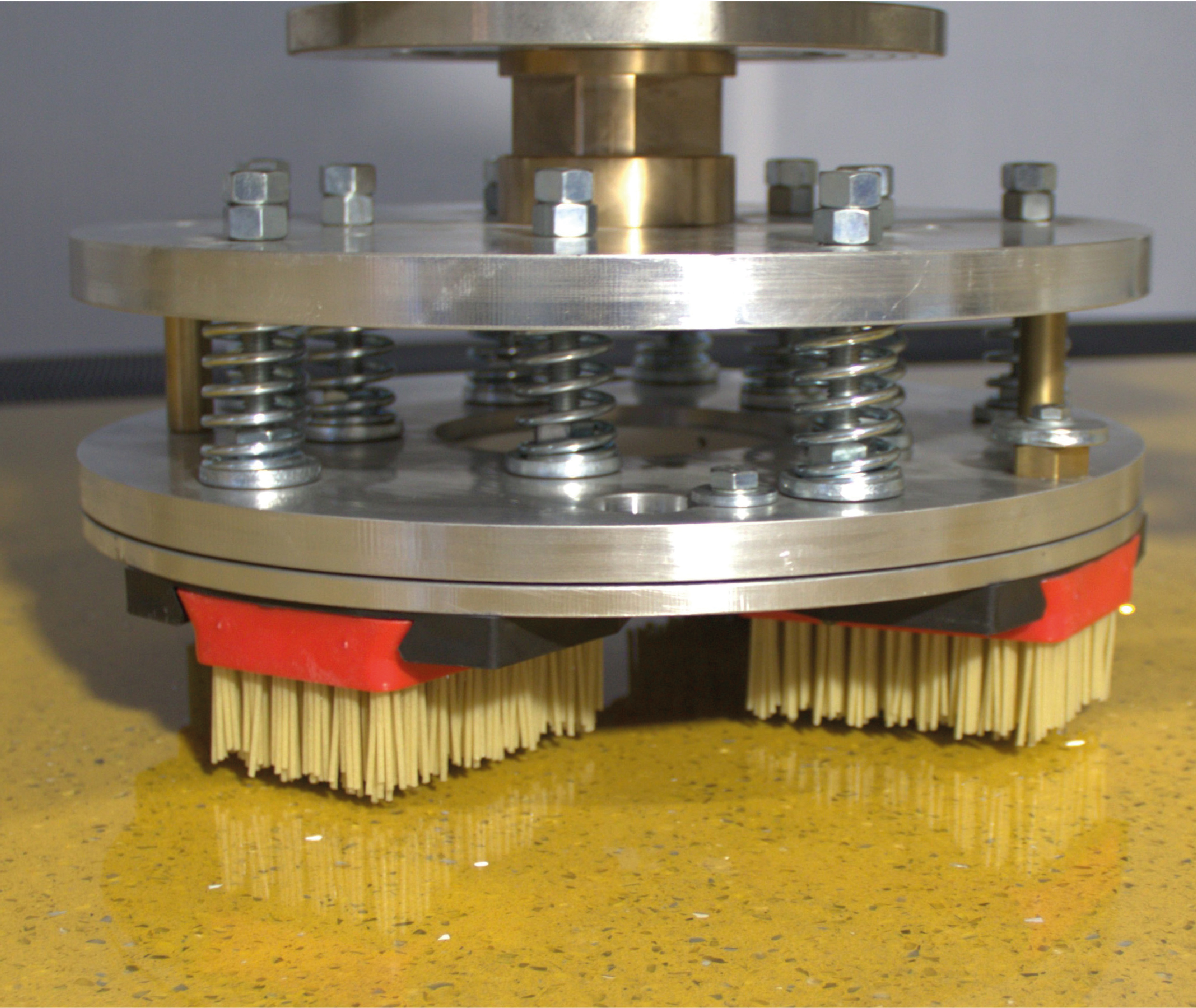

Spring-Loaded head for surfaces honing and leathering.

Suitable for a Ø350 mm quick-connect aluminium plate for 4 Frankfurt abrasive bricks.

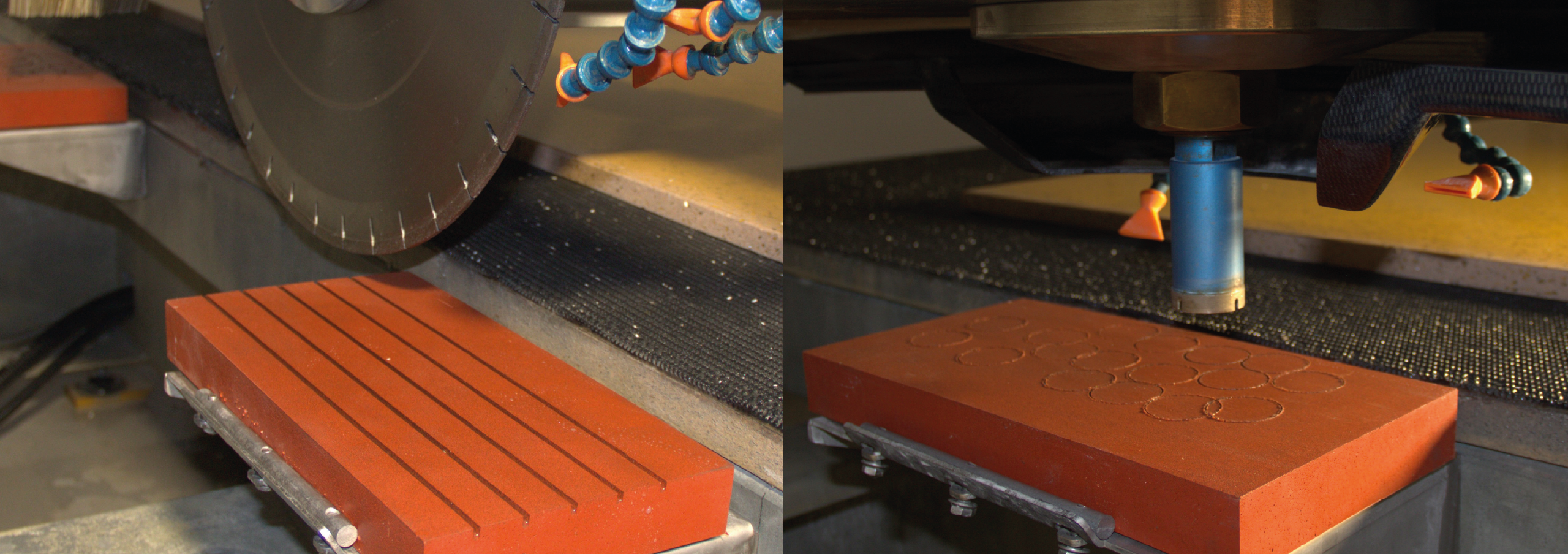

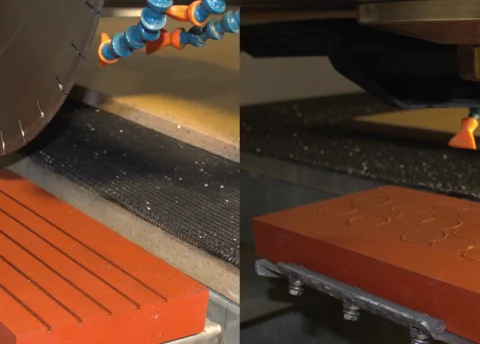

Redressing Devices for Disc and Core Drill including Automatic Management Software

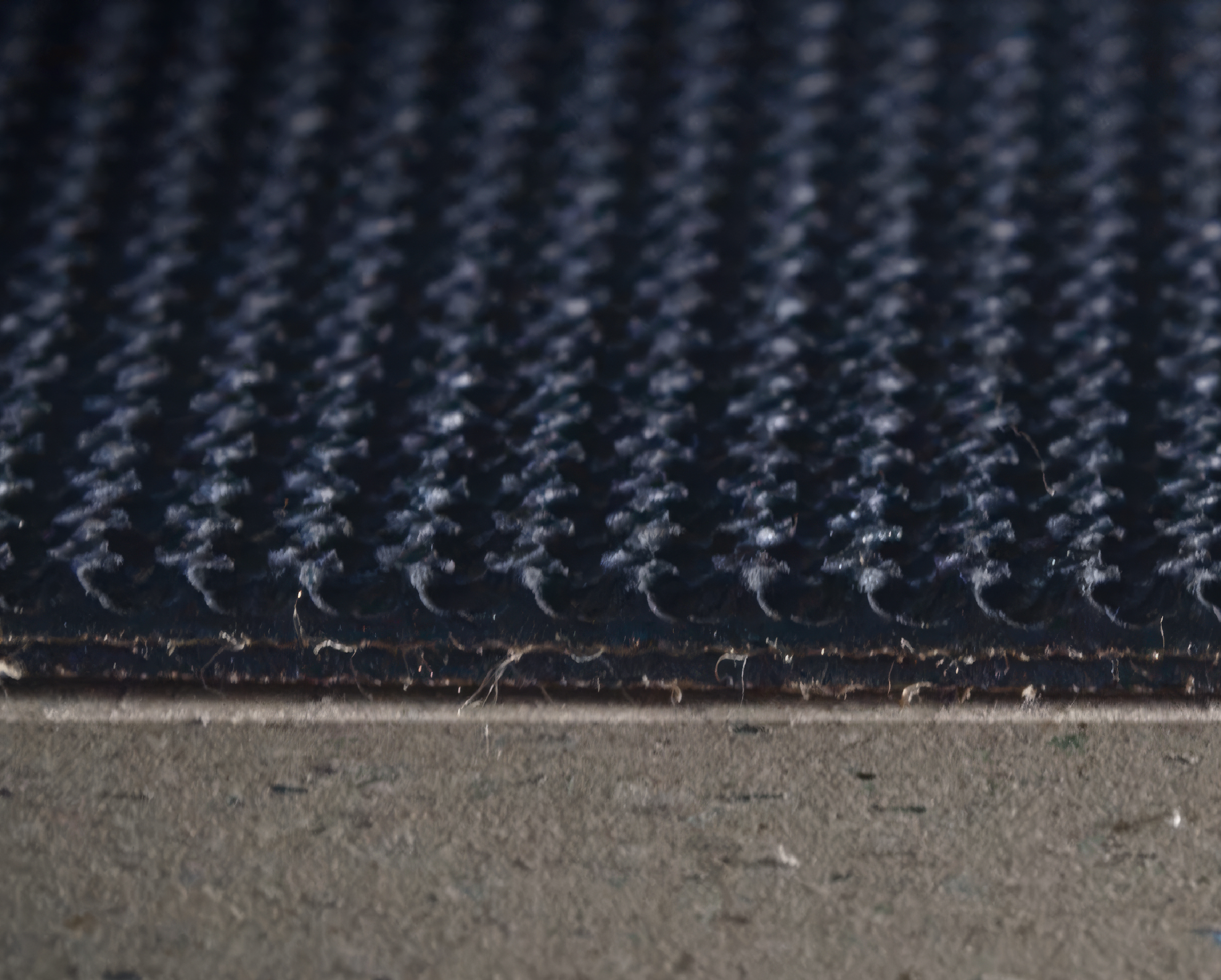

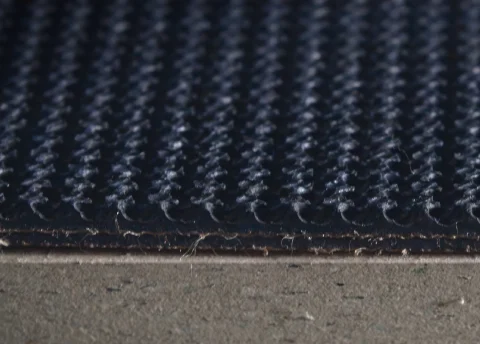

D-Grip Table Cover

Polyurethane table covered by rubber mat. • High density • Not sensitive to moisture • Not decomposable • Mold resistant…

SKEMA

Technologies

What you can do with this machine

Ask for more

Cad-Cam software packages powered by DDX

For multi-tasking programming of the fully automatic working cycles, both from the machine control panel or from a separate PC.

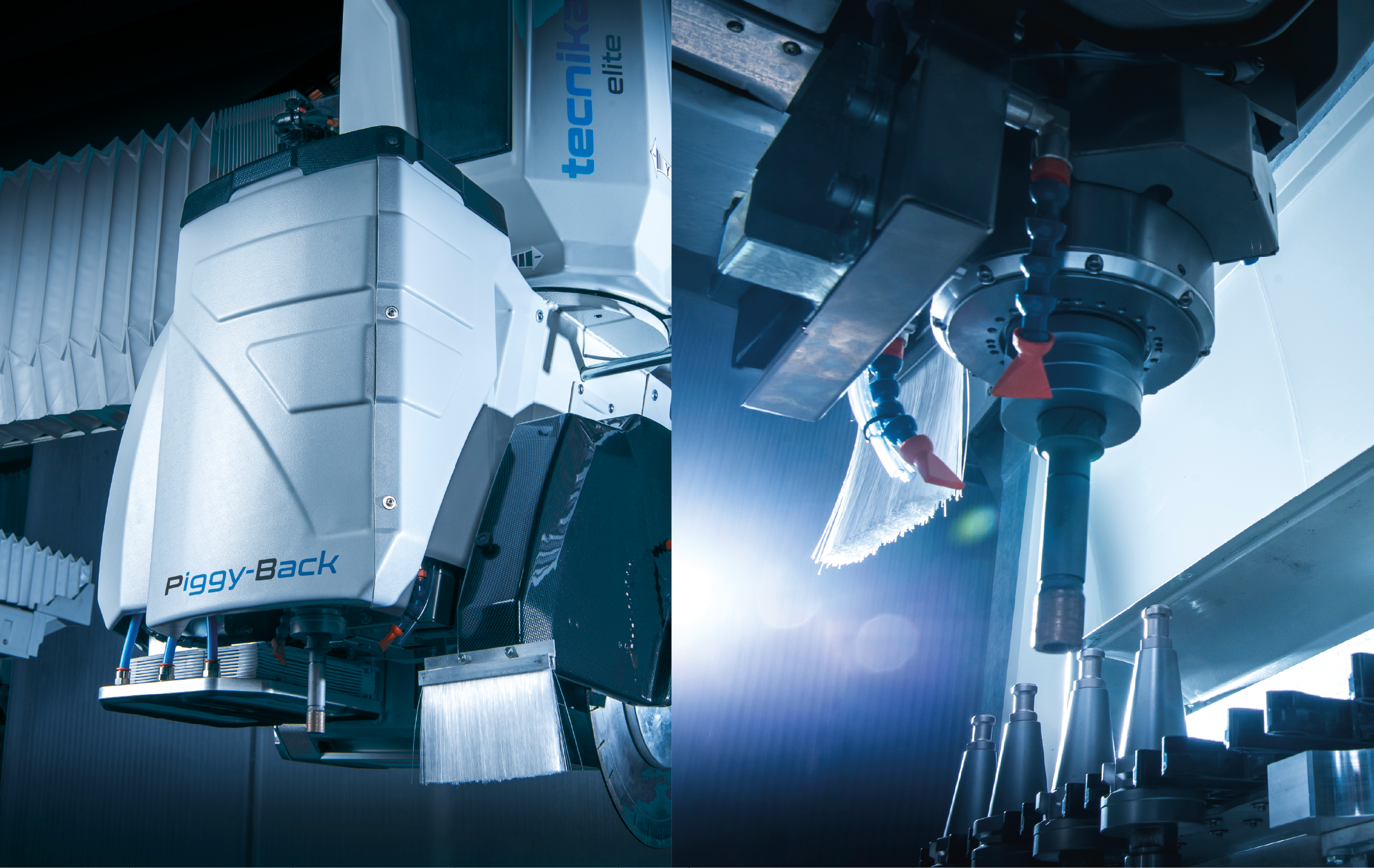

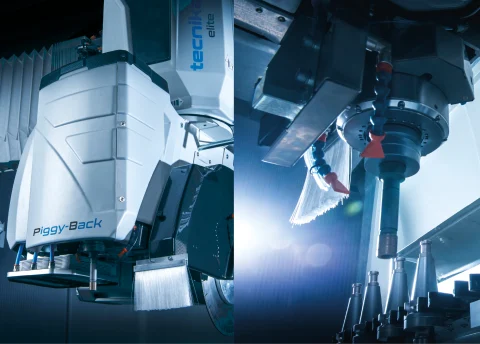

Pigg Back

Piggy-Back allows you to carry out typical CNC operations on your Denver bridge saw. Piggy-Back is an integrated system for…

On board photo software package with camera

For auto workpiece contouring, measuring and vein matching.

Cad-Cam software package for tridimensional processings

Other videos

Frequently asked questions

Find quick answers about configuration, installation and production use.


Where can I find the complete product technical datasheets?

Technical datasheets for all models are available in the Products section of the website. For detailed documentation or technical drawings, you can also contact our sales department.


Are CAD-CAM software packages included with the machine?

Yes, Denver machines are supplied with dedicated CAD-CAM software already configured. The license, training and updates are included in the standard supply package.
